PV Solar Connector

 /Solar Male Female Connector 1500v Solar Connector MC4 Female Connector MC4 Male Connector

MC4 Pv Connector Chinese Factory
MC4 Pv Connector Chinese Factory MC4 Pv Connector Chinese Factory MC4 Pv Connector Chinese Factory MC4 Pv Connector Chinese Factory MC4 Pv Connector Chinese Factory

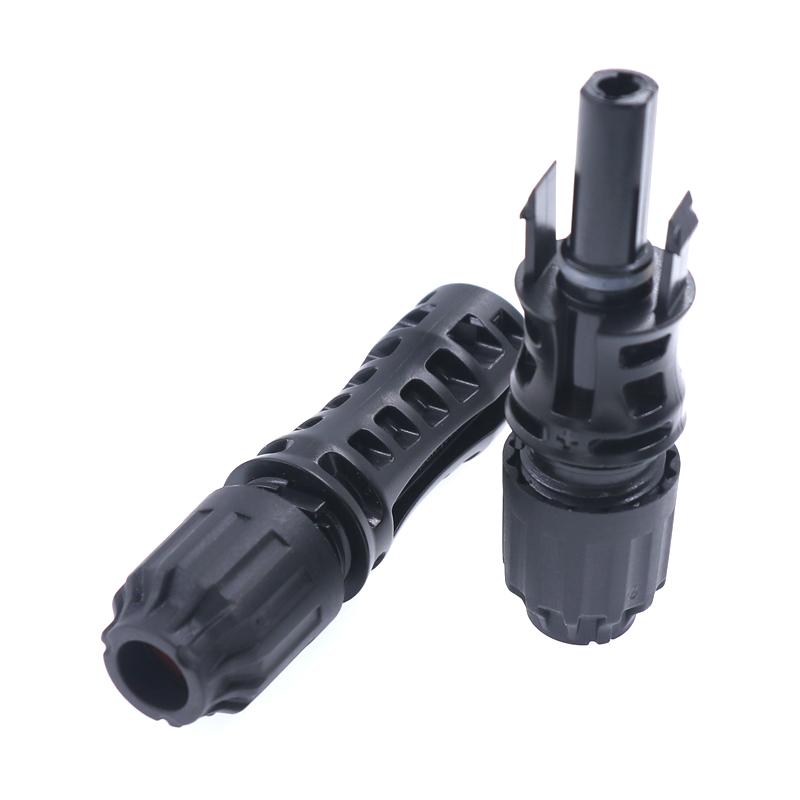

Solar Male Female Connector 1500v Solar Connector MC4 Female Connector MC4 Male Connector

The MC4 Photovoltaic Connector Is The Most Used Special Connector In The Solar Photovoltaic Power Generation System, And It Is An Indispensable And Important Component Of The Solar Power Generation System.

  • Brand:

    OLINK

  • Item no.:

    PV-LTN4

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

This connector is a special connector when solar photovoltaic panels are connected in series to form an array module. The working voltage can reach 1500V, and it is an indispensable connection component for photovoltaic systems.


  Feature Of PV Solar Connector

  • It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use.

  • The shell has strong anti-aging and ultraviolet resistance.

  • The cable connection is connected by compression and tightening.

  • The male and female heads are fixed with a stable self-locking mechanism.

  • Open and close freely.


  Drawings Of Solar Panel Connector Plugs

  Technical Data For Photovoltaic Connector

Connector System:
  φ4mm Temperature range:
  -40℃...+90℃
Rated Voltage:   1500 V DC Rated current:   30 A / 50 A (1.5 mm²~6 mm²)
Degree of protection, mated:   IP67 Unmated:   IP2X
Contact resistance of plug Connectors:   0.5 mΩ Contact material:   Snap-in
Locking system:  Messing, verzinnt  Copper Alloy, tin plated
 Insulation material:    PC/PV
Flame class:   UL-94-V0 Salt mist spray test, degree of severity 5:   IEC 60068-2-52

 More Photovoltaic Connectors









PV-M01(1000V)
PV-N01(1500V)
PV-M02(1000V)
PV-M04-2(1000V)
PV-N04(1500V)
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
