PV Solar Connector

 /MC4 Solar Connector T-Branch 3 To 1 Splitter MMMF + FFFM Pair

MC4 3 To 1 Connectors
MC4 3 To 1 Connectors MC4 3 To 1 Connectors MC4 3 To 1 Connectors MC4 3 To 1 Connectors

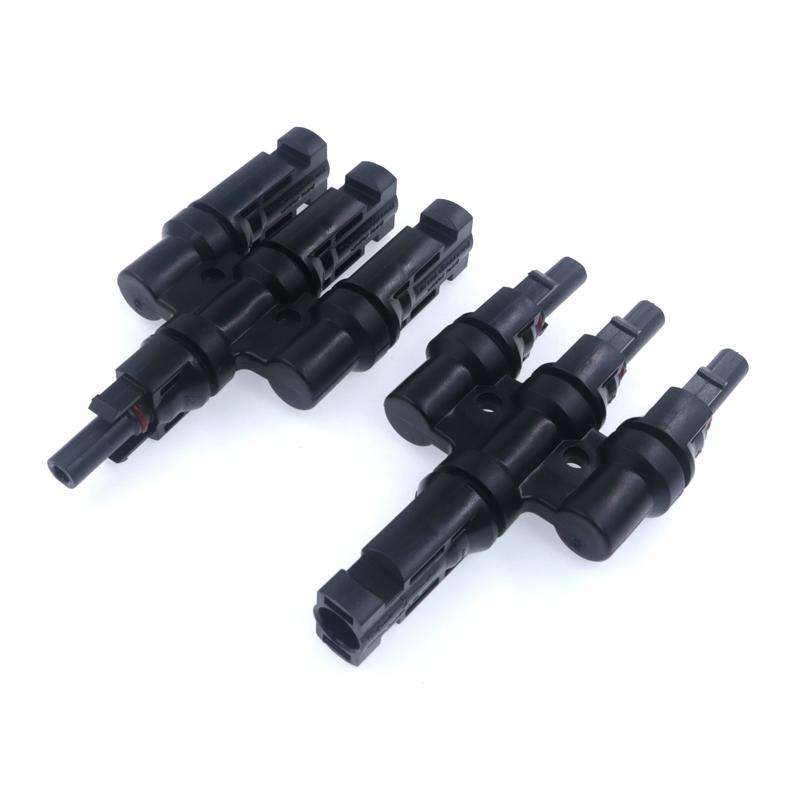

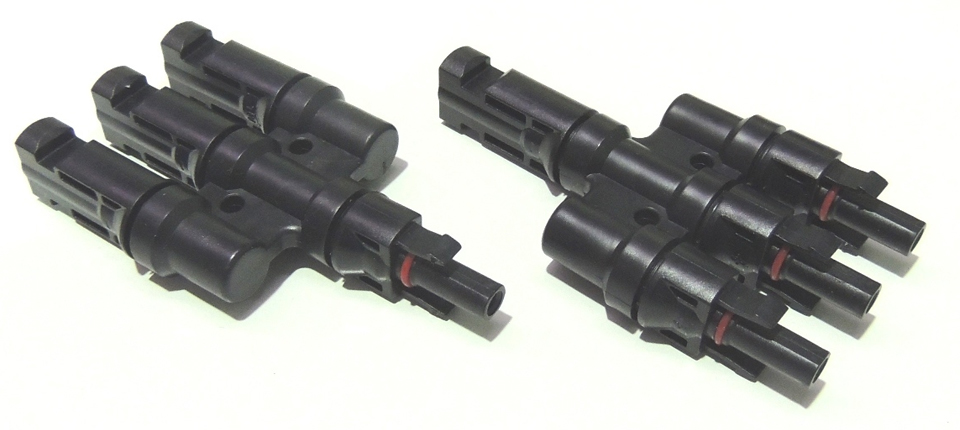

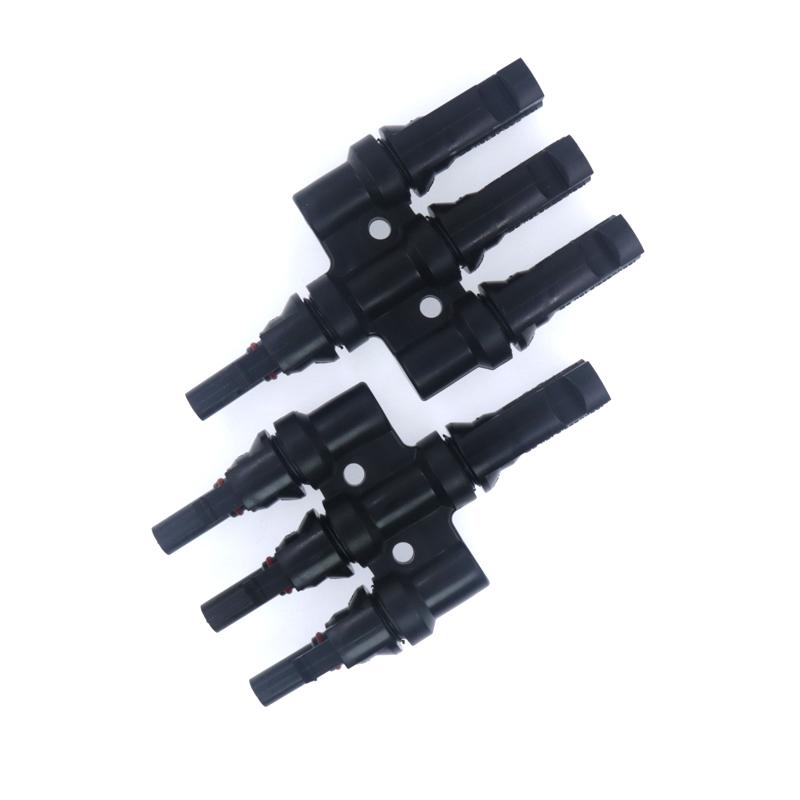

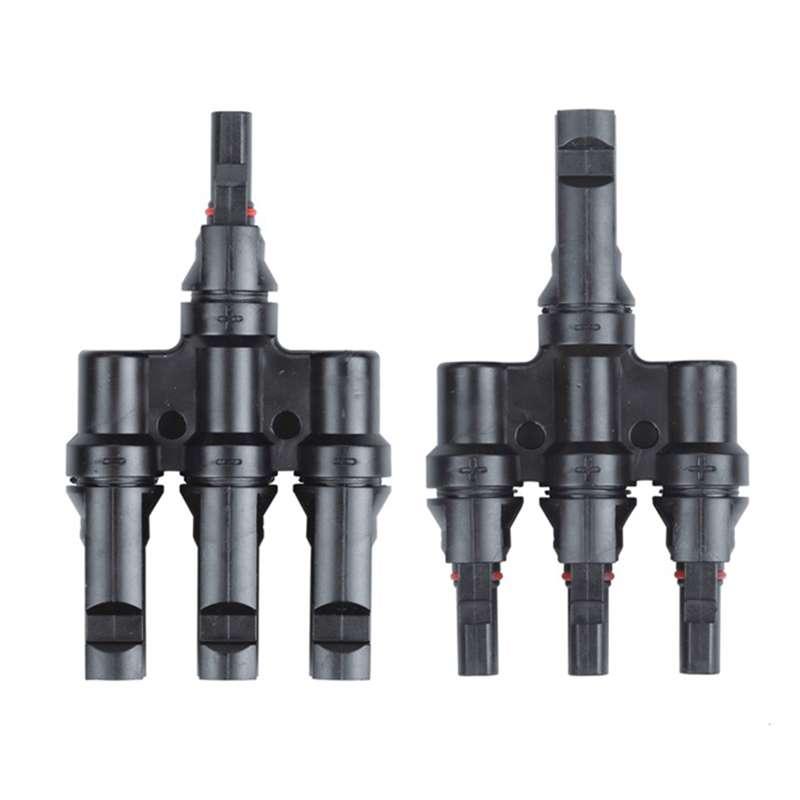

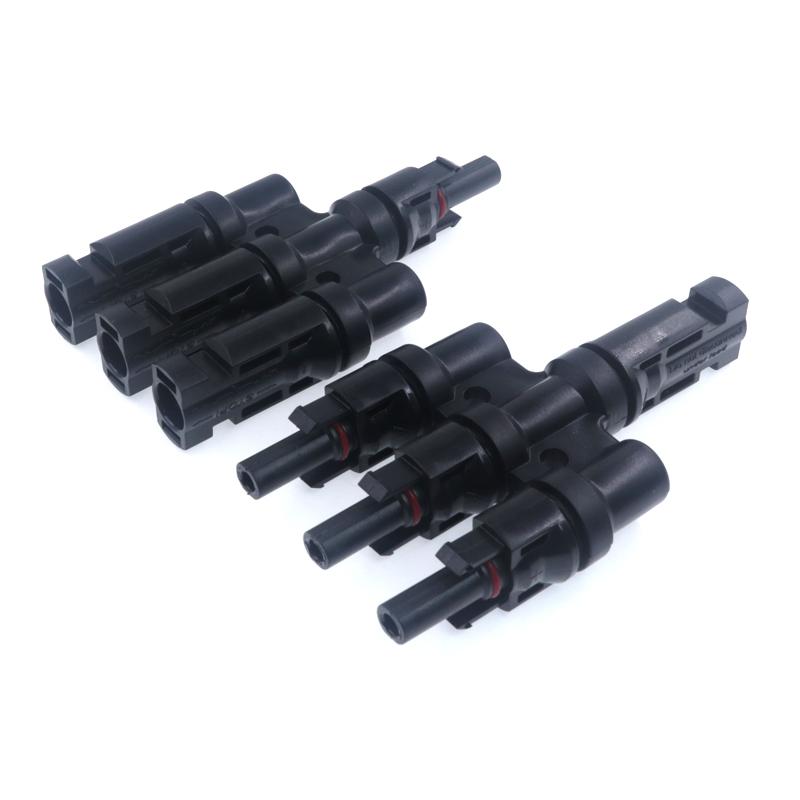

MC4 Solar Connector T-Branch 3 To 1 Splitter MMMF + FFFM Pair

One Pair Of MC4 3 To 1 T-Branch Connectors For Solar Panels. Includes Both MMMF And FFFM. Used For Parallel Connection Between Panels And Maintain The Voltage Of Your Panel Configuration.


  • Brand:

    OLINK

  • Item no.:

    PV-LT3

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen

  • Lead Time:

    7
Inquiry now

MC4 solar Connector T-Branch 3 to 1 Splitter MMMF + FFFM Pair


  Description Of MC4 T Branch connector

The MC4 system consists of a plug and socket design. The plugs and sockets are inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female.

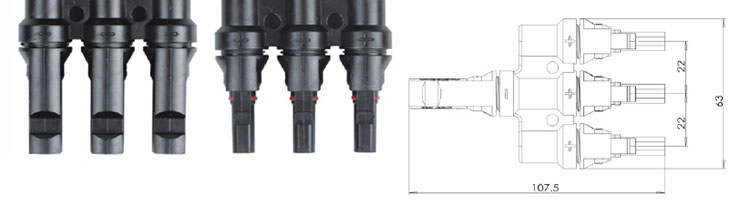

  Drawings Of 3 In 1 MC4 Connector

  Technical Data For 3 In 1 MC4 Connector

Product name   T branch Connector
Rated voltage   1500V DC（IEC）
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


More T-Branch Type Solar Connectors







PV-T2
PV-T4
PV-T5
PV-T6

*For more information, please contact us by email or through any contact information on the webpage.
