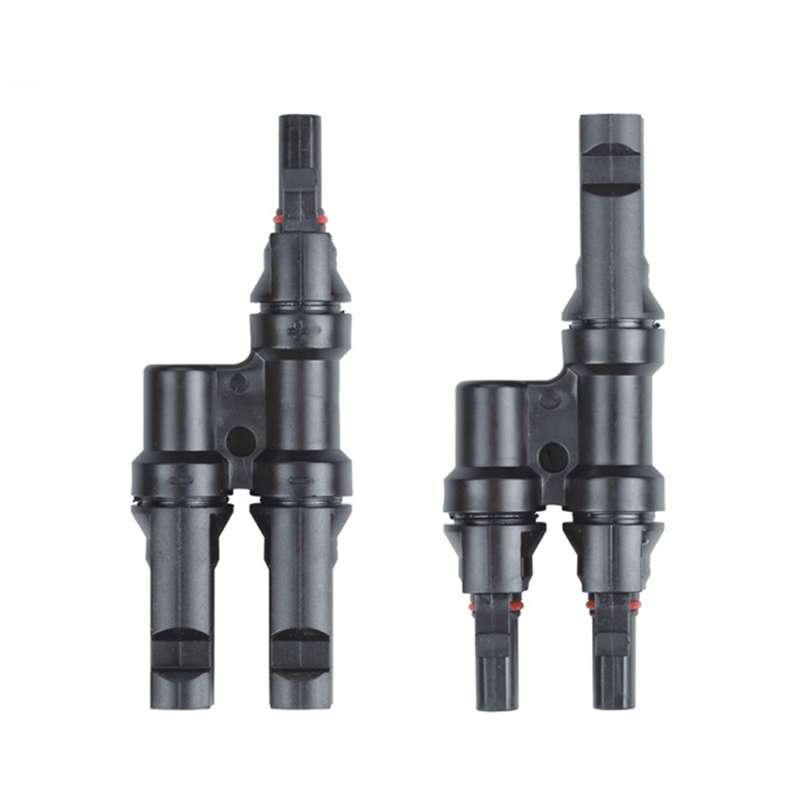

Solar MC4 Connector T-Branch 2 to 1 Splitter MMF + FFM Pair

One pair of MC4  T Connectors for solar panels. Includes both MMF and FFFM. Used for parallel connection between panels while maintaining the voltage of your panel configuration


  • Brand:

    OLINK
  • Item no.:

    PV-LT2
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

Solar MC4 Connector T-Branch 2 to 1 Splitter MMF + FFM Pair


  Description Of MC4 T-Branch Connector

The MC4 system consists of a plug and socket design. The plugs and sockets are inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female.


  Drawings Of MC4 2 To 1 Connector


Technical Data For 2 In 1 MC4 Connector

Product name   T branch Connector
Rated voltage   1500V DC(IEC)
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


More T-Branch Type Solar Connectors







PV-T3
PV-T4
PV-T5
PV-T6
*For more information, please contact us by email or through any contact information on the webpage.
