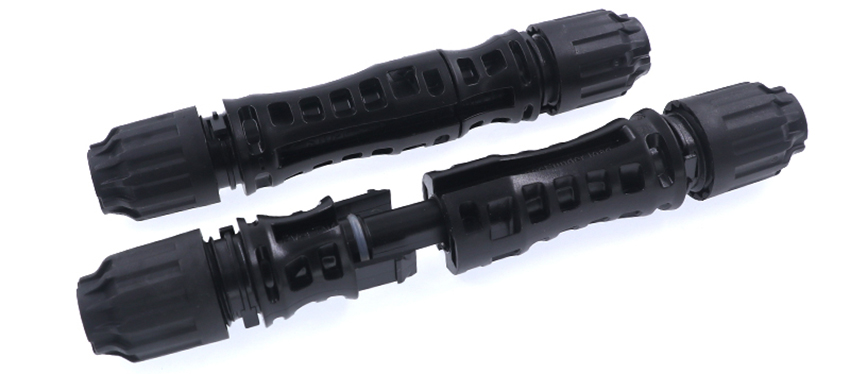

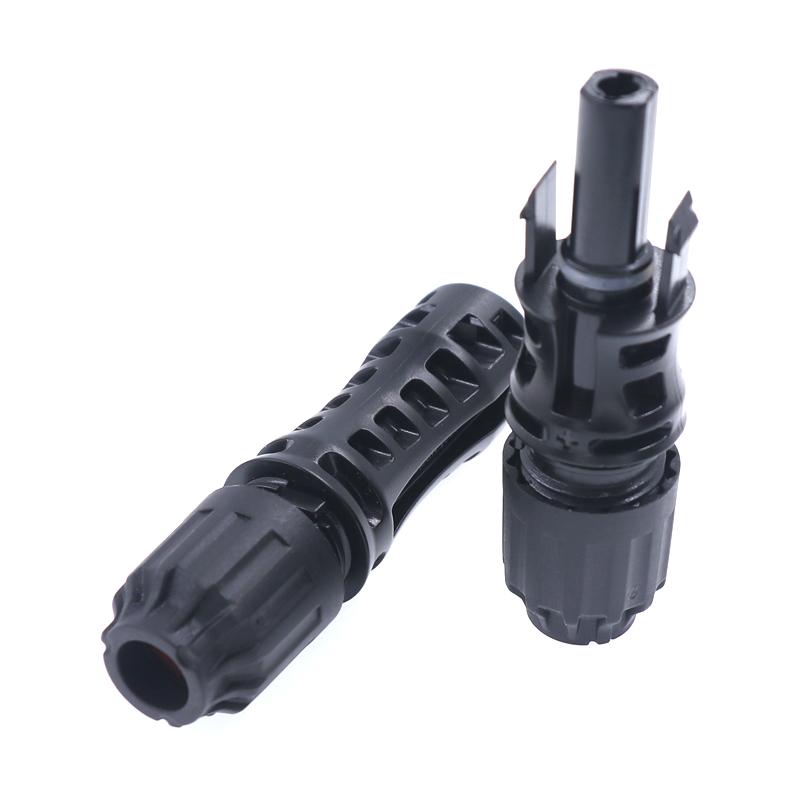

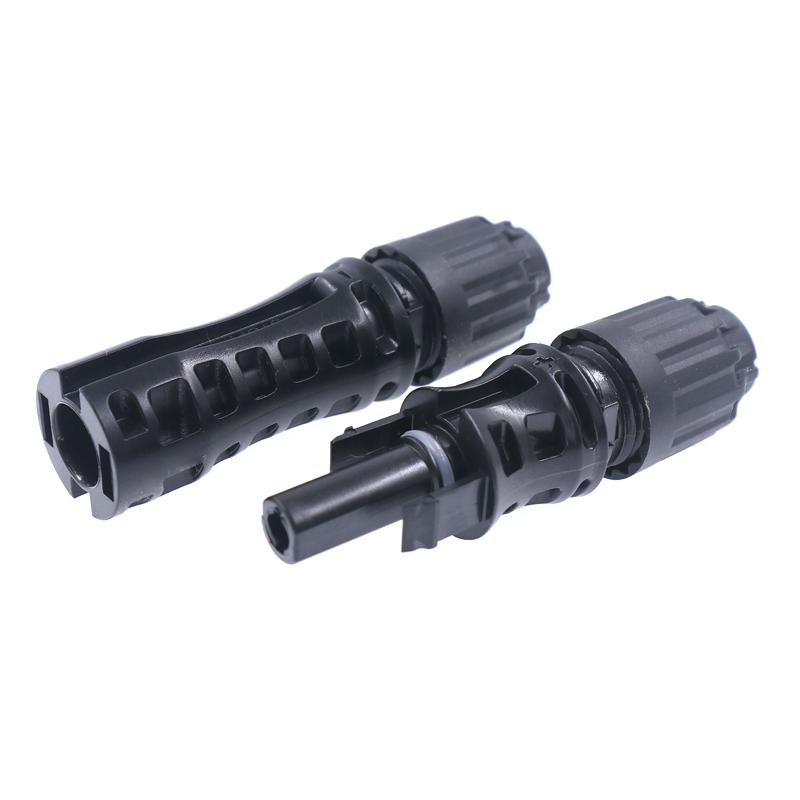

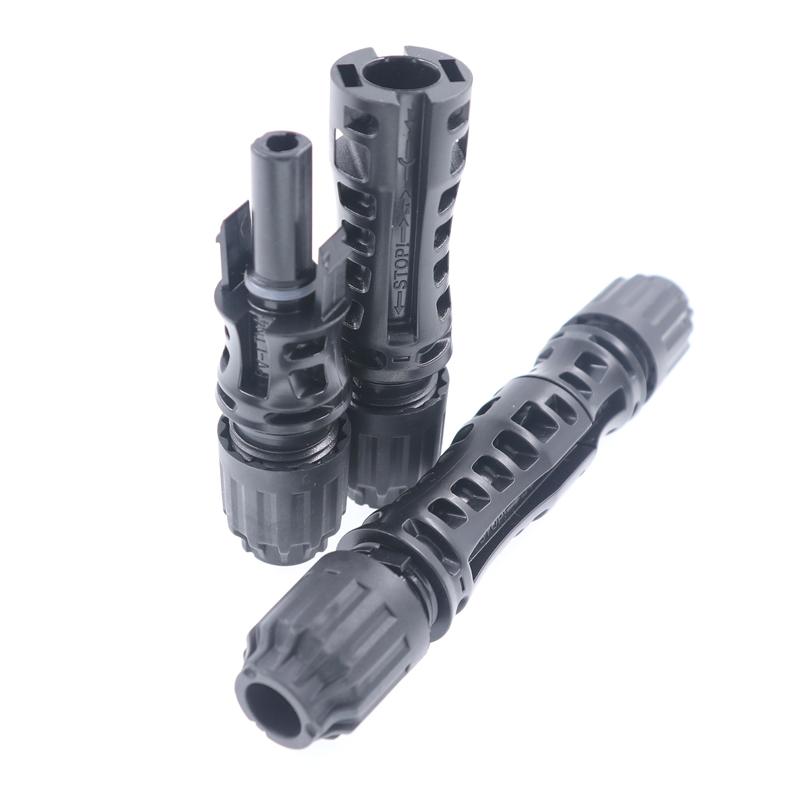

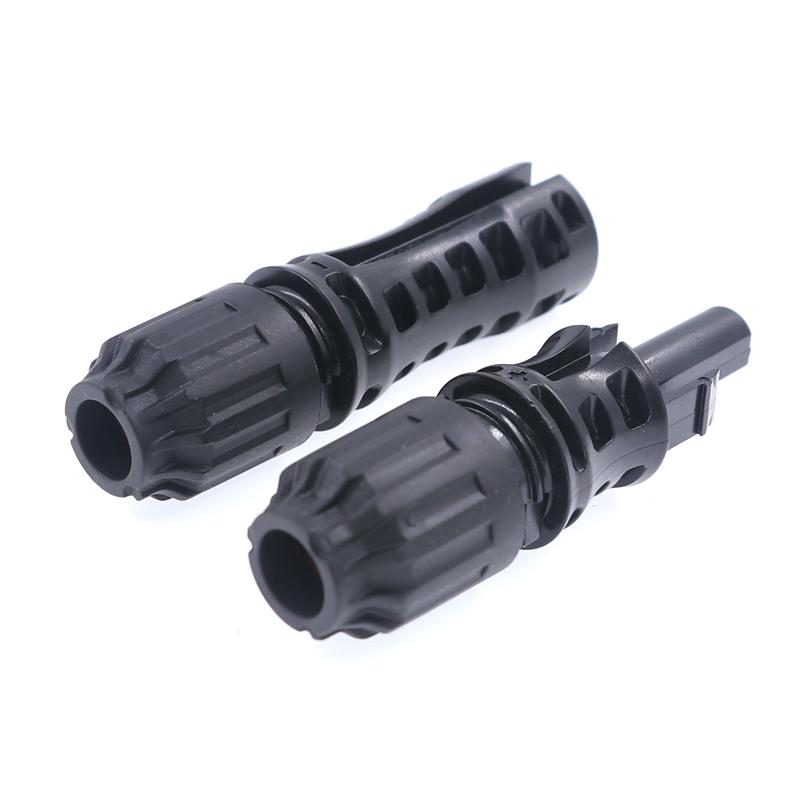

The EVO2 MC4 Connector Can Support Wires Of <10AWG (6mm2) And Has A Rated Withstand Voltage Of 1500V. It Is The Most Used Connector In Photovoltaic Systems. Can Be Made Into Cable Assemblies As Required.
Brand:
OLINKItem no.:
PV-LTN4Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
BlackGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:
7The EVO2 MC4 Connector Can Support Wires Of <10AWG (6mm2) And Has A Rated Withstand Voltage Of 1500V. It Is The Most Used Connector In Photovoltaic Systems. Can Be Made Into Cable Assemblies As Required.
Feature Of PV Solar Connector
It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use.
The shell has strong anti-aging and ultraviolet resistance.
The cable connection is connected by compression and tightening.
The male and female heads are fixed with a stable self-locking mechanism.
Open and close freely.
| Drawings Of Solar Panel Connector Plugs |
Technical Data For Photovoltaic Connector
|
Connector System: |
φ4mm |
Temperature range: |
-40℃...+90℃ |
| Rated Voltage: | 1500 V DC | Rated current: | 30 A / 50 A (1.5 mm²~6 mm²) |
| Degree of protection, mated: | IP67 | Unmated: | IP2X |
| Contact resistance of plug Connectors: | 0.5 mΩ | Contact material: | Snap-in |
| Locking system: |
Messing, verzinnt Copper Alloy, tin plated |
Insulation material: | PC/PV |
| Flame class: | UL-94-V0 | Salt mist spray test, degree of severity 5: | IEC 60068-2-52 |
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
