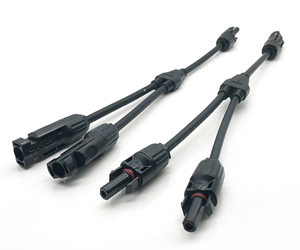

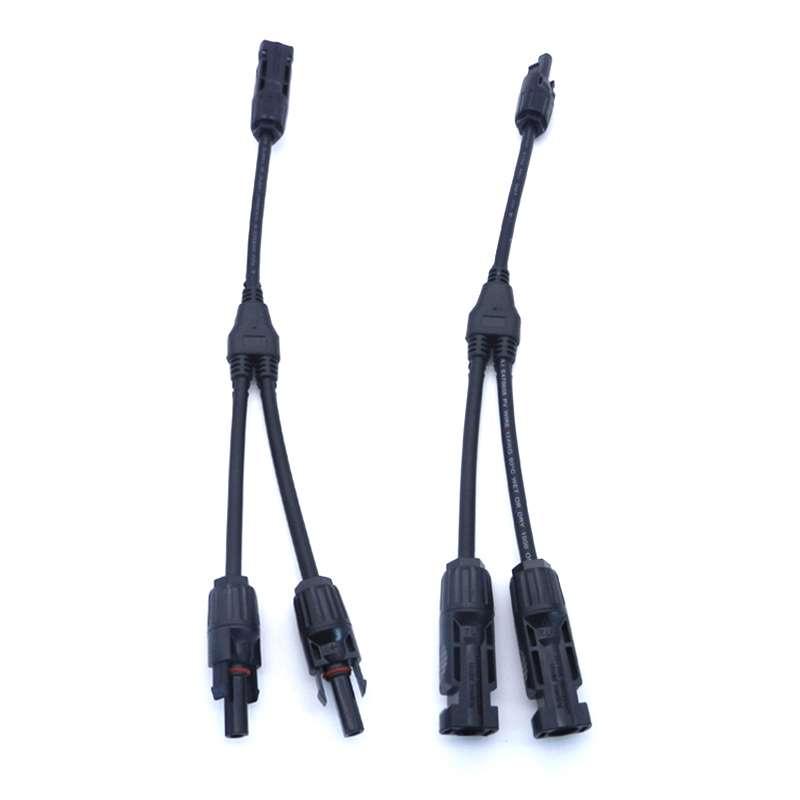

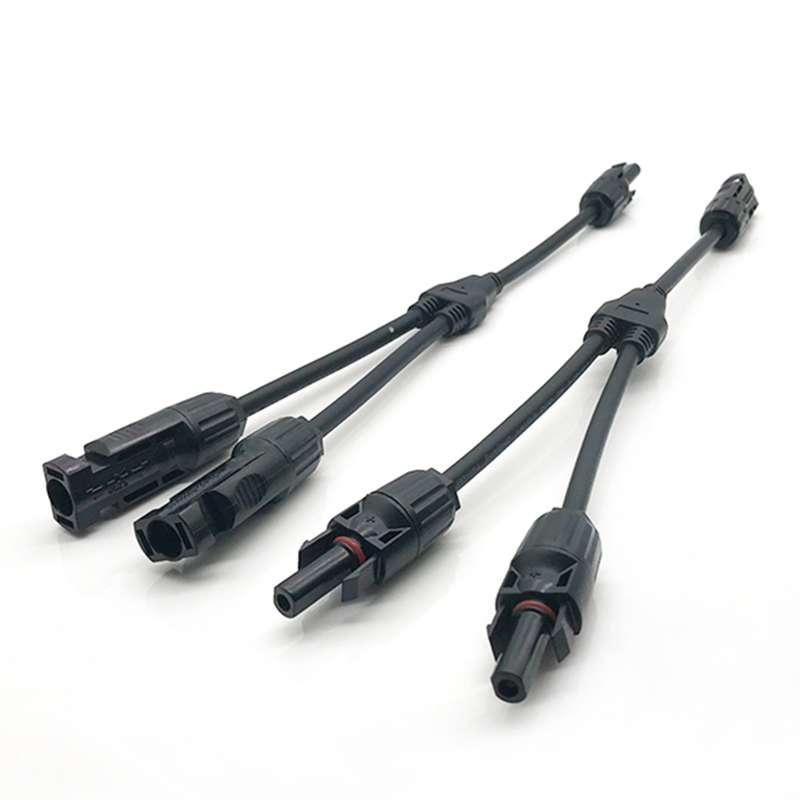

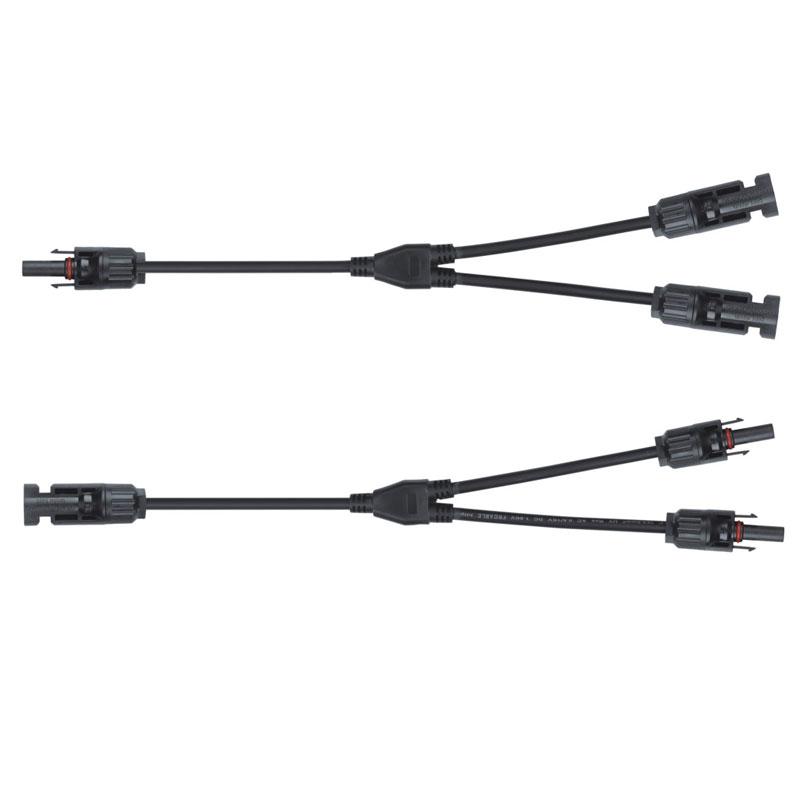

MC4 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules. Available in either 2 female to 1 male, or 2 male to 1 female, and pluggable with single-pole MC4 connectors
Brand:
OLINKItem no.:
PV-LTY2Payment:
Wire transfer, Paypal, Western Union, AlipayProduct origin:
ChinaColor:
BlackGoods stock:
50000Shipping port:
XiamenLead Time:
7The MC4 System Consists Of A Plug And Socket Design. The Plugs And Sockets Are Inside Plastic Shells That Appear To Be The Opposite Gender - The Plug Is Inside A Cylindrical Shell That Looks Like A Female Connector But Is Referred To As Male, And The Socket Is Inside A Square Probe That Looks Male But Is Electrically Female.

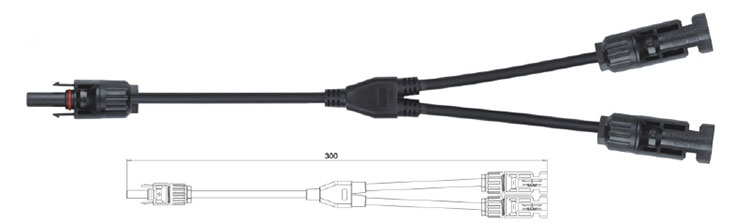

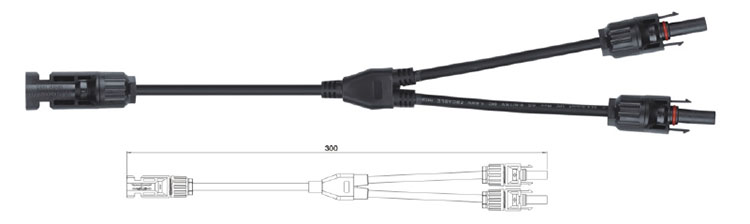

| Drawings Of Solar Connector Type |
Technical Data For MC4 Y Connector
17A(1.5MM2)
22A(2.5MM2, 14AWG)
30A(4mm2, 6mm2, 12AWG, 10Awg)
Product name
Y branch Connector
Rated voltage
1000V DC（IEC）
Rated currect
Degree of protection mated
IP67
Insulation material
PC/PPO
Locking system
Snap-in
Flame class
UL-94-V0
Contact material
Messing, Verzinnt copper alloy, tin-plated
FAQ
How many amps can a MC4 connector handle?
Under normal circumstances, the MC4 connector normally uses 10~12AWG wires, and the maximum rated current is about 30A.
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
More Y Branch Solar Connectors
PV-Y2

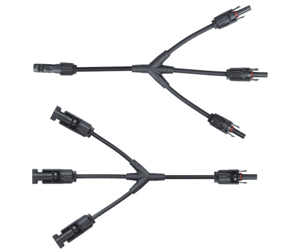

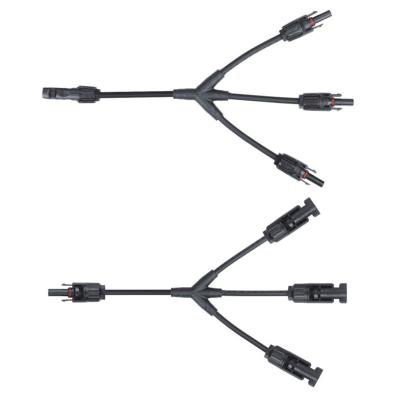

PV-Y3

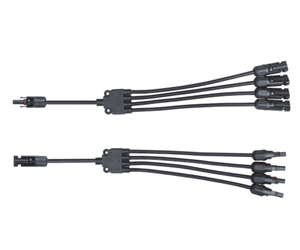

PV-Y4
The Regular Model Is A 1000V Plug. 1500V Plug And Cable Length Can Be Customized.
