PV Solar Connector

 /High quality waterproof solar PV connector for solar system

high quality waterproof solar connector
high quality waterproof solar connector high quality waterproof solar connector high quality waterproof solar connector high quality waterproof solar connector high quality waterproof solar connector

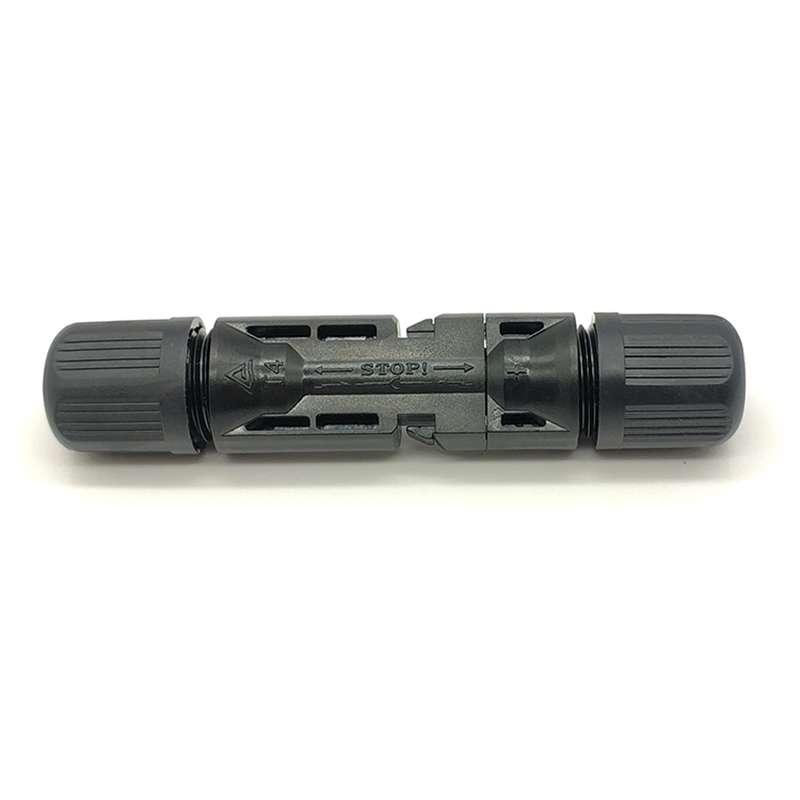

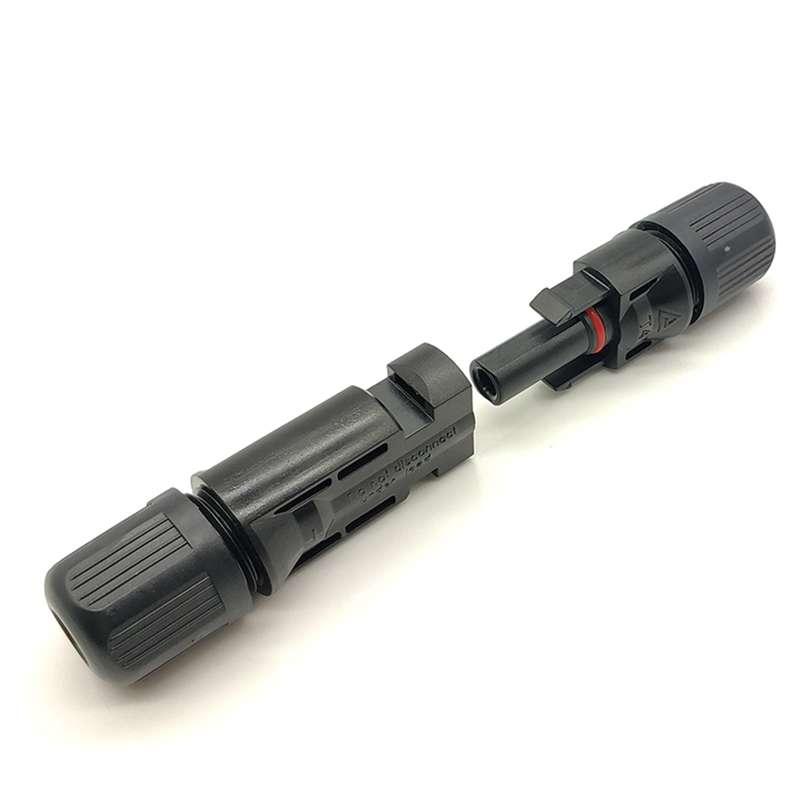

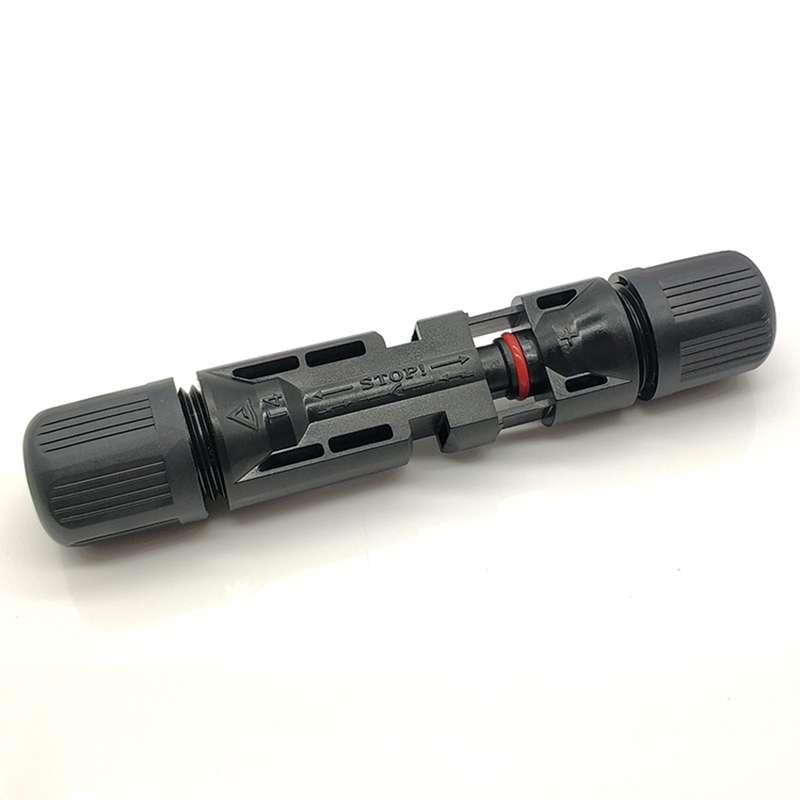

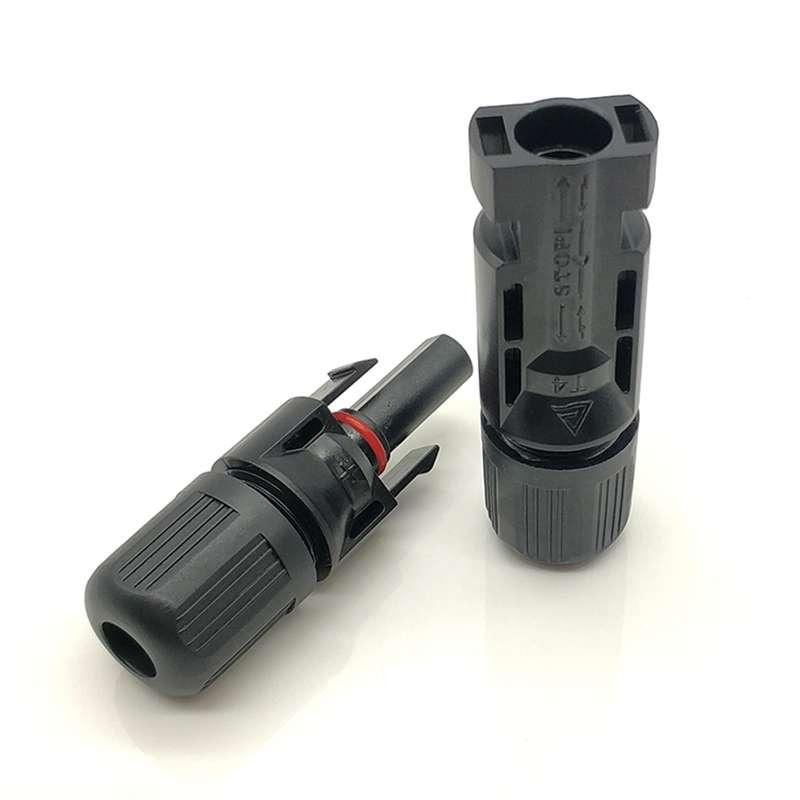

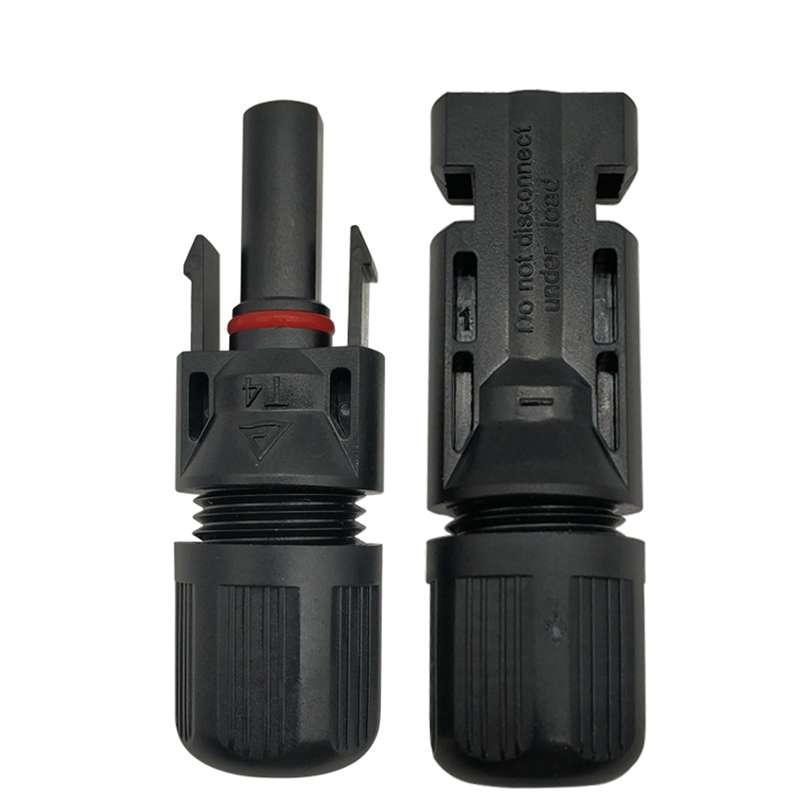

High quality waterproof solar PV connector for solar system

It truly realizes "plug and play". The insulating material uses hard plastic (PC/PPO), which is easier to assemble and install on site in design.

  • Brand:

    OLINK

  • Item no.:

    PV-LTM4

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

 Our Solar PV Connector Can Replace Original MC4(Multi-Contact 4) Connector. There Are Many Different Types, Like Y Type, T Type Etc. They Are Waterproof, High Temperature Resistant, Weather Resistant To Ultraviolet Rays, Touch Protection, And Low Contact Resistance.


  Drawings Of Solar Power Connector

  Technical Data For MC4 Solar Connector

Connector system:
  φ4mm
Rated voltage:   1000 V DC
Rated current:   30 A / 50 A (1.5 mm²~6 mm²)
Temperature range:   -40℃...+90℃
Degree of protection, mated:   IP67
Unmated:   IP2X
Contact resistance of plug connectors:   0.5 mΩ
Contact material:   Messing, verzinnt  Copper Alloy, tin plated
Insulation material:   PC/PPO
Locking system:   Snap-in
Flame class:   UL-94-V0
Salt mist spary test, degree of severity 5:  IEC 60068-2-52


  Feature of PV Solar Connector

  • Waterproof grade IP67: adopts high-quality waterproof ring, with waterproof and dustproof effect

  • Thicker copper core, brass tinned inner core: more anti-corrosion, anti-oxidation, and increase service life

  • The shell is made of PPO high-strength material: high heat resistance, low flammable point, wear-resistant and durable

  • Insulation parts: The hole contacting head of the product is equipped with a guiding insulator, which plays a role of guiding and preventing electric shock

  • Standard size: The connection is connected by pressing, and the male and female heads are equipped with self-locking mechanism, which can be opened and closed freely.


 More Photovoltaic Connectors









PV-M01(1000V)
PV-N01(1500V)
PV-M02(1000V)
PV-M04-2(1000V)
PV-N04(1500V)
