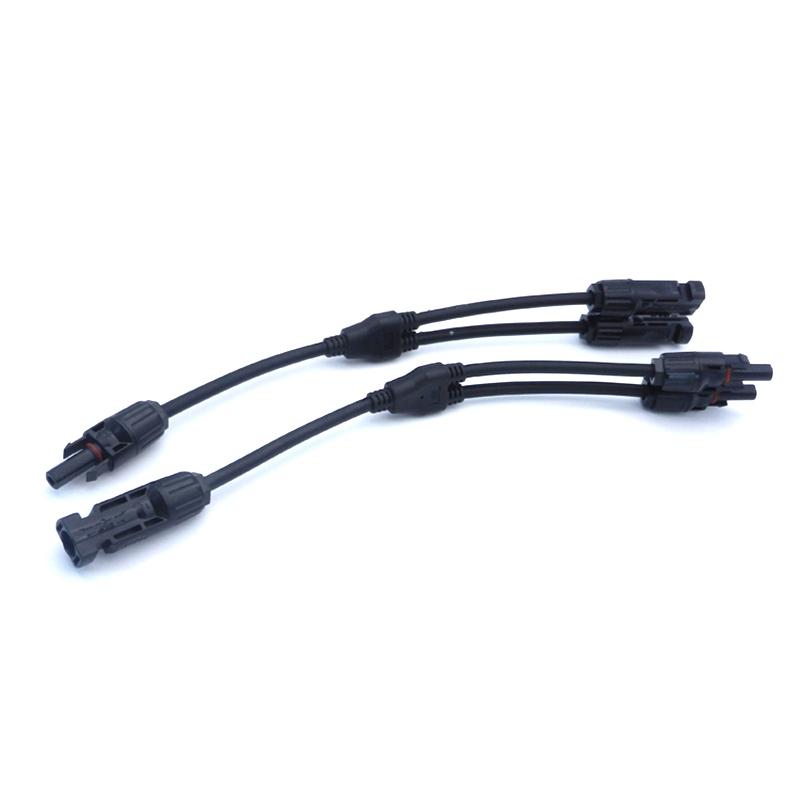

The Y Type Solar MC4 Connector Is An Integrated Photovoltaic Connector With A Cable. It Is Usually Used For Multi-Channel Parallel Connection Into One Output In A Photovoltaic System. There Are Various Cable Sizes That Can Be Customized, The Connection Is Firm, And It Is Easy To Use.
Brand:
OLINKItem no.:
PV-LTY2Payment:
Wire transfer, Paypal, Western Union, AlipayProduct origin:
ChinaColor:
BlackGoods stock:
50000Shipping port:
XiamenLead Time:
5 dayThe Y Type Solar MC4 Connector Is An Integrated Photovoltaic Connector With A Cable. It Is Usually Used For Multi-Channel Parallel Connection Into One Output In A Photovoltaic System. There Are Various Cable Sizes That Can Be Customized, The Connection Is Firm, And It Is Easy To Use.
| Drawings Of Solar Connector Type |
Technical Data For MC4 Y Connector
17A(1.5MM2)
22A(2.5MM2, 14AWG)
30A(4mm2, 6mm2, 12AWG, 10Awg)
Product name
Y branch Connector
Rated voltage
1000V DC（IEC）
Rated currect
Degree of protection mated
IP67
Insulation material
PC/PPO
Locking system
Snap-in
Flame class
UL-94-V0
Contact material
Messing, Verzinnt copper alloy, tin-plated
FAQ
How many amps can a MC4 connector handle?
Under normal circumstances, the MC4 connector normally uses 10~12AWG wires, and the maximum rated current is about 30A.
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
More Y Branch Solar Connectors
PV-Y2
PV-Y3
PV-Y4
The Regular Model Is A 1000V Plug. 1500V Plug And Cable Length Can Be Customized.
