PV Solar Connector

 /Solar inline fuse connector MB01 with different current

Mc4 inline fuse connector
Mc4 inline fuse connector Mc4 inline fuse connector Mc4 inline fuse connector Mc4 inline fuse connector

Solar inline fuse connector MB01 with different current

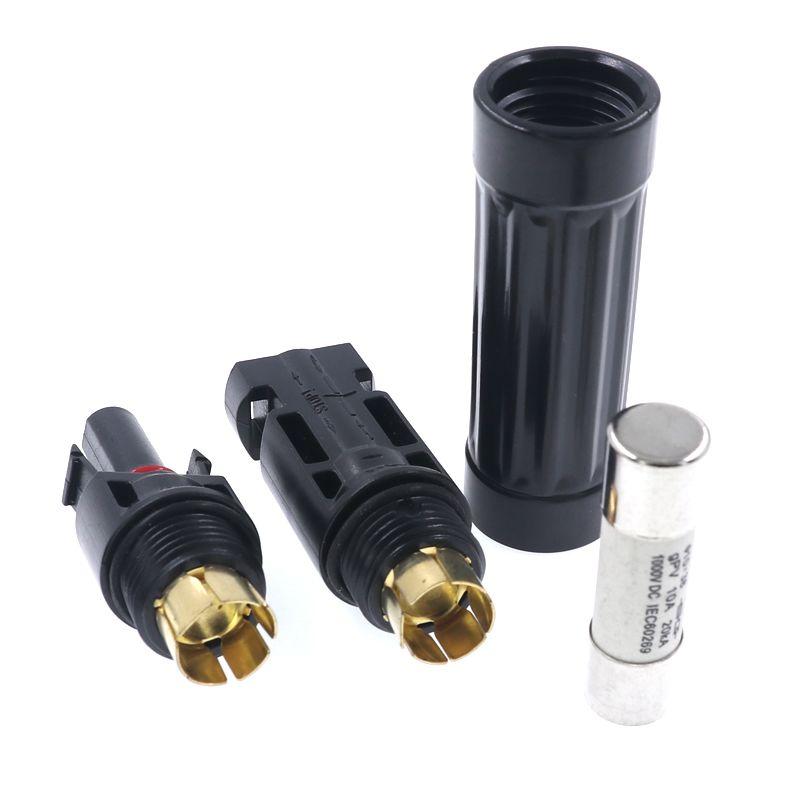

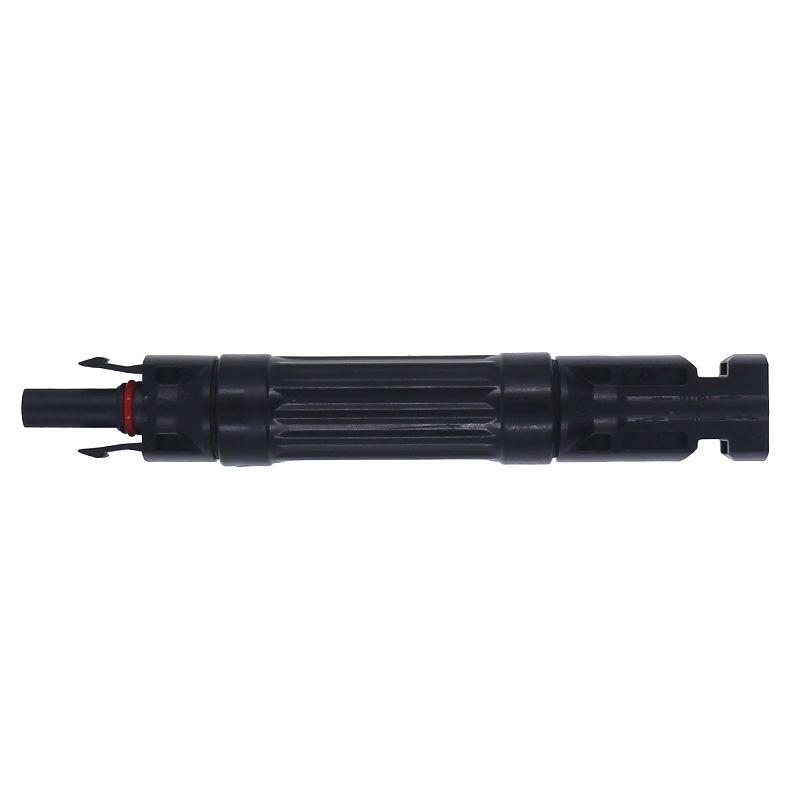

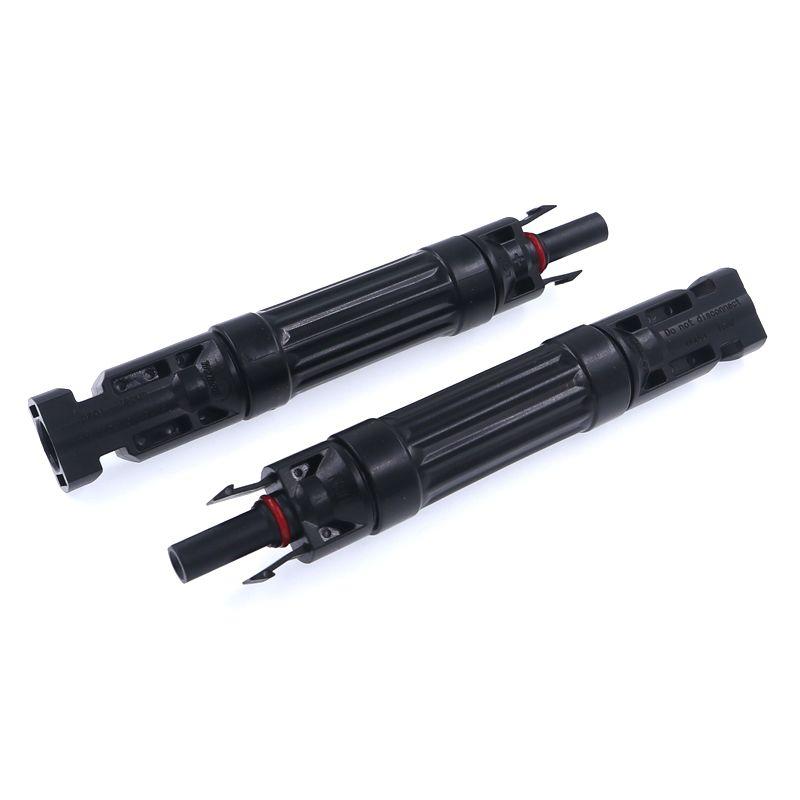

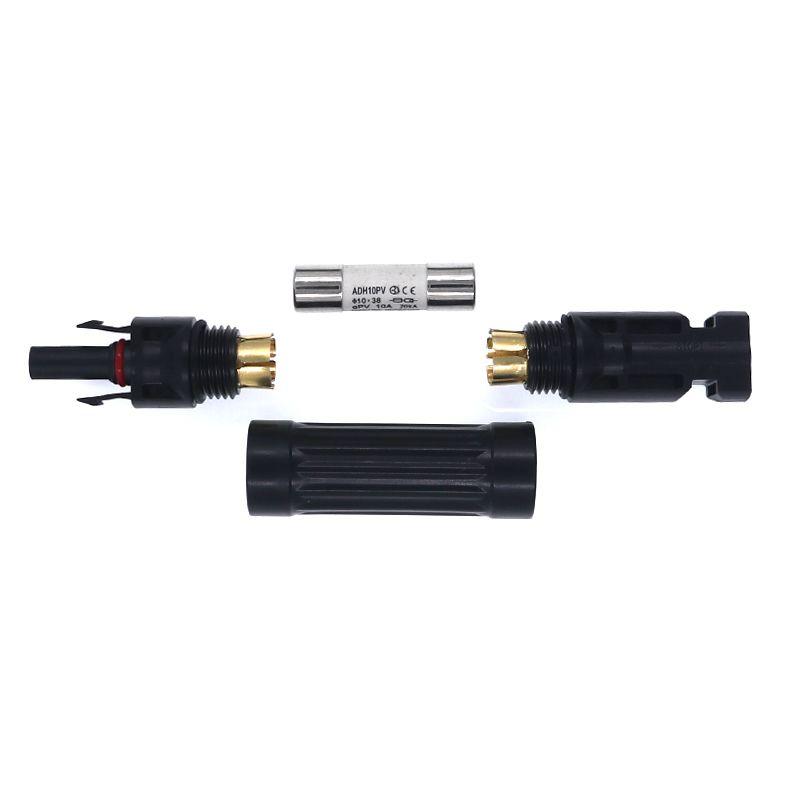

Solar diode photovoltaic connector, it has 10A, 15A, 20A and 30A. It can compatible with MC4 photovoltaic fuse plug.



  • Brand:

    OLINK

  • Item no.:

    PV-MB01

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

Solar inline fuse connector MB01 with different current

  Description of Solar DC Connector

This connector can compatible MC4 connector. It's easy and quick to assembly, can be used outdoors.Different specification of diode replaced on request.

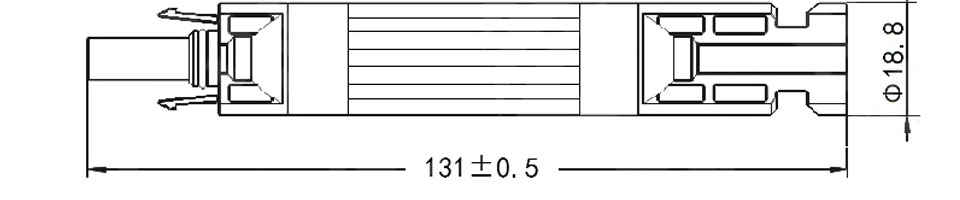

  Drawings of MC4 Inline Fuse Connector

  Technical Data for MC4 Fuse Connector

Connector System:
  φ4mm Temperature range:
  -40℃...+90℃
Rated Voltage:   1000 V DC Rated current:

 10 A        15 A

 20 A        30A

Degree of protection, mated:   IP67 Unmated:   IP2X
Contact resistance of plug Connectors:   0.5 mΩ Contact material:   Snap-in
Locking system:  Messing, verzinnt  Copper Alloy, tin plated
 Insulation material:    PC/PPO
Flame class:   UL-94-V0

Salt mist spray test, degree of severity 5:

 IEC 60068-2-52


  Feature of PV Fuse Connector

  • High-strength protective ring: protection and dust-proof grade reach IP67

  • Stable self-locking structure: It is connected by pressing, and the male and female heads are equipped with self-locking structure, which can be opened and closed freely.

  • Diode: rectifier circuit, detection circuit, voltage stabilizing circuit, only allow current to pass in a single direction, and block in the reverse direction
