PV Solar Connector

 /DC 1000V solar branch wiring connector T4

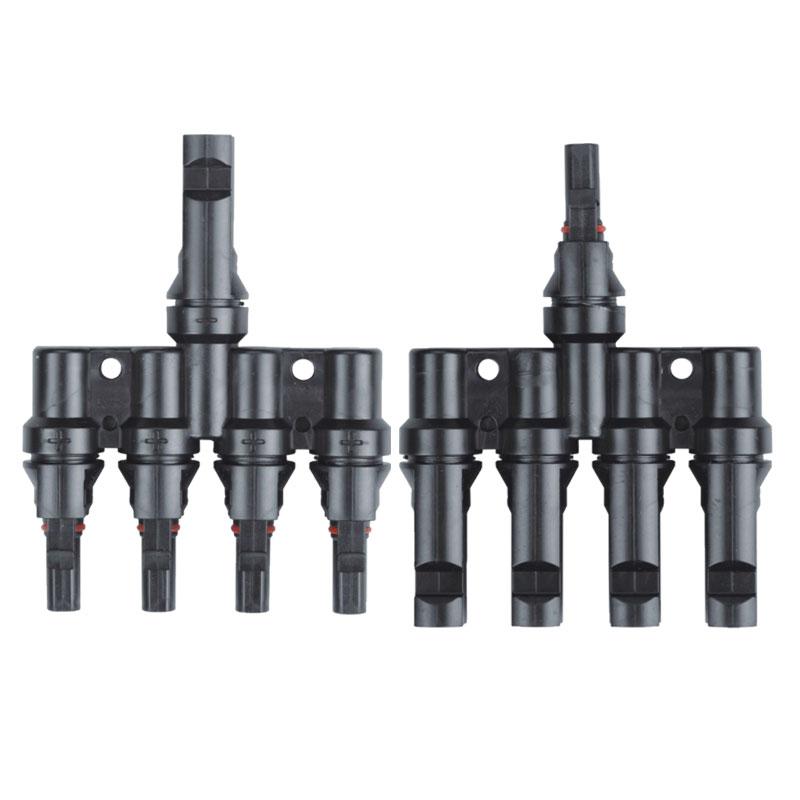

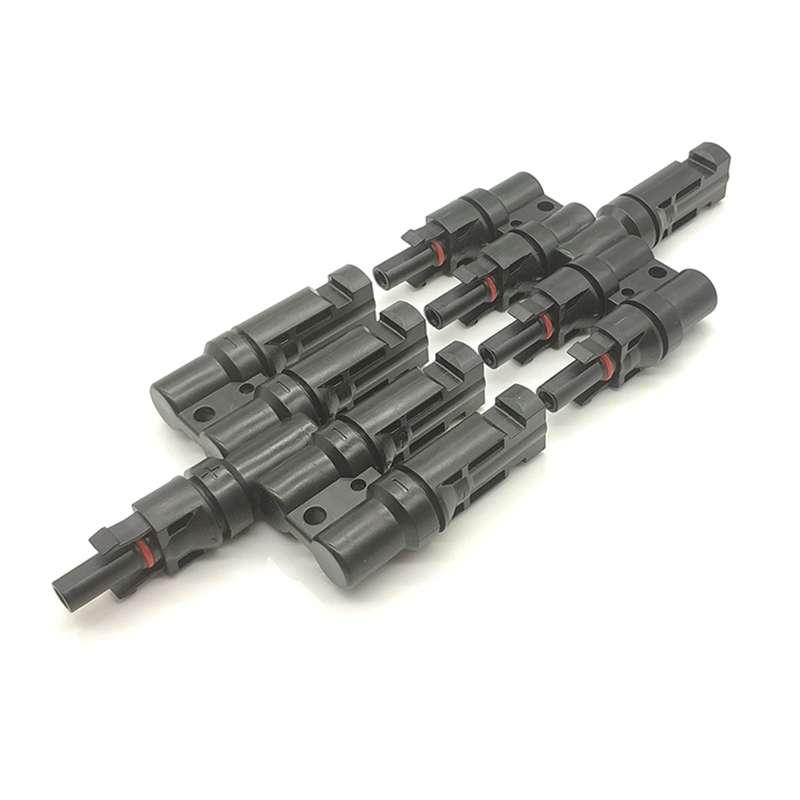

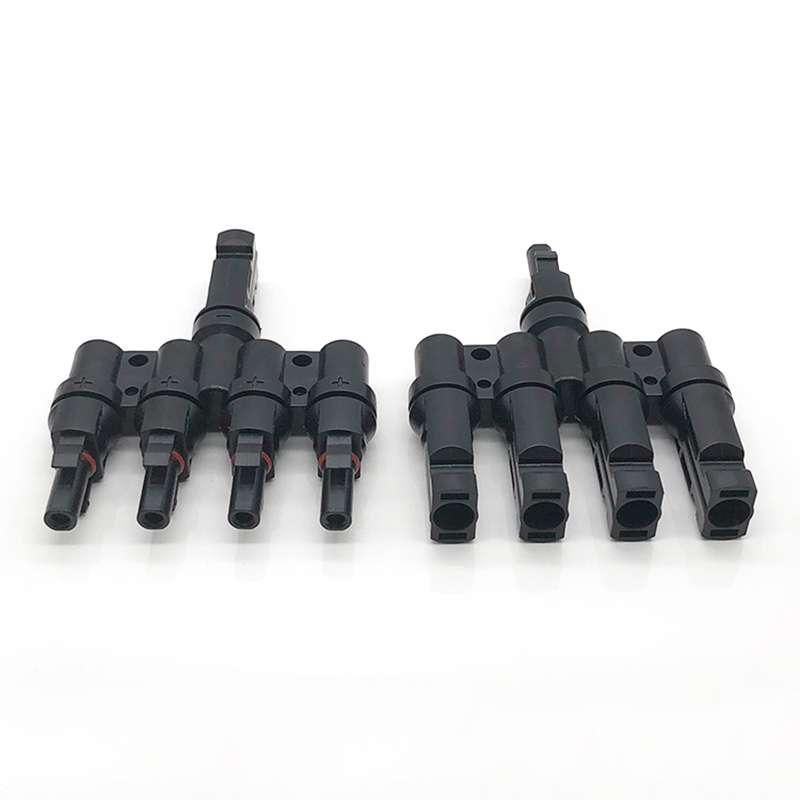

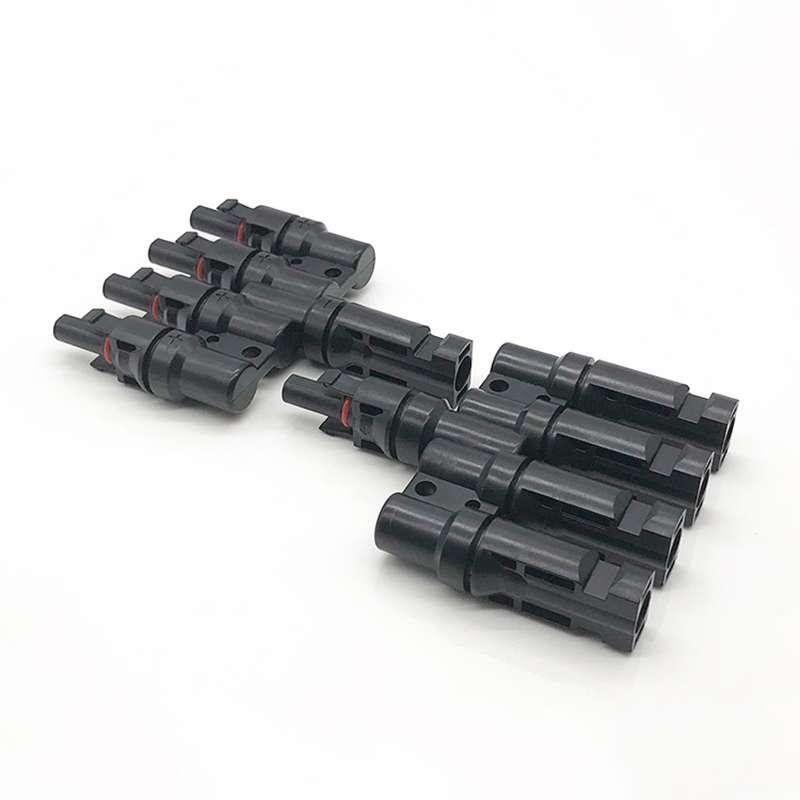

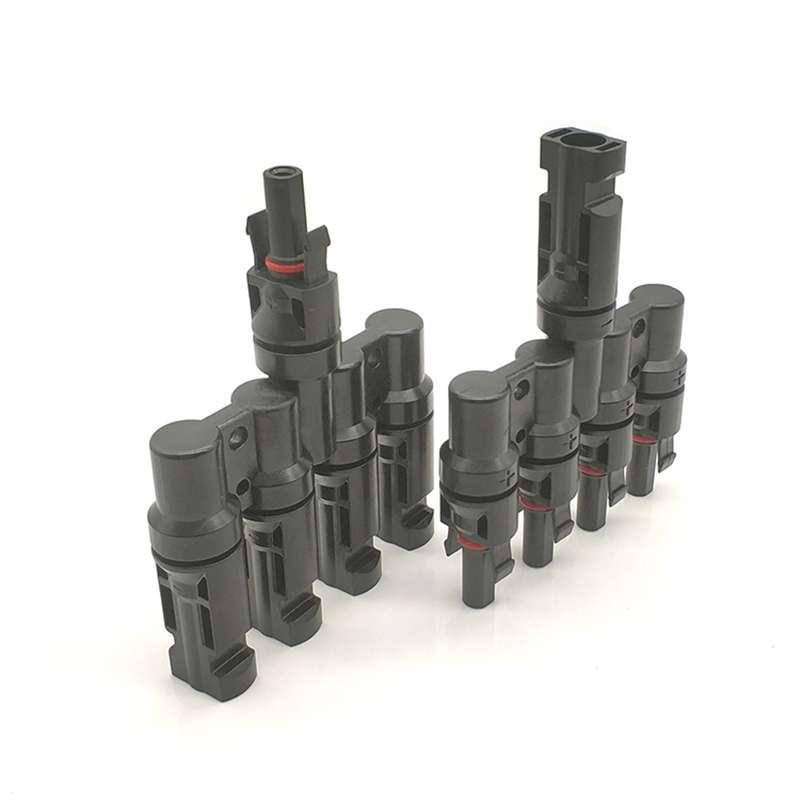

Solar branch connector
Solar branch connector Solar branch connector Solar branch connector Solar branch connector Solar branch connector

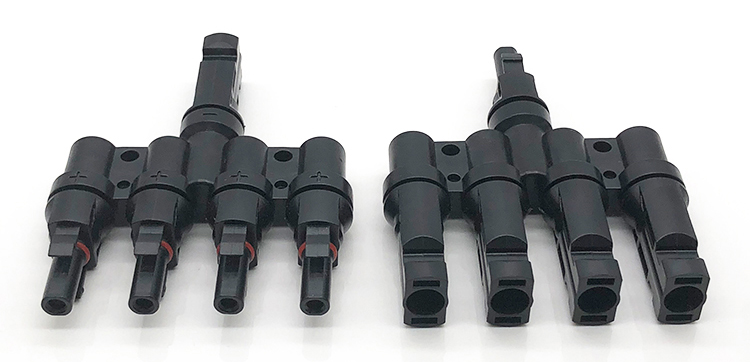

DC 1000V solar branch wiring connector T4

solar photovoltaic connector, T-type four-way splitter, 4 to 1, IP67 waterproof



  • Brand:

    OLINK

  • Item no.:

    PV-T4

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

DC 1000V solar branch wiring connector T4


  Description Of Solar Branch Connector

It has the characteristics of fast and reliable connection, waterproof and dustproof, and convenient to use. Application: roof, greenhouse cultivation, traffic scene lighting, parking lot charging station, commercial building, deep well drinking water/irrigation, marine research, oil pipeline, etc.

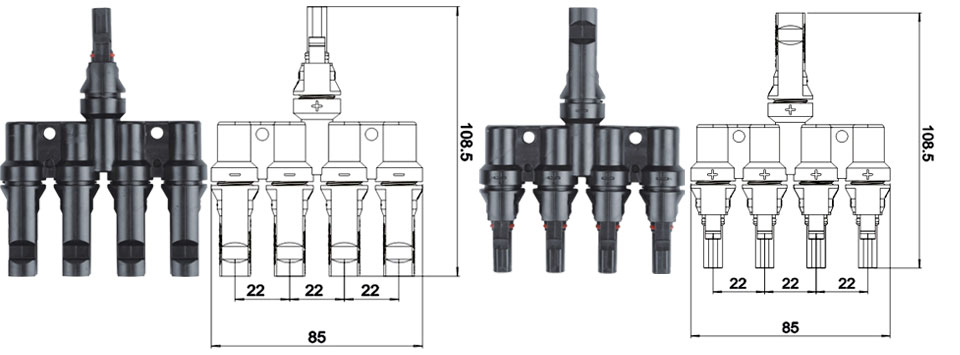

  Drawings Of T4 Solar Connector


  Technical Data For MC4 Solar Connector

Pin Dimensions:
  φ4 mm Temperature range:
  -40℃...+85℃
Rated Voltage:   1500 V DC Rated current:   30 A
Degree of protection, mated:   IP67 Flame class:   UL-94-V0
Contact resistance:  ＜ 0.5 mΩ Contact material:  Copper, tin plated
Insulation material:   PPO



  Feature Of Solar DC Connector

  • Four-way T type: safe connection, easy to assemble

  • Repeated plugging and unplugging: long life, automatic locking provides safe docking

  • PPO engineering plastics: high-strength PPO material, high rigidity, heat-resistant, flame-retardant, wear-resistant, anti-fouling

  • High-strength waterproof ring: IP67 waterproof grade, dustproof and waterproof can extend product life


More T-Branch Type Solar Connectors







PV-T2
PV-T3
PV-T5
PV-T6
*For more information, please contact us by email or through any contact information on the webpage.
