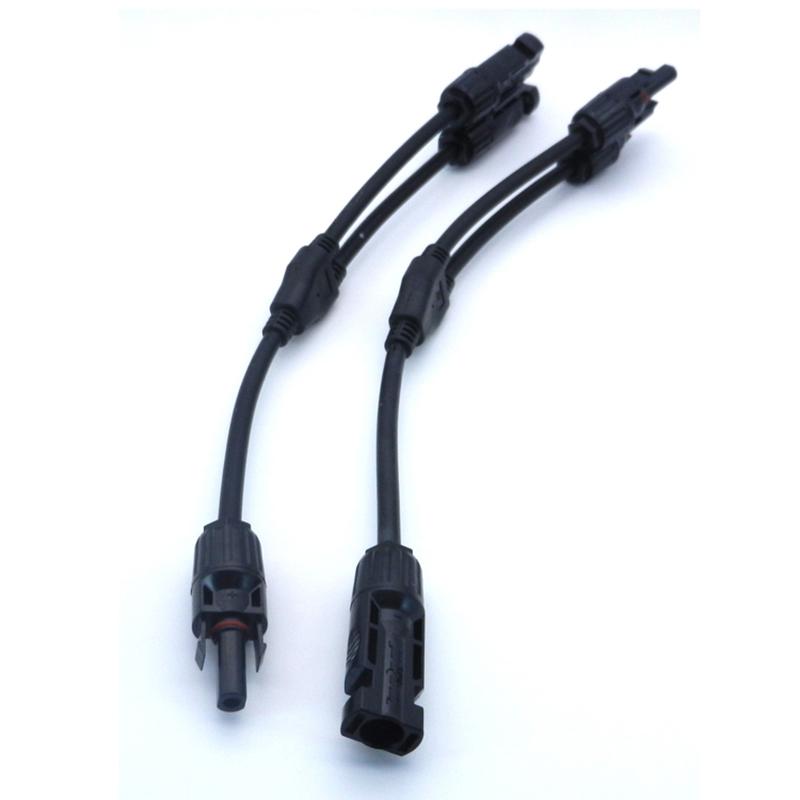

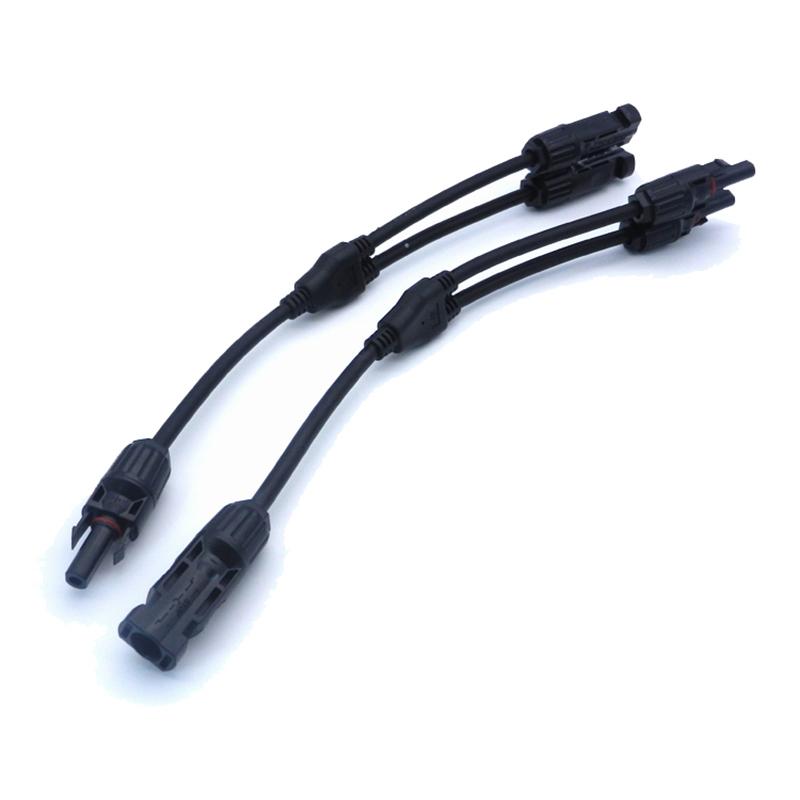

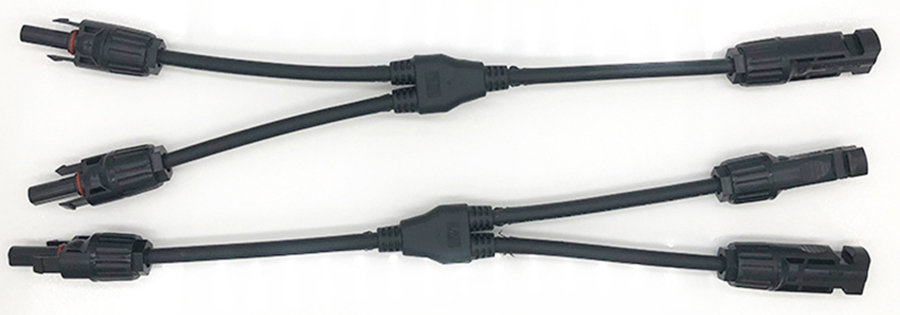

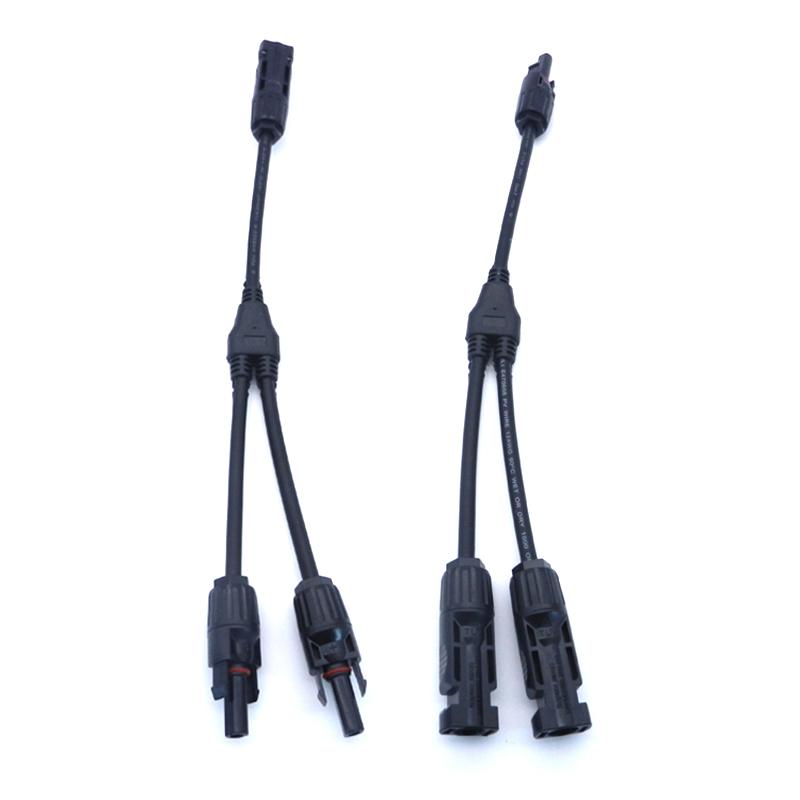

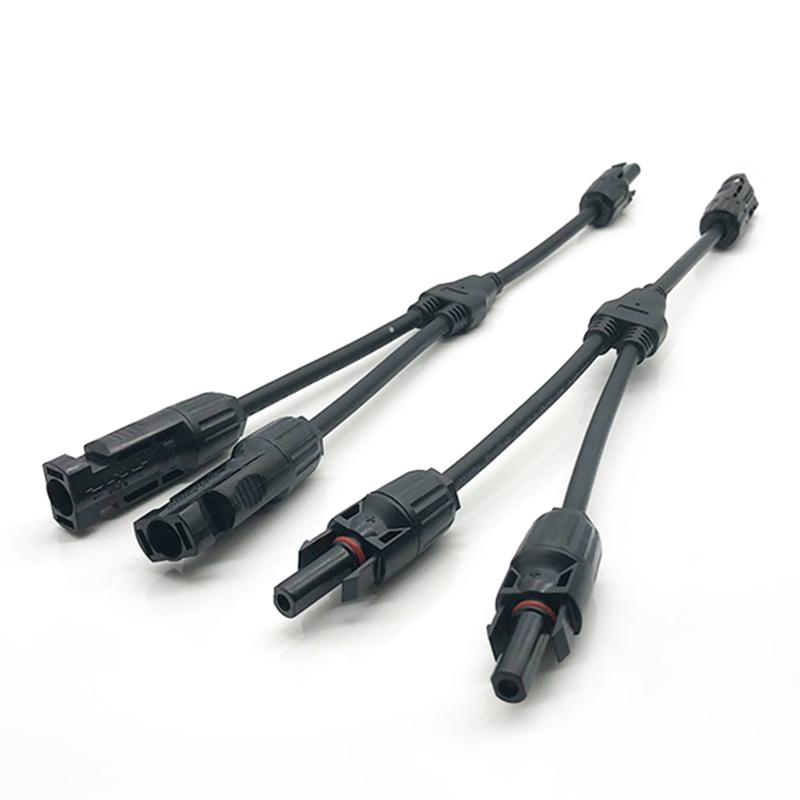

MC4 2 To 1 Y Branch Connector 1000V With Cable Solar Connectors

MC4 Y Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules. Available in either 2 female to 1 male, or 2 male to 1 female, and pluggable with single-pole MC4 connectors

  • Brand:

    OLINK

  • Item no.:

    PV-LTY2

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Black

  • Goods stock:

    50000

  • Shipping port:

    Xiamen

  • Lead Time:

    5
Inquiry now


  Description Of MC4 Branch Connector

The MC4 system consists of a plug and socket design. The plugs and sockets are inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female.


  Drawings Of Solar Connector Type


 Technical Data For MC4 Y Connector

Product name   Y branch Connector
Rated voltage   1000V DC（IEC）
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


  FAQ

How many amps can a MC4 connector handle?

Under normal circumstances, the MC4 connector normally uses 10~12AWG wires, and the maximum rated current is about 30A.


More Y Branch Solar Connectors





PV-Y2
PV-Y3
PV-Y4
The Regular Model Is A 1000V Plug. 1500V Plug And Cable Length Can Be Customized.
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
