Redels 6 Pin Sockets Power Application for PKG Push-Pull Circular Medical Connectors

Olink company produce Plastic push pull connector socket with alignment key for medical applications.

Brand:
OLINK
Item no.:
OL14-S
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Gray, black and red
Min order:
10
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

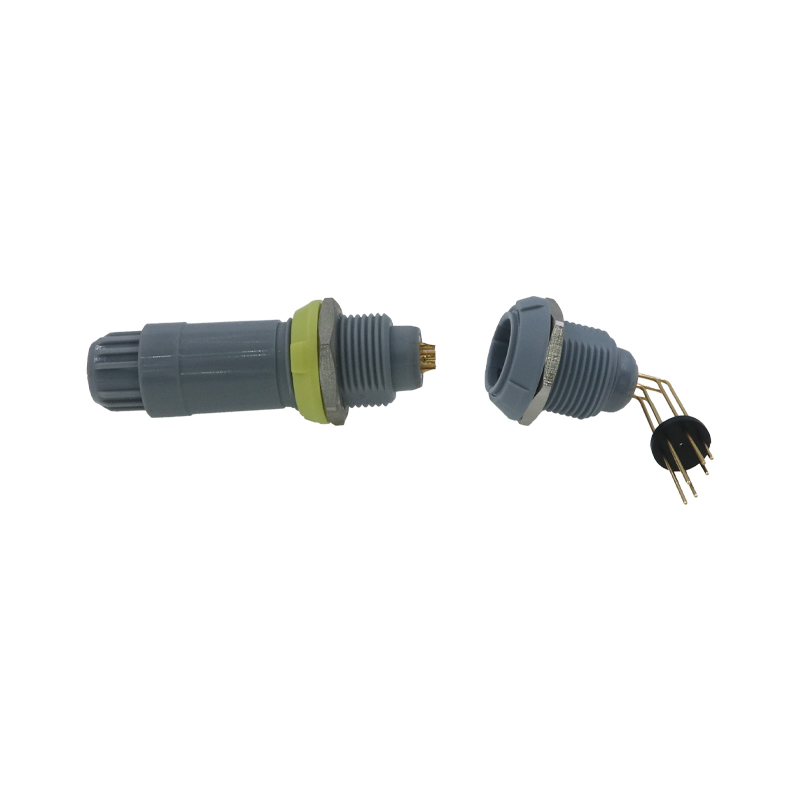

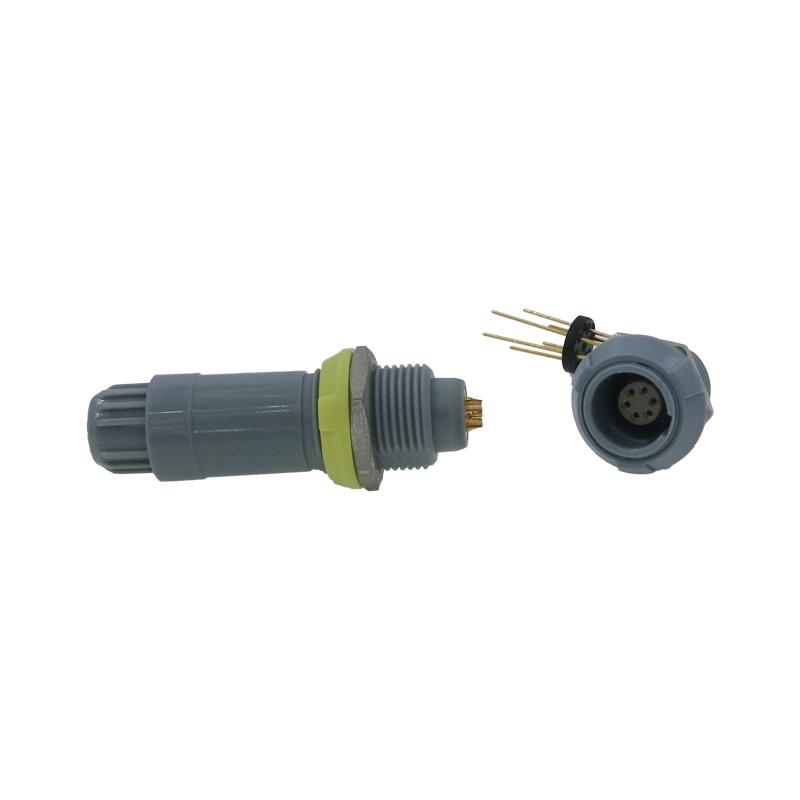

OL14 Self-latching push pull connector socket for Medical Equipment

Features of Plastic medical connector socket

Quick plug-in and pull-out: Push-pull connectors are designed for quick plug-in and pull-out.
No tools are required, and connection and disconnection can be completed with simple manual operation.
Our connectors have a self-locking function to ensure a secure connection and are not prone to accidental loosening or falling off.
Low and stable contact resistance and good insulation resistance to ensure the reliability of electrical connections.

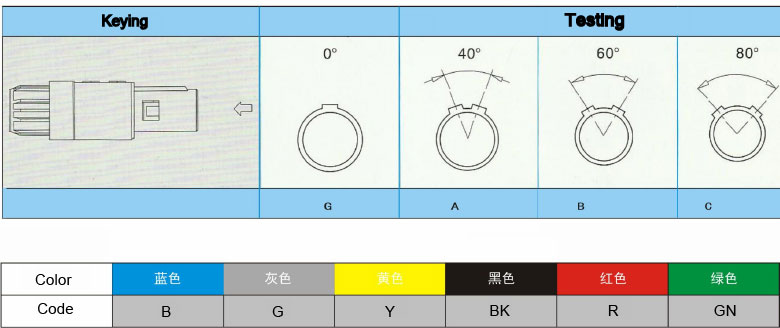

Mismatching function: Collet nuts and socket nuts can be customized in color to avoid mismatching.
A variety of shell colors are available, 2~8 pin.

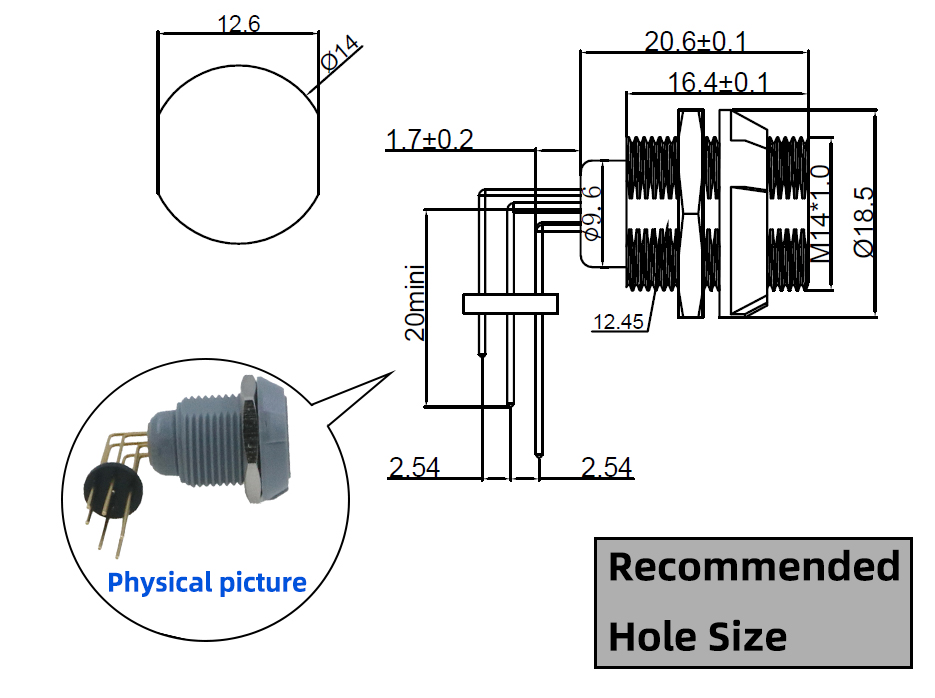

Specifications of Plastic circular connector

product name:	push-pull Self-latching circular connector socket
Rated voltage:	350V~400V	Rated current:	5-10A
Shell material:	Nylon	Contact material:	Brass, gold plated
Shell color:	Red Black gray	Number of pins:	2-8 pin
Recommended usage:	1000 times	Wiring Method:	Solder

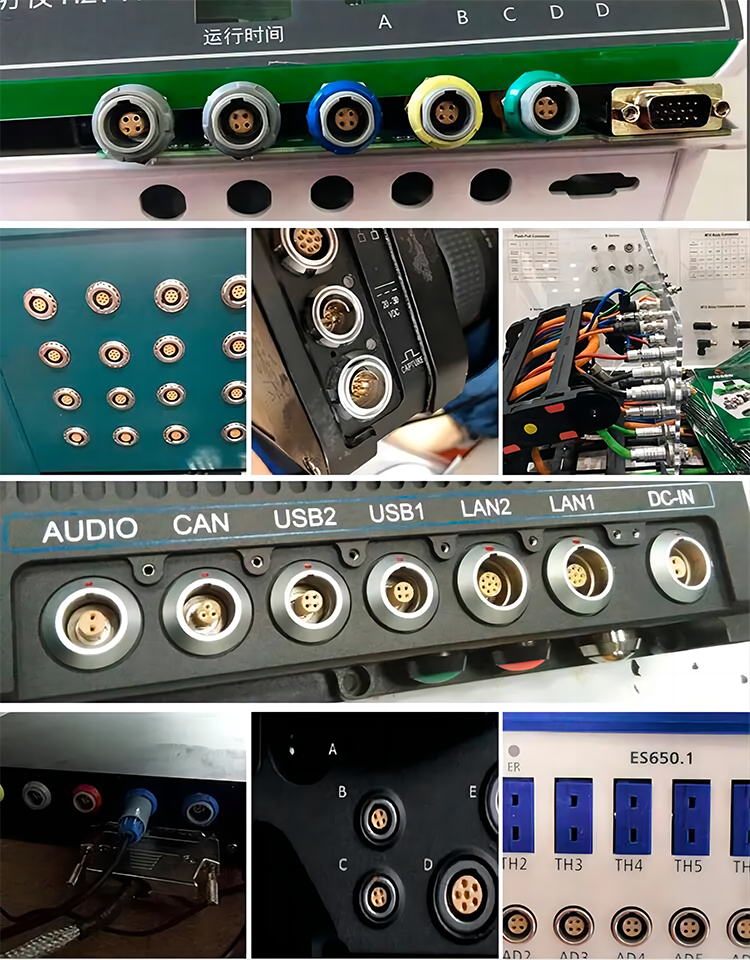

application of push-pull connector

push-pull Self-latching circular connector Mainly used as a sensor or checker interface for medical testing equipment

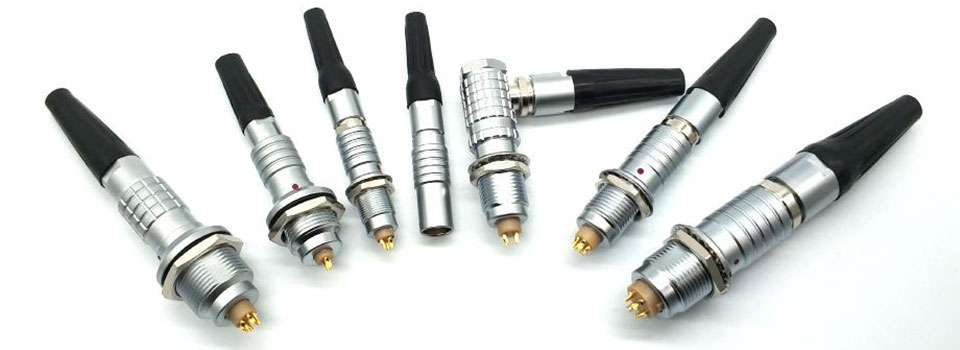

More push-pull connectors

*For more information, please contact us by email or through any contact information on the webpage.
