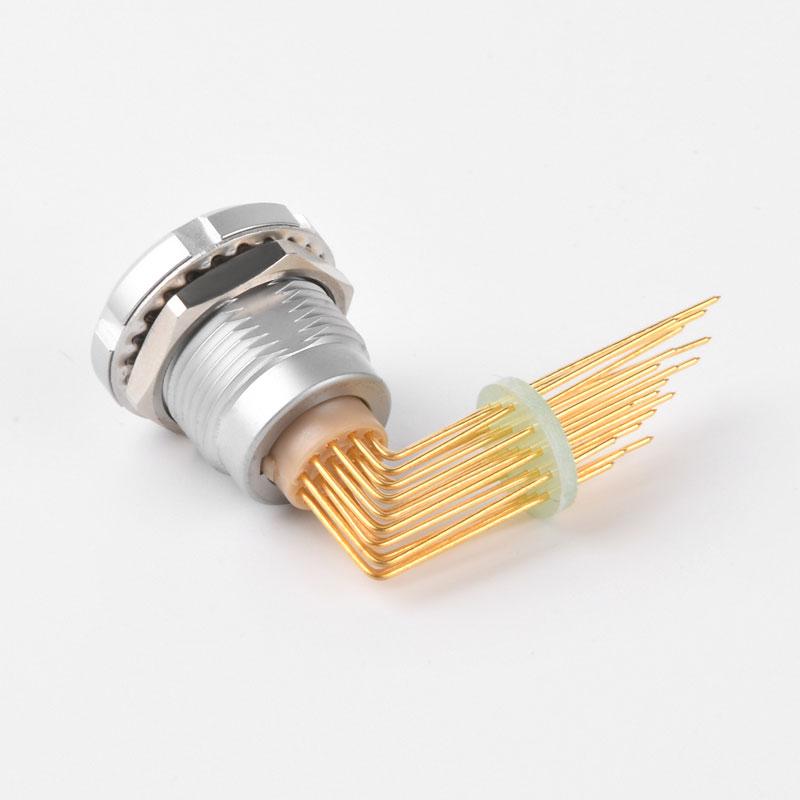

Multipin Waterproof Elbow Connector PCB Contacts

  • Brand:

    OLINK
  • Item no.:

    ECG
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    Silve
  • Shipping port:

    Xiamen
  • Lead Time:

    3 days
B series multipin female connector provide the following main features:
1. Security of the Push-Pull self-latching system.
2. Multiple key options to avoid cross mating.

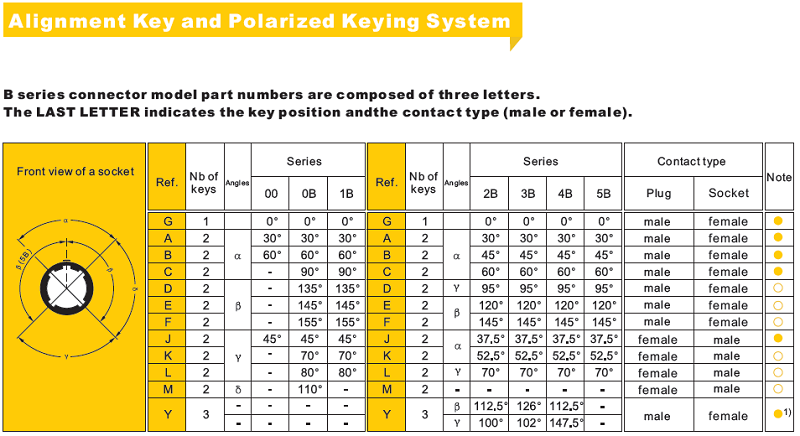

3. keying system («G» key standard)of similar connectors for connector alignment.
4. 360° screening for full EMC shielding.
5. Multipole types 2 to 32 contacts.
6. Solder, print contacts (straight or elbow).

7. High packing density for space savings.

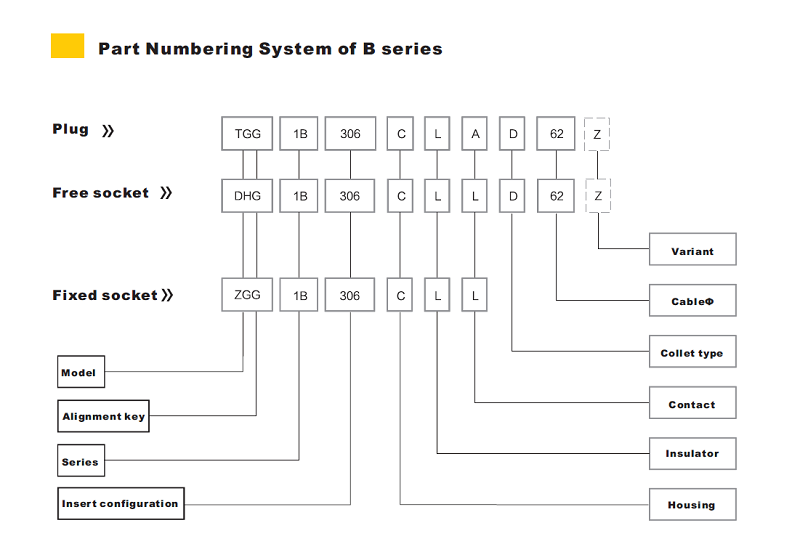

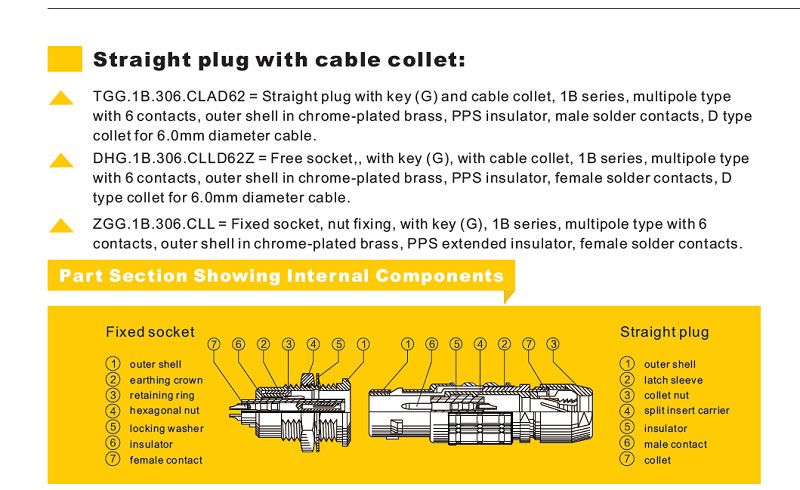

How to order:

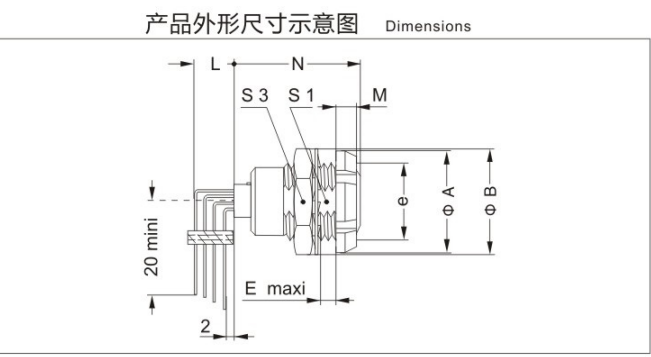

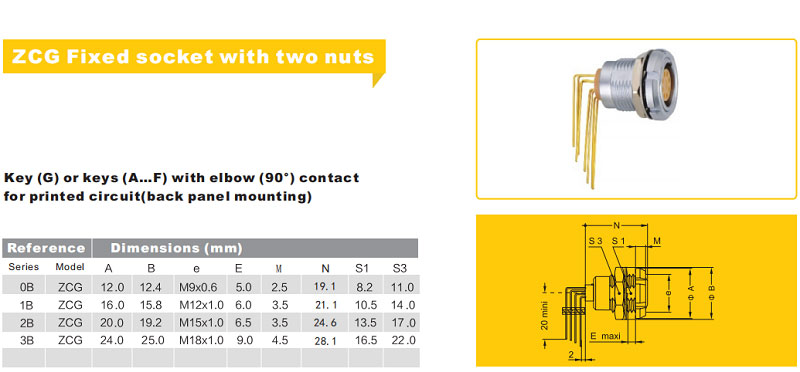

Product size:


Reference
Dimension
Model Series e L M A B E S1 S3
0B ECG M9x0.6 2.5 18.3 12 12.4 2.4 8.2 11
1B ECG M12x1.0 3.5 20.3 16 15.8 6 10.5 14
2B ECG M15x1.0 3.5 22.3 20 19.2 6.5 13.5 17
3B ECG M18X1.0 4.5 25.8 24 25.0 9 16.5 22

Technical characteristics:
Mechanical and Climatically
1. Endurance:> 5000 mating cycles.
2. Humidity :Up to 95% at 60 ℃.
3. Temperature range:-40℃, +250℃.
4. Resistance to vibration :15 g[10 HZ-2000HZ].
5. Shock resistance:100 g ,6 MS.
6. Salt spray corrosion test :> 48h.
7. Protection index (mated) :IP50.

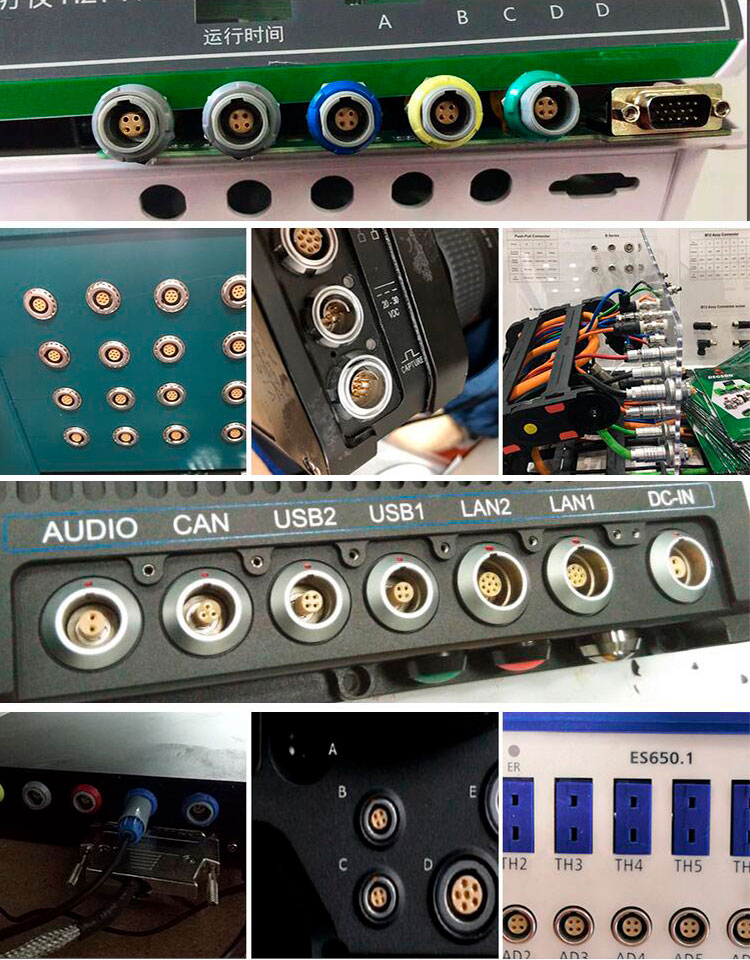

Industry Application:
It is widely used on all kinds of medical equipment’s, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.


Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series: 2, 3, 4, 5, 6, 7, 9 Pins
1B Series: 2, 3, 4, 5, 6, 7, 8, 10, 14, 16 Pins
2B Series: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26, 32 Pins
3B Series: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30 Pins
