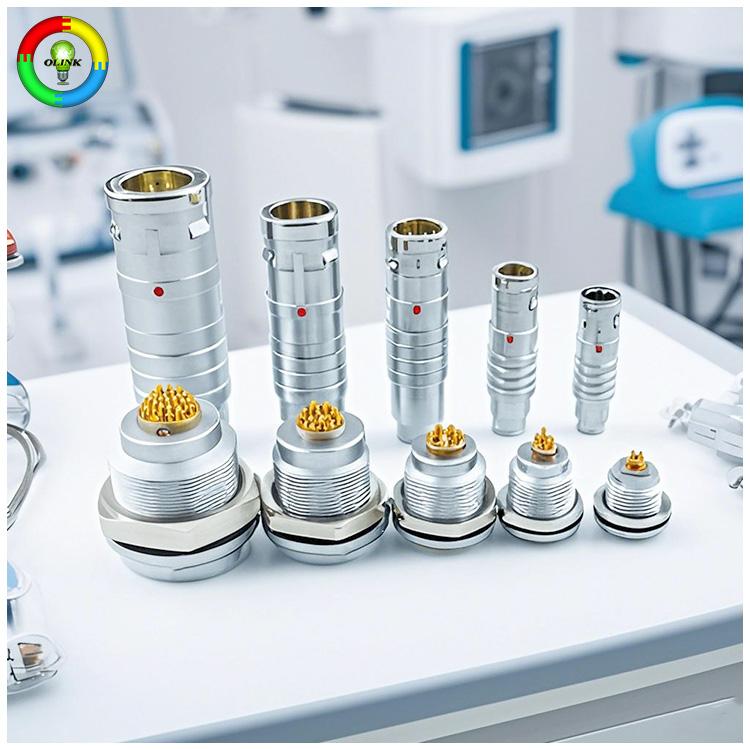

Circular self Locking medical Push Pull Connector Waterproof Metal Connector

Metal medical push pull connectors are important connection devices applied in the medical field. They adopt a push pull self - locking system, which makes plugging and unplugging simple and quick. Moreover, there is an insertion sound prompt when connecting or separating, facilitating operation confirmation. It has an elaborate self - locking device, ensuring a firm and reliable connection. It can effectively resist vibration and impact, preventing disconnection caused by pulling the cable, and can adapt to various complex medical environments.

Brand:
OLINK
Item no.:
Fgg Egg b series k s
Payment:
T/T
Color:
silver

Inquiry now

product introduction

About the product

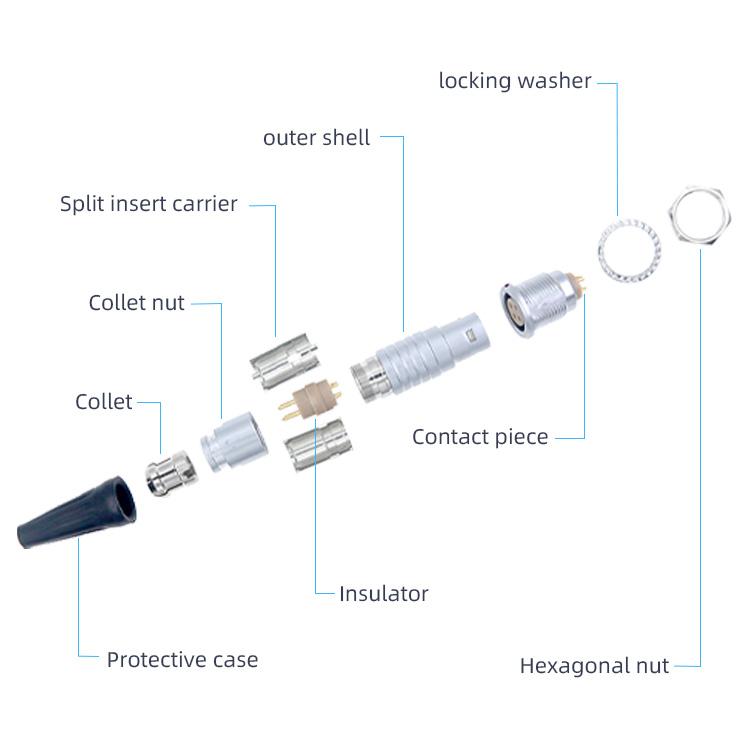

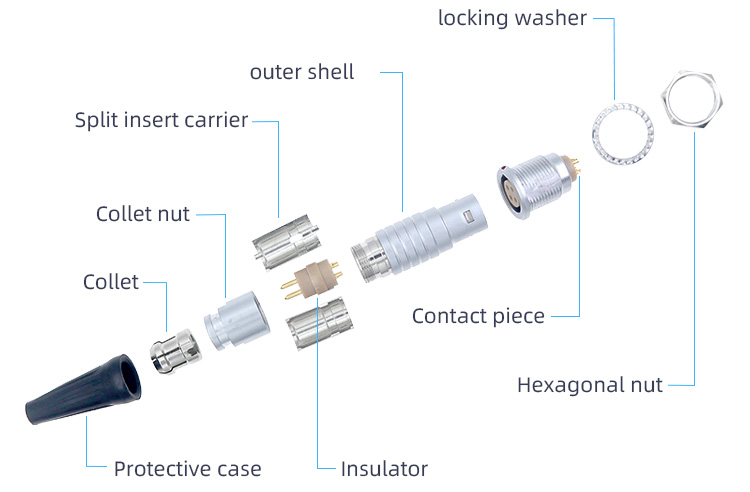

Product structure


Shell material	insulation material	Contact
Pearl-chromed copper	PPS Max	Gold-plated copper

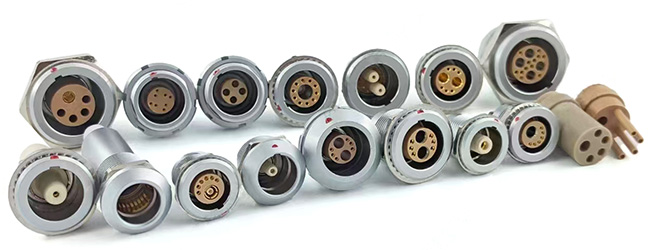

*The following are the existing mixing types

*More types are under development.Please feel free to consult if you need more details

Our service

ODM/OEM

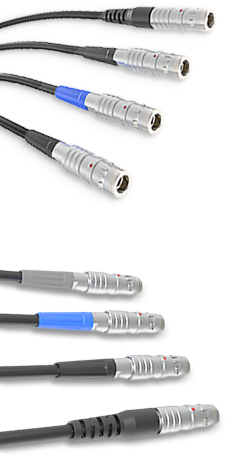

We can customize

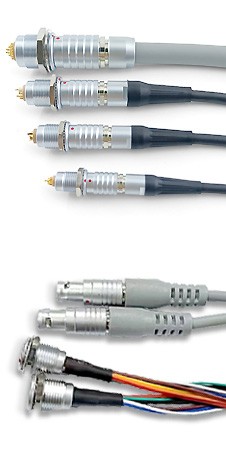

the matching cable harnessand encapsulated medical line.

Application scenarios

The push-pull connector demonstrates outstanding stabilityand performs excellently in signal control for medicaldevices, ensuring the safe and efficient operation ofnumerous medical instruments, such as dental equipment,beauty devices, and shockwave therapy instruments...

Contact us to learn more

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

Related products

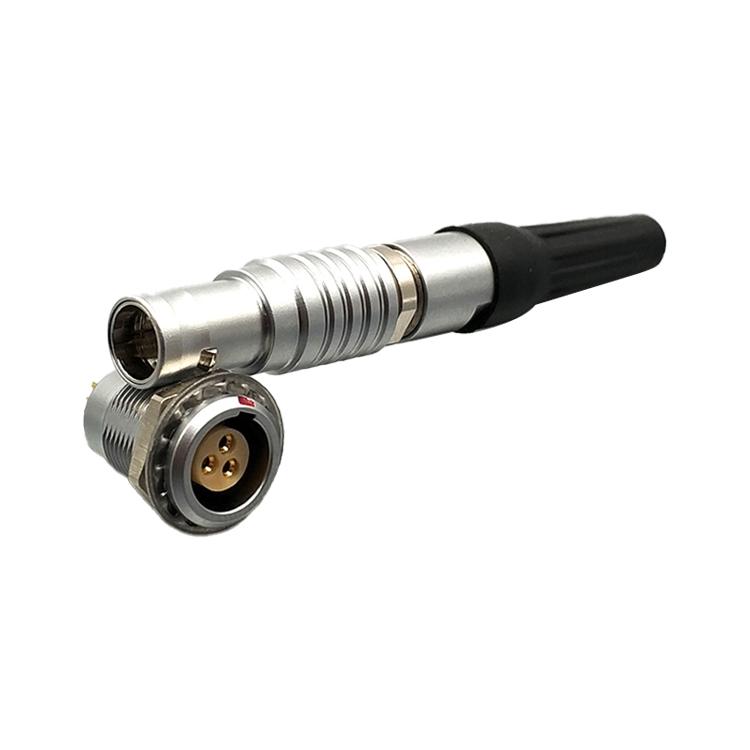

M14 Self-latching push pull connector for Medical Equipment
