Push Pull Circular Connectors 2 to 30pin Male and Female

Push Pull Connectors,Standard B series,Waterproof/watertight K series,Half-moon insert S series,Standard F series,Plastic P series.

Brand:
OLINK
Item no.:
EGG
Payment:
Wire transer, West Union
Product origin:
China
Color:
Silver
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

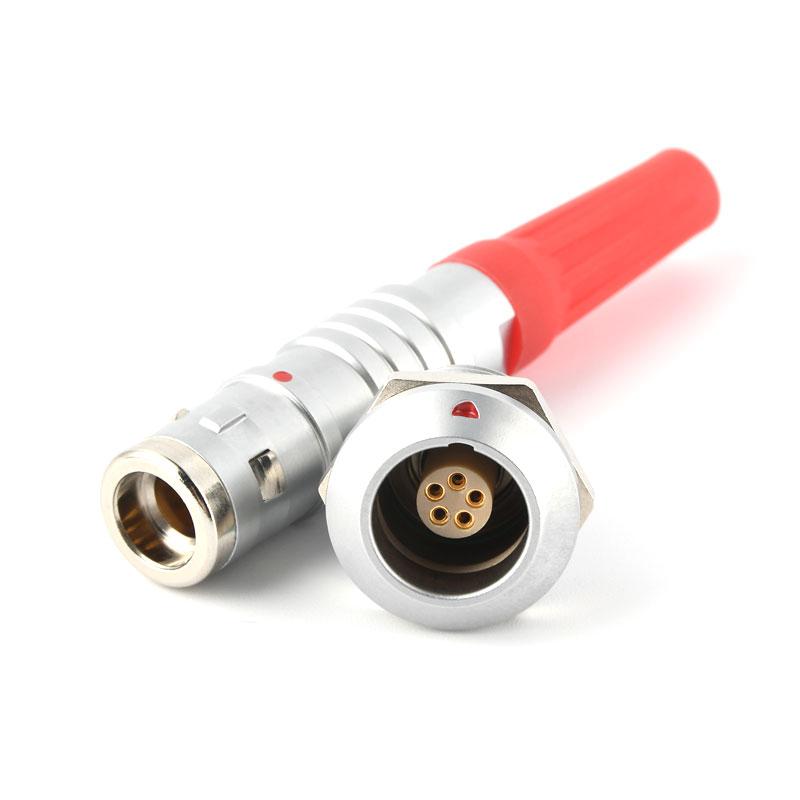

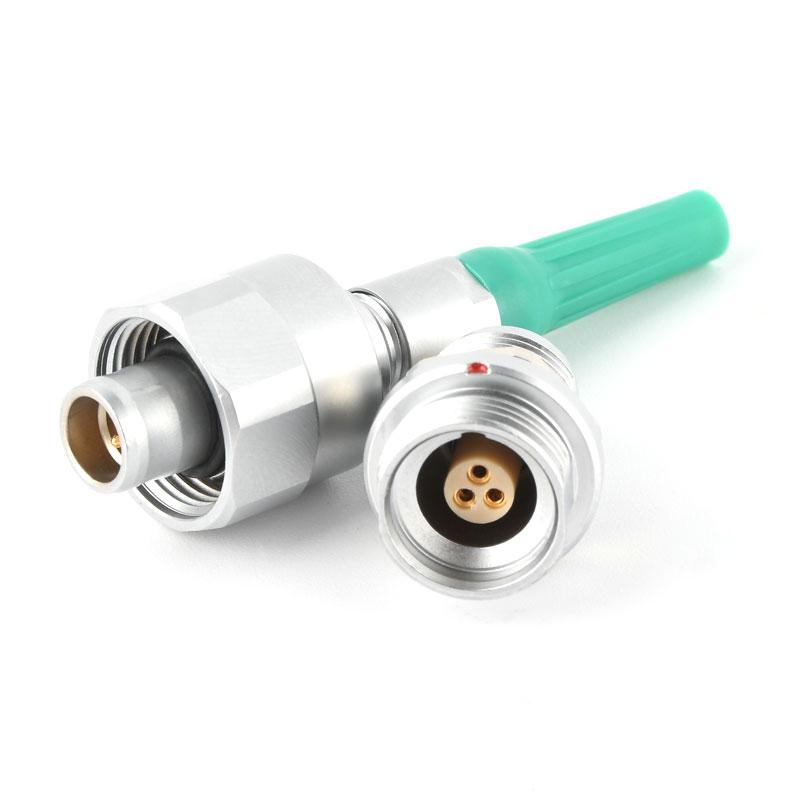

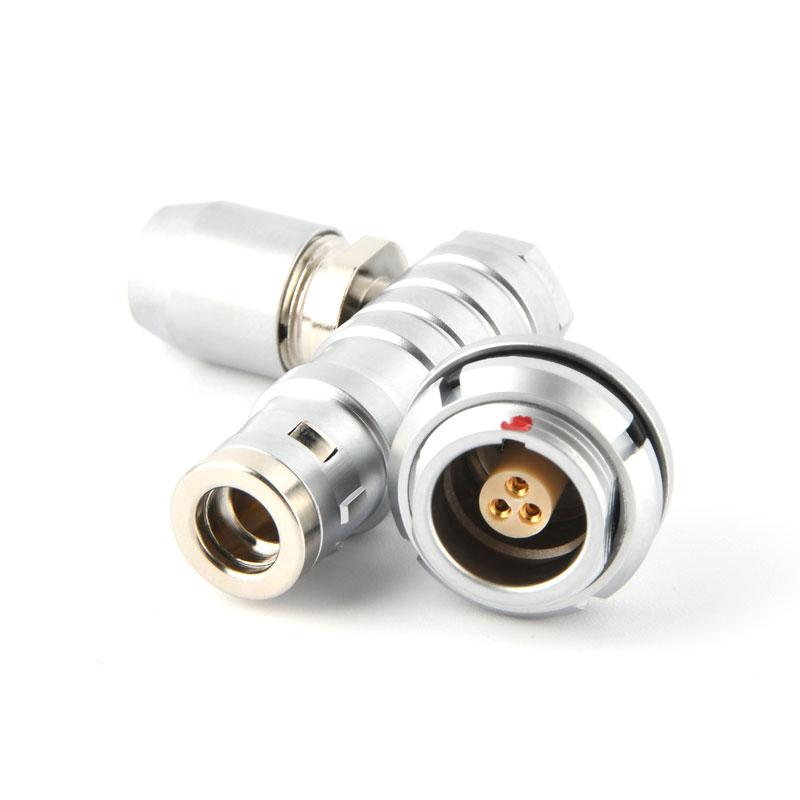

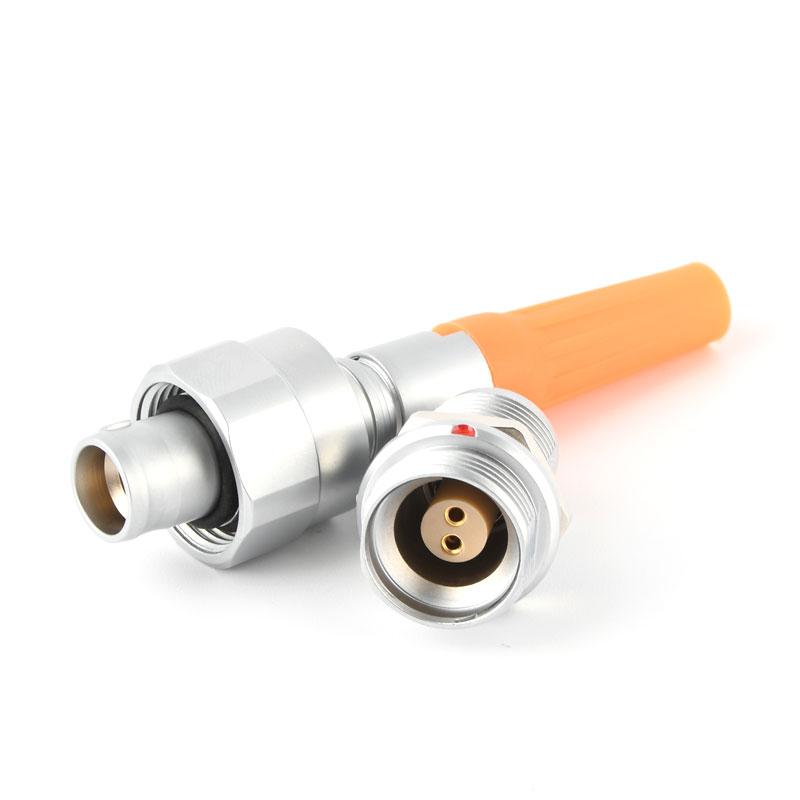

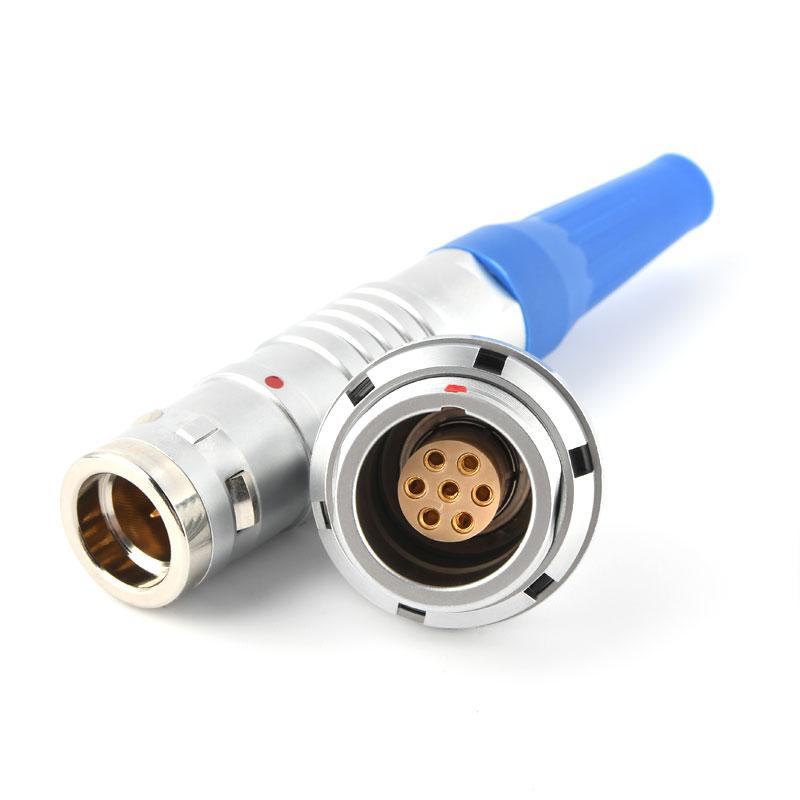

Push Pull Circular Connectors 2 to 30pin Male Female

B series circular push pull connectors in many size and outer diameter for different applications are designed to be compatible with Original Lemo's connector Series B which with a self-latching system for easy operations.Security of push-pull self-latching system

Multi-pole contacts

Multipole key options to avoid cross mating

One key or two keys with different degree

Cable assembly as customer real needs

Specification:

Insert configuration:

2 to 30 pins
Shell size:	#0, 1, 2, 3 or 4
Contact type:	Solder, print(PCB) or crimp
1 key:	Alpha: 0°
2 keys:	Alpha: 30, 45 or 60°
Protection grade:	IP50 to 68
Contacts material:	Bronze beryllium and Gold-plated surface
Housing material:	Brass with Nickel, Pearl-chrome, Black-chrome plated surface.
Collet:	Brass with Nickel-plated surface
Insulator material:	Heat-resistant PPS

Size& Pin numbers:

B-series	00	2	3	4
	0B	2	3	4	5	6	7	9
	1B	2	3	4	5	6	7	8	10	14	16
	2B	2	3	4	5	6	7	8	10	12	14	16	19	26	30
	3B	3	4	7	8	10	12	14	21	30
