RC Car Boat battery connectors ESC/Device Pulg Lipo Power Plug

XT30U Lipo Power connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion

Brand:
OLINK
Item no.:
XT30U
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
5

Inquiry now

product introduction

RC Car Boat battery connectors ESC/Device Pulg Lipo Power Plug

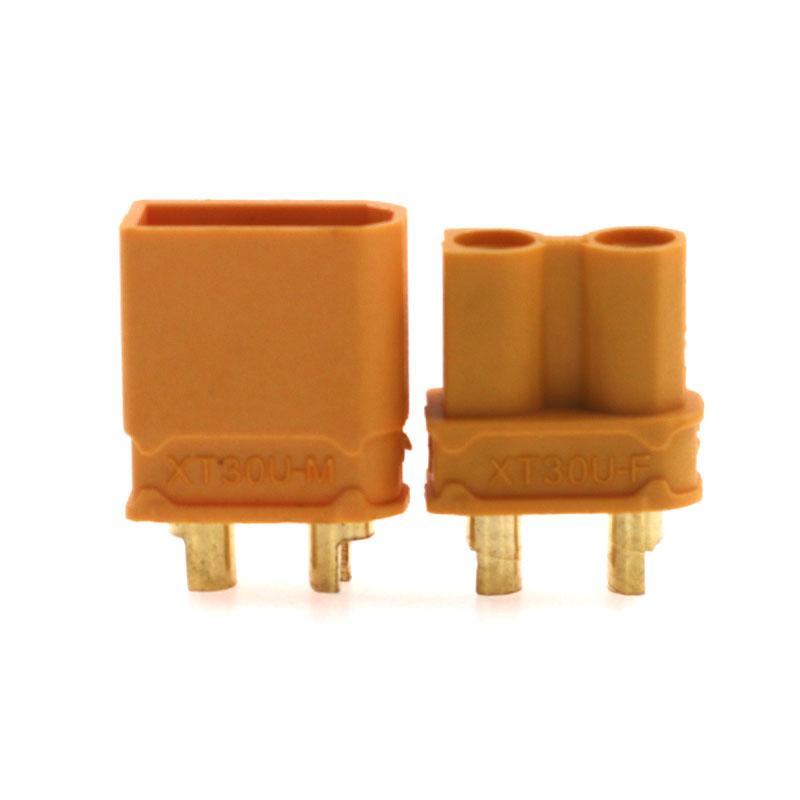

Features of XT30U-F XT30U-M

The shell is made of flame retardant nylon, reaching UL94 V-0;
Compared with the XT30, it has a smaller volume and can be used in a smaller space
Solder cup cutout faces outwards for easier and easier soldering
The male and female connection is firm and will not loosen by itself
Gold-plated contacts for better conductivity
Guided design to prevent reverse insertion

Specification
Item NO.:	XT30U	Connector CR:	0.7MΩ
Color:	Yellow	RV:	DC 500V
Metal Material:	Brass Gold Plated	RC:	15A
Plastic Material:	PA	MC:	30A
FR level:	UL94 V0	Plug times:	1000 times
Recommend USD:	Battery/Controller/Charger	Cable Spec:	18AWG/0.75mm²
Life:	1000 times	Temperature:	-20°C to 120°C

Application Of XT30U connector

XT30U connectors can be used in transportation railway, electric bicycle, electric storage forklift and electric sightseeing car, and other occasions and fields that require larger current connections. Connectors can include custom wiring harnesses.

More Similar Products


XT30 Connectors	XT60 Connectors	XT60H Connectors	XT90 Connectors	XT90H Connectors

*For more information, please contact us by email or through any contact information on the webpage.
