3 Pin Motor Connectors female male Motor to ESC Connectors Plug

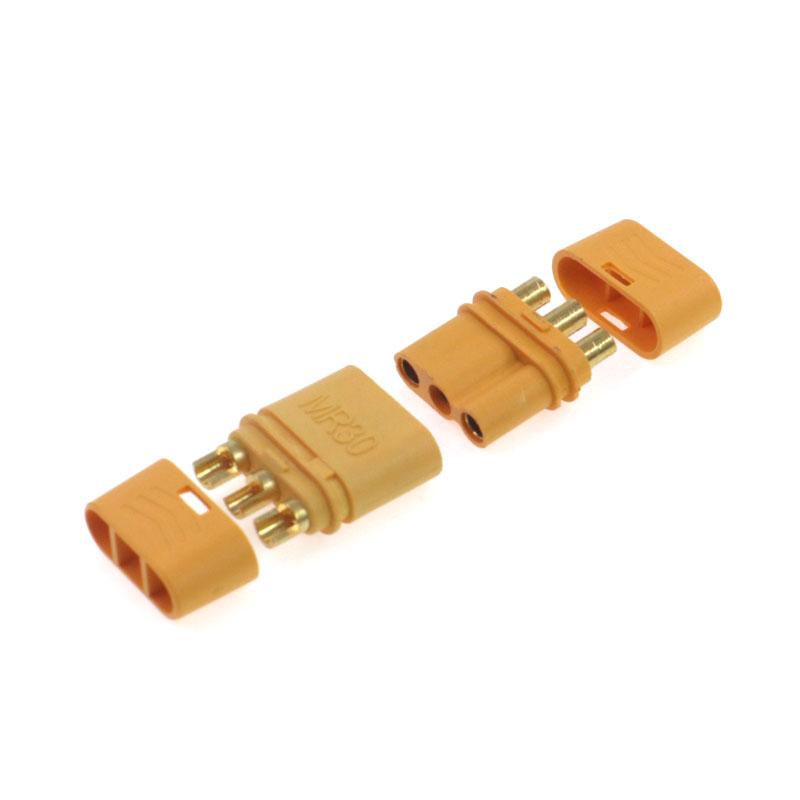

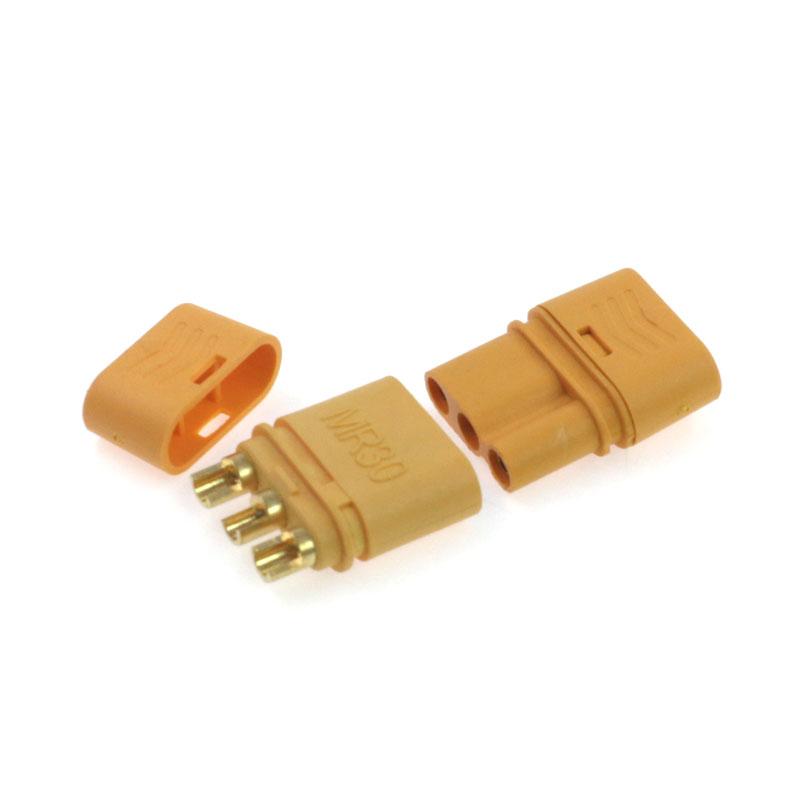

MR30 Motor to ESC connector is recommended for motor connector, 3-pin structure, gold-plated copper contacts, complete set consists of one male and one female and two protective covers

Brand:
OLINK
Item no.:
MR30
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

3 Pin Motor Connectors female male Motor to ESC Connectors Plug

Description For MR30 3 Pole Motor To ESC Coneectors

Male and female design, female end connector battery (power supply), male end connected to load;
The contacts are gold-plated for better conductivity;
With guiding structure, it will not cause wrong connection direction；

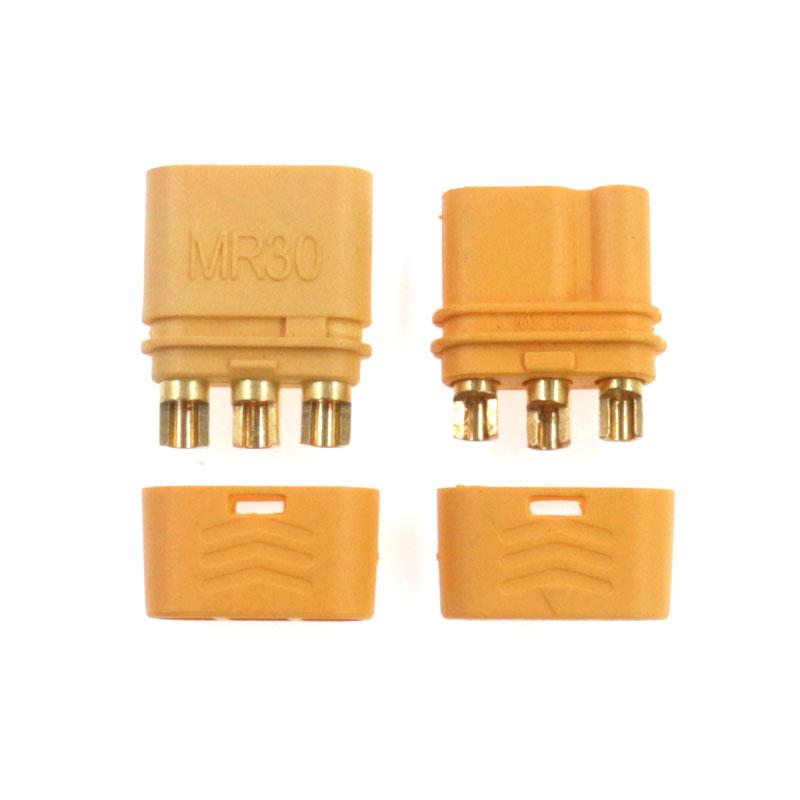

Solder cup with lid, will not expose the solder joint to the outside；

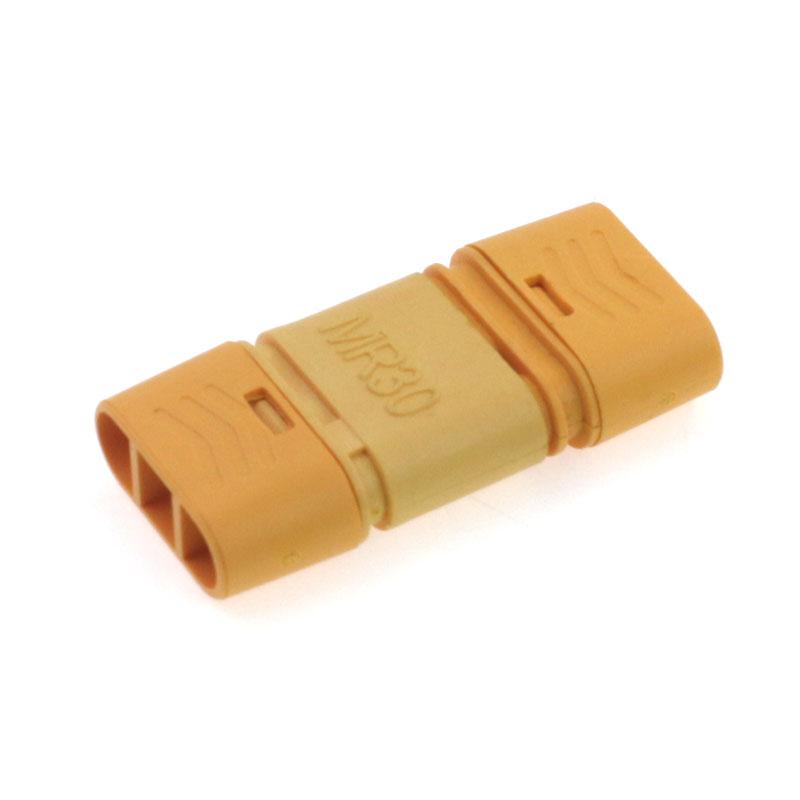

Small size, compact structure, tight connection after plugging, not easy to loose

Specification
ITEM No	MR30 Connector	CR	0.7MΩ
Color	Yellow	RV	DC 500V
Metal Material	Brass Gold Plated	RC	15A
Plastic Material	PA	MC	30A
FR level	UL94 V0	Plug times	1000 times
Recommend USD	MOTOR	Cable Spec	16AWG
Pin	3	Temperature1	-20°C to 120°C

Application

MR30 Motor Plug are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections.Connectors can include custom wiring harnesses.
