XT60 male female connector for LiPo battery

XT60 battery connector is composed of 1 male and 1 female connector.The are made from high-temp nylon with gold-plated spring pins or sockets molded.

Brand:
OLINK
Item no.:
XT60
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

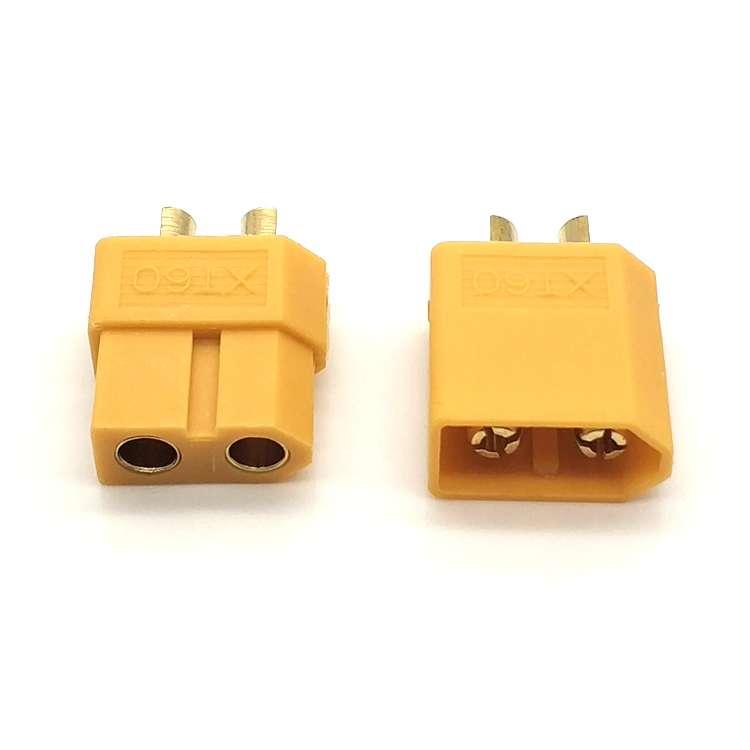

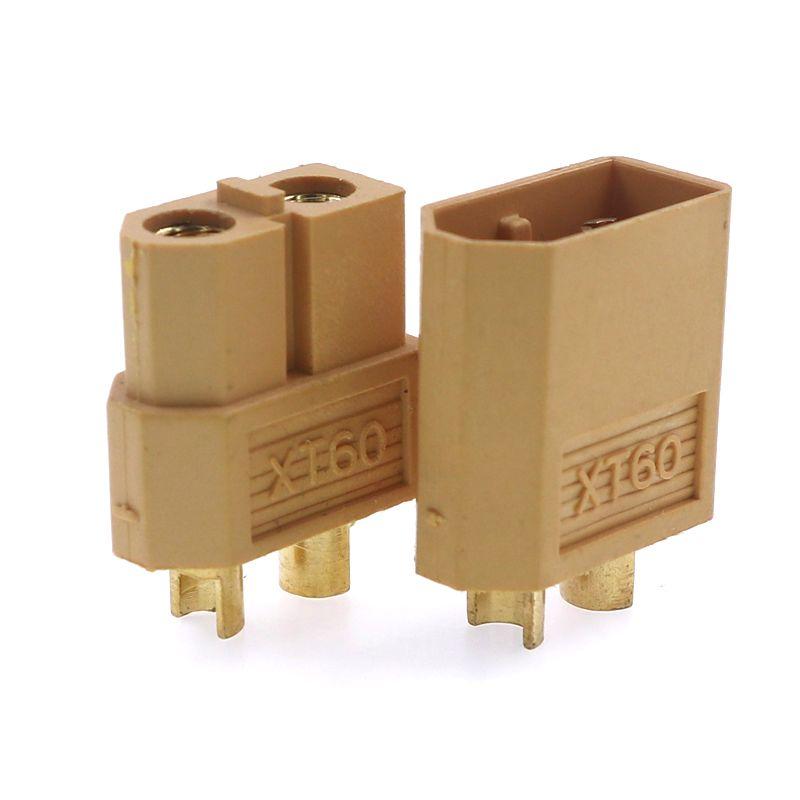

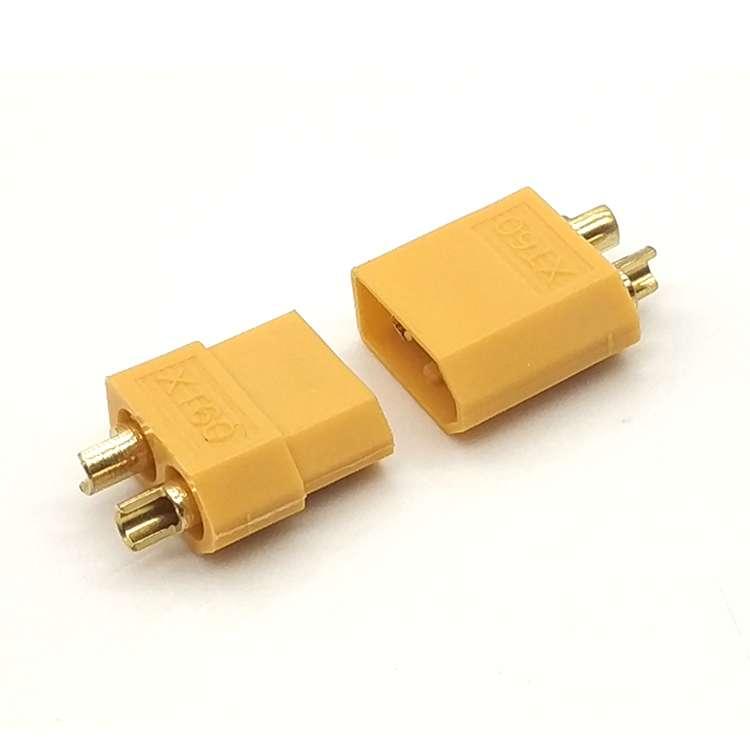

XT60 male female connector for LiPo battery

Description For XT60 Plug Connector

Male and female design, female end connector battery (power supply), male end connected to load;
The contacts are gold-plated for better conductivity;
The opening of the tail welding cup is reversed, making welding more convenient;
The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
After the XT60 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

Specification Of XT60 Plug Connector
ITEM No	XT60 Connector	CR	0.55MΩ
Color	Yellow	RV	DC 500V
Metal Material	Brass Gold Plated	RC	30A
Plastic Material	PA66	MC	60A
FR level	UL94 V0	Plug times	1000 times
Recommend USD	Battery	Cable Spec	12AWG,14AWG,16AWG
Certificate	CE, ROHS	Temperature1	-20°C to 120°C

Application

XT60 plug connector are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections.Connectors can include custom wiring harnesses.

More Similar Products


XT30 Connectors	XT30U Connectors	XT60H Connectors	XT90 Connectors	XT90H Connectors

*For more information, please contact us by email or through any contact information on the webpage.
