Quick connect male female forklift battery charger connector with high current

The battery connector establishes a connection between the battery and the vehicle, there are 80A, 160A and 320A can choose.

Brand:
OLINK
Item no.:
ANRE-160A
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Quick connect male female forklift battery charger connector with high current


DC 160A 150V Connectors (Male)	DC 160A 150V Connectors (Female)

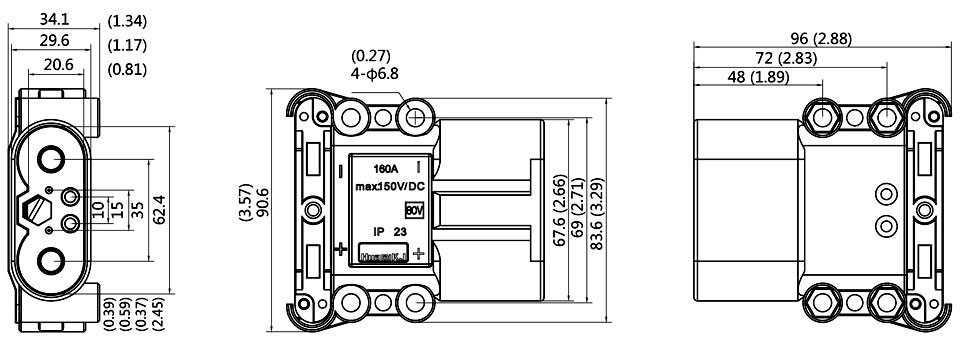

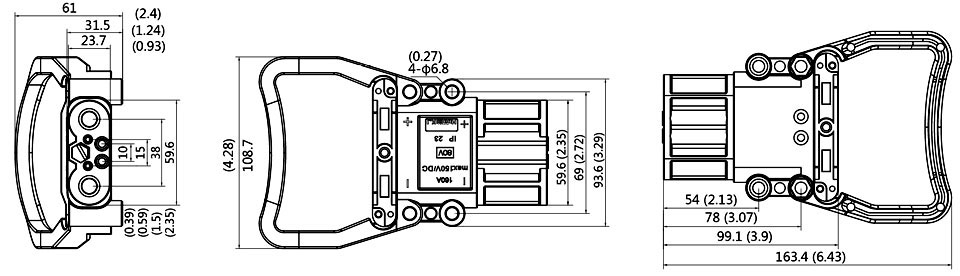

Drawing of DC 160A150V Connectors

DC 160A 150V Connectors (Male)

DC 160A 150V Connectors (Female)

Parameter For 160A150V Connectors

Part Number	Rated current	Rated voltage	Material of terminal	Color	Flammability	Wire
Housing	160A	150V	PA66	Grey/Black	UL94V-0	N/A
Chief Terminal	160A	150V	Copper with silver	Silvery	N/A	4AWG-2AWG
Upper Assist Terminal	20A	150V	Copper with silver	Silvery	N/A	18AWG-12AWG
Below Assist Termianl	20A	150V	Copper with silver	Silvery	N/A	18AWG-12AWG

Applications of 160A150V Connectors

Power battery, radio power supply, forklift handling equipment, UPS uninterruptible power supply, inverter, electric cleaning equipment, power lithium batteries, energy storage power generation, photovoltaic solar energy, off-road vehicle winches, equipment, electric wheelchairs and other equipment with high current input or output.

*For more information, please contact us by email or through any contact information on the webpage.
