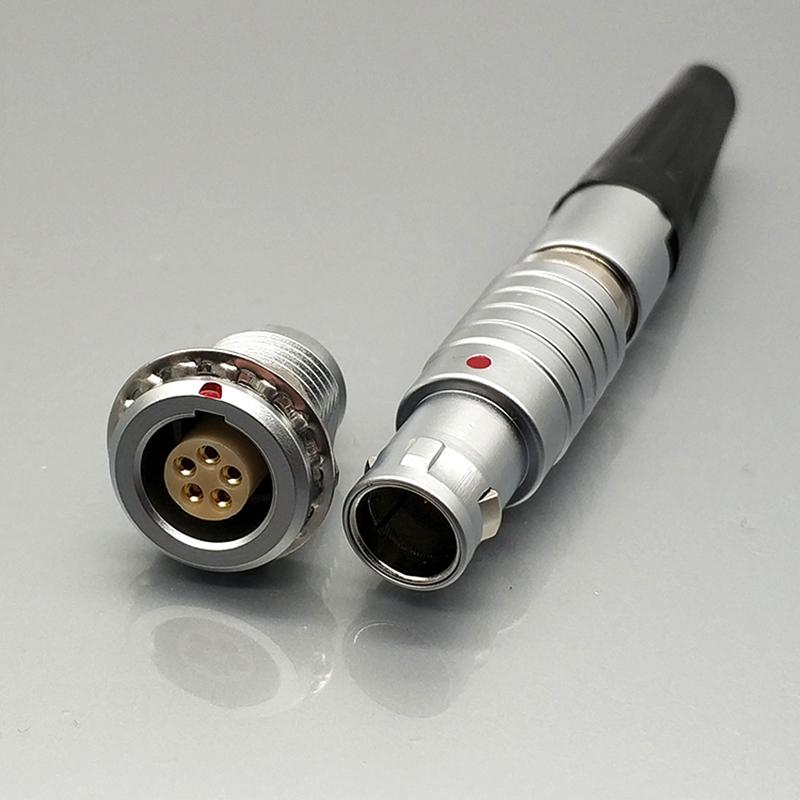

Custom Push-Pull Connector for Ventilator Anesthesia Machines Self-Locking Connector with Aviation Head

The PHG male plug connector design allows to adjust and position the connector in an efficient way in order to prevent cable snaging.

Each connector can be orientated during its assembly and enables 8 positions. The connector then remains securely positioned in its orientation.

  • Brand:

    OLINK
  • Item no.:

    FHG
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray
  • Shipping port:

    Xiamen

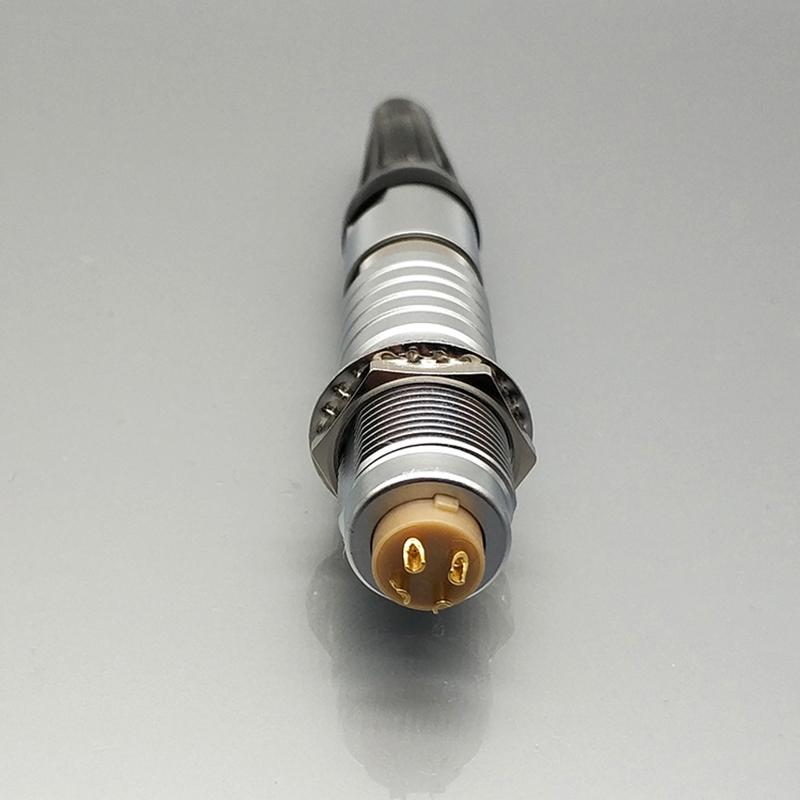

PHG 00B 0B 1B 2B Push Pull metal Connector


● Fast push-pull locking system;

● They are security locking system Welding, crimping and PCB-core-type connectors;

● Two version to choose.with rubber boot or without bend relief  type.

● Minutes pin can choose to avoid the use of a machine similar to the connector between the mixed interpolation;

● The right direction shielding effect, anti-electromagnetic interference;

● Series of multi-core, high-density installation space-saving;

● Pin system, G pin as the standard for on-connector.

● Industry Application:  It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications product line


Technical characteristics:

1. Endurance: > 5000 mating cycles;

2. Humidity : up to 95% at 60 degree;

3. Temperature range: -45 , +125 ;

4. .Resistance to vibration : 15 g[10 HZ-2000HZ];

5. Shock resistance: 100 g ,6 MS;

6. Salt spray corrosion test : > 48h;

7. Protection index (mated) : IP50.
