XT90S XT90H With Cover Female Male Plug ESC And Charger Lead Connectors

XT90H ESC And Charger Lead Conenctor perfect for applications up to 90A constant. It can be equipped with a cap.It is equipped with a protective cover, which will not expose the solder joints, making it safe and reliable to use,Free samples available.

Brand:
OLINK
Item no.:
XT90H
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

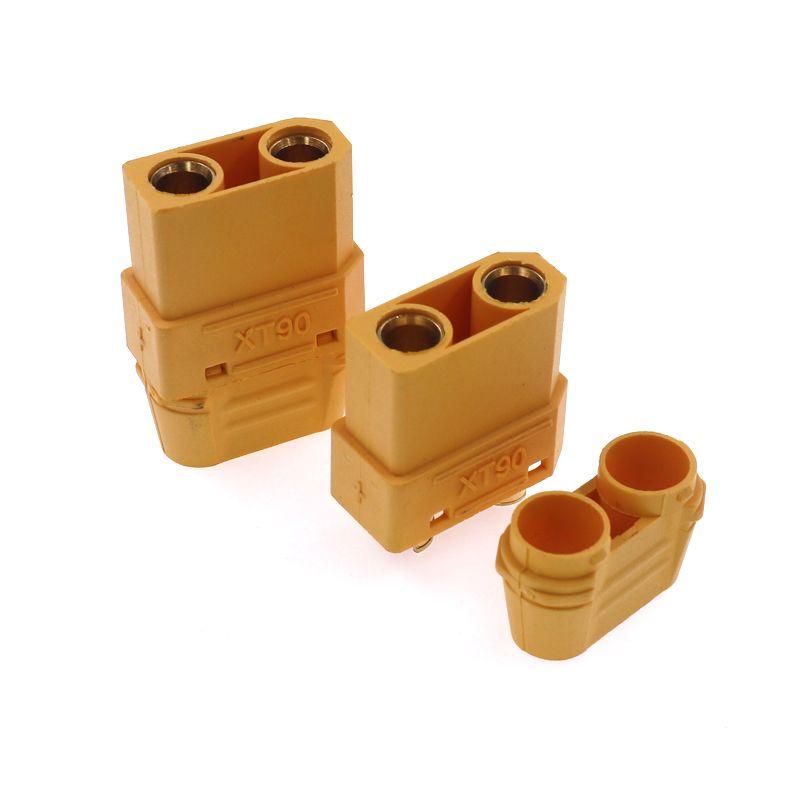

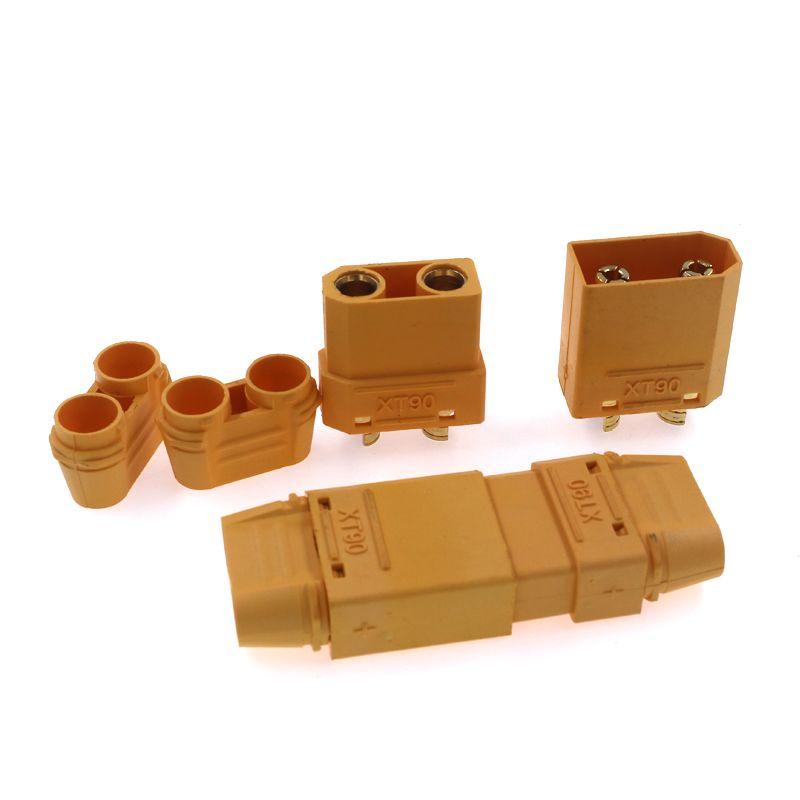

XT90S XT90H With Cover Female Male Plug ESC And Charger Lead Connectors

Features

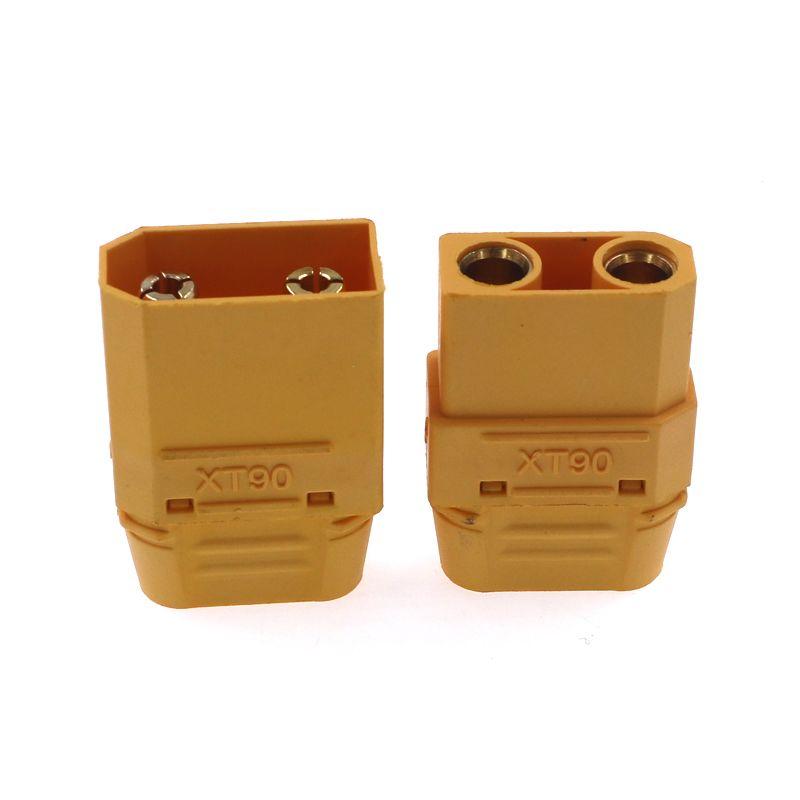

Male and female design, connection ESC and charger lead;

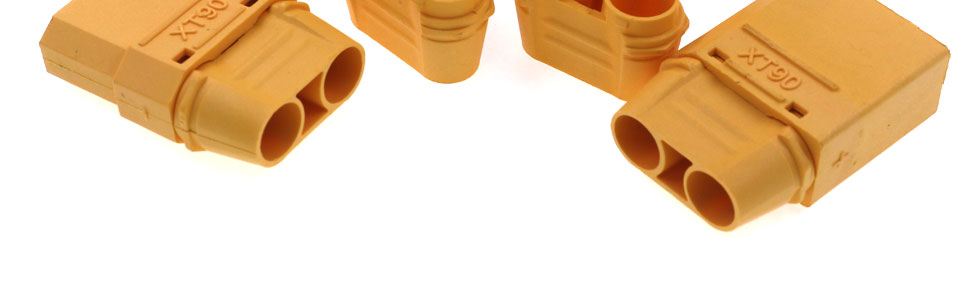

Equipped with a sheath housing, the solder joints and copper pins are not exposed;
Gold-plated copper contacts for lower contact resistance and better conductivity.
The shell is made of high flame retardant PA, and there is a hollow window, which is easier to dissipate heat and is safer to use.
The shell is asymmetrical and marked with "+" and "-" poles to prevent wrong insertion.
After the XT90H connector is connected, it fits tightly, and it is not easy to loosen during the working process;

Specification of XT90H Battery Connector
Item NO.:	XT90-H	Connector CR:	0.30 MΩ
Color:	Yellow	RV:	DC 500 V
Metal Material:	Brass Gold Plated	RC:	40 A
Plastic Material:	PA66	MC:	90 A
FR level:	UL94 V0	Plug times:	1000 times
Recommend used:	Battery/Controller/Charger	Cable Spec:	10AWG
Product description:	High current connector	Temperature:	-20°C to 120°C

Application

XT90H connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.

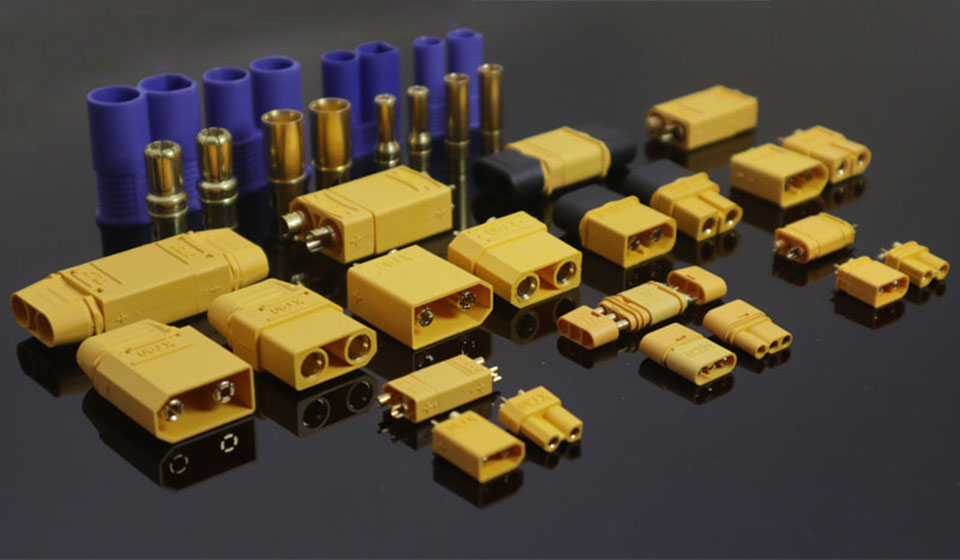

More Similar Products


XT30 Connectors	XT60 Connectors	XT60 Connectors	XT60H Connectors	XT90 Connectors

*For more information, please contact us by email or through any contact information on the webpage.
