2 pin 320a forklift battery power connector

We are a industrial battery charger manufacturer, our connectors can replace of rema and anderson connector. There are different currents, color can be chosen.

Brand:
OLINK
Item no.:
ANRE-320A
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

2 pin 320a forklift battery power connector


DC 320A 150V Connectors (Male)	DC 320A 150V Connectors (Female)

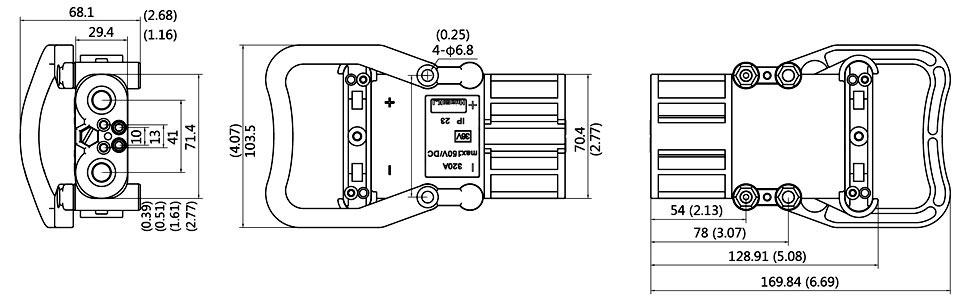

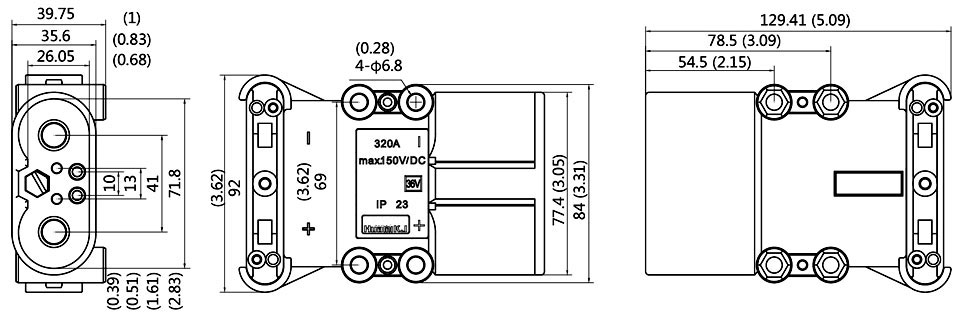

Drawing of DC 320A150V Connectors

DC 3200A 150V Connectors (Male)

DC 320A 150V Connectors (Female)

Parameter For 320A150V Connectors

Part Number	Rated current	Rated voltage	Material of terminal	Color	Flammability	Wire
Housing	320A	150V	PA66	Grey/Black	UL94V-0	N/A
Chief Terminal	320A	150V	Copper with silver	Silvery	N/A	1/0-2/0AWG
Upper Assist Terminal	20A	150V	Copper with silver	Silvery	N/A	18AWG-12AWG
Below Assist Termianl	20A	150V	Copper with silver	Silvery	N/A	18AWG-12AWG

Applications of 320A150V Connectors

Power battery, radio power supply, forklift handling equipment, UPS uninterruptible power supply, inverter, electric cleaning equipment, power lithium batteries, energy storage power generation, photovoltaic solar energy, off-road vehicle winches, equipment, electric wheelchairs and other equipment with high current input or output.

*For more information, please contact us by email or through any contact information on the webpage.
