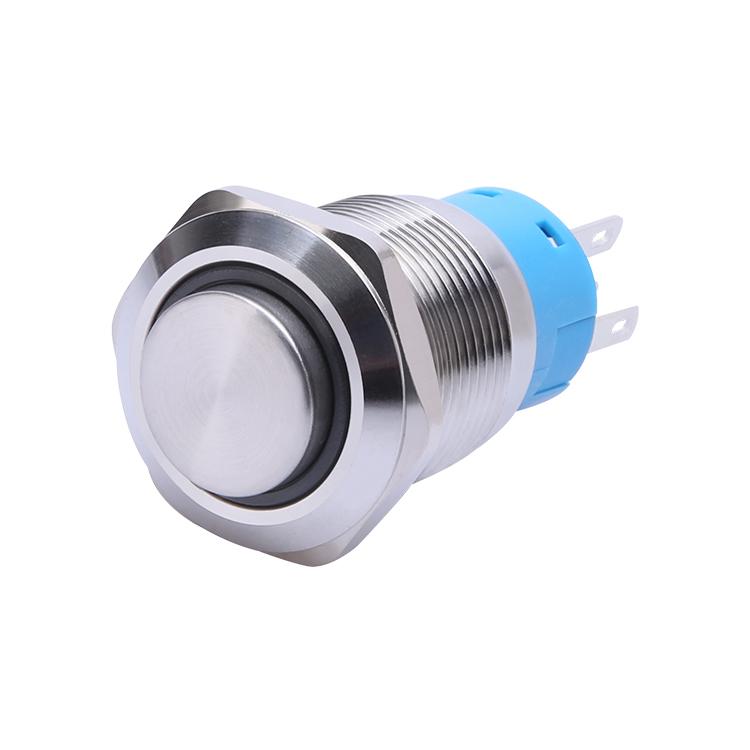

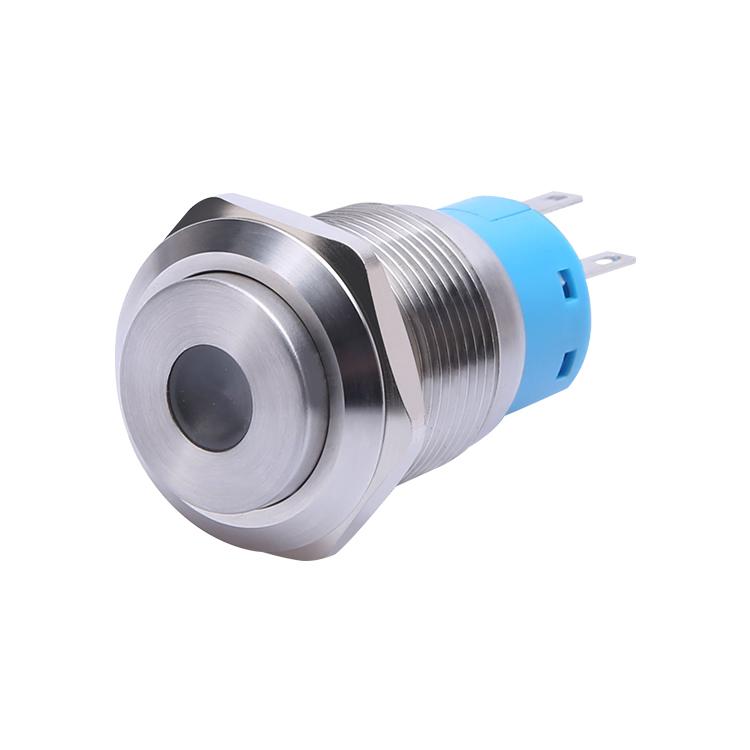

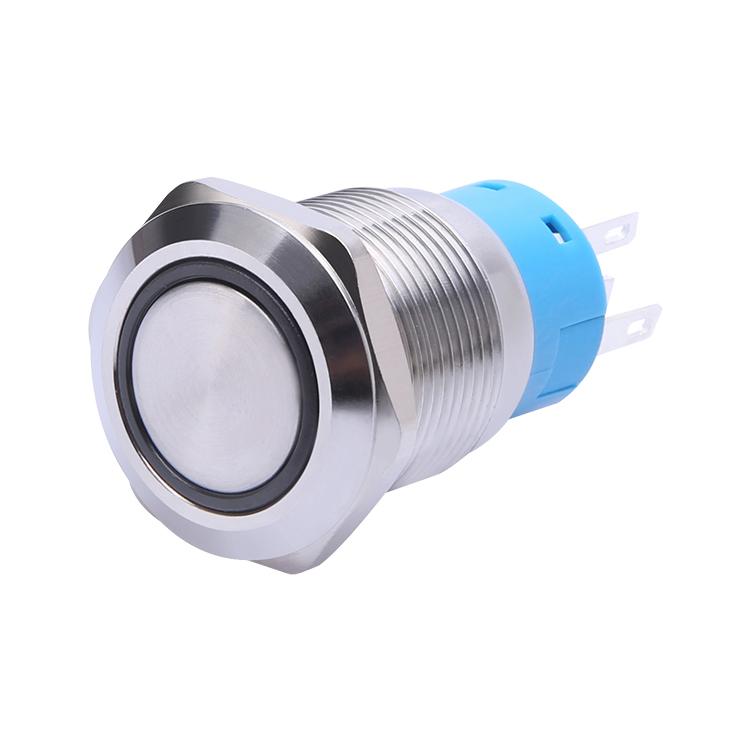

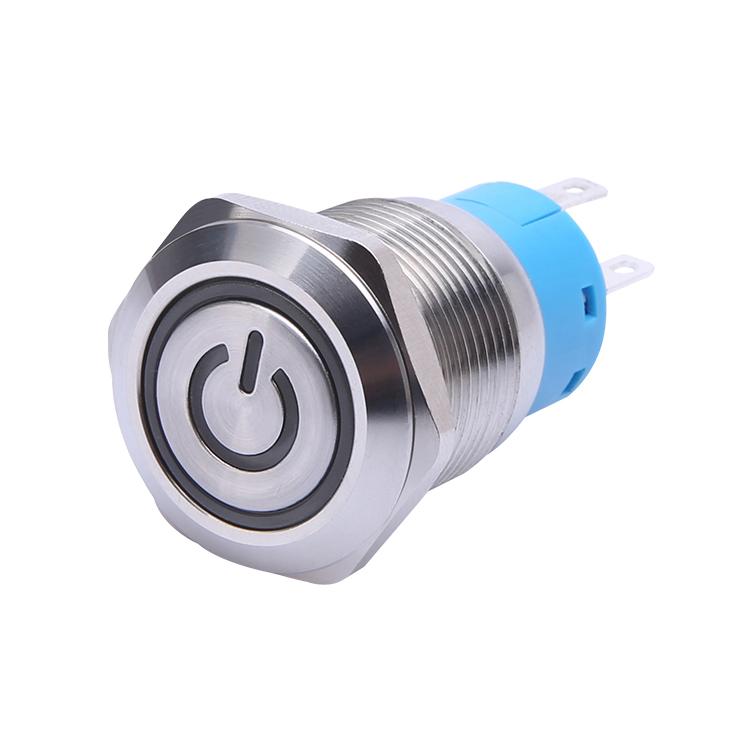

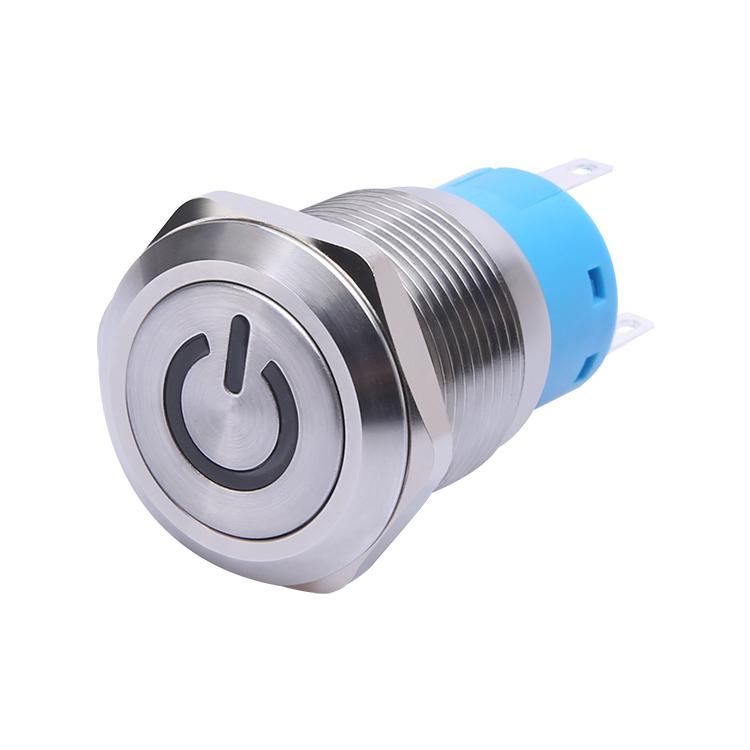

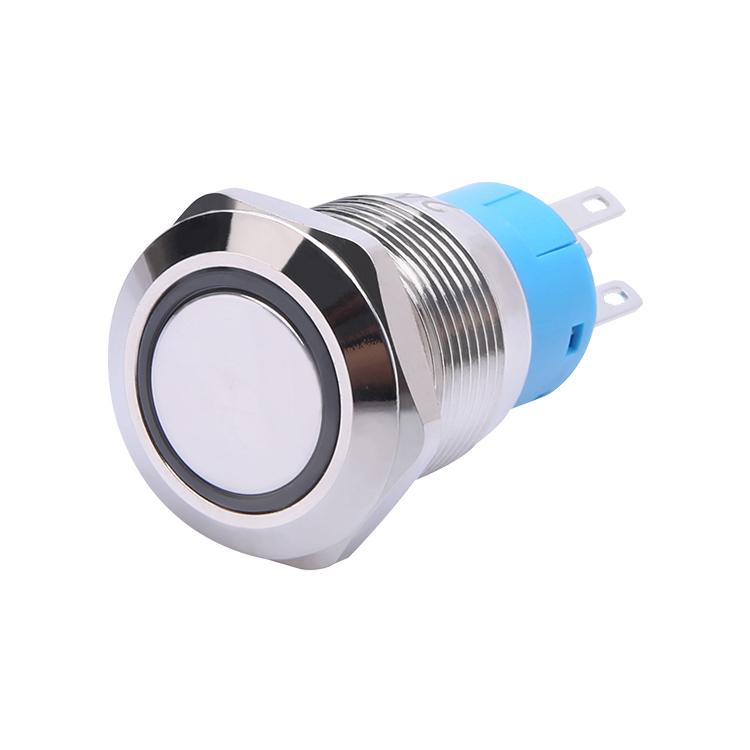

Stainless Steel 19mm Anti Vandal IK10 Push Button Switch

Stainless Steel 19mm Waterproof IP67 Anti Vandal IK10 Push Button Switch Waterproof Design Ideal for Industrial Equipment and Machinery
  • Brand:

    OLINK
  • Item no.:

    ZLQ-19A

                               Product parameters of metal push button switch

Introducing our premium 19mm button switch, designed for reliability and versatility in various applications. This compact switch is engineered to meet the highest standards of quality and performance, making it an ideal choice for both industrial and consumer electronics.

Technical parameters

Project
Parameter
Project
Parameter
Switch type
Fast moving single contact
Explosion grade
IK10(for metal material)
LED type
Red,Green,Blue,Yellow,White,Orange,Purple
LED rated current
≤20mA
Contact resistance
≤50mΩ
Operating pressure
2.5~4.5N
Insulation resistance
≥100mΩ
Nut torque
5~14N.m
Insulation strength
2000VAC
Outer shell
Stainless/brass plating aluminium alloy oxide/plastic
Ambient temperature
-20℃~+55℃
Press key
Stainless/brass plating aluminium alloy oxide/plastic
Base seat
Engineering plastic
Touch point
Silver alloy
Operation schedule
Connected to about 2mm, head office about 3mm
Waterproof grade
IP67
Electrical life
≥50,000 times
Mechanical life
≥500,000 times

19mm push_button switch Features:
Durable Construction: Crafted from high-quality materials, our 19mm button switch is built to withstand heavy usage, ensuring long-lasting performance even in challenging environments.
Wide Operating Voltage Range: With compatibility across a broad voltage range, this switch can easily integrate into diverse systems, providing flexibility for various projects.
Easy Installation: The 19mm size makes it suitable for standard mounting options, allowing for quick and hassle-free installation in panels, consoles, and enclosures.
Customizable Options: Available in multiple colors and actuator styles, you can easily choose a design that suits your specific application needs.

Metal push button switch

Applications:
The 19mm button switch is perfect for a wide array of applications, including:
Industrial Machinery: Ideal for controlling machinery in manufacturing plants, ensuring safety and efficiency in operations.
Consumer Electronics: Commonly used in devices like home appliances, gaming consoles, and automotive controls for seamless user interaction.
Medical Equipment: Its reliable operation makes it suitable for various medical devices, ensuring safety and precision in critical environments.
DIY Projects: A favorite among hobbyists, this switch is perfect for custom electronics projects, enabling easy control of power and functions.
Choose our 19mm button switch for its exceptional durability and adaptability, making it the perfect solution for your switching needs!
