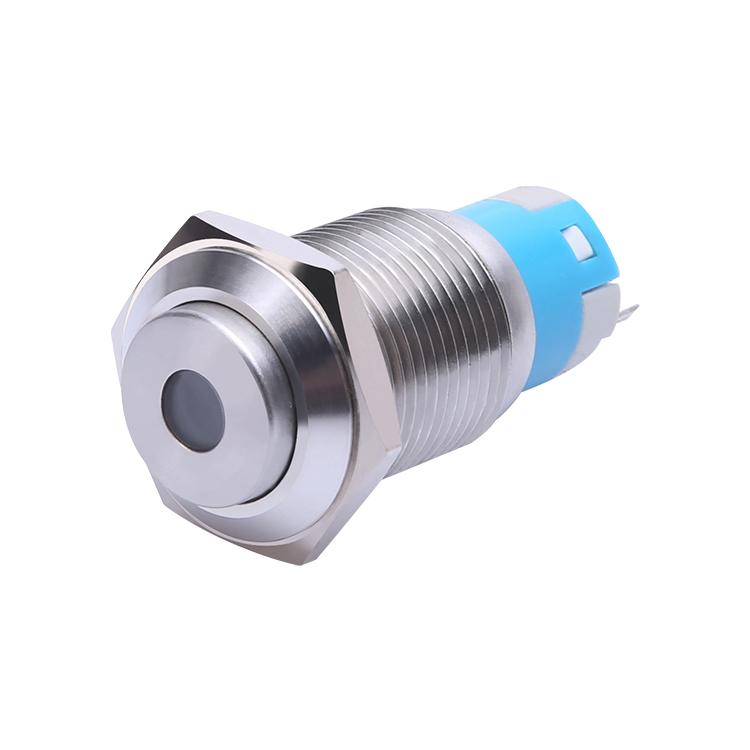

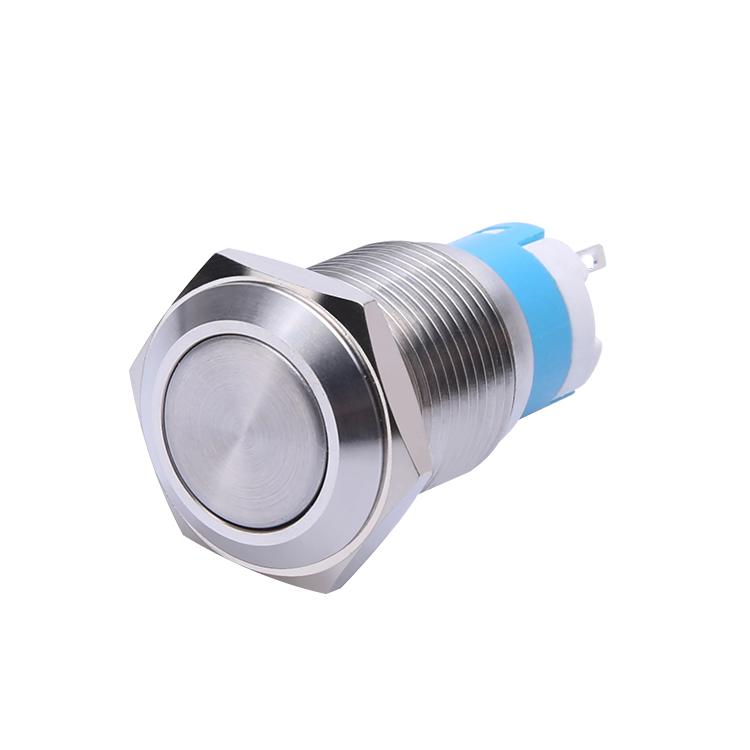

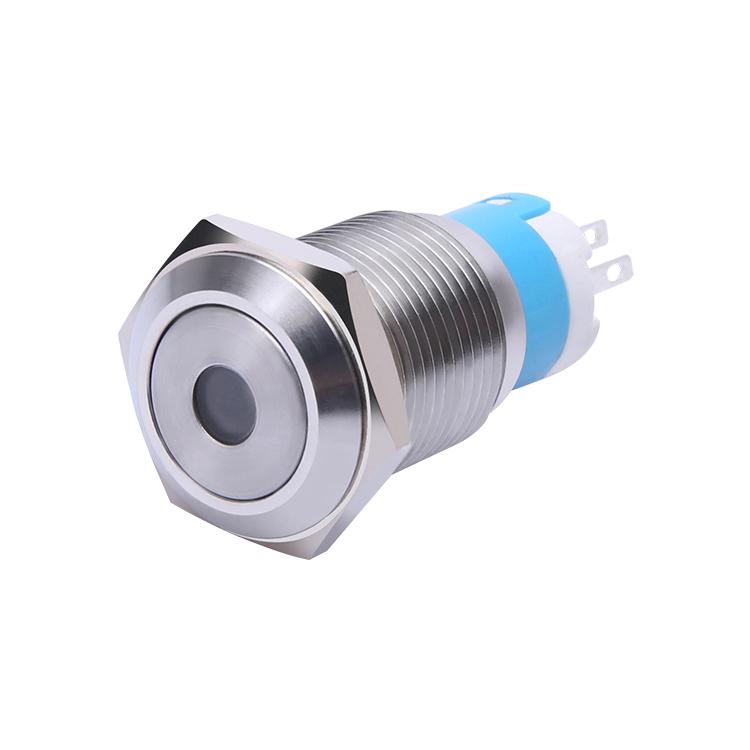

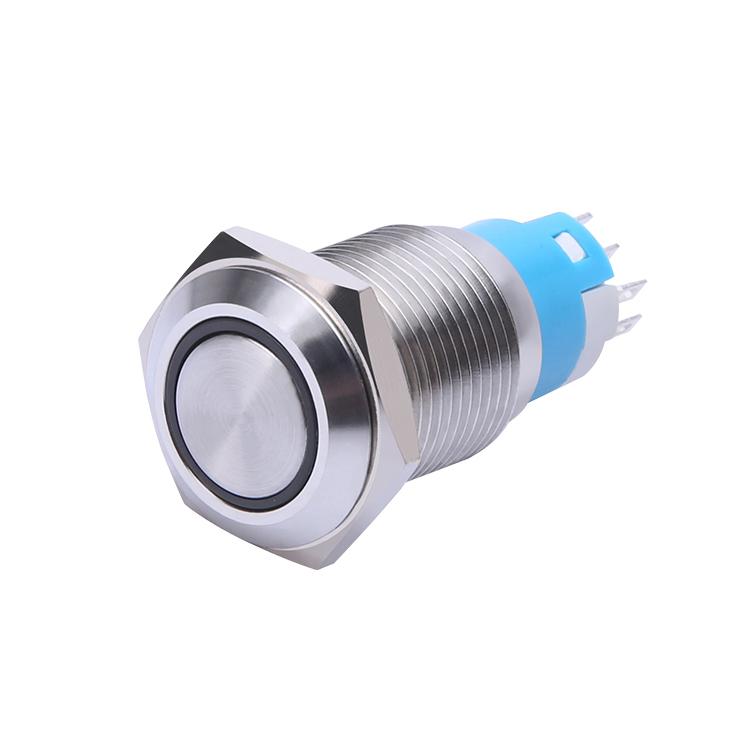

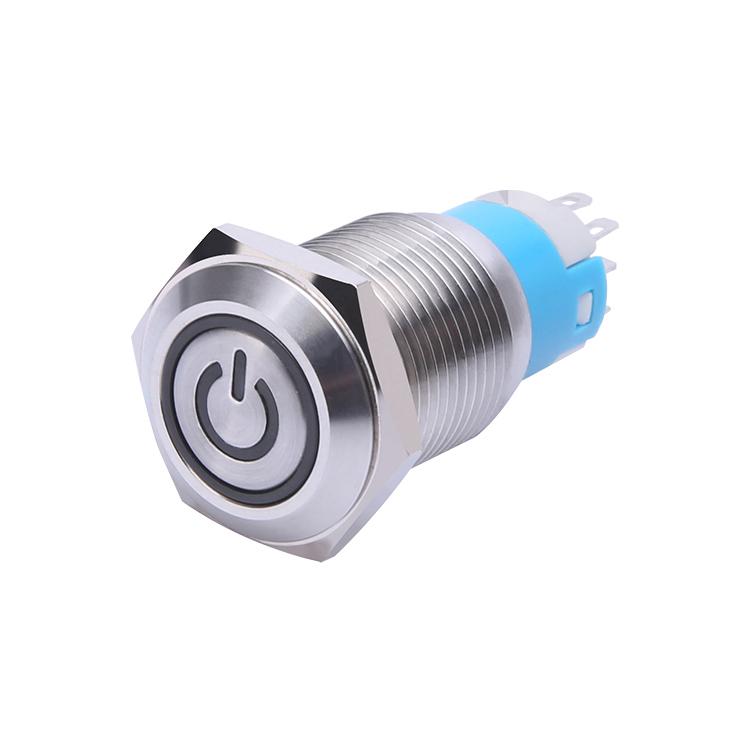

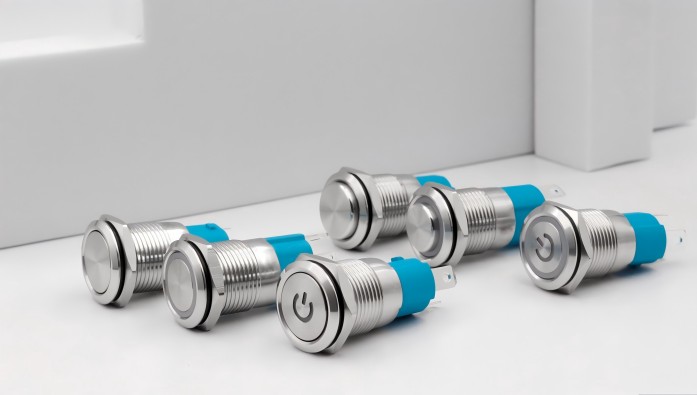

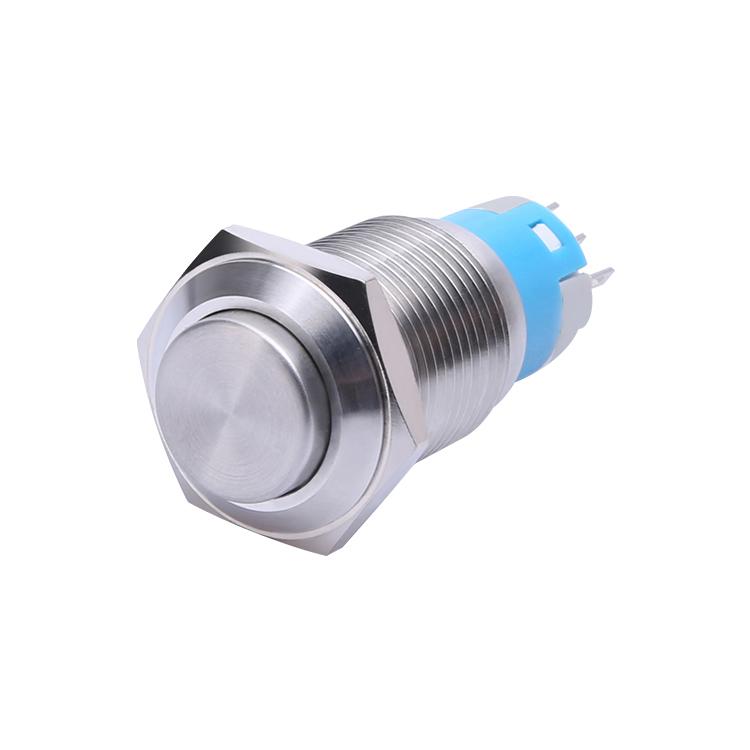

IP67 Waterproof 16mm Metal Push Button Switch

Stainless Steel 16mm Waterproof IP67 Anti Vandal IK10 Push Button Switch Waterproof Design Ideal for Industrial Equipment and Machinery

Brand:
OLINK
Item no.:
ZLQ-16A

Inquiry now

product introduction

Product parameters of metal push button switch

Technical parameters
Project	Parameter	Project	Parameter
Switch type	Fast moving single contact	Explosion grade	IK10(for metal material)
LED type	Red，Green，Blue，Yellow，White，Orange，Purple	LED rated current	≤20mA
Contact resistance	≤50mΩ	Operating pressure	2.5~4.5N
Insulation resistance	≥100mΩ	Nut torque	5~14N.m
Insulation strength	2000VAC	Outer shell	Stainless/brass plating aluminium alloy oxide/plastic
Ambient temperature	-20℃~+55℃	Press key	Stainless/brass plating aluminium alloy oxide/plastic
Base seat	Engineering plastic	Touch point	Silver alloy
Operation schedule	Connected to about 2mm, head office about 3mm	Waterproof grade	IP67
Electrical life	≥50,000 times	Mechanical life	≥500,000 times

Metal push button switch

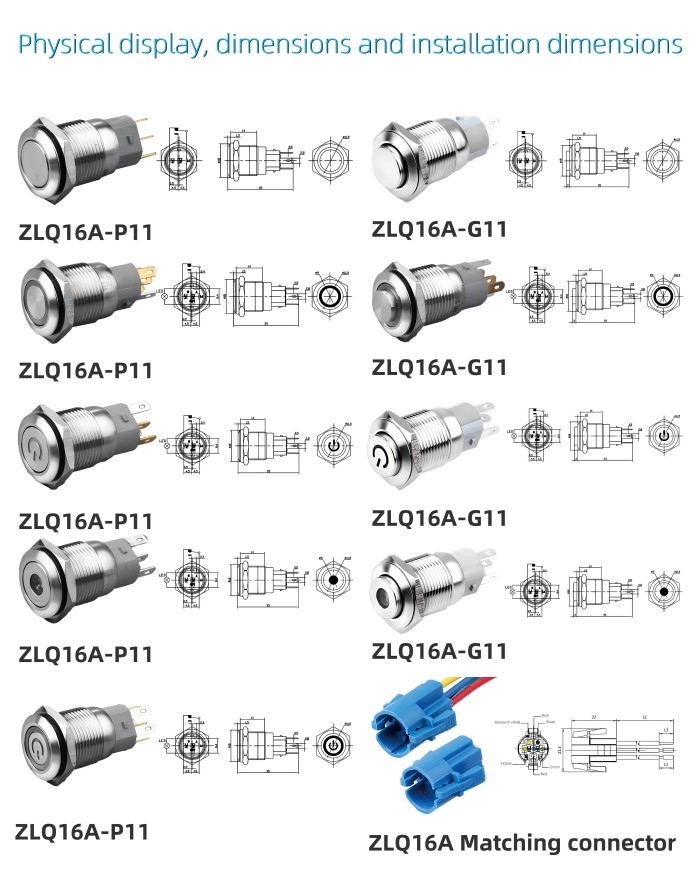

parameter of button switch
