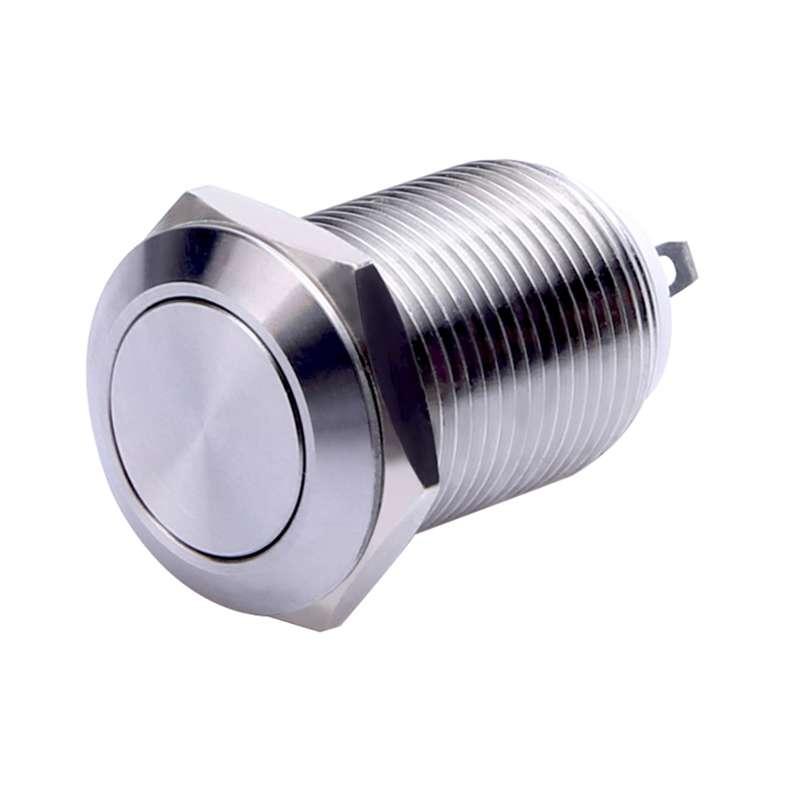

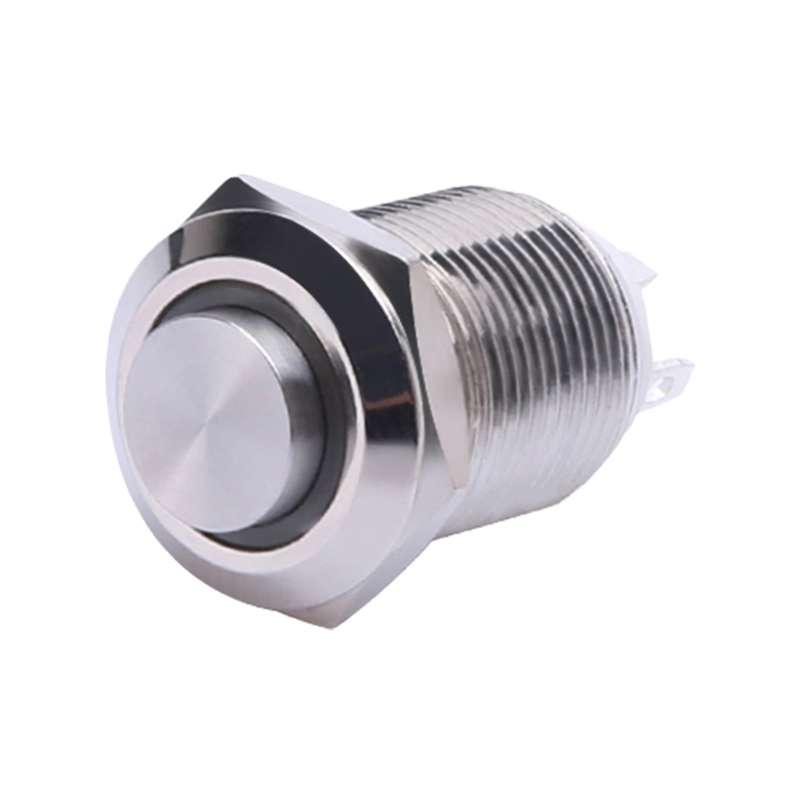

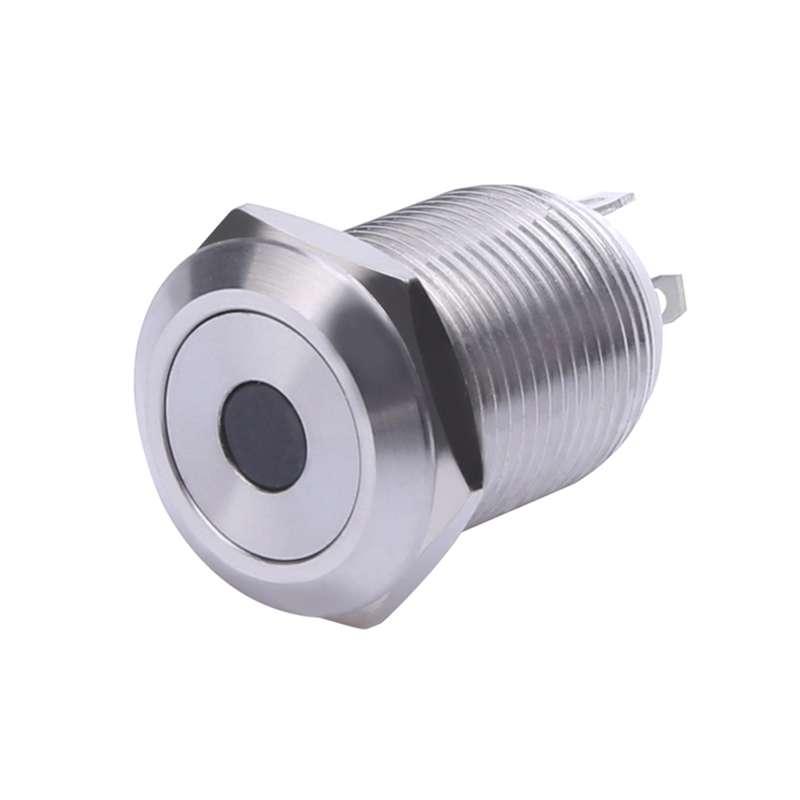

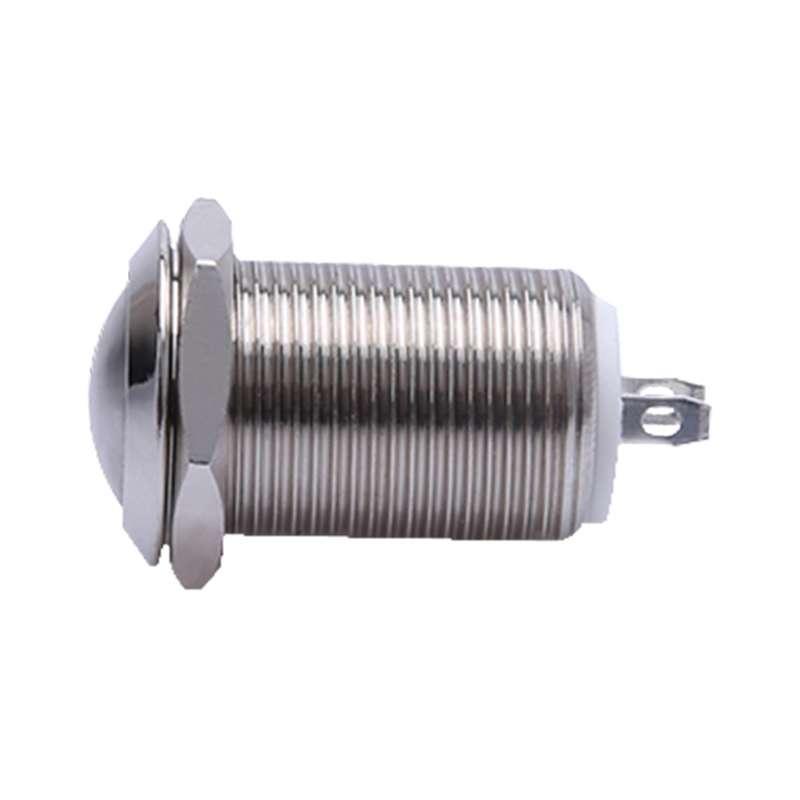

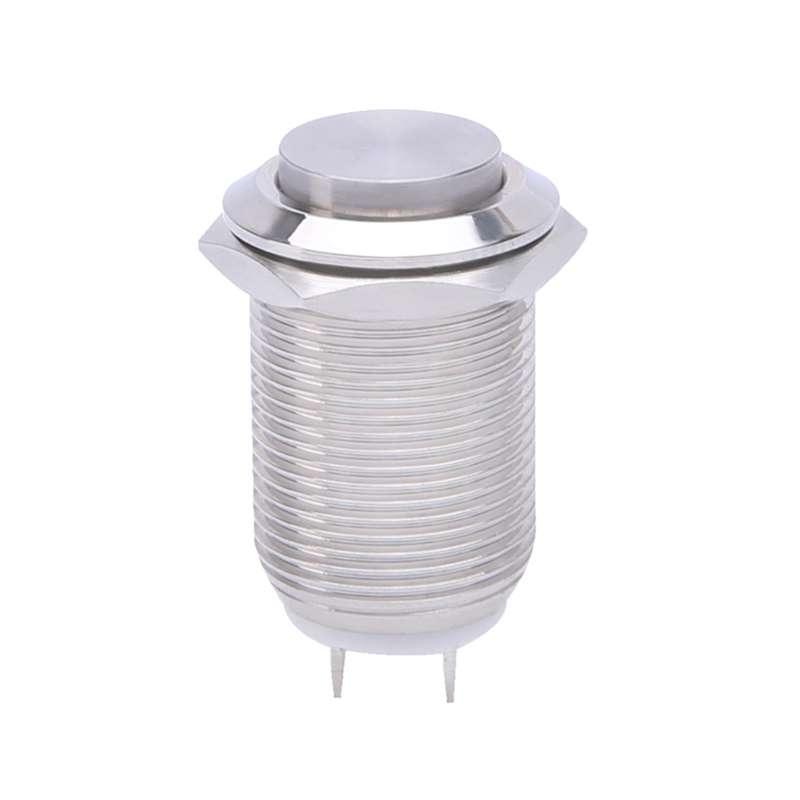

12mm waterproof 4 pin latching push button switch with light

12 mm hole mount diameter, small and exquisite, widely used in all kinds of electronic products, home appliances.

Brand:
OLINK
Item no.:
12QB
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

12mm waterproof 4 pin latching push button switch with light

Features of Latching push button switch

Stainless steel shell: Anti-corrosion and rust proof. Glossy appearance, appearance of the the atmosphere.
Flame-retardant contacts: Silver contact, instant electricity no heat, resistance to load. Protect the safety of the circuit.
Waterproof design: water and moisture proof, to avoid accidental water damage circuit equipment.
Precision spiral thread: Nut type mounting and fixing, easy to installation. Deep thread, the force is evenly and firmly.

Specifications of 4 pin push button switch

Product Name:	12mm momentary push button switch	Product Model:	12QB
Switch Rating:	2A/36V DC, 2A/250V AC, 3A/250V AC	Terminal Type:	2.0x0.5 J pin terminal
Switch Function:	1NO, Momentary	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤50mΩ	Insulation Resistance:	≥1000MΩ
Panel Thickness:	1~10mm	Protection Grade:	IP65, IK108
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, Zn-Al alloy(any color)
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT
Lamp Voltage:	2V(Red, orange, yellow), 3V(Green, Blue, White), 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V( Need an external resistance)	Lamp color:	Red, Orange, White, Blue, Green, Yellow

Drawings of Latching Push Button Switch


12QB-F10		12QB-H10

12QB-B10		12QB-H10/A(Y)

12QB-F10E		12QB-H10/E

12QB-F10/D		12QB-H10/D

12QB-F10/V		12QB-H10/V

Application of 12mm Button Switch

12mm push button switch can used in car modification, motorcycle modification, computer modification, access control switch, home appliance button, industrial control instrument.

16mm push button switch

FAQ:

What is the lamp color and voltage?

Color: Regular color- Red, Green, Yellow, Blue, White; Can custom- Purple, Orange, Dual-color, Tri-color

Voltage: Red & Yellow - Rated voltage 2V, Green & Blue & White - Rated voltage 3V; Other voltage (5V/6V/12V/24V/36V/48V/110V/220V) required an external resistor. We provide resistors for free, but you need to solder them yourself. We can also provide soldering service, more details pls consult us.
