Solderless Design FP20 for Outdoor LED Lighting Applications

FP20 series there are many poles can choose. Widely used in power and signal.

Brand:
OLINK
Item no.:
FP20
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Waterproof Aviation Plug Connector Multi-poles Signal 2 Pin Plastic Connector LP20

Description of IP67 waterproof connector

Model:	FP20	Type:	waterproof connector
Cable OD:	Φ8-Φ12mm/Φ5.5-Φ7mm	Rated current/voltage:	2-4P: 20A 500V 5P, 7P: 12A 500V 9P, 12P: 5A 400V
Wire range:	2-4P: 14-12 AWG (2.5-4.0mm²) 5P, 7P: 18-16 awg (2.5-4.0mm²) 9P, 12P: 26-24 AWG (2.5-4.0mm²)	Material:	Housing: High-prefermance engineering plastic Hardware: Zinc Alloy(pearl hard chrome) Copper pin: Copper alloy(gold-plated) Waterproof circle: Silica gel
IP level:	IP65/IP68	Connection:	Plug/unplug
Assembly wire:	Pressure & solder	Temperature:	-40℃~80℃
Durability:	≥500 times	Flammability:	UL94-V0

Drawings:

Sealing Rings For Two Cable Diameters:

I: 8-12mm II: 5-7mm

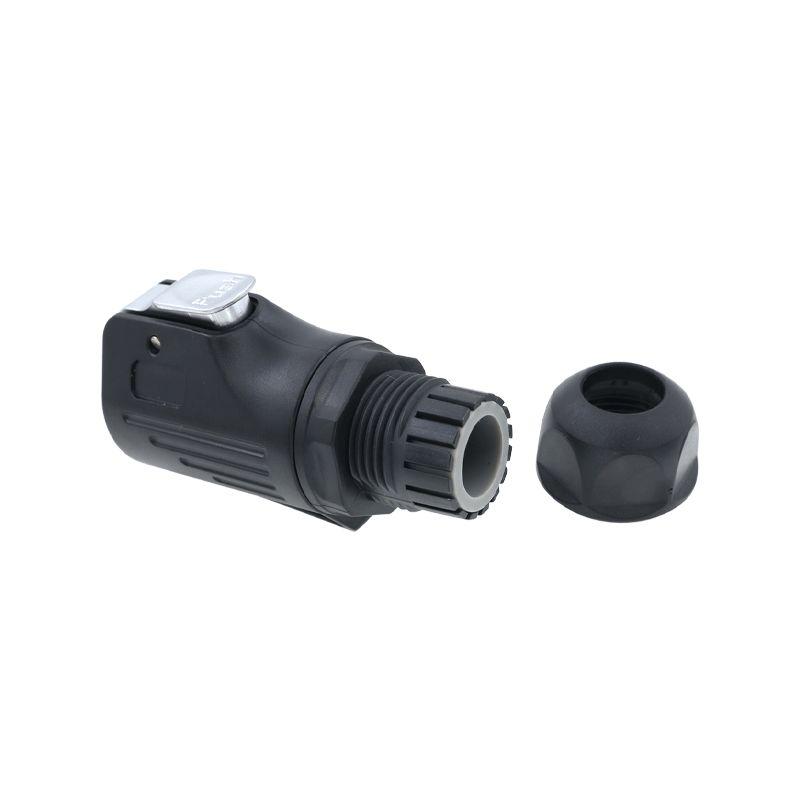

Product structure

Product feature

Customize cable

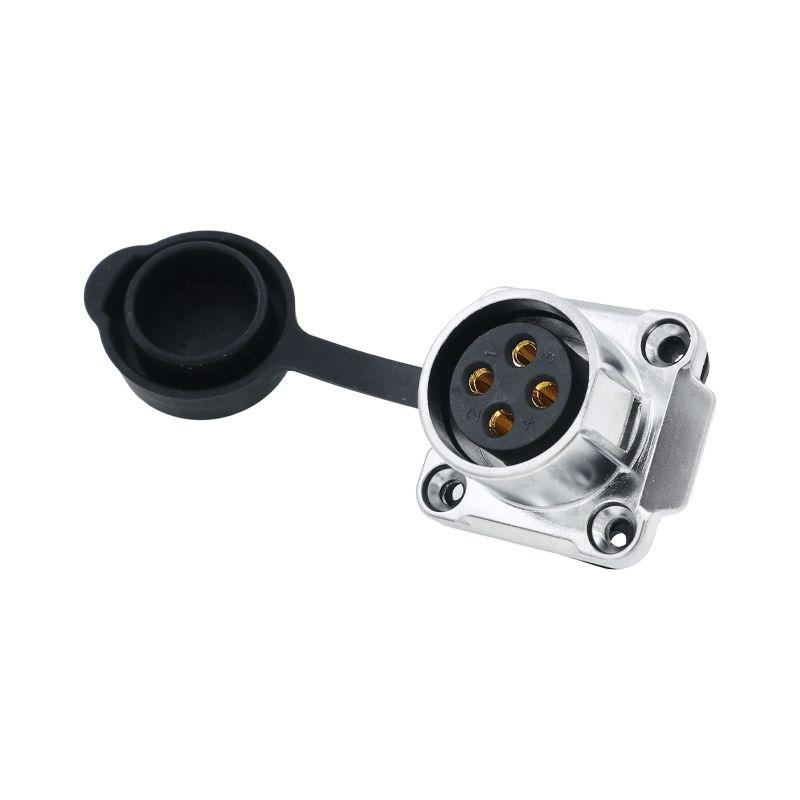

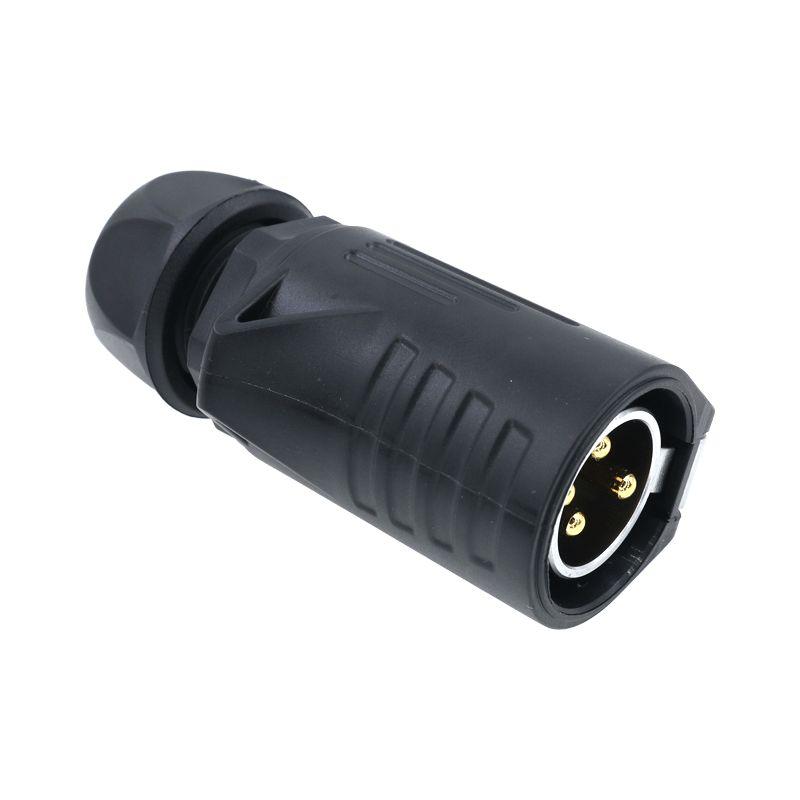

Plug with cable	Socket with single electronic wire

*For more information, please contact us by email or through any contact information on the webpage.
