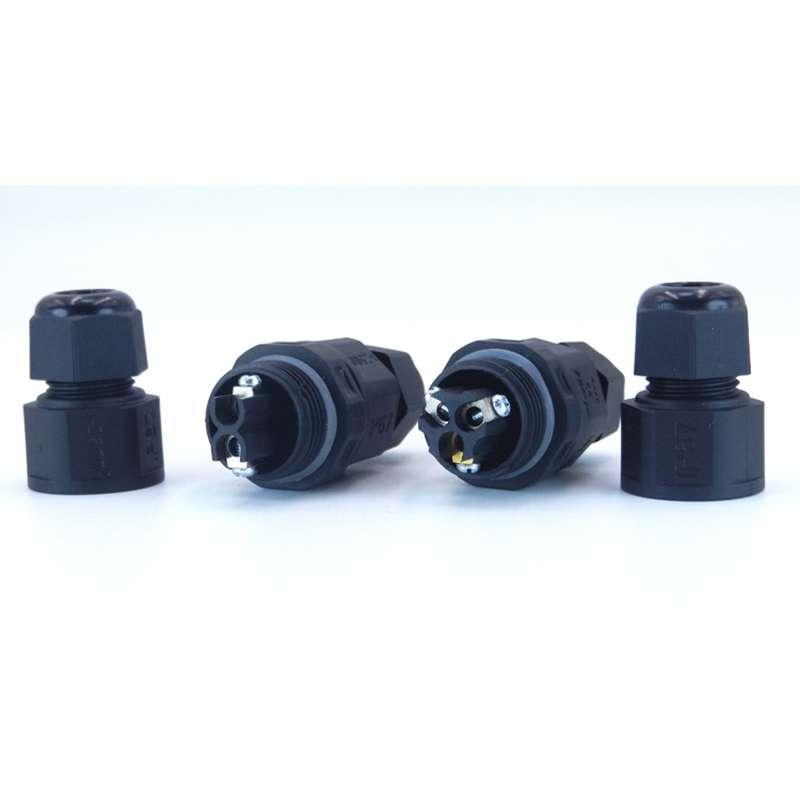

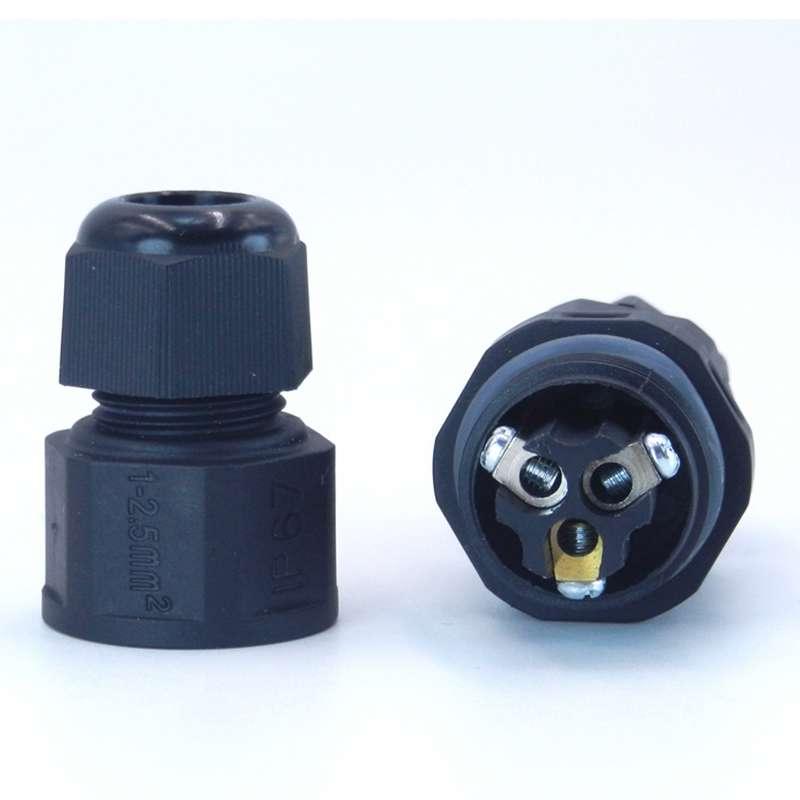

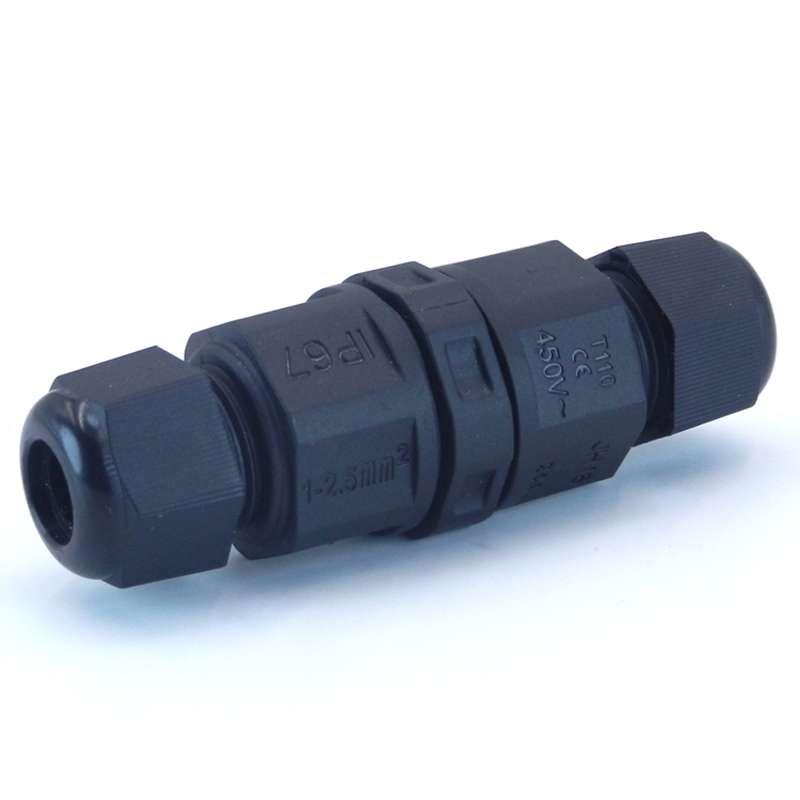

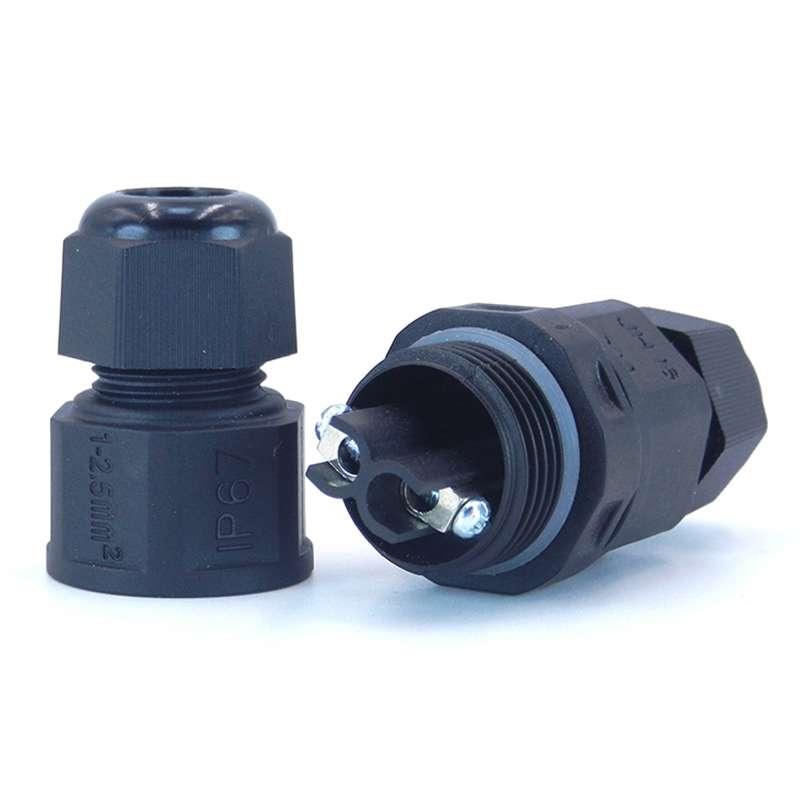

2 pin ip68 waterproof outdoor street light wire connector

Wire to wire type, screw connection, Easy to operate. With wide range of application scenarios.

Brand:
OLINK
Item no.:
JH16-09-CJ3-PSE-1
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

2 pin ip68 waterproof outdoor street light wire connector

Feature of waterproof power connector

Environmentally friendly nylon, durable. Nylon has the characteristics of fireproof, anti-corrosion, high toughness, etc., which ensures that the product is fireproof, waterproof and durable.
Silicone seal, better waterproof. Silicone has the characteristics of anti-corrosion, wear-resistance, and anti-oxidation, which ensures the high-efficiency waterproof characteristics of the joint.
Nickel-plated copper parts, good electrical conductivity. The terminal is made of pure copper to ensure a stable and efficient conductive effect.

Specification of waterproof Cable connector
Product name:	Waterproof outdoor wire connectors	Product model:	JH16
Number of cores:	2P/3P	Cable OD.:	I: 4-8 mm II: 5.5-9.5 mm
Rated voltage:	500V/AC.DC	Rated current:	20A
Connector:	Screw	Withstand voltage:	1500V
Color:	Black	Waterproof level:	IP67
Plastic material:	PA66/UL94-V2	Environmental temperature:	-40℃ to +120℃

Wiring method of waterproof power connector

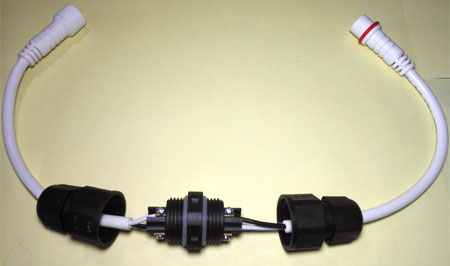

First, unscrew the connector from the middle
Second, withdraw the screws and handle the wires (stripped and tinned)
Third, insert the wires in order and tighten the screws

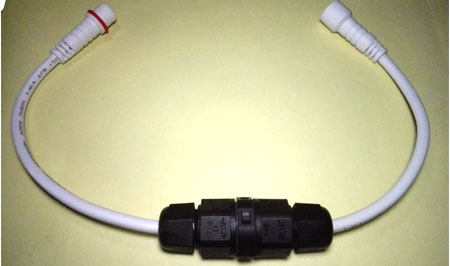

Final, tighten the connector, the wiring is complete
