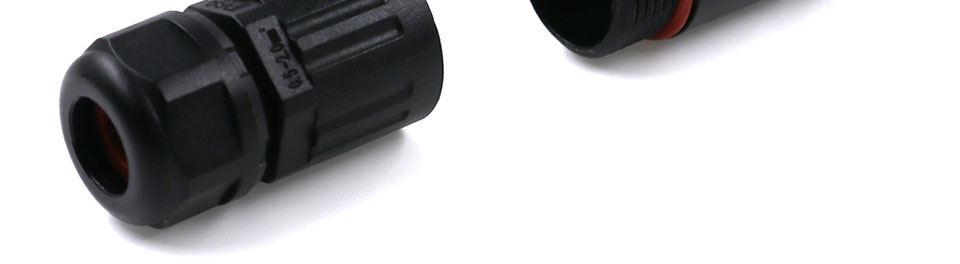

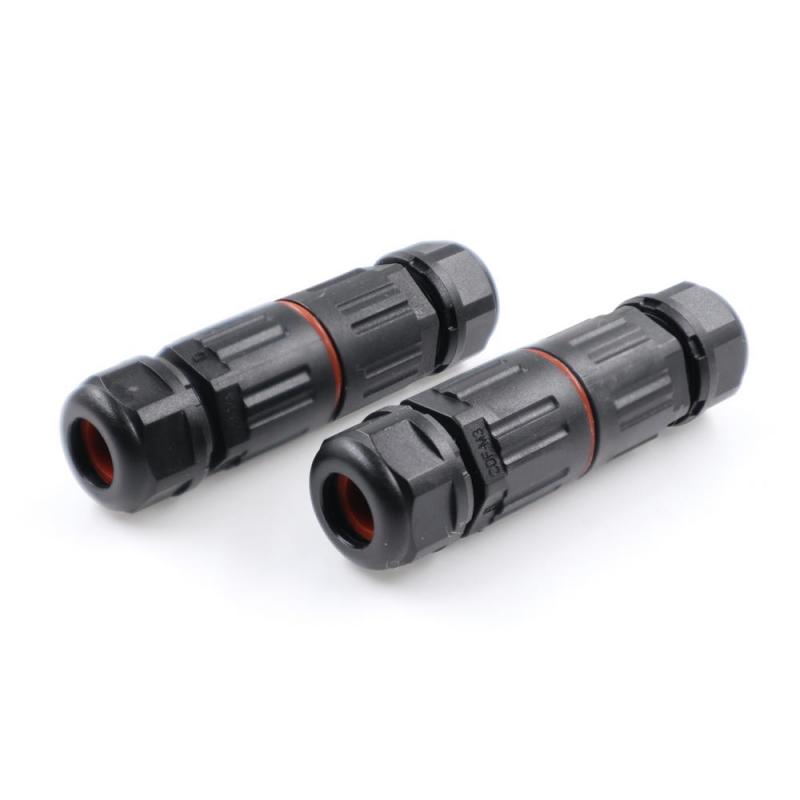

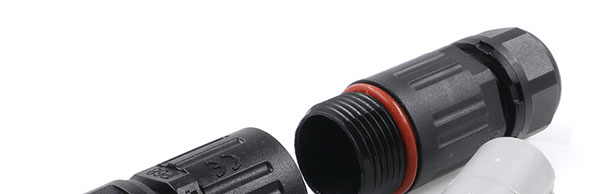

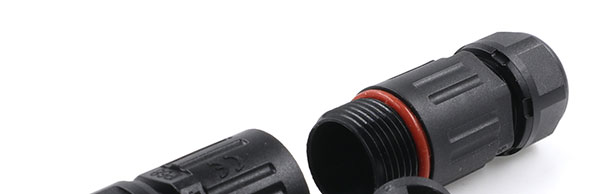

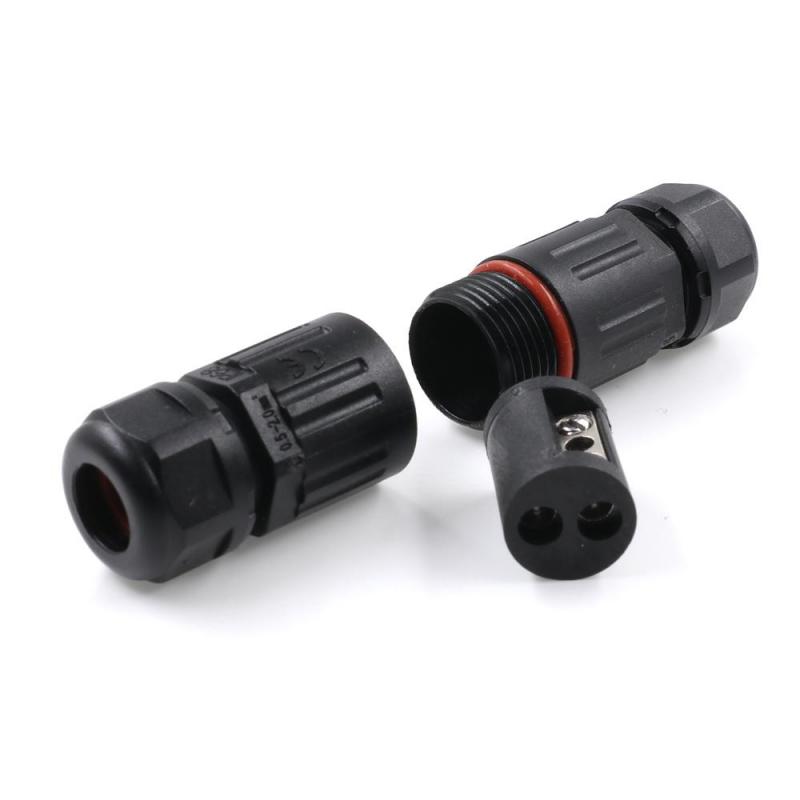

Electric cable waterproof connector IP68 mini 2 pin

The size of mini waterproof connector is equivalent to AA size 5 battery. It's easy to operate, can be used under water depth 4m. There are 2 pin and 3 pin.

Brand:
OLINK
Item no.:
CDF-M3
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Electric cable waterproof connector IP68 mini 2 pin

features of mini waterproof connector:

It is only equivalent to the size of AA batteries, and the use cost is low;
Waterproof grade IP68;

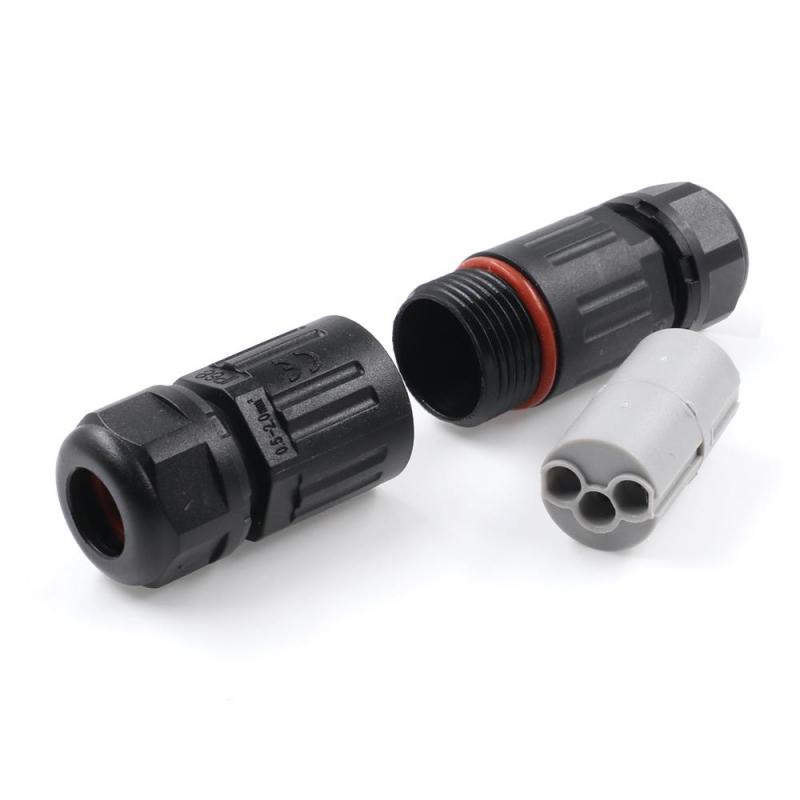

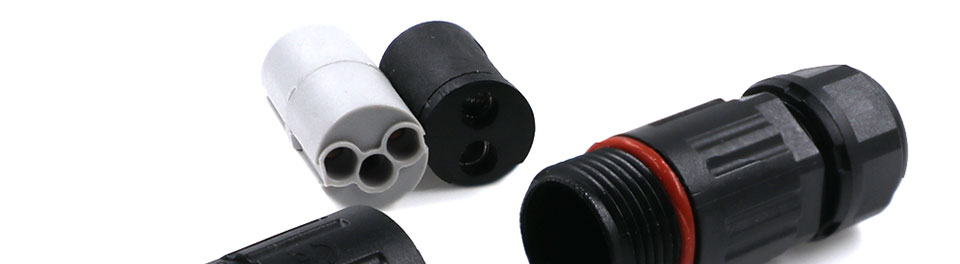

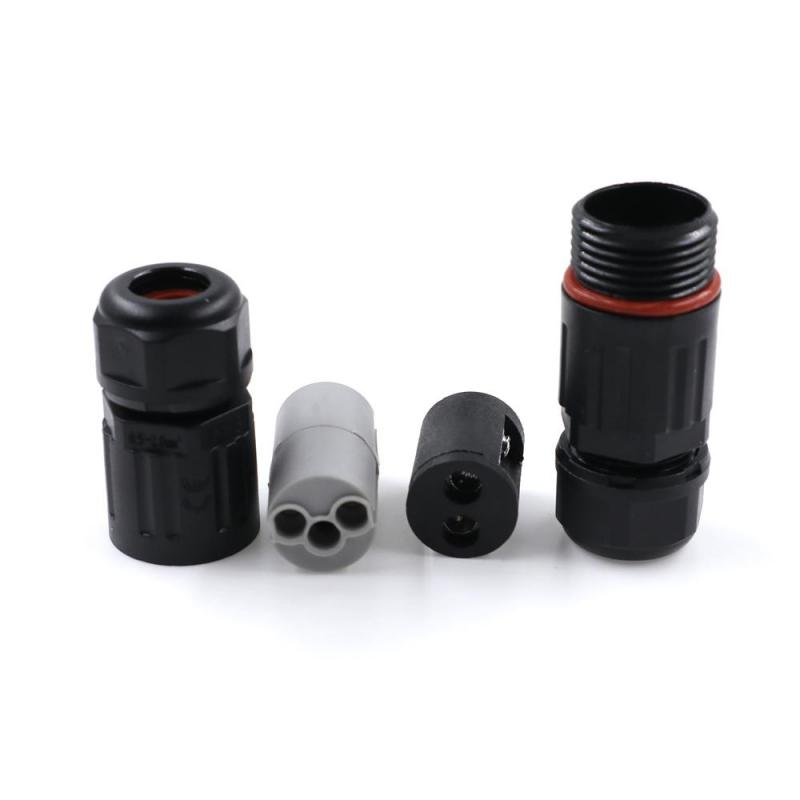

The terminal has 2P screw crimping and 3P quick plugging options;

Specification:

Product name:	Mini waterproof connector	Product model:	CDF-M3
Number of cores:	2P/3P	Cable OD.:	φ4 - φ7 mm
Rated voltage:	300V	Rated current:	16A
Wire range:	0.5-2.5 mm²/20-14 AWG	Waterproof level:	IP68/water depth 4m
Contact material:	Brass nickel plated	Housing material:	Flame retardant nylon
Operating temperature:	-40℃~95℃	Wiring method:	Screw/ Push in
Application:	Used for wiring of water projects, such as wiring of household fish tanks, etc., as well as waterproof and moisture-proof lighting such as lamps and lanterns

Application note：

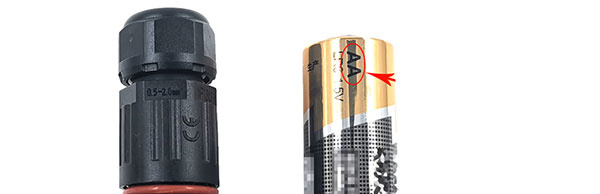

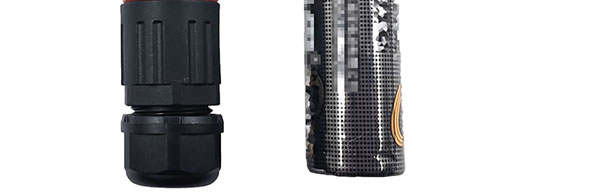

	Mini waterproof connector Equivalent to the size of AA battery

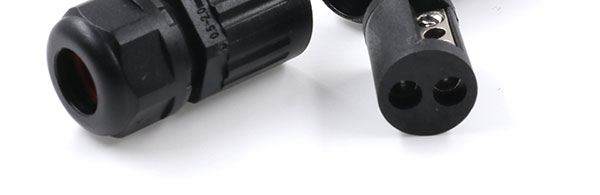

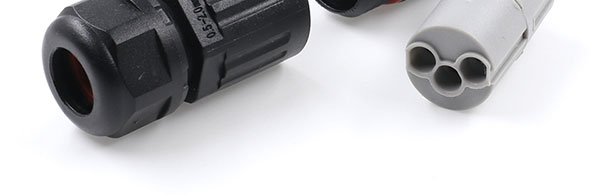

	2 pin terminal screw crimping type, can be connected to any type of wire
	The 3 pin terminal is a quick plug-in type, which only supports hard wire connection
