OLINK is a professional supplier of electronic accessories. We provide a wide variety of battery connectors, as well as other electrical connector accessories, including battery terminal covers, battery cables/wires, etc.
Brand:
OLINKItem no.:
SP75Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
RD, BU, BK, GN, GY, YE, OG, WHGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:
7

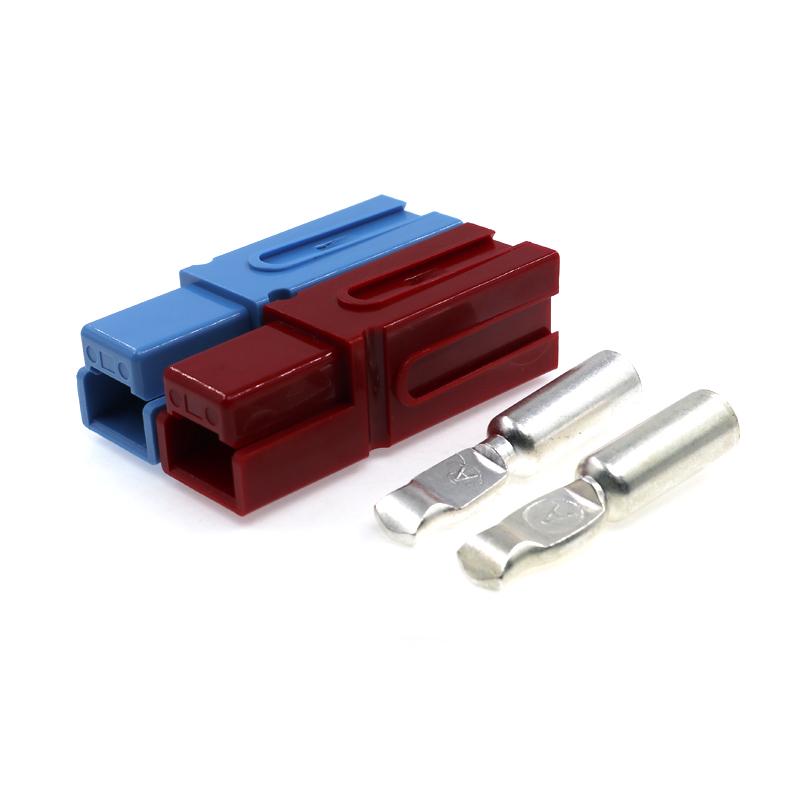

Single pole PP75A 8 gauge battery cable connector red and black
Features of Red and black battery connectors
There are many types of terminals, and the battery connector allows multi-angle installation
SP75A connector Single pole design, can be used in multiple splicing
parameter of Red and black battery connectors
Product name |
Single pole PP75A 8 gauge battery cable connector red and black |
||
Rated Current | 75A | Rated Voltage | 600V |
Wire Size | 6~12AWG | Contact Material | Copper Plate With Silver |
Insulation Material | PC |
Flammability |
UL94 V-0 |
Contact Resistance |
<180mΩ | Insulation Resistance | 5000MΩ |
Average.Connection | 30N | Connector Holding Force | 250N Min |
Shell optional color |
Red,Blue,Black,White,Gray,Yellow,Green,Orange |

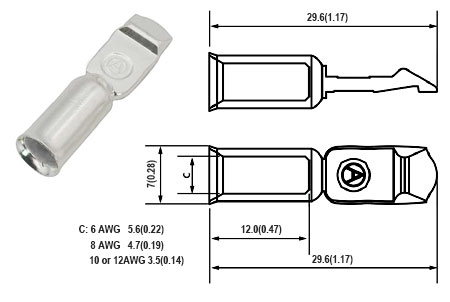

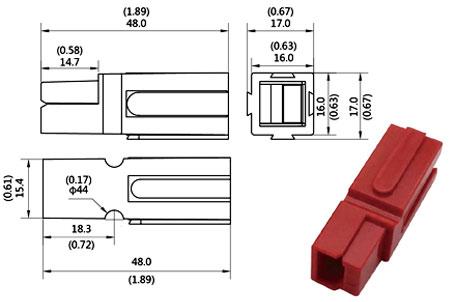

Drawing of SP75 Connectors
|
|
Note:A set of SP75 Connector, only contains a shell and a crimp terminal |
Auxiliary parts for SP75 Connectors
Use occasion of SP75 Connectors
The SP75 Battery Connector is mainly used in AC/DC power inverters, electric bicycle power batteries, and industries and occasions that require single-max current connections.
FAQ
Q:Sp75 battery connector Can the color be customized?
A:Colors can be customized, but a certain minimum order quantity is required.
Q:Can all colors match each other?
A:There is no male and female design, the same color can be connected to each other, and battery connectors of different colors cannot be connected to each other.
Q:How long will it take to ship after payment?
A:battery connector with finished goods inventory can generally be shipped the next day; products without finished goods inventory generally have spare parts inventory, and they can be shipped within 5-7 days after placing an order.
