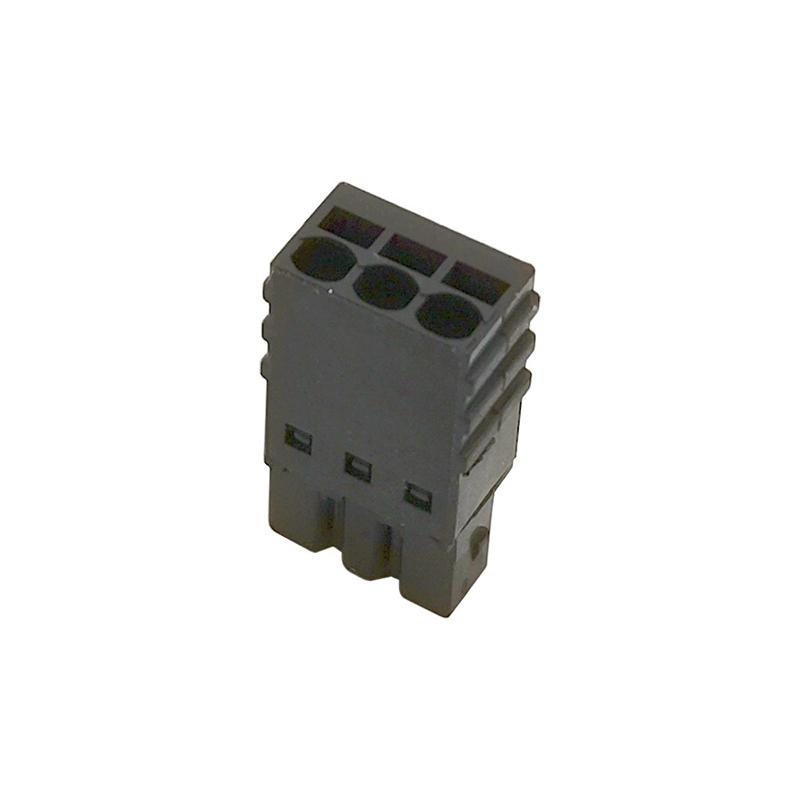

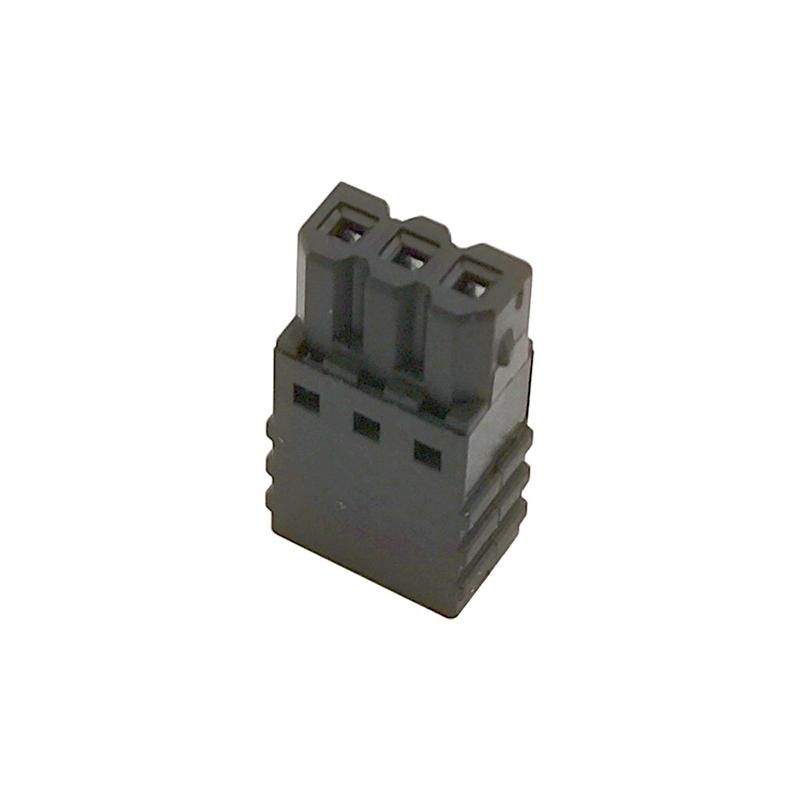

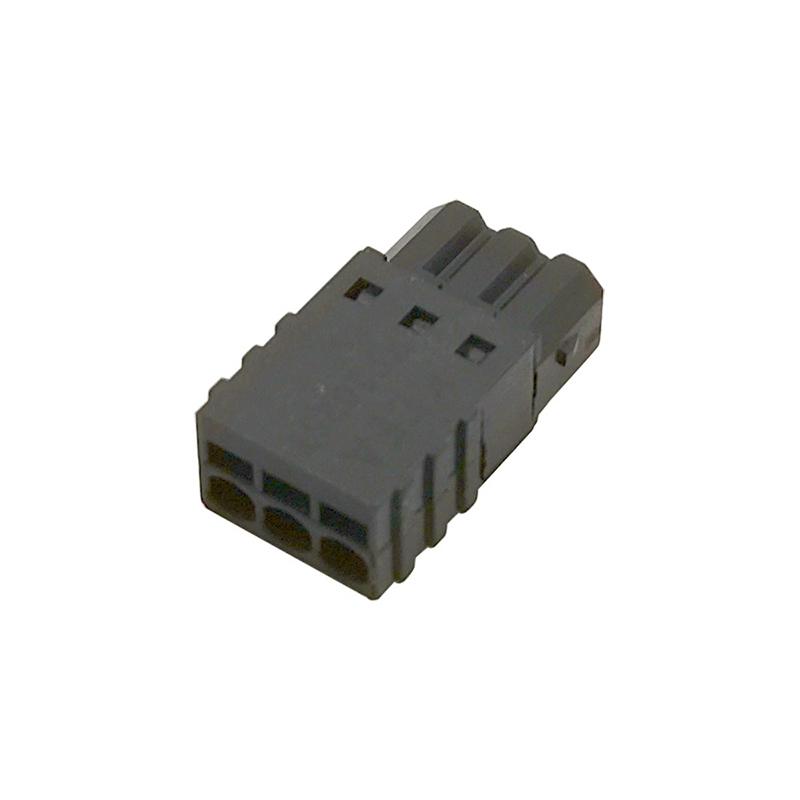

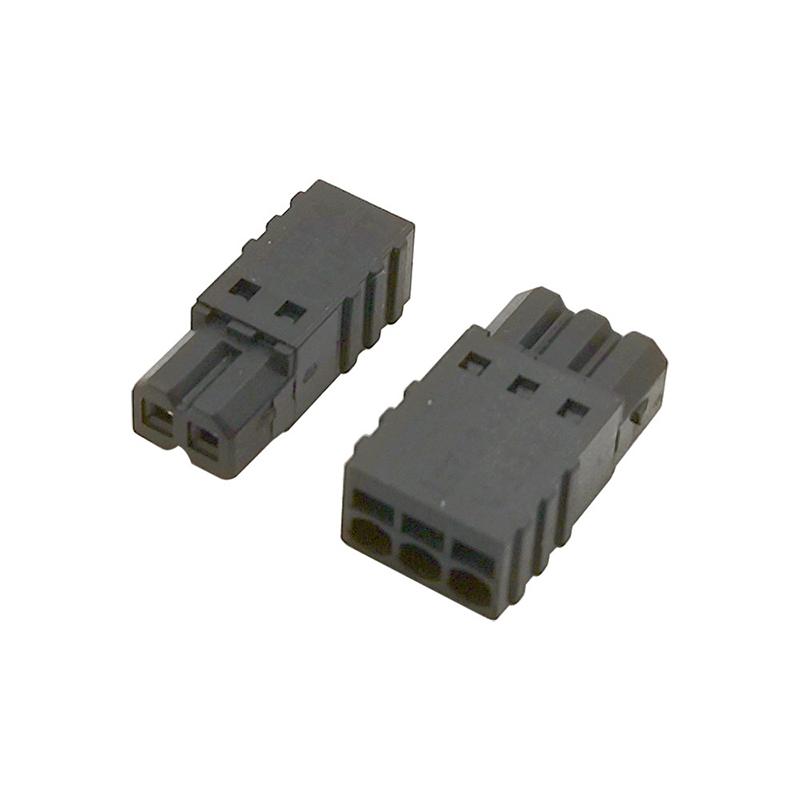

Quick Connect Plug And Socket Terminal Block 3 Pin 2025T-2.5

It is suitable for connecting wires of 28-20AWG, and the pitch is 2.5mm. Contact number: 2-12P

Brand:
OLINK
Item no.:
2025T-2.5
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
1000
Shipping port:
Xiamen, Ningbo
Lead Time:
15

Inquiry now

product introduction

Quick Connect Plug And Socket Terminal Block 3 Pin 2025T-2.5

Description of Quick connect terminal block

Quick connect terminal blocks are ideal for electrical connection of small LED modules in spotlights, downlights and street lights.

Suitable for THR welding process.

The product design conforms to IEC60998, UL1059 and other international standards.

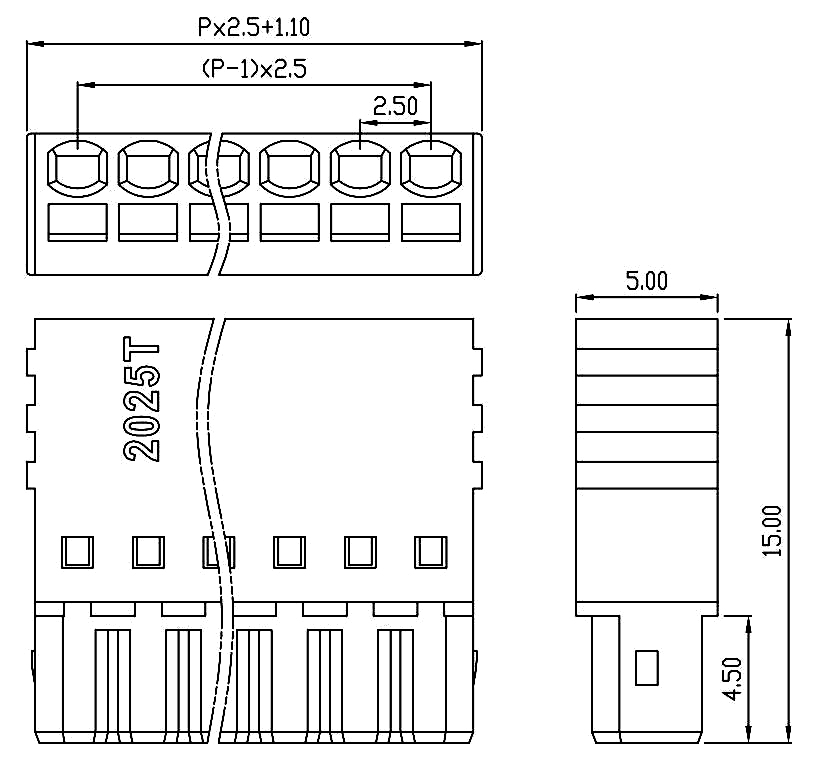

Drawing of Black terminal block

Model: 2025T-2.5

Specification of Terminal block 3 pin

Product name:	SMT terminal block	Model:	2025T-2.5
Certification:	UL, CE	Rated voltage:	150V (UL), 100V (IEC)
Rated current:	5A (UL), 6A (IEC)	Wire range:	28-20 AWG (2025V-2.5)
Withstand voltage:	1300V/1Min	Conductor cross section:	0.5mm²(Solid/flexible)
Temperature range:	-60℃ to +105℃	Strip length:	6.0 mm
Pitch:	2.5 mm	Poles:	2P-12P
Housing:	PA46 UL94V-0	Contact material:	Copper alloy, tin plated

Application of Plug and socket terminal block

There are many types of SMT terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.

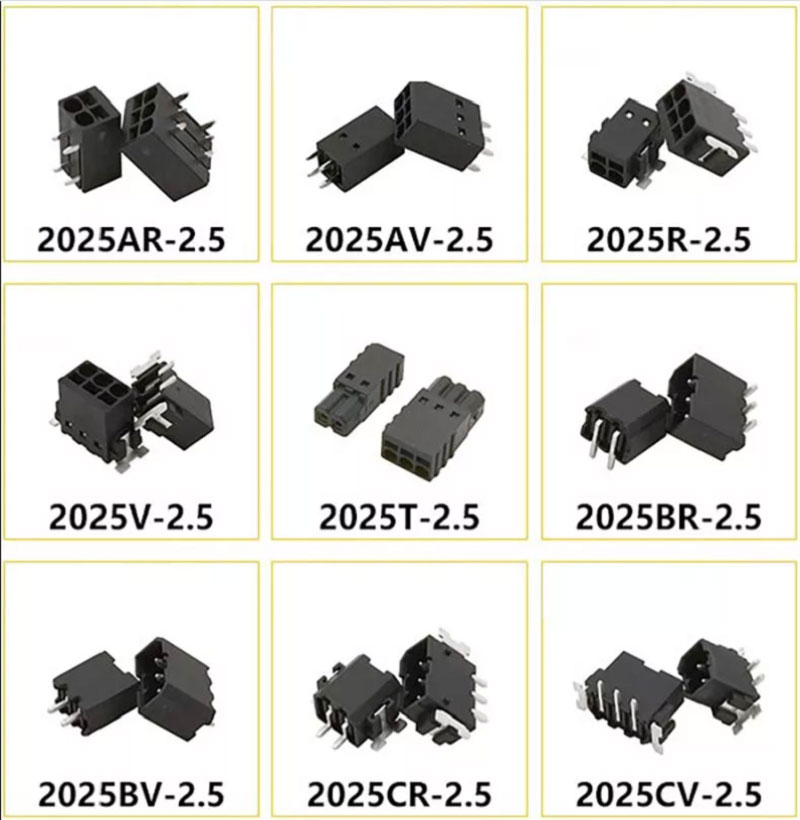

Other SMT type terminal blocks for your reference:

*For more information, please contact us by email or through any contact information on the webpage.
