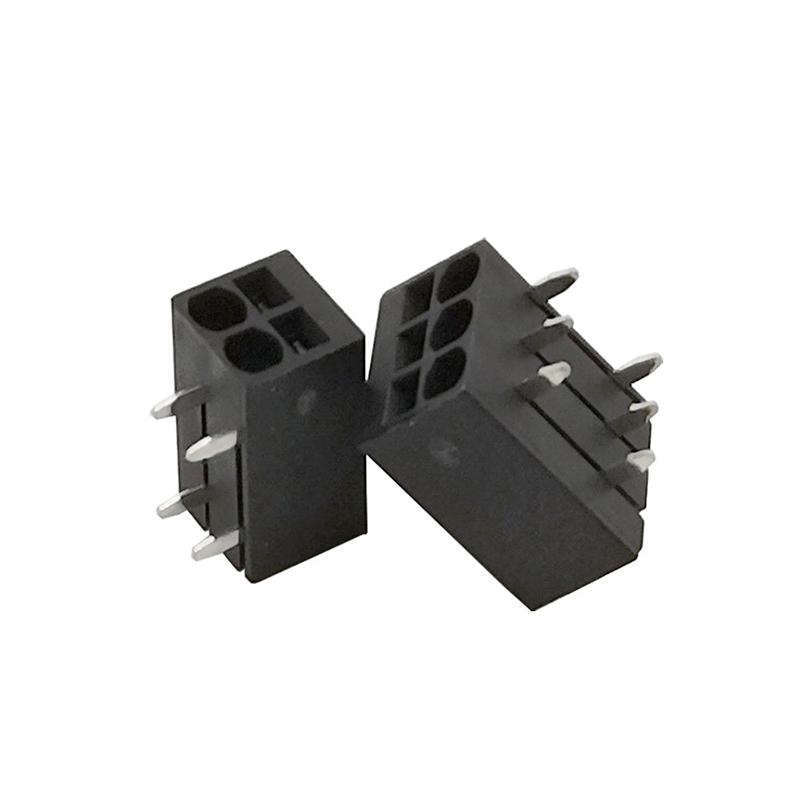

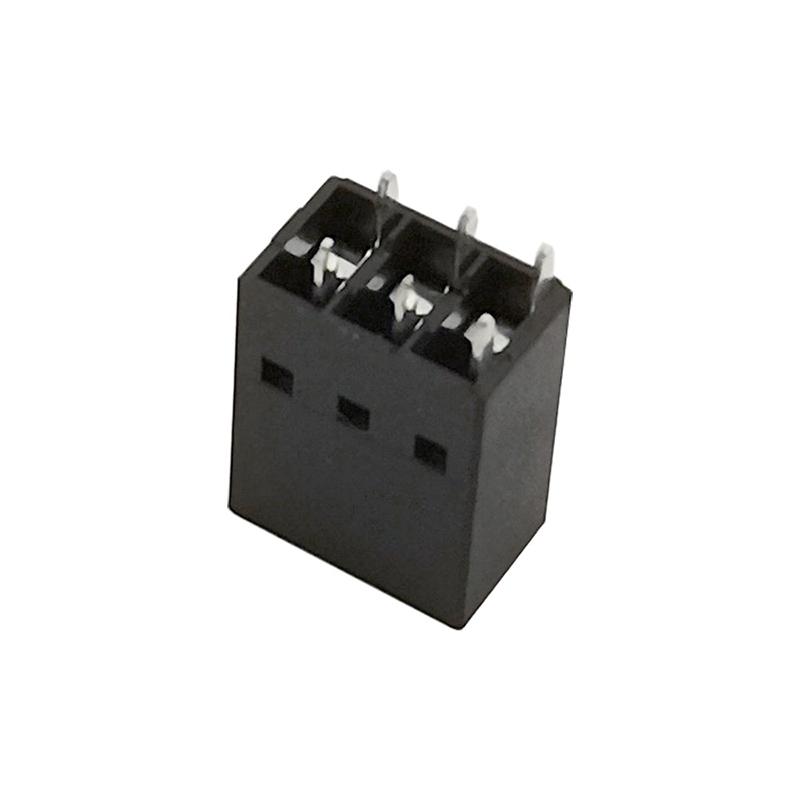

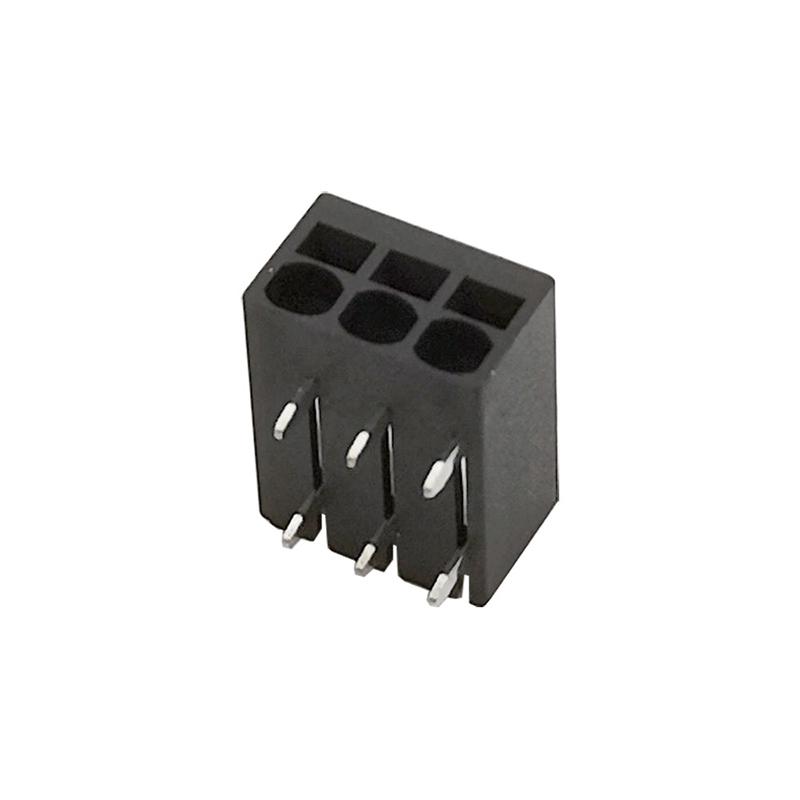

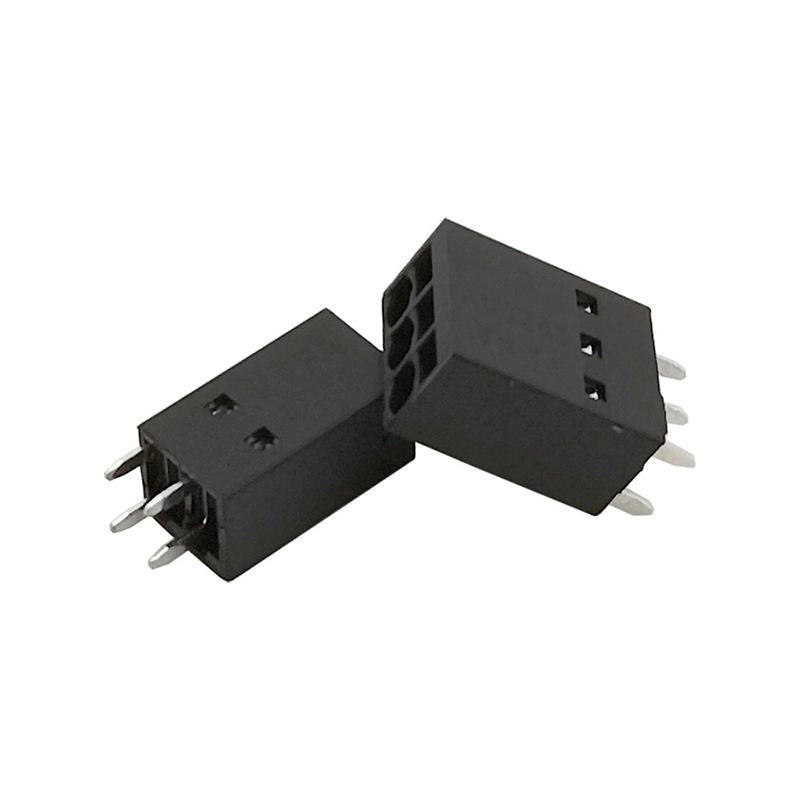

2.5mm Compact 5a 3 Position Screwless Terminal Block connector SMT type

It is suitable for connecting wires of 24-20AWG, and the pitch is 2.5mm. Contact number: 2-12P

Brand:
OLINK
Item no.:
2025AV/AR-2.5
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
1000
Shipping port:
Xiamen, Ningbo
Lead Time:
15

Inquiry now

product introduction

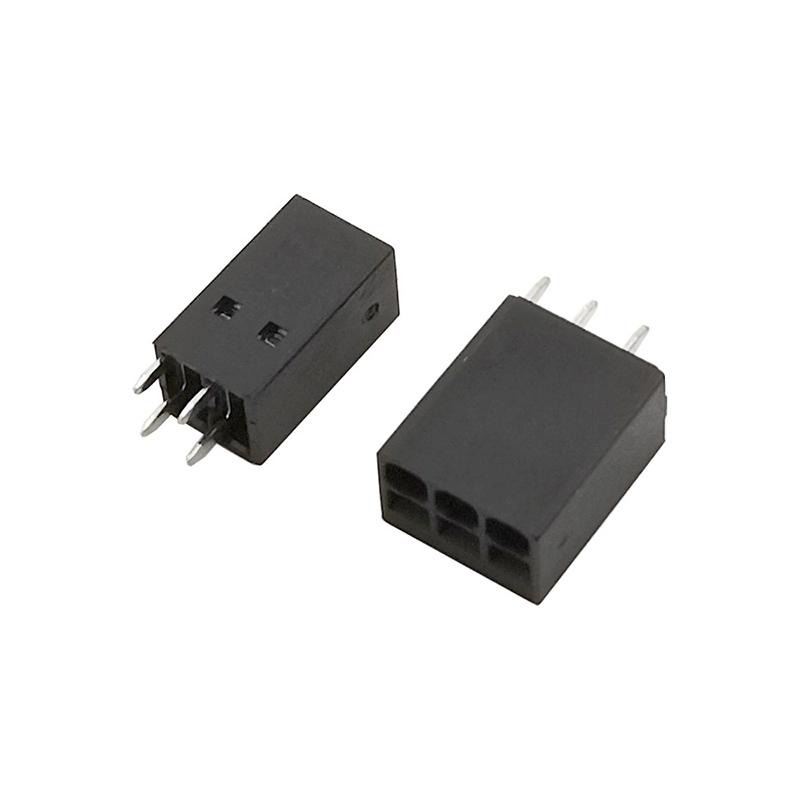

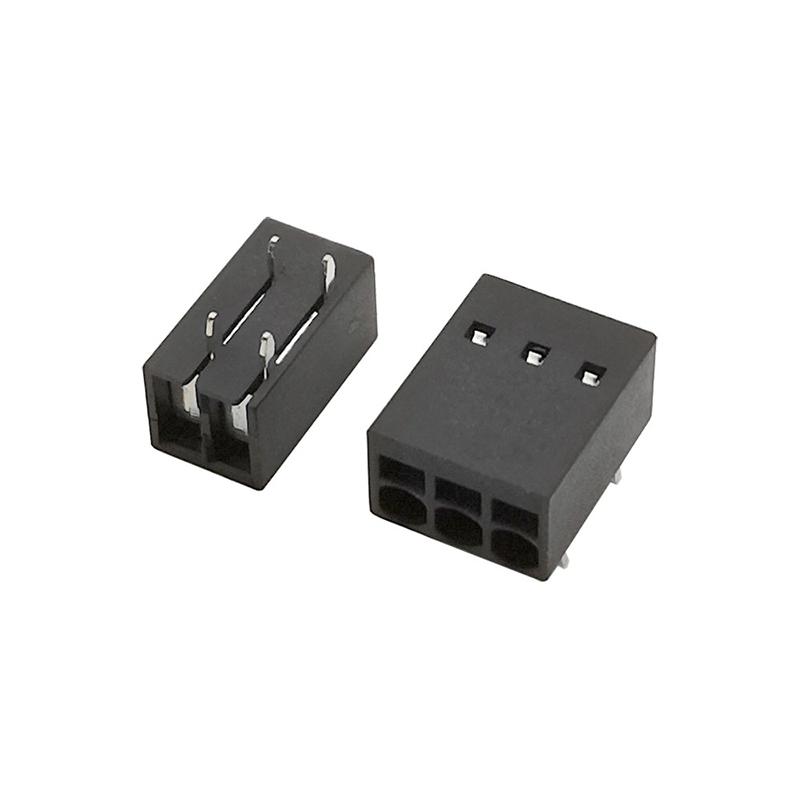

2.5mm Compact 5a 3 Position Screwless Terminal Block connector SMT type

Description of SMT terminal block

SMT terminal blocks are ideal for electrical connection of small LED modules in spotlights, downlights and street lights.

Suitable for THR welding process.

The product design conforms to IEC60998, UL1059 and other international standards.

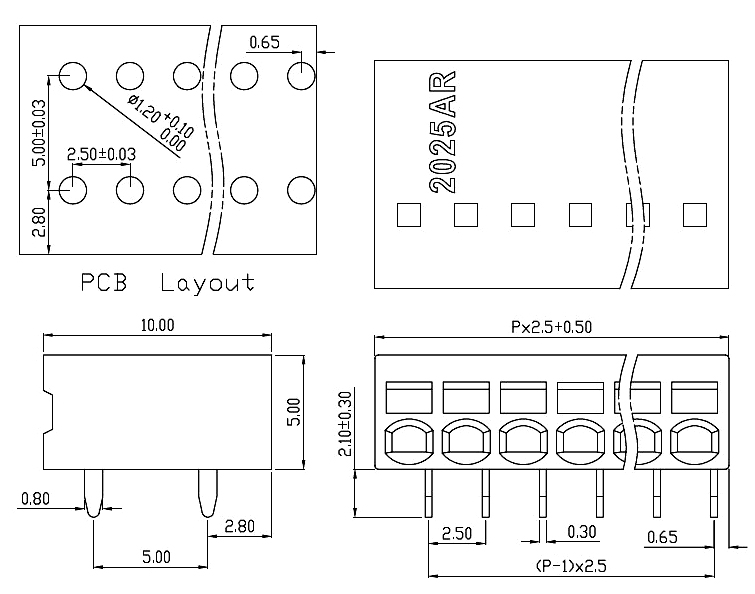

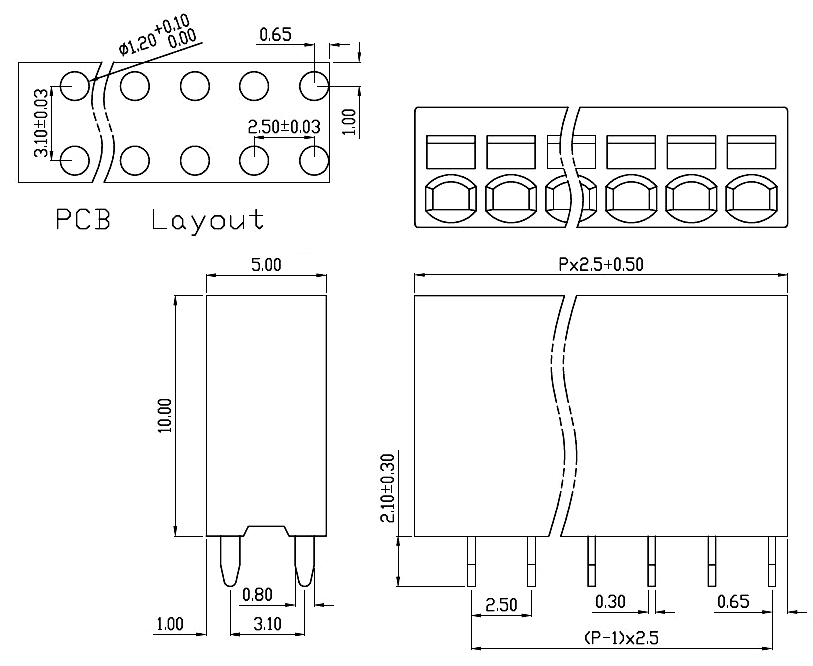

Drawing of screwless terminal block connector

Model: 2025AV-2.5

Model: 2025AR-2.5

Specification of 5a terminal block

Product name:	SMT terminal block	Model:	2025AV/AR-2.5
Certification:	UL, CE	Rated voltage:	150V (UL), 100V (IEC)
Rated current:	5A (UL), 6A (IEC)	Wire range:	24-20 AWG
Withstand voltage:	1300V/1Min	Conductor cross section:	0.5mm²(Solid/flexible)
Temperature range:	-60℃ to +105℃	Strip length:	6.0 mm
Pitch:	2.5 mm	Poles:	2P-12P
Housing:	PA46 UL94V-0	Contact material:	Copper alloy, tin plated
Pin dimensions:	2.1 mm	PCB hole diameter:	1.2 mm

Feature of terminal block screwless

SMT terminal blocks are ideal for electrical connection of small LED modules in spotlights, downlights and street lights.
It is suitable for connecting wires of 24-20AWG, and the spacing is 2.5mm.
Suitable for THR welding process.
The product design conforms to IEC60998, UL1059 and other international standards.

Application of 3 position terminal block

There are many types of SMT terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.

Other SMD type terminal blocks for your reference:
