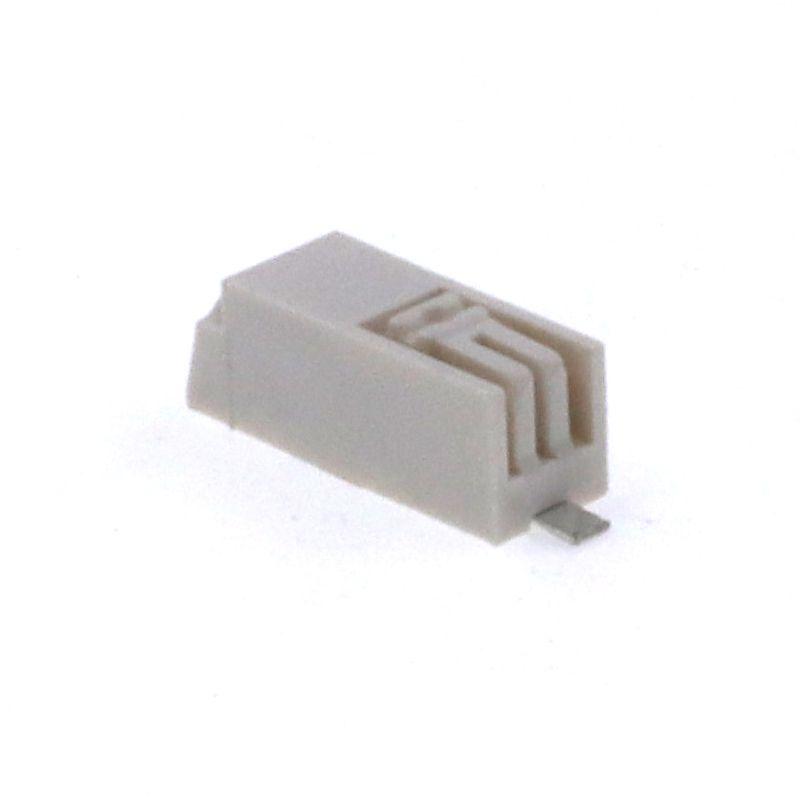

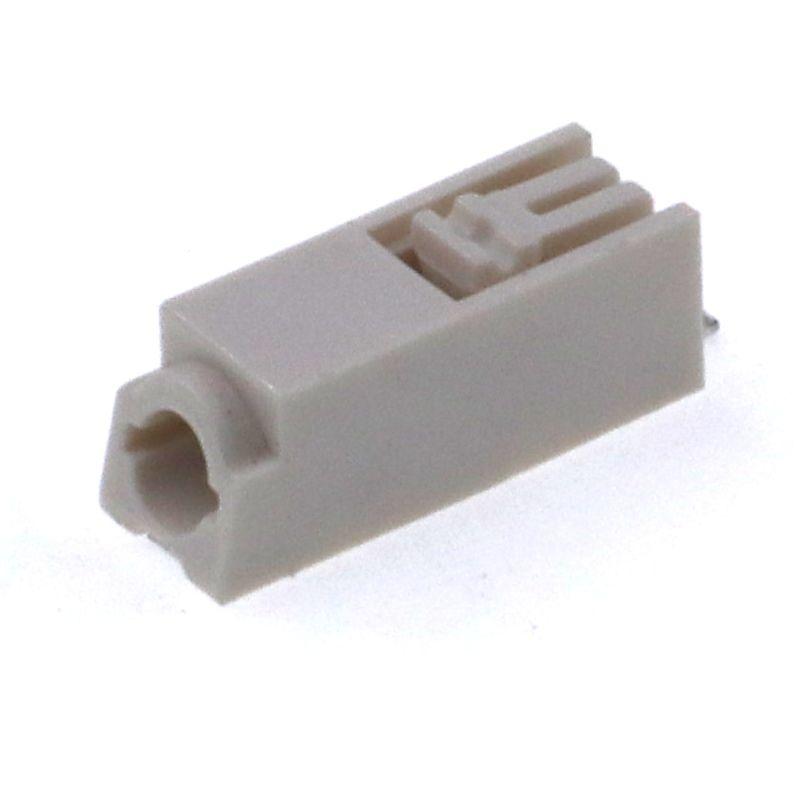

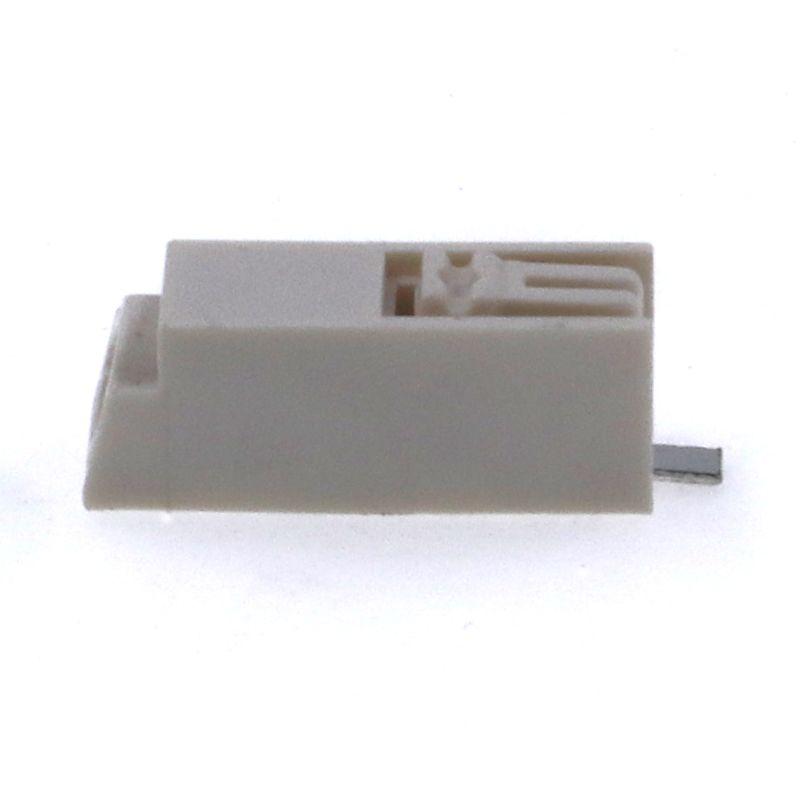

Electronic lighting smd single wire connector for led

SMD wire connector which can replace 2060 series, it's easy to setup. There are 1 pin, 2 pin and 3 pin. It can be equipped with a jumper to combine two connectors.

Brand:
OLINK
Item no.:
B07-1P
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Buff
Goods stock:
500000
Min order:
1500
Shipping port:
Xiamen, Ningbo,shenzhen,shanghai
Lead Time:
7

Inquiry now

product introduction

Electronic lighting smd single wire connector for led

Features of Smd wire connector

SMD type, small size, does not take up too much space, and reduces shadows when lighting applications;
High temperature resistance: can pass reflow soldering at 270℃ /2 minutes;
Hard wire can be inserted directly;
There are buttons to support the use of multiple strands of flexible wires;
Strip-type reel packaging, which can be used for automated production;
Can replace 2060 series;

Specifications of Single wire conenctor

Product Name:	smd wire connectors	Application:	Junction box/electric power
Wiring method:	Insert	Wire range:	24 - 18 AWG
Strip length:	6-7 mm/0.24 - 0.28 in	Cross section:	0.2 - 0.75 mm²
Voltage(max.):	600V	Rated Current:	9A
Insulation material:	PA66, UL94-V0	Contact plating:	Tin-plated

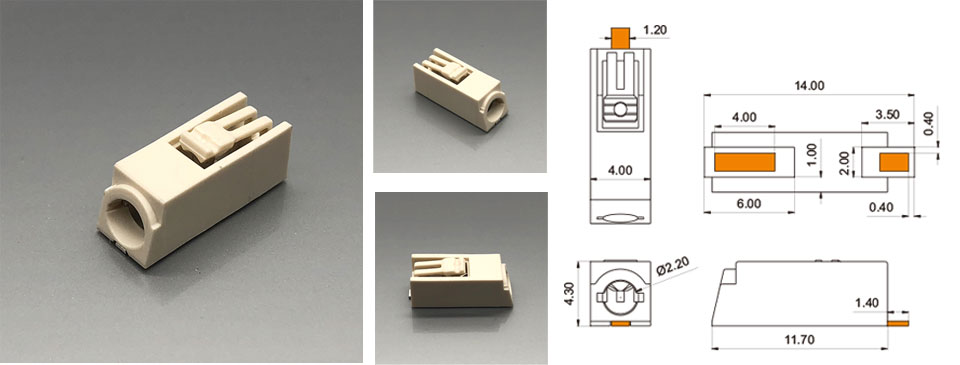

Real object and size of Smd wire connector

Packaging and application of SMT terminals

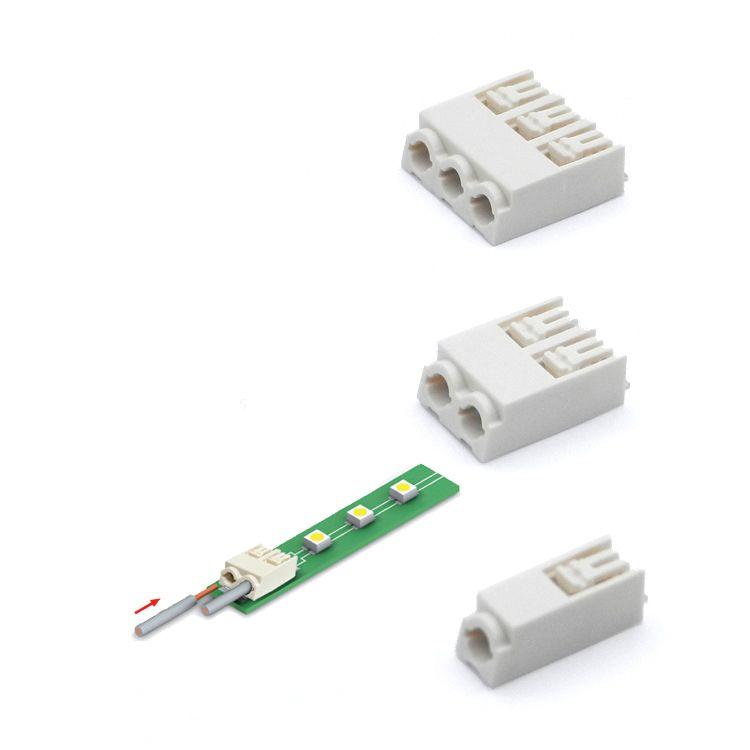

SMT terminals Use strip packaging to facilitate automated production,

The product uses reflow soldering and is applied to PCB boards such as hard light strips, hard light bars, hard light panels, etc.

SMT terminals optional accessories:

When two B07 SMD terminal blocks are needed for connection, the B07J jumper can be selected, which has the same number of 1P, 2P and 3P pins as the B07 terminal block.
