Battery Connector

 /Molex to XT60 Plug Adapter Connector 2P Gold-Plated Brass for Power DC Current Application

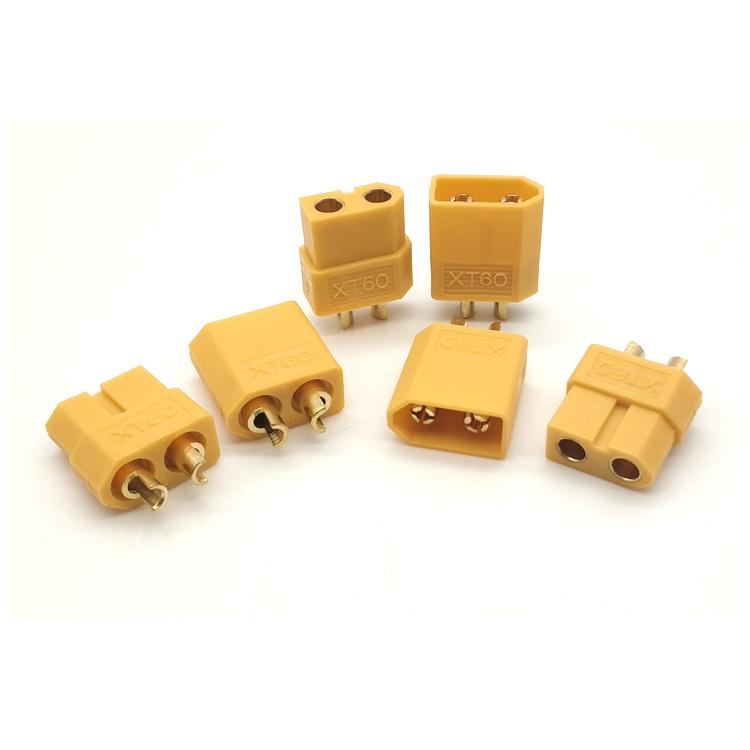

xt60 battery charger connector
xt60 battery charger connector xt60 battery charger connector xt60 battery charger connector

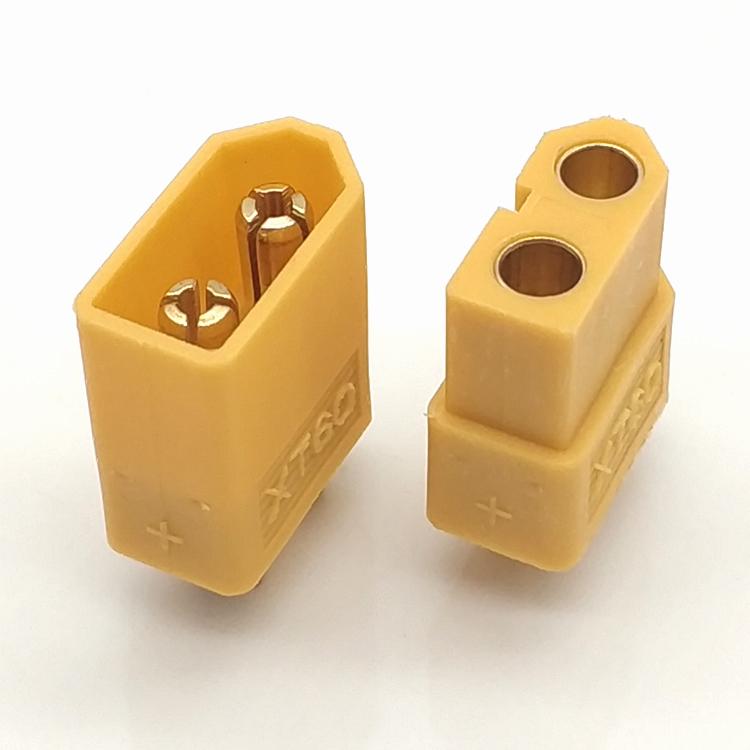

Molex to XT60 Plug Adapter Connector 2P Gold-Plated Brass for Power DC Current Application

XT60 battery connector is composed of 1 male and 1 female connector.The are made from high-temp nylon with gold-plated spring pins or sockets molded.



  • Brand:

    OLINK

  • Item no.:

    XT60

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Yellow

  • Goods stock:

    50000

  • Shipping port:

    Xiamen

  • Lead Time:

    7
Inquiry now

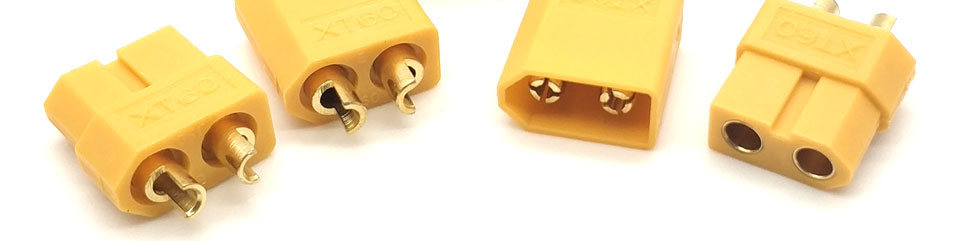

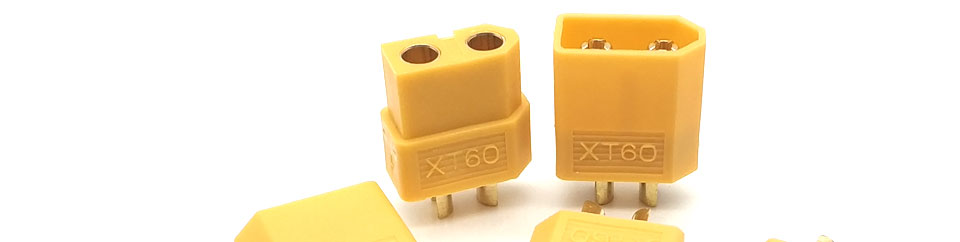

XT60 male female connector for LiPo battery


  Description For XT60 Plug Connector

  • Male and female design, female end connector battery (power supply), male end connected to load;
  • The contacts are gold-plated for better conductivity;
  • The opening of the tail welding cup is reversed, making welding more convenient;
  • The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
  • After the XT60 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

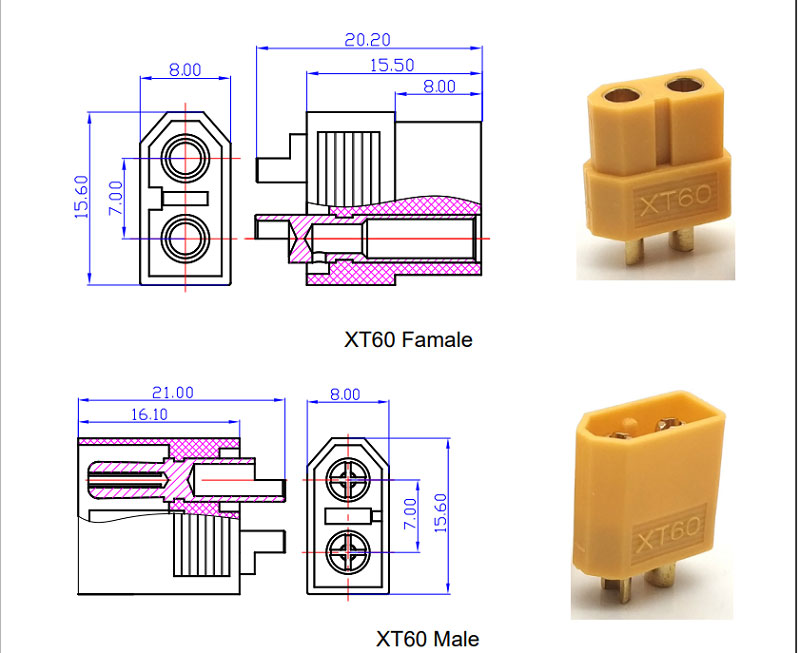

Specification Of XT60 Plug Connector
ITEM No   XT60 Connector CR   0.55MΩ
Color   Yellow RV   DC 500V
Metal Material   Brass Gold Plated RC   30A
Plastic Material   PA66 MC   60A
FR level   UL94 V0 Plug times   1000 times
Recommend USD   Battery Cable Spec   12AWG,14AWG,16AWG
Certificate   CE, ROHS Temperature1   -20°C to 120°C

 Application

XT60 plug connector are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections.Connectors can include custom wiring harnesses.

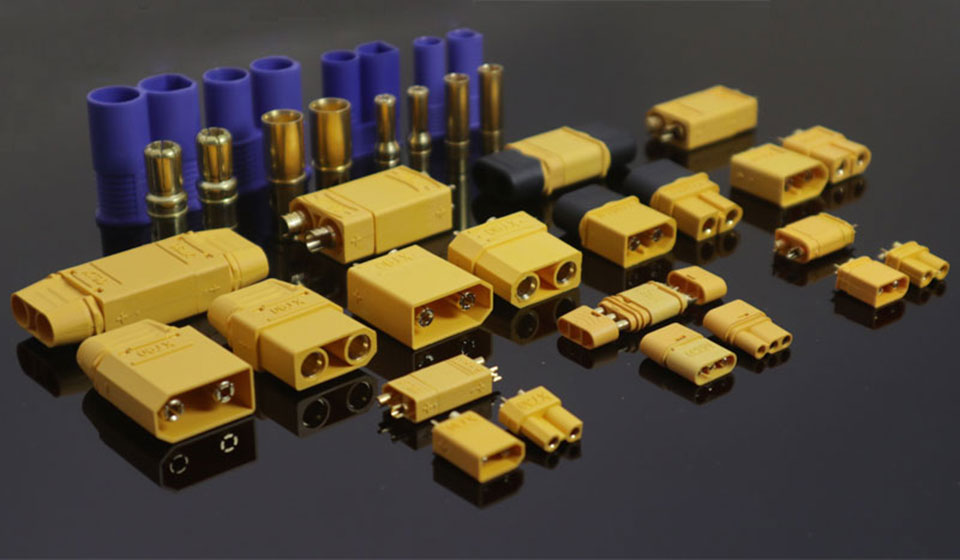

  More Similar Products






XT30 Connectors XT30U Connectors XT60H Connectors XT90 Connectors XT90H Connectors
*For more information, please contact us by email or through any contact information on the webpage.
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
xt60 battery charger
XT60 male female connector for LiPo battery
XT60 battery connector is composed of 1 male and 1 female connector.The are made from high-temp nylon with gold-plated spring pins or sockets molded.
50a battery connector

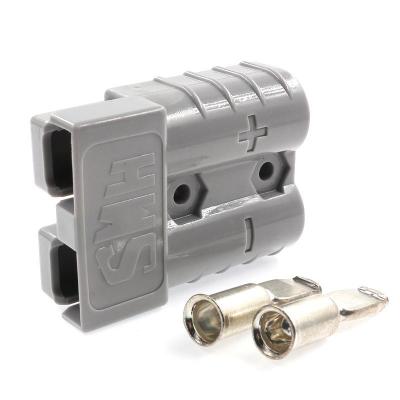

High current 2 pin male and female battery connector smh50
This type of battery connector is physically and electrically hermaphrodite. The battery connector can provide up to 350 amperes of rated current. The most commonly used sizes are those with a rated current of 50/120/172/350. The size of the plastic shell is the same, but the metal contacts are different, and the shell color is optional.
120a power connector
4 gauge 120a power electric forklift ebike battery connector quick disconnect
Electric forklift battery connectors provide quick disconnect for power distribution systems in mobile and industrial equipment. They are commonly used in battery or charging applications, and they are available in four sizes of 50A, 120A, 175A and 350A. It provides simplified assembly and minimize the number of components.

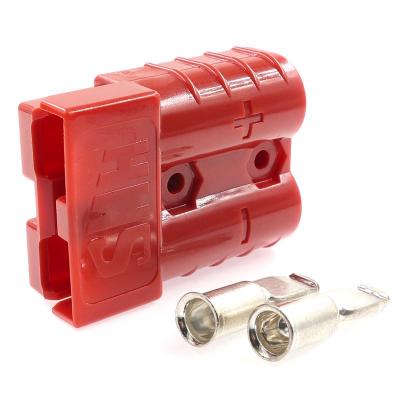

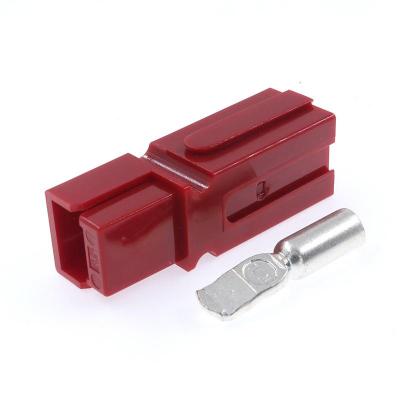

red and black battery connector
High current 120A motorcycle battery charger connector
We provide a wide variety of battery connectors, as well as other electrical connector accessories, including battery terminal covers, battery cables/wires, etc.
Power products battery connectors
40A 2 pin power charger cable connector for battery
We provide different types of battery connectors, also connector accessories, including battery terminal covers, battery cables/wires, etc.

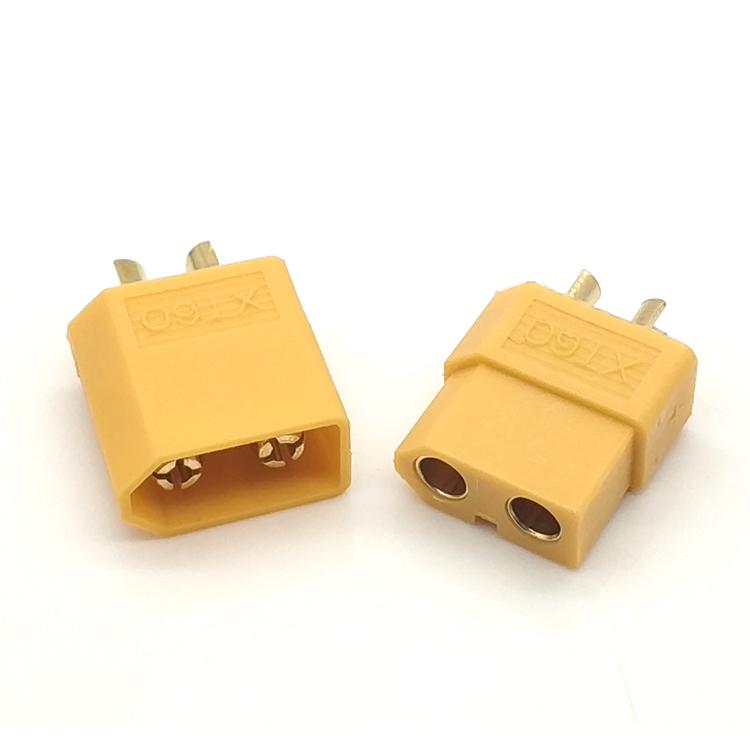

XT60 male female connector
12 awg power battery connector xt60 male female
XT60 connector made from PA and gold plated spring connectors, its shape prevents reverse polarity, and when plugged in the connection is super-solid. The XT60 conenctor perfect for applications up to 60A constant. It can be sold in pairs(female + male) or a single side(female or male).

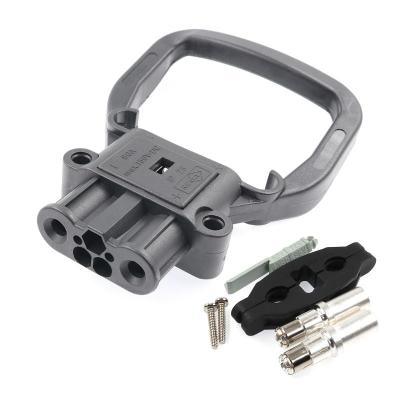

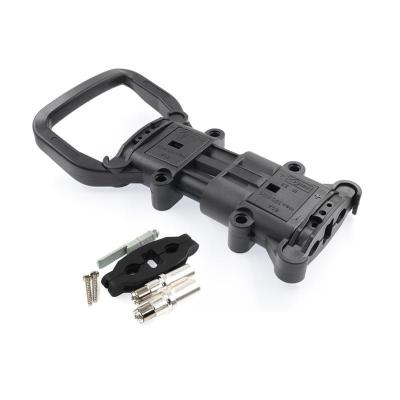

Forklift battery connector
