Male female 175 amp power charger cable connector

175A/600V lithium battery connector, with 2 small battery connector and 2 signal communication auxiliary.

Brand:
OLINK
Item no.:
SHX175
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
RD, BK, GY, BU
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Male female 175 amp power charger cable connector

Features of Smh battery cable connectors

There are multiple colors, each color has a different interface;
There is no distinction between male and female, SHX175 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
Copper-plated silver terminal block, with card slot design, better conductivity;
Two-pole design, can be connected to the "+" and "-" poles at the same time.

Drawing for SHX175 Connectors

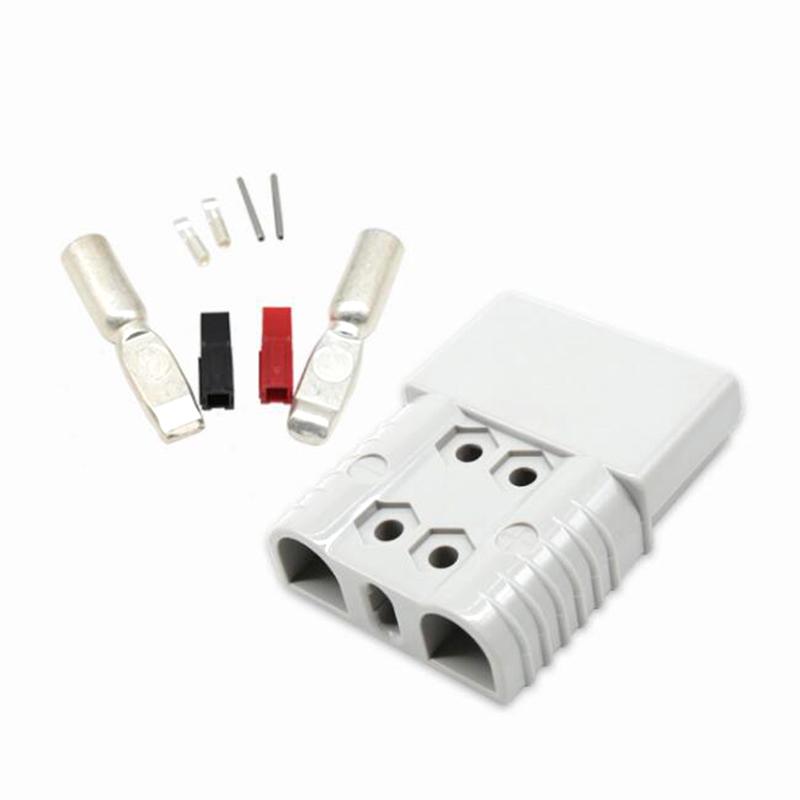

Note:A pcs of SHX175 Connector,

contains a shell, two crimp terminals, 2 small battery connectors & crimp terminals, and 2 auxiliary terminals

Parameter of 175 amp connector

Product name	Male female 175 amp power charger cable connector
Rated Current	175A	Rated Voltage	600V
Wire Size	Chief terminal: 6, 10~12 AWG Signal terminal: 20~14AWG	Contact Material	Copper Plate With Silver
Insulation Material	PC	Flammability	UL94 V-0
Contact Resistance	<140mΩ	Insulation Resistance	5000MΩ
Average.Connection	85N	Connector Holding Force	450N Min
Shell Optional Color	Blue, Grey, Green, Red

Use occasion of Smh battery cable connectors

The SHX75 connector is mainly used in the following industries:

Machinery industry: cutting machine, electric vehicle controller, etc.
Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
