IP67 Waterproof Aviation Automation Sensor Connector M5 M8 M16 M23 7/8 M12 Circular Connector

M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area

Brand:
OLINK
Item no.:
M5
Payment:
Wire transer, West Union
Product origin:
China
Color:
Black. White
Goods stock:
1000
Shipping port:
Xiamen
Lead Time:
3 days

Inquiry now

product introduction

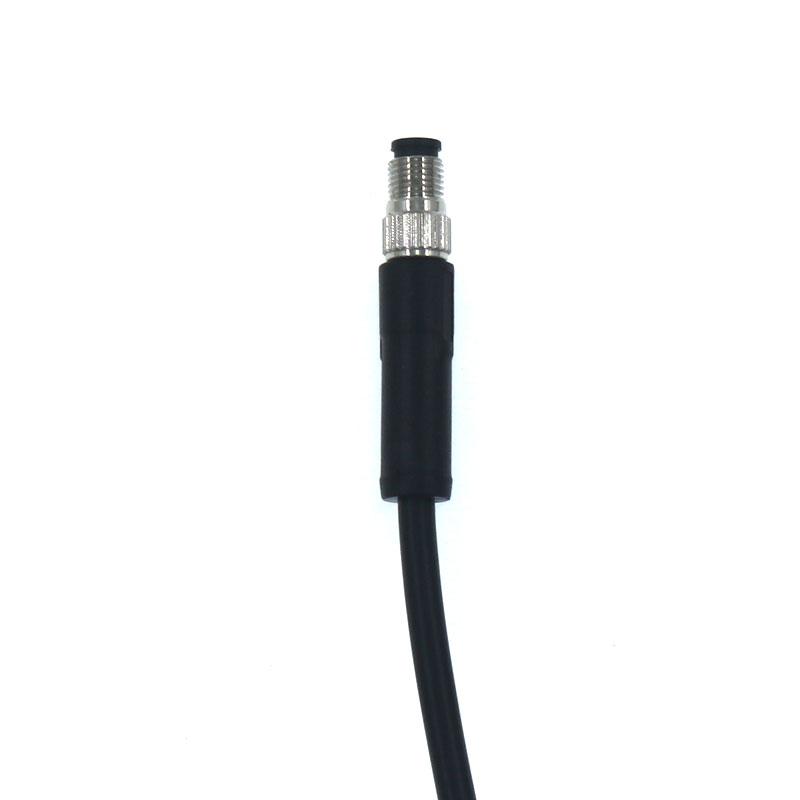

M5 3pin male front panel mount connector M5 field wireable connector

M5 Front Mount Socket 3pin connectors are either factory PVC/PUR over-molded or panel receptacles supplied with single wires or PCB solder pins, which is very compact and convenient for the application in narrow installment places.

● Cable plugs and panel receptacles are available
● Cable length base on customer requesting
● TPU over molded, IP67 protection degree
● 3, 4 poles per connector are available
● Operating voltage 60V, current 1A

Technical Characteristics

Temperature	Solder,screw:-40℃/ +80℃ Screw damp,biatec:-25℃/+80℃ Moulded -25℃/+85℃
Mechnical operation	>100 mating cycles
Rated voltage Impulse voltage	Rated voltage Impulse voltage
Pollution degree	3
Rated current	1A
Contact plating	Au(Gold)
Material of housing	PBT/PA/CuZn(brass)
Cable material	PVC/PUR (cable length customized)
Wire gauge	Solder 0.25mm(AWG24) Screw 0.14mm-0.5mm(AWG26-20) Biatec 0.14mm-0.38mm(AWG26-22)
LED/Shielding	With or without
