Customized wire M12 male female plug socket 2 3 4 5 6 8 pin straight circular

M12 circular connector is specially developed for the micro sensor market and any application that needs to install multiple sensors in a very small area

Brand:
OLINK
Item no.:
M12 With wire
Payment:
Wire transer, West Union
Product origin:
China
Color:
Black
Goods stock:
1000
Shipping port:
Xiamen
Lead Time:
3days

Inquiry now

product introduction

M12 Connector With Wire

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.

2 pin, 3 pin, 4 pin, 5 pin, 7 pins, 8 pin, 12 pin, 17 pins
PCB contacts, Solder type with (custom wire specification)
Stainless steel and Plastic connector available
Voltage rating: 600V, 250V, 60V, 30V
Current rating: 16A, 4A, 3A, 1.5A
IP67, IP69K protection degree
Anti-vibration

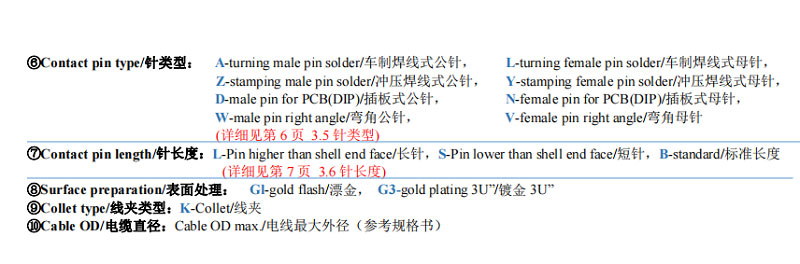

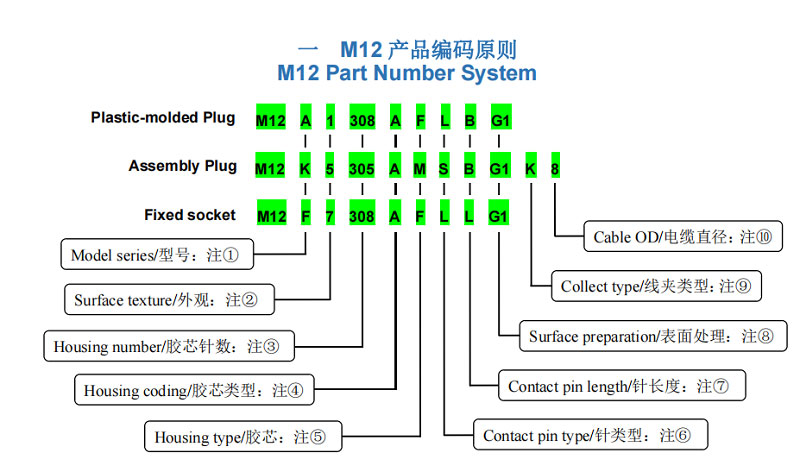

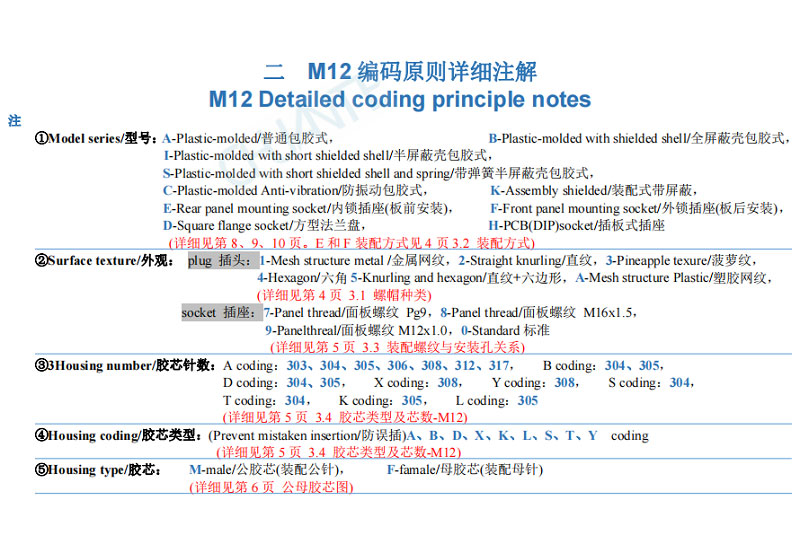

How to order:

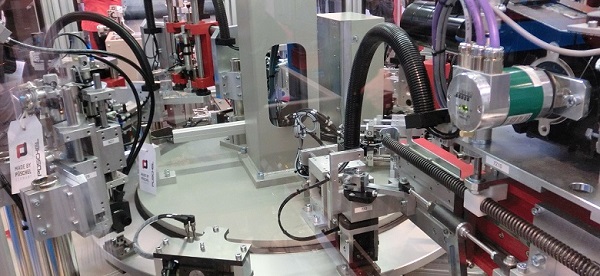

Sensor & Industiral Automation

Olink company is the connectivity specialist in the connection of factory automation devices of sensors, motor, encoder, PLC, light grid, RFID, industrial cameral, Ethernet, Fieldbus as well as robots. We offer hundreds of standard connectors with custom lengths and various material of cable, and a broad range of field-installable connectors.

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

Related products

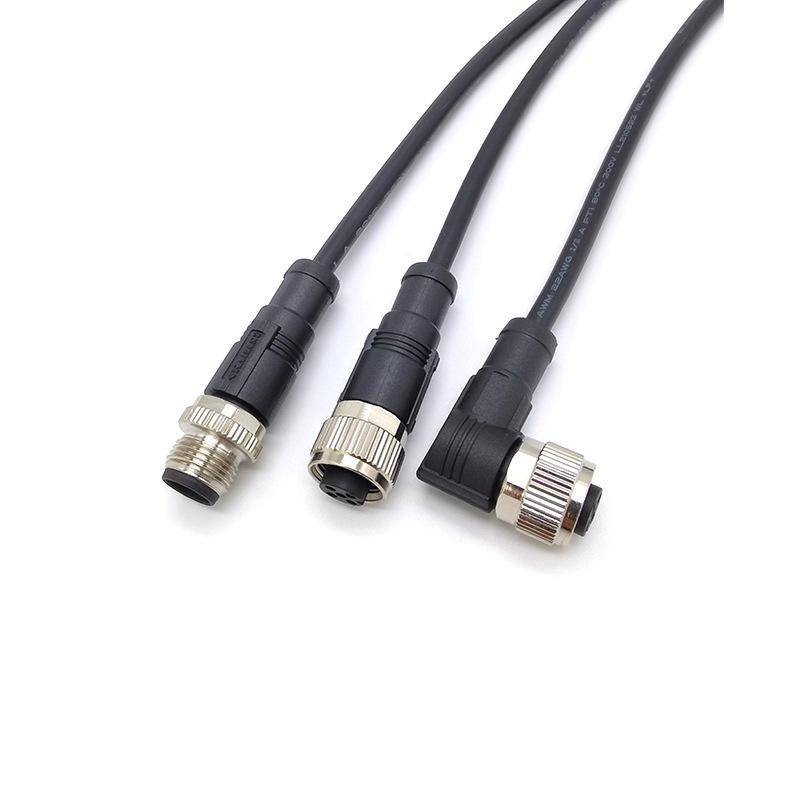

2 4 6 8 pin M12 cable plug connector

M12 circular connectors came to market in the late 1980’s and remain a positive disruption in industries such as automotive, industrial automation, agriculture, and food processing

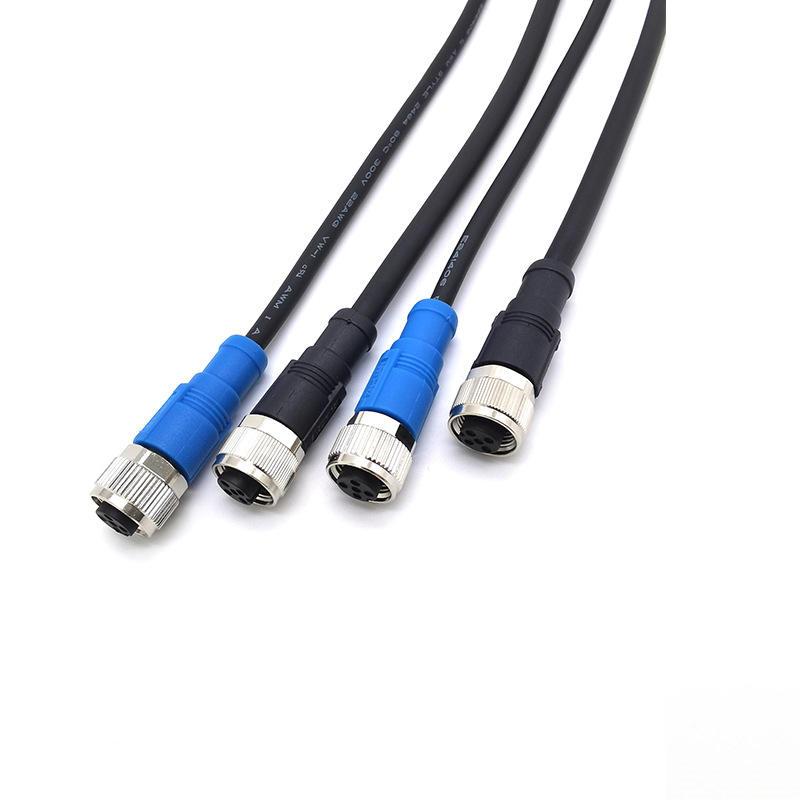

2 4 6 8 pin M8 cable plug connector
