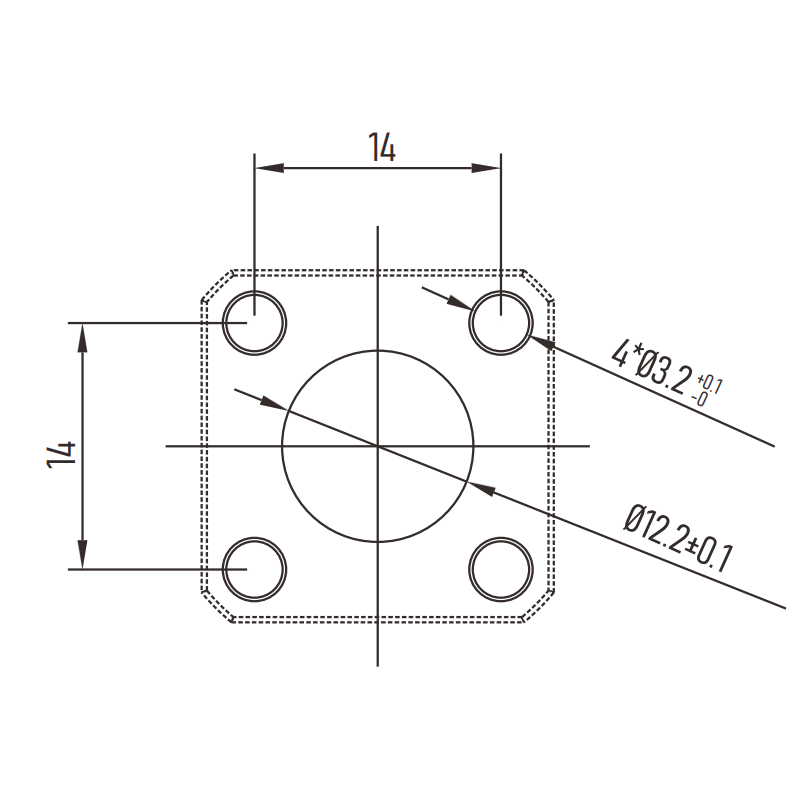

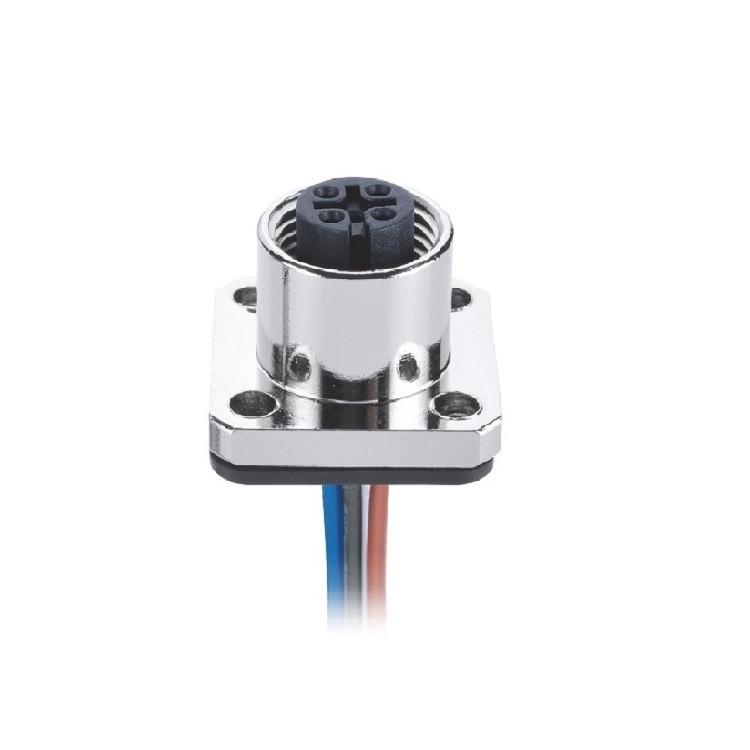

M12 A-Code 4Pin female square flange type panel mount connector with 30cm 22AWG single wires

m12 4 pin female connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area

Brand:
OLINK
Item no.:
MC04P2LPABF-22W30
Payment:
Wire transer, West Union
Product origin:
China
Color:
Black. White
Goods stock:
1000
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

M12 A-Code 4Pin female square flange type panel mount connector with 30cm 22AWG single wires

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.

● 2 pin, 3 pin, 4 pin, 5 pin, 7 pins, 8 pin, 12 pin, 17 pins
● PCB contacts, Solder type with (custom wire specification)
● Stainless steel and Plastic connector available
● Voltage rating: 600V, 250V, 60V, 30V
● Current rating: 16A, 4A, 3A, 1.5A
● IP67, IP69K protection degree
● Anti-vibration

Technical Characteristics

Temperature	Solder,screw:-40℃/ +80℃ Screw damp,biatec:-25℃/+80℃ Moulded -25℃/+85℃
Mechnical operation	>100 mating cycles
Rated voltage Impulse voltage	Rated voltage Impulse voltage
Pollution degree	3
Rated current	4A
Contact plating	Au(Gold)
Material of housing	PBT/PA/CuZn(brass)
Cable material	PVC/PUR (cable length customized)
Wire gauge	22 Awg
LED/Shielding	With or without
