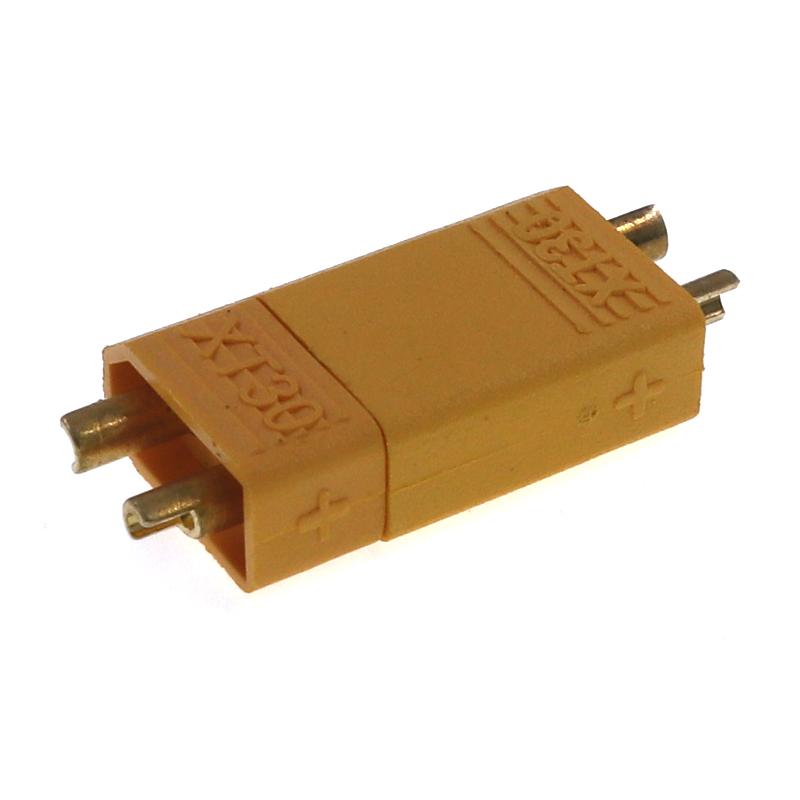

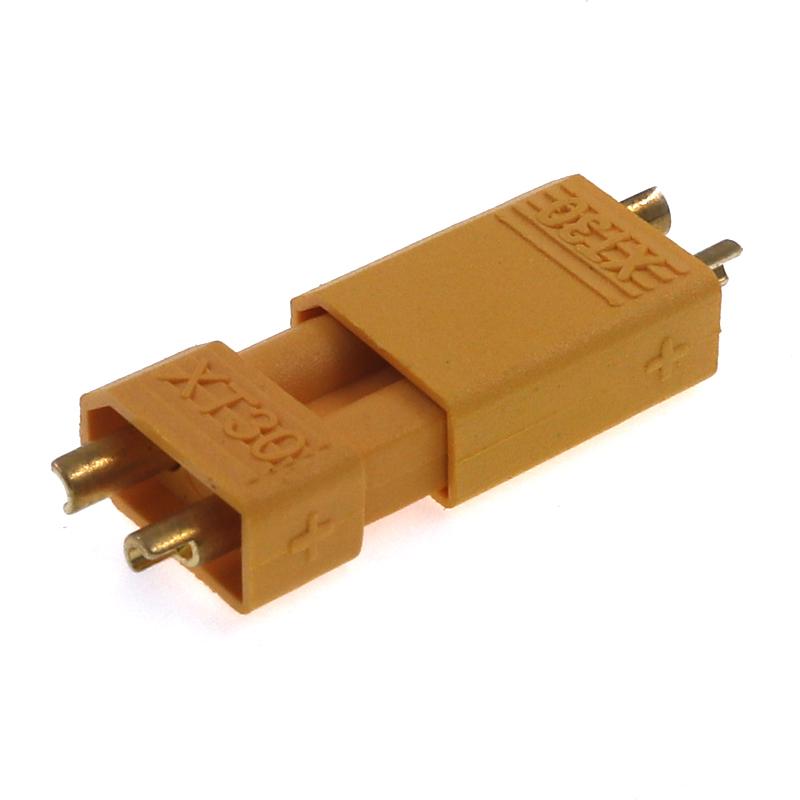

High Quality Plug Motor XT30 Connector Charging Connect Plug

XT30 connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion

Brand:
OLINK
Item no.:
XT30
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

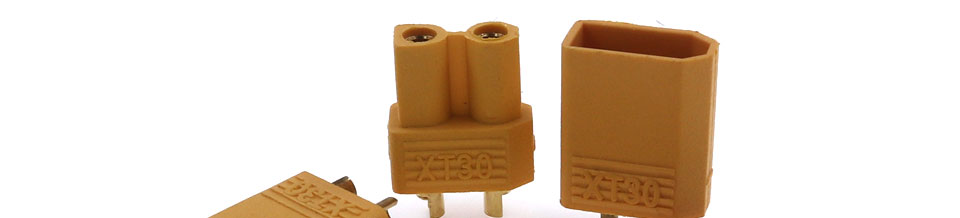

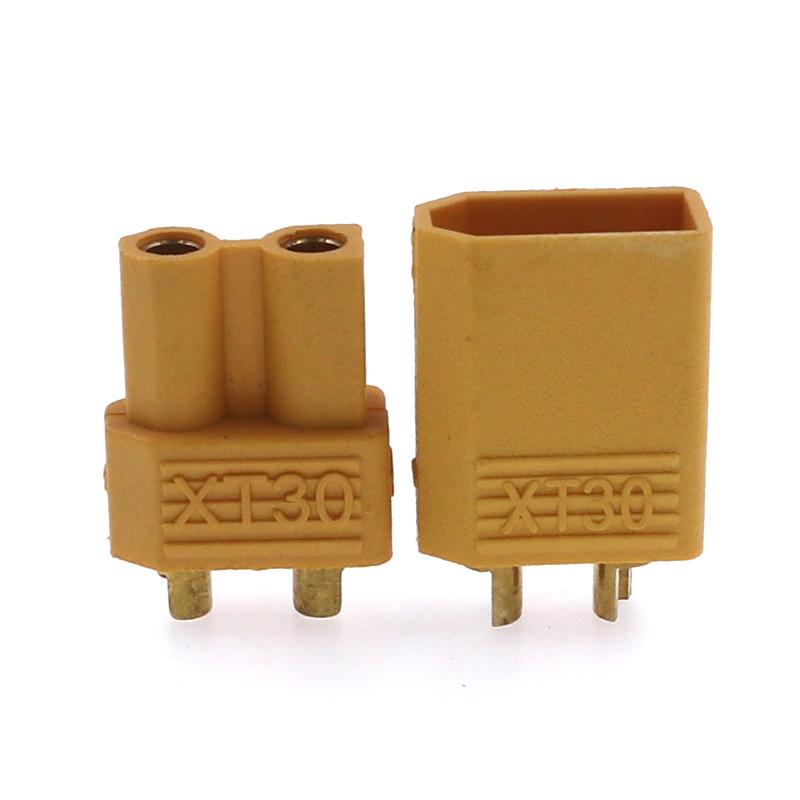

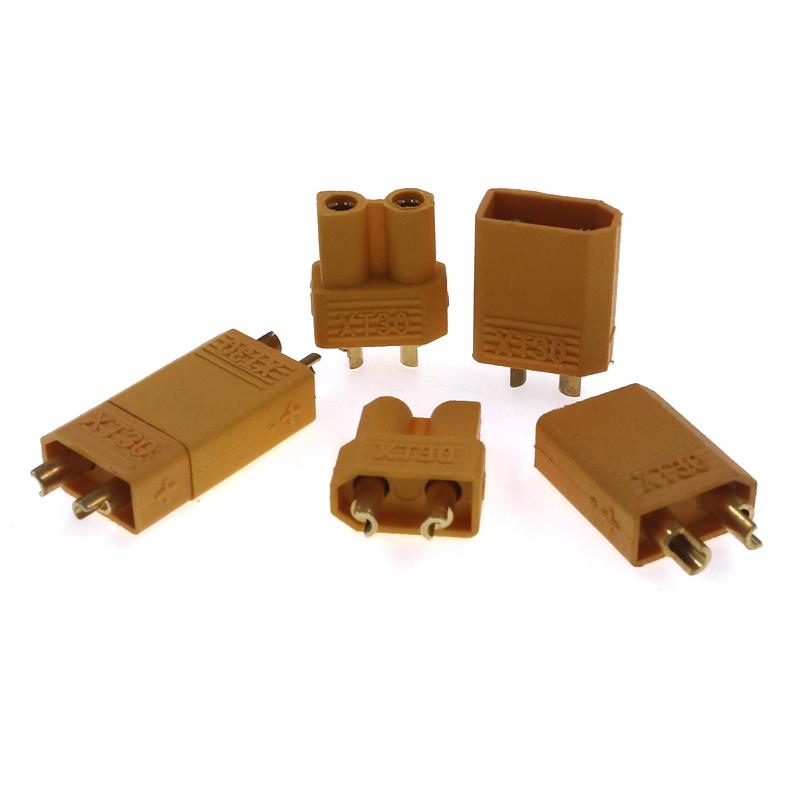

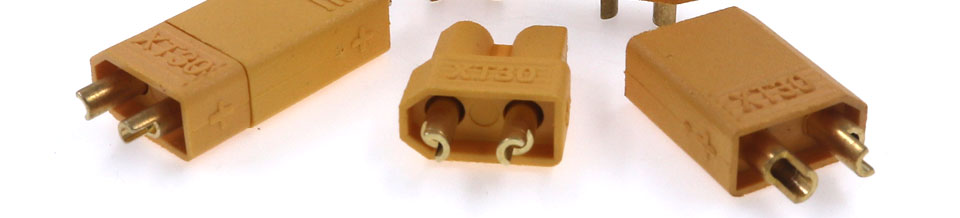

Male and female plug xt30 battery connector 15A

Features For XT30 Battery Connector

Flame-retardant shell: The plastic shell is made of insulating materials. Strong heat resistance. Ensure work stability
Hollow-out high heat dissipation: The hollow-out design at the bottom increases the heat dissipation area. Safer heat dissipation
Humanized solder cup: The semi-circular tail solder cup is arranged 180 degrees outwards, which makes the welding work easier
Plug and play: simple one step in place, saving working time and labor cost
Gold plated: Ensure stable current transmission
Advantages: low resistance, slow heating, anti-reverse insertion

Specificaton Of XT30 Power Connector
Item NO.:	XT30	Connector CR:	0.7MΩ
Color:	Yellow	RV:	DC 500V
Metal Material:	Brass Gold Plated	RC:	15A
Plastic Material:	PA	MC:	30A
FR level:	UL94 V0	Plug times:	1000 times
Recommend USD:	Battery/Controller/Charger	Cable Spec:	18AWG/0.75mm²
Life:	1000 times	Temperature:	-20°C to 120°C

Application

XT30 connectors can be used in transportation railway, electric bicycle, electric storage forklift and electric sightseeing car, and other occasions and fields that require larger current connections. Connectors can include custom wiring harnesses.

More Similar Products

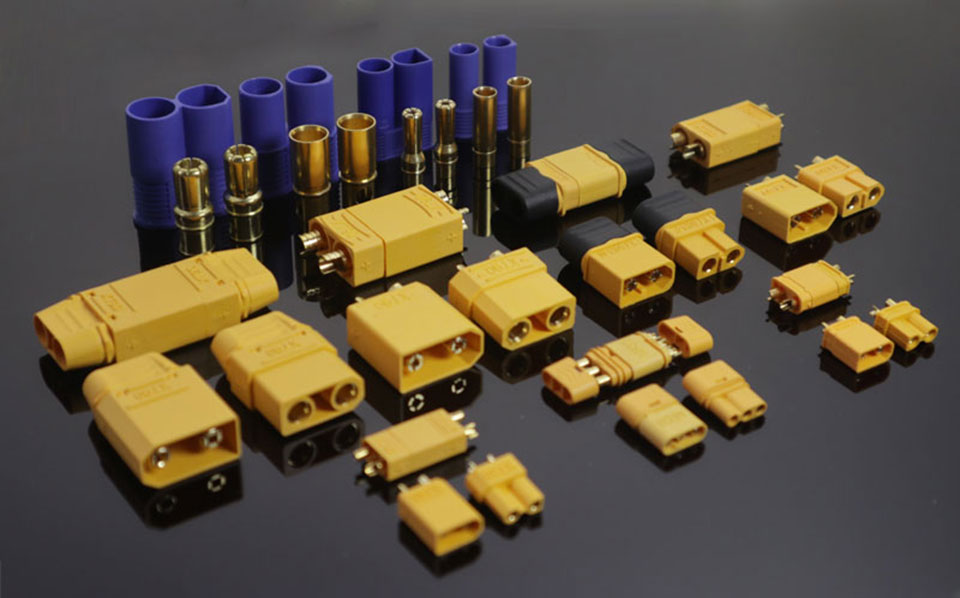

XT30U Connectors	XT60 Connectors	XT60H Connectors	XT90 Connectors	XT90H Connectors

*For more information, please contact us by email or through any contact information on the webpage.
