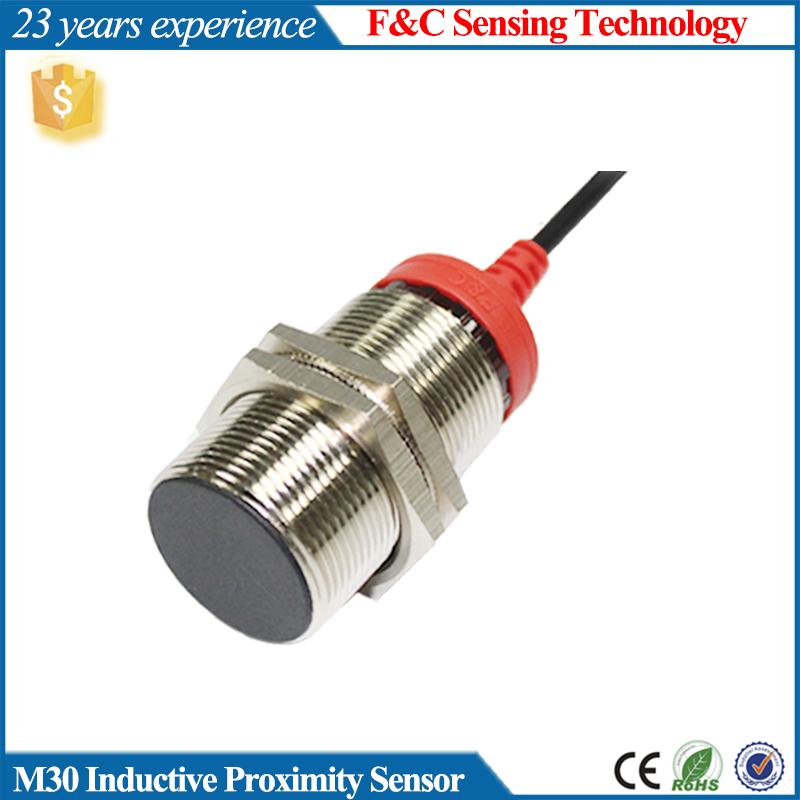

F3C-30 series F3C-18KS/18ES10-N R2M M30 Proximity sensor

M30 metal detection Sn=10mm proximity sensor, inductive proximity switch

  • Brand:

    F&C
  • Item no.:

    F3C-30KS/ES10-N/P/N2
  • Product origin:

    China

Overview
Quick Details
Model Number:
F3C-30KS10-N
Type:
Inductive Proximity Sensor
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
positioning detection, Position Sensor
Theory:
inductive sensor, Inductance Sensor
Output:
NPN/PNP
Description:
Inductive proximity sensor
Voltage:
12-24VDC 10%; 5V customizable
Detection distance:
10mm
Frequency:
800Hz
Certificate:
CE,RoHS
Entry cable:
dia4*2m/3 wires or M8/M12 connector
Material:
PBT
Key words:
metal detector sensor
Name:
metal detector flush type cylinder 10mm inductive proxi

M30 metal detector flush type cylinder 10mm proximity sensor, inductive proximity switch

Product Description

Specifications for metal detector sensor:

Model F3C-30KS10-N
Output Method NPN/PNP
Maximum detection 10mm
Standard sensing object 30*30*1(iron)
Outputing Way NPN.NO.NC
Response Frenquency standard 800Hz
Opearting voltage 12-24VDC, 5V customizable
Loard current 24V 100mA max
operating temperature -25 to +70 degree
Material PBT
Protection degree IP67





Features and advantages for metal detector sensor:



1. Red protective sleeve designed, to protected it better.



2. High performance 12-24VDC Built-in amplifier .



3. All round LED indicator.



4. 0.1ms high speed response time



5. OEM order accepted.



product drawing

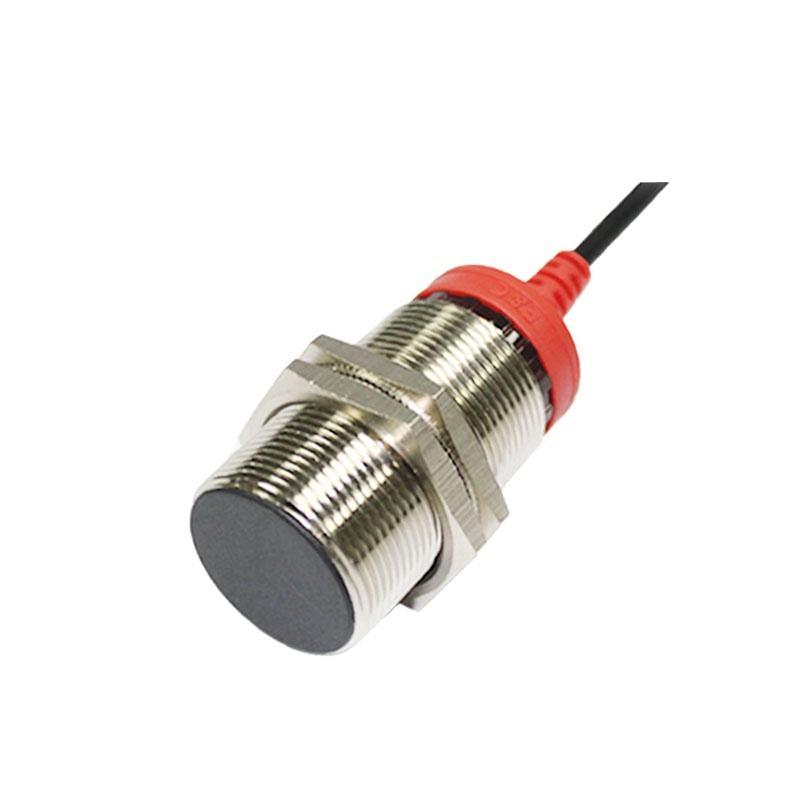

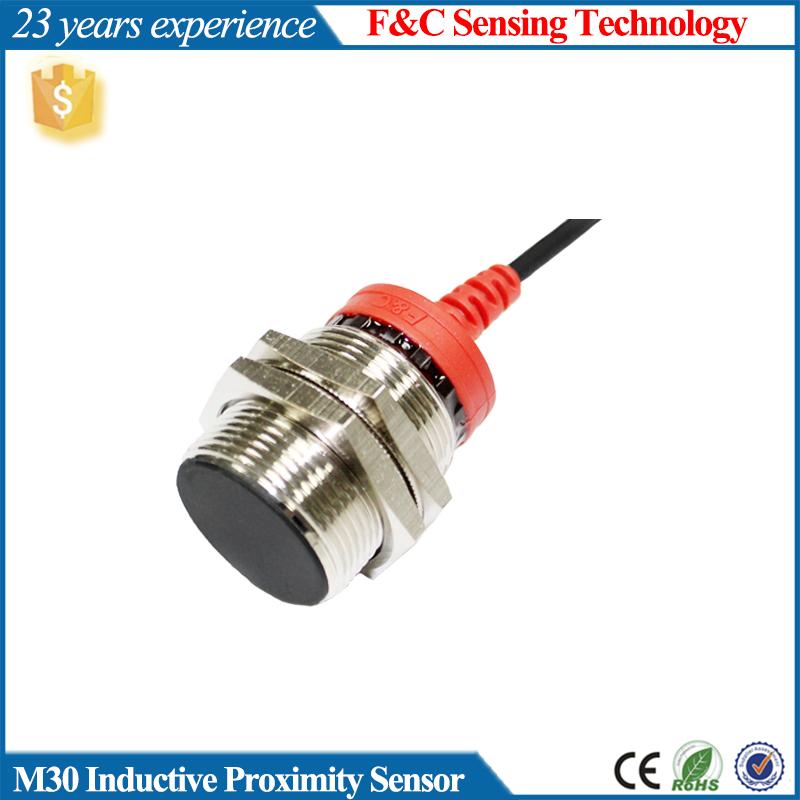

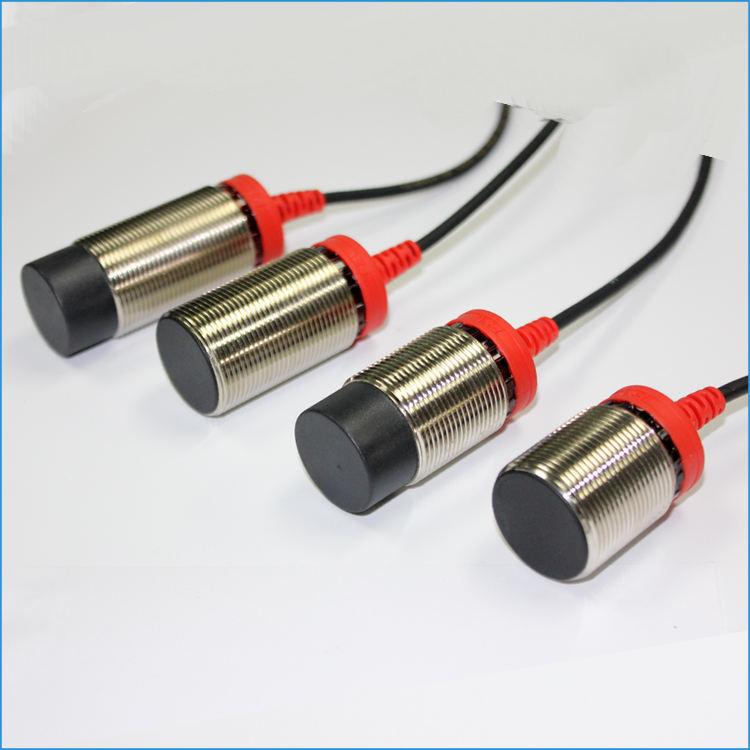

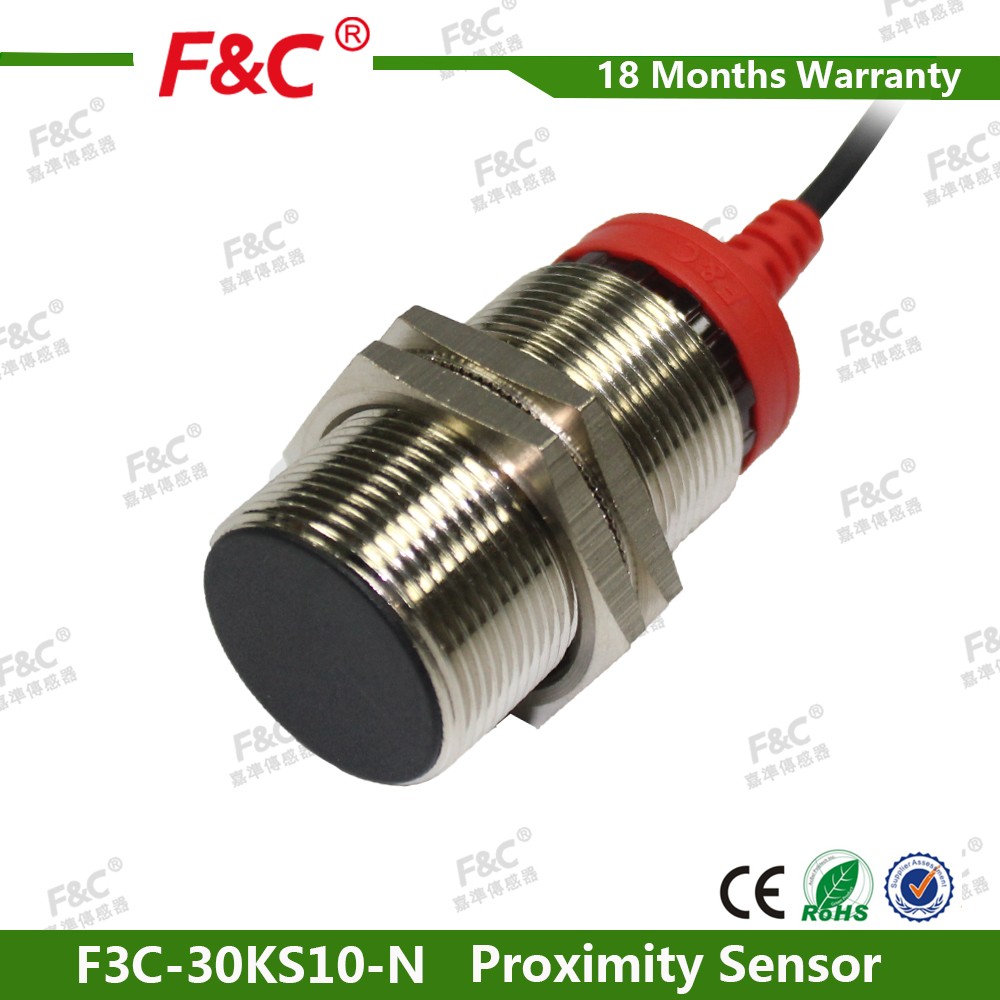

Photosfor metal detector sensor:
M30 metal detector flush type cylinder Sn=10mm proximity sensor, inductive proximity switchM30 metal detector flush type cylinder Sn=10mm proximity sensor, inductive proximity switch

Dimensions for metal detector sensor:

M30 metal detector flush type cylinder Sn=10mm proximity sensor, inductive proximity switch

M30 metal detector flush type cylinder Sn=10mm proximity sensor, inductive proximity switch
