Overview

Quick Details

Model Number:

F3C-18EN08-N R2M

Type:

Inductive Proximity Sensor

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Metals detection

Theory:

Inductive sensor

Output:

NPN or PNP, Switching Transducer

Description:

Inductive proximity sensor

Detection mode:

NPN.NO NC/ PNP.NO NC

Voltage:

12-24VDC 10%; 5V customizable

Detection distance:

8mm

Frequency:

800Hz

Certificate:

CE,RoHS

Entry cable:

dia4*2m/3 wires or M8/M12 connector

Material:

PBT

Key words:

proximity analog sensors

Name:

M18 thread body 8mm npn 24V inductive proximity sen

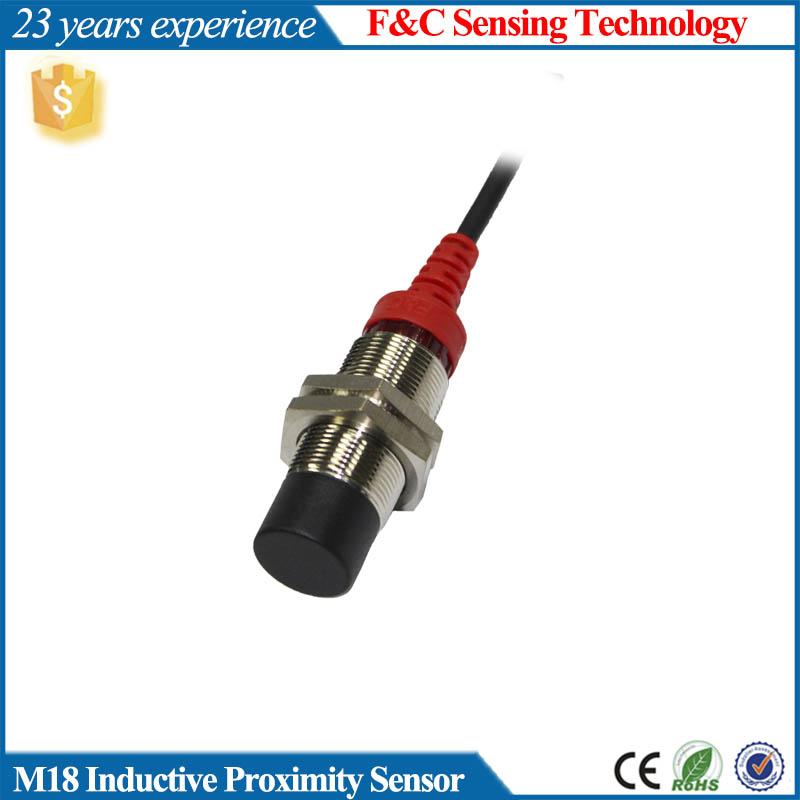

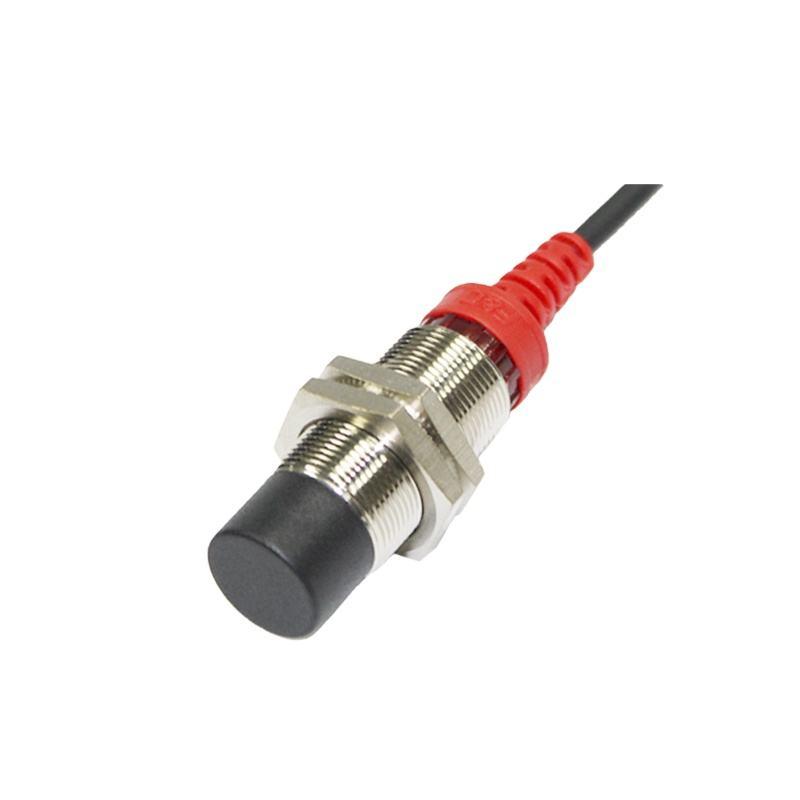

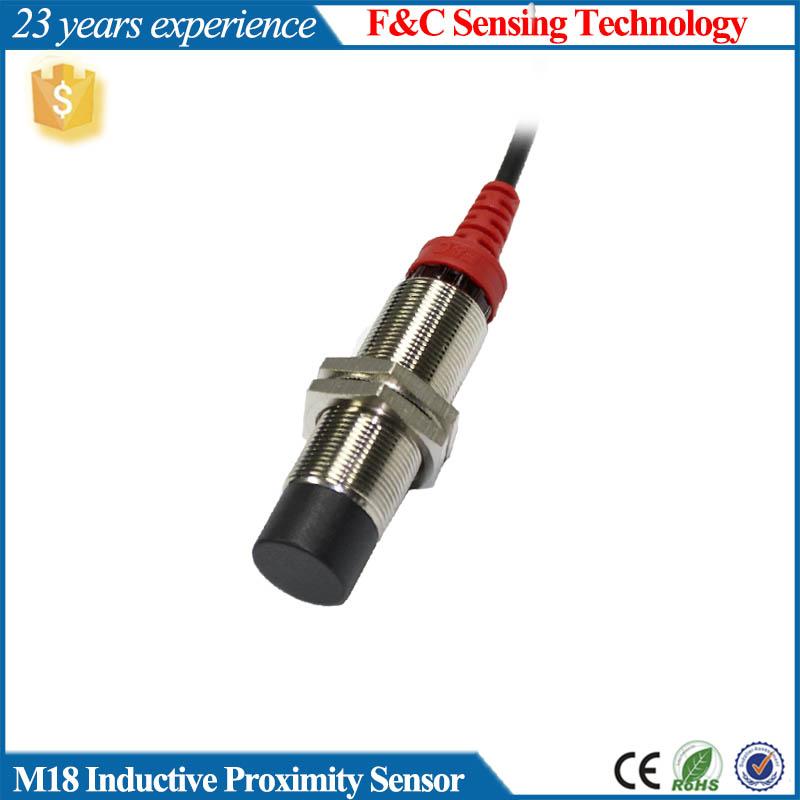

M18 thread body 8mm npn 24V inductive proximity sensor/ metal inductive proximity switch

Product Description

Specifications for proximity analog sensors:

Model	F3C-18EN08-N
Output Method	NPN/PNP
Maximum detection	8mm
Standard sensing object	12*12*1 24*24*1(iron)
Outputing Way	NPN.NO.NC
Response Frenquency	standard 800Hz
Opearting voltage	12-24VDC, 5V customizable
Loard current	24V 100mA max
operating temperature	-25 to +70 degree
Material	PBT
Protection degree	IP67

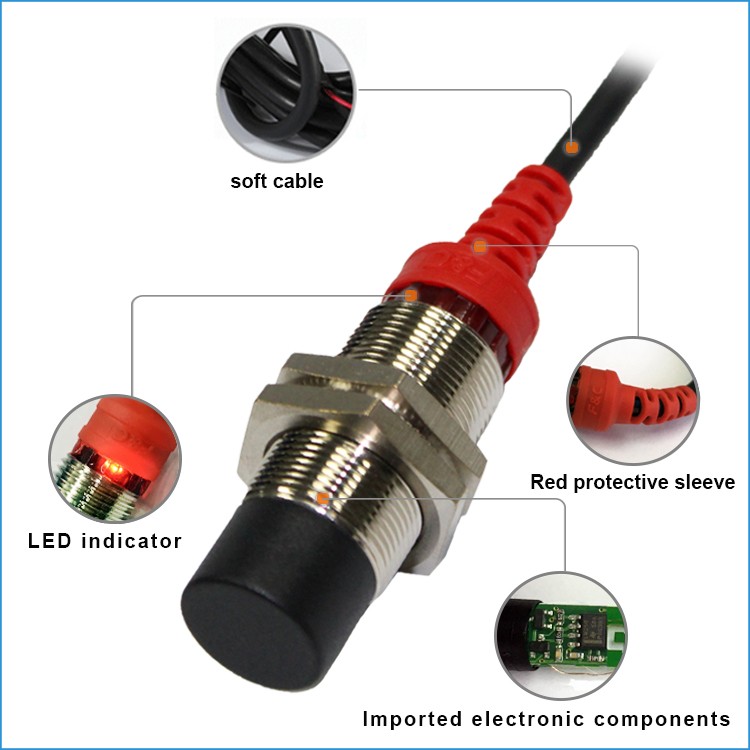

Features and advantages for proximity analog sensors:



1. Red protective sleeve designed, to protected it better.



2. High performance 12-24VDC Built-in amplifier .



3. All round LED indicator.



4. 0.1ms high speed response time



5. OEM order accepted.





product drawing

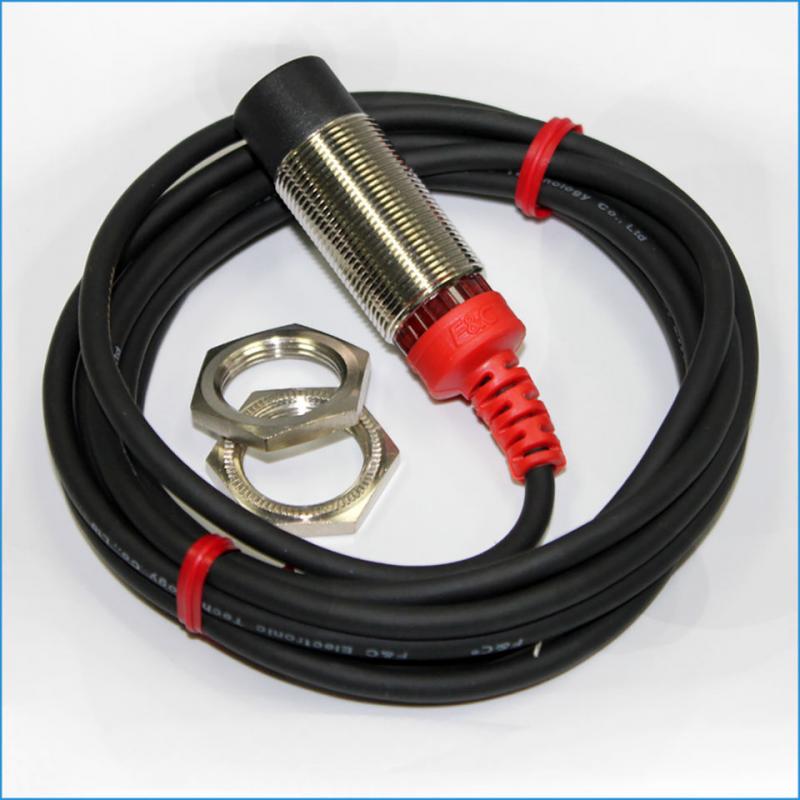

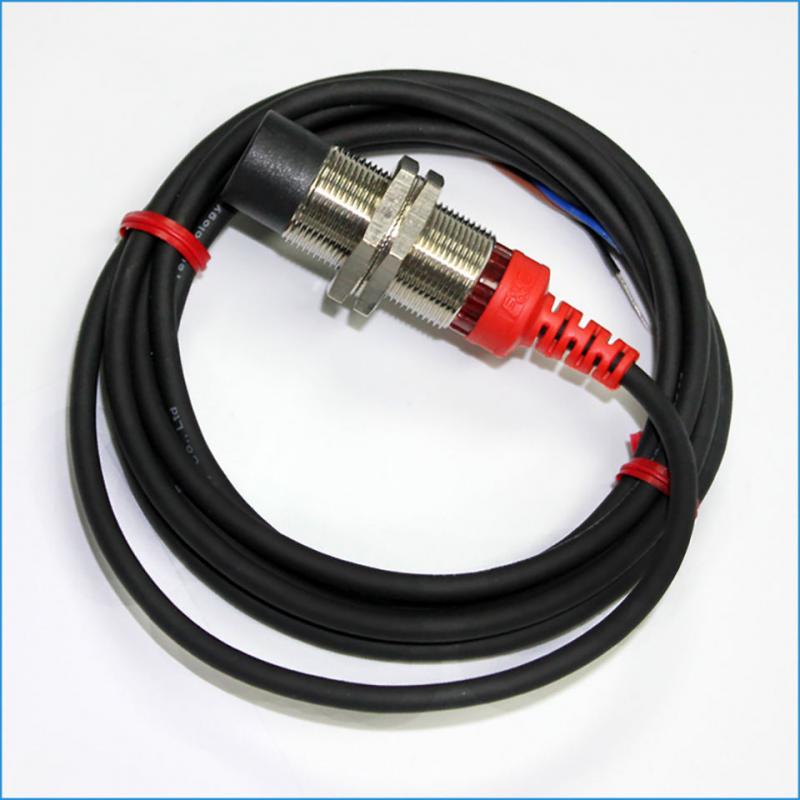

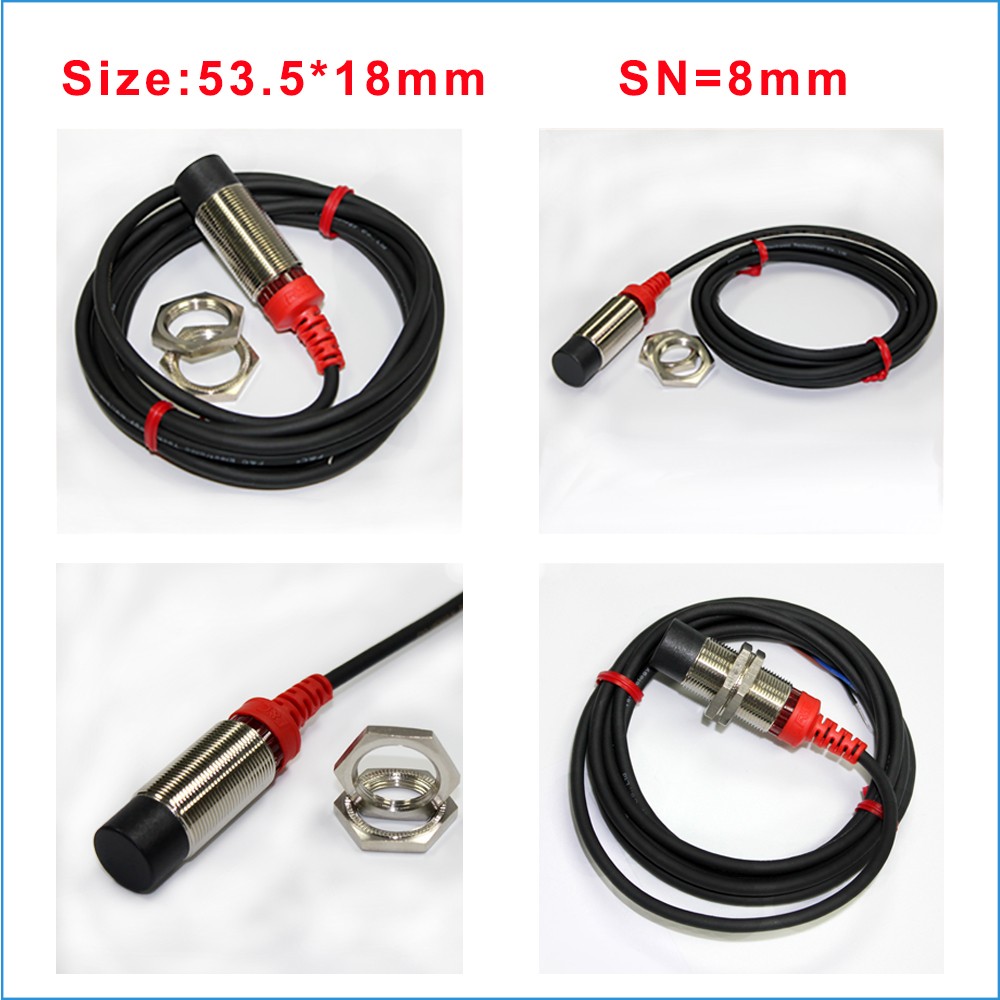

Photosfor proximity analog sensors

Dimensions for proximity analog sensors:
