 /F3N series F3N-18DN（Upper induction）/TN（Front induction）-05-N Square proximity switch

Square proximity switch
Square proximity switch Square proximity switch Square proximity switch Square proximity switch Square proximity switch

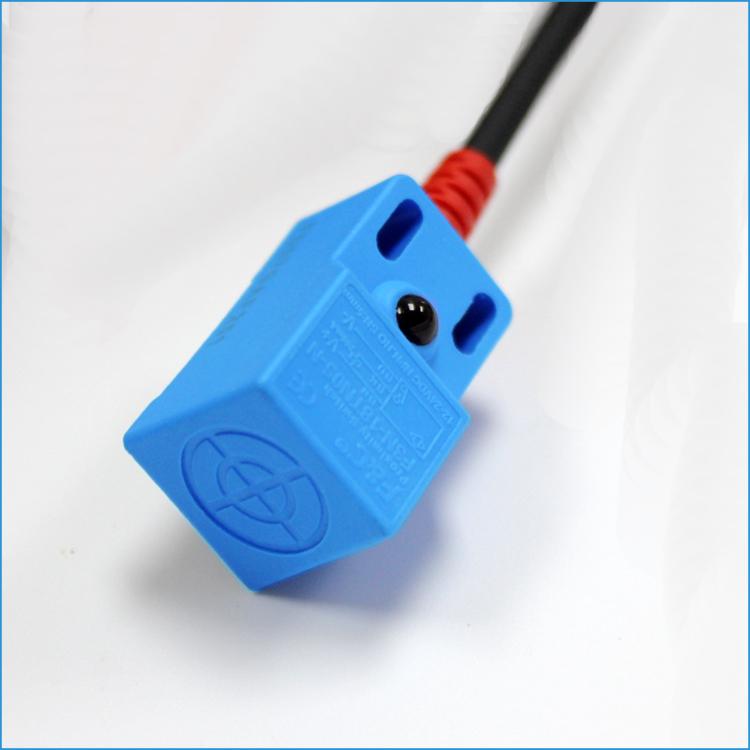

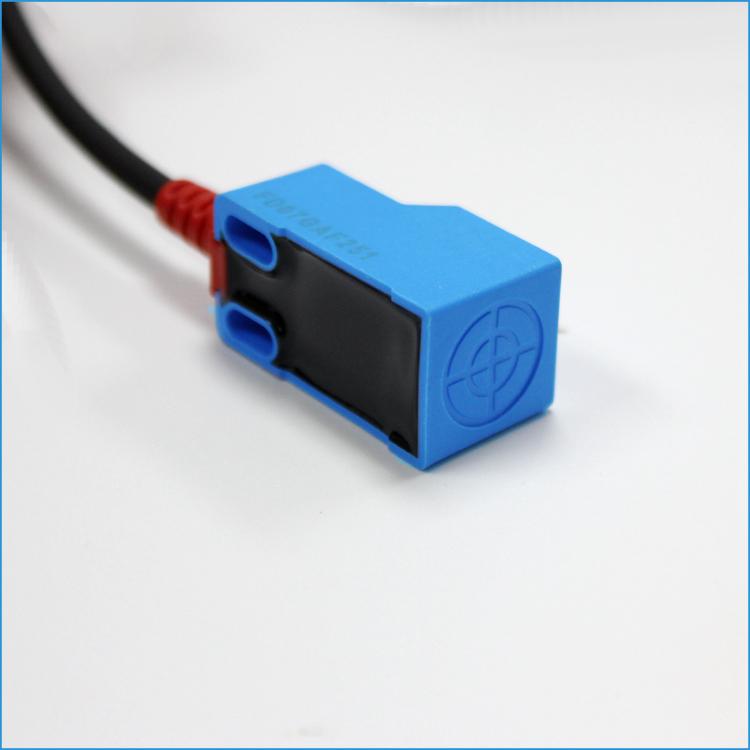

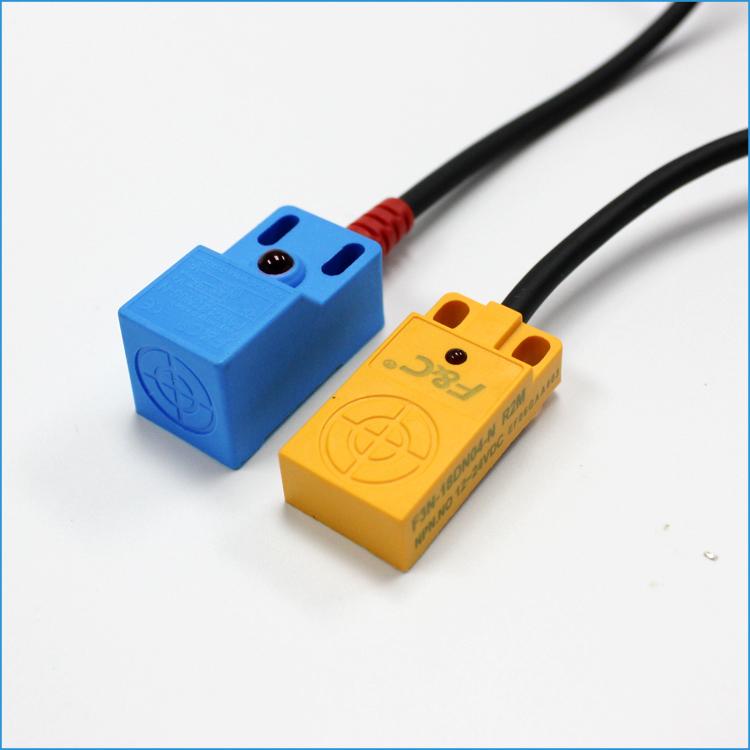

F3N series F3N-18DN（Upper induction）/TN（Front induction）-05-N Square proximity switch

Mini square type vertical proximity sensor metal detector sensor

  • Brand:

    F&C

  • Item no.:

    F3N-18DN04-N/N2/P/P2

  • Product origin:

    China

  • Color:

    blue

  • Shipping port:

    Xiamen
Inquiry now


Overview
Quick Details
Model Number:
F3N-18DN04-N/N2/P/P2  F3N-18TN05-N/N2/P/P2    R2M
Place of Origin:
Hunan, China
Brand Name:
F&C, F&C
Usage:
Position Sensor
Theory:
Optical sensor
Output:
Switching Transducer
Product name:
18*18 Square Proximity sensor NPN NC 5mm inductive sensor detect metal
Detection mode:
NPN NC
Induction way:
front induction
Detection distance:
5mm
Frequency:
600Hz
Certificate:
CE
Entry cable:
dia4*2m/3 wires or M8 connector
Material:
ABS/PBT
Warranty:
18months




Q18 rectangular 5mm inductive sensor PNP 3 wires proximity switch with Rohs

Q18 rectangular 5mm inductive sensor PNP 3 wires proximity switch with Rohs


Q18 rectangular 5mm inductive sensor PNP 3 wires proximity switch with Rohs

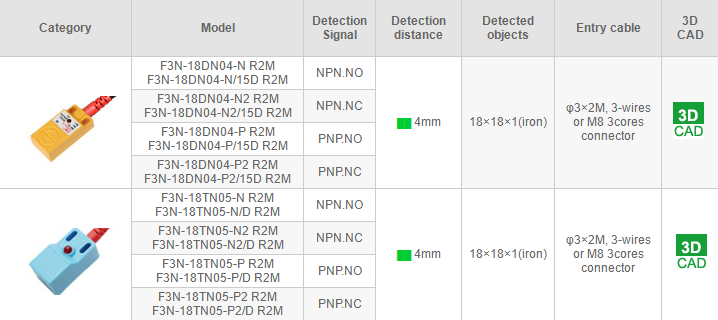

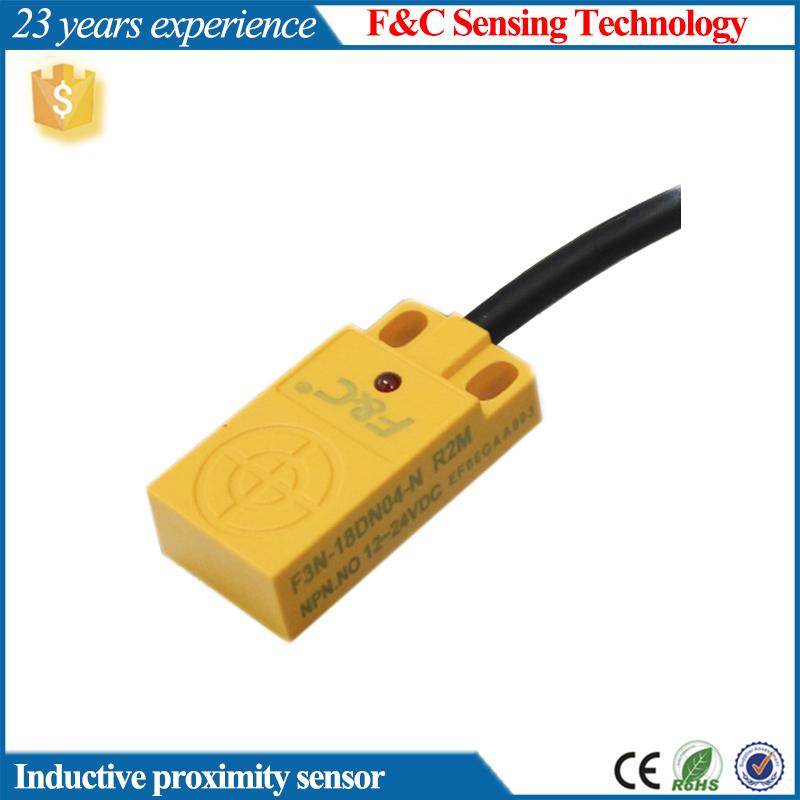

F3N-18DN04-N/N2/P/P2

F3N-18DN04 series dimensions

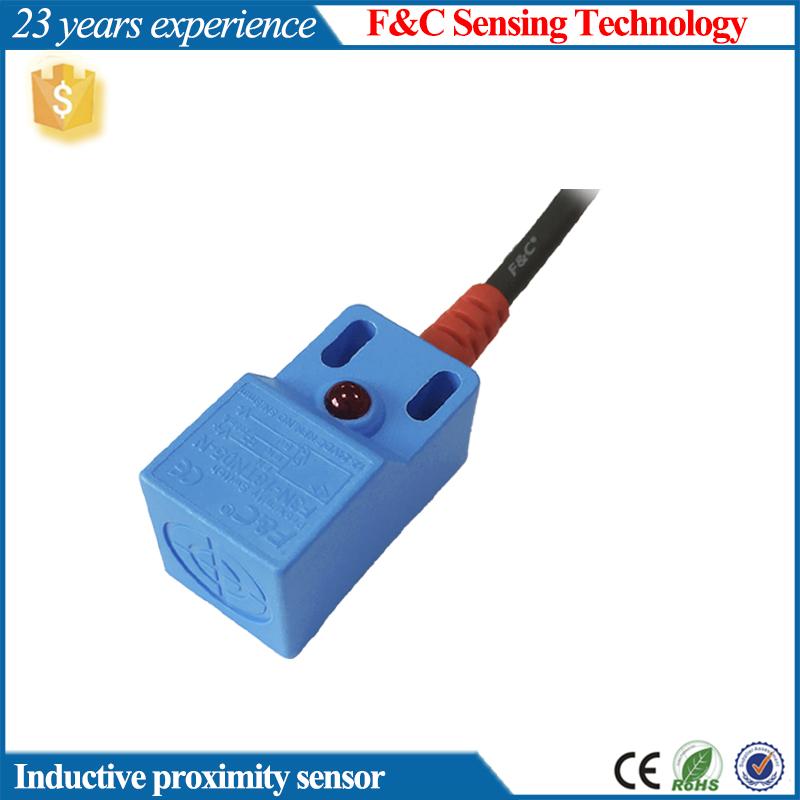

F3N-18TN05-N/N2/P/P2

F3N-18TN05 series dimensions



aluminum detector NPN NO mini square shape inductive proximity sensor switch with RHOS certification
aluminum detector NPN NO mini square shape inductive proximity sensor switch with RHOS certification
aluminum detector NPN NO mini square shape inductive proximity sensor switch with RHOS certificationaluminum detector NPN NO mini square shape inductive proximity sensor switch with RHOS certification
