Overview

Quick Details

Model Number:

F3C-12ES02- N R2M

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Position Sensor

Theory:

Inductance Sensor

Output:

Switching Transducer

Output Method:

NPN NO

Detection Distance:

2mm

Standard Detection Object:

12*12*1(Iron)

Operating Voltage:

12-24V DC

Response Frequency:

800HZ

Short-circuit Protection:

Yes

Operating Temperature:

-25~70℃

Material:

ABS and SUS304

Wire Method:

dia 4.0mm *2M/-3 wires

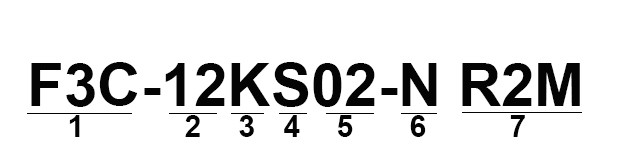

F3C	F3C: standard sensing distance. F3L: double sensing distance
08	Outer diameter is M12( 4mm,M5,6.5mm,M8,M12,M18, M30 available)
K	K: Standard main body   E: short main body
N	N: Non-shield   S: shield
02	Sensing distance
N	N: NPN NO  N2:NPN NC   P:PNP NO   P2:PNP NC B: 2 wires NPN  B2: 2 wires PNP
R	soft cable
2M	2M cable(cable length can be customized)

Model#	F3C-12ES02-N R2M
Output Method	NPN NO
Mounting Method	Flush
Detection Distance	2mm
Hysteresis	Less than 10% of sensing distance
Standard Sensing Object	12*12(Iron)
Operating Voltage	12-24 VDC
Current Consumption	Less than 8mA (No Load)
Load current	100mA Max at 24 VDC
Residual Voltage	Less than 1.5VDC (No Load)
Leakage Current	Less than 0.01mA
Protection Degree	IP67
Operating Temperature	-25℃-70℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	PBT and SUS 304
Wire Method	Dia 4mm*2M/-3wires

3 wires model	NPN NO	F3C-12ES02-N R2M
	NPN NC	F3C-12ES02-N2 R2M
	PNP NO	F3C-12ES02-P R2M
	PNP NC	F3C-12ES02-P2 R2M
2 wires model	NPN	F3C-12ES02-B R2M
	PNP	F3C-12ES02-B2 R2M
