Overview

Quick Details

Model Number:

F3L-12KS04- N R2M-25de

Type:

Inductive Proximity Sensor

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Position Sensor

Output:

Switching Transducer

Theory:

Inductance Sensor

Output Method:

NPN NO

Detection Distance:

4mm

Operating Voltage:

12-24V VDC

Response Frequency:

800HZ

Short-circuit Protection:

Yes

Operating Temperature:

-25~70℃

Wire Method:

dia 4.0mm *2M/-3 wires

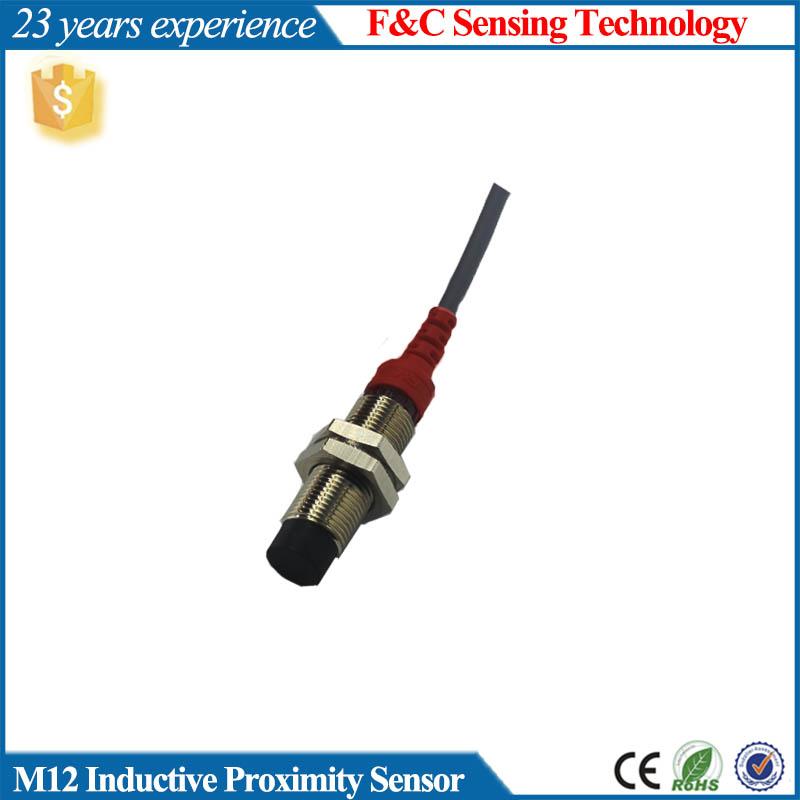

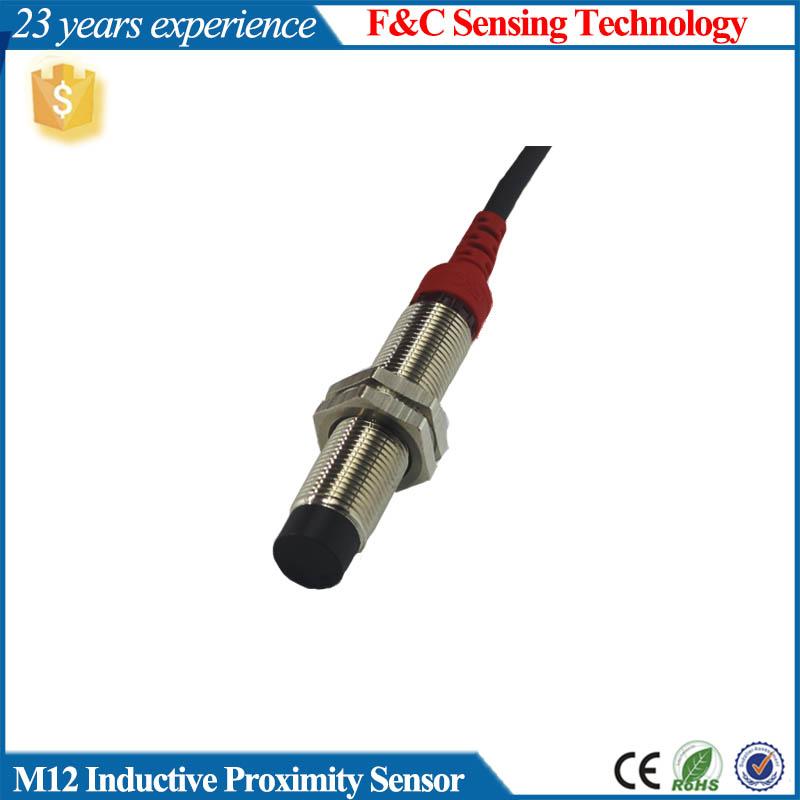

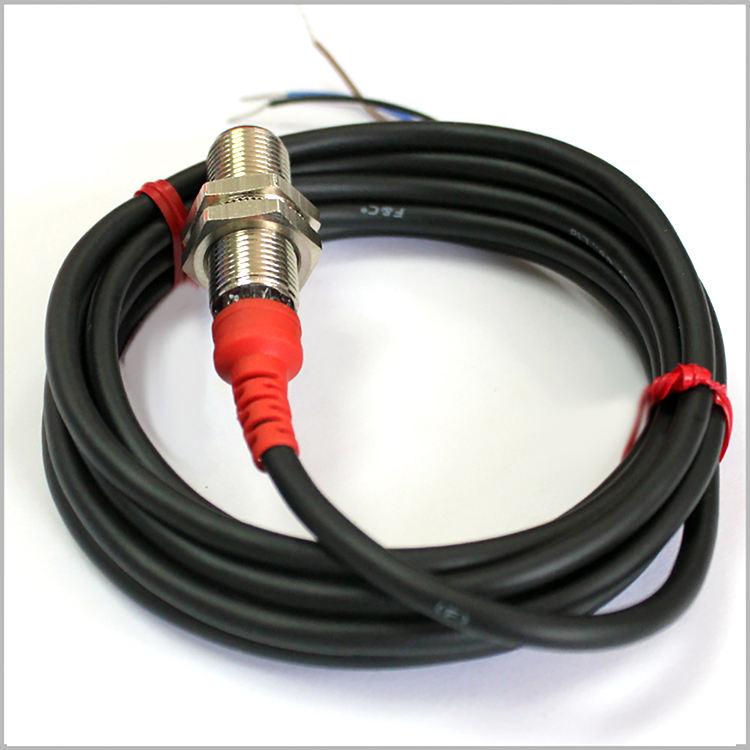

M12 proximity sensor Short Housing 12-24VDC NPN/PNP 2M cable Sn=4mm Flush shield type Inductive Sensor

Product details

Product name	Flush M12 Inductive Sensor, 4mm Sensing NPN 12V Dc Proximity Sensor
Output Method	NPN NO
Detection Distance	4mm
Standard Detection Object	12*12*1(Iron)
Operating Voltage	12-24V VDC
Response Frequency	800HZ
Short-circuit Protection	Yes
Operating Temperature	-25~70℃
Material	ABS and SUS304
Wire Method	dia 4.0mm *2M/-3 wires
Product Keywords	proximity sensor j12-d4nk,proximity sensor india

Specification

Long Distance Flush M12 Inductive Sensor, 4mm Sensing 12V Dc Proximity Sensor
Model#	F3L-12KS04-N R2M
Output Method	NPN NO
Mounting Method	Flush
Detection Distance	4mm
Hysteresis	Less than 10% of sensing distance
Standard Sensing Object	12*12(Iron)
Operating Voltage	12-24 VDC
Current Consumption	Less than 8mA (No Load)
Load current	100mA Max at 24 VDC
Residual Voltage	Less than 1.5VDC (No Load)
Leakage Current	Less than 0.01mA
Protection Degree	IP67
Operating Temperature	-25℃-70℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	PBT and SUS 304
Wire Method	Dia 4mm*2M/-3wires

Feature for;Long Distance Flush M12 Inductive Sensor 4mm Sensing NPN 12V Dc Proximity Sensor

1.Flexible cable,

2.360 degree view LED indicator,

3.Red protective sleeve,

4.imported world first class electronic components ;

5. Sensing Distance can be 2mm or 4mm

All these make F&C inductive proximity sensor have stable quality ,durable and friendly to use.

F&C Also provide 18 month warranty.
