Electrical 350 amp battery connector with cover

Battery connectors are commonly used in battery or charging applications, and there are four current: 50A, 120A, 175A and 350A. We can also provide accessories, like hold hands and dustproof cover.

Brand:
OLINK
Item no.:
SH350
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
RD, BU, BK, GN, GY, YE, OG, WH
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Electrical 350 amp battery connector with cover

Features of Ebike battery connectors

There are multiple colors, each color has a different interface;
There is no distinction between male and female, SH350 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
Copper-plated silver terminal block, with card slot design, better conductivity;
Two-pole design, can be connected to the "+" and "-" poles at the same time.

Drawing for SH350 Connectors

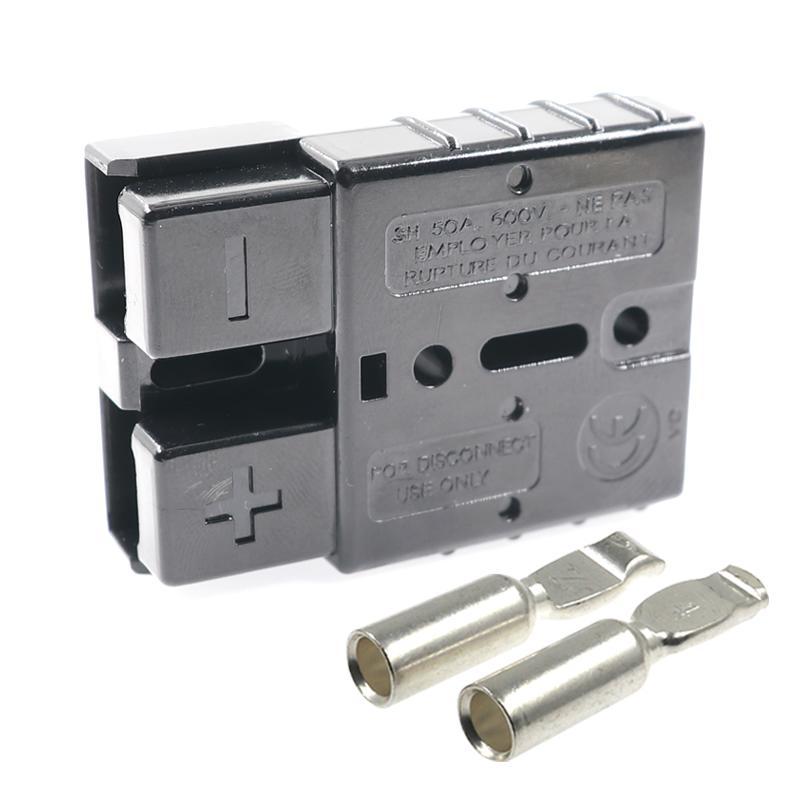

Note:A set of SH350 Connector,

only contains 2 shell and 4 crimp terminals

Parameter of 350 amp connector

Product name	Electrical 350 amp battery connector with cover
Rated Current	350A	Rated Voltage	600V
Wire Size	1/0, 2/0AWG	Contact Material	Copper Plate With Silver
Insulation Material	PC	Flammability	UL94 V-0
Contact Resistance	<140mΩ	Insulation Resistance	5000MΩ
Average.Connection	85N	Connector Holding Force	450N Min
Shell Optional Color	Red,Blue,Black,White,Gray,Yellow,Green,Orange

Auxiliary Parts For SH350 Connectors

Hold Hands (Available colors: Red, Gray)

Dustproof Cover (Available colors: Red, Black)

Use occasion of Electric forklift battery connectors

The SH350 connector is mainly used in the following industries:

Machinery industry: cutting machine, electric vehicle controller, etc.
Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
