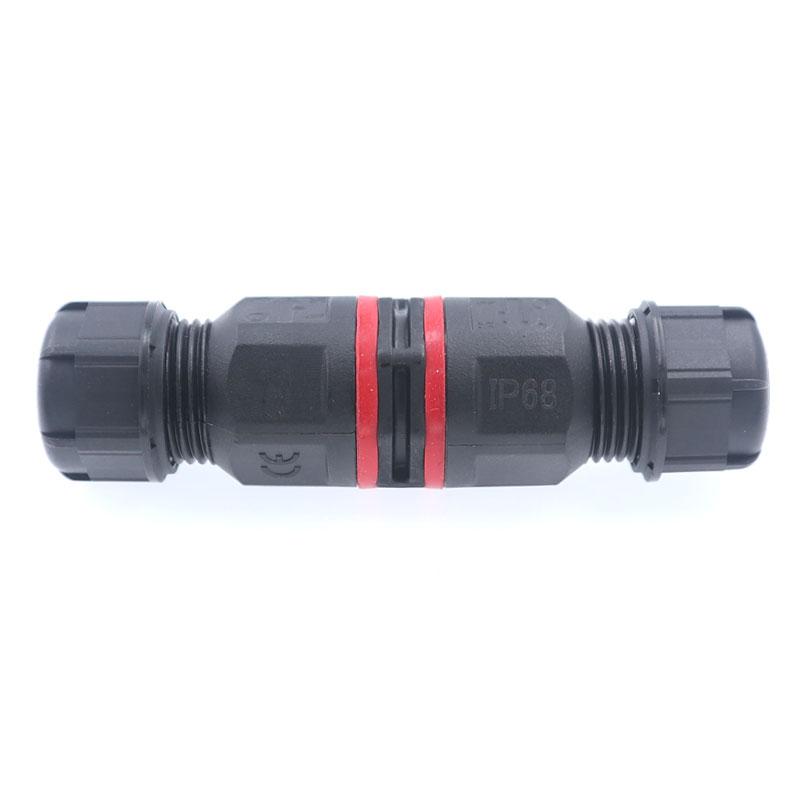

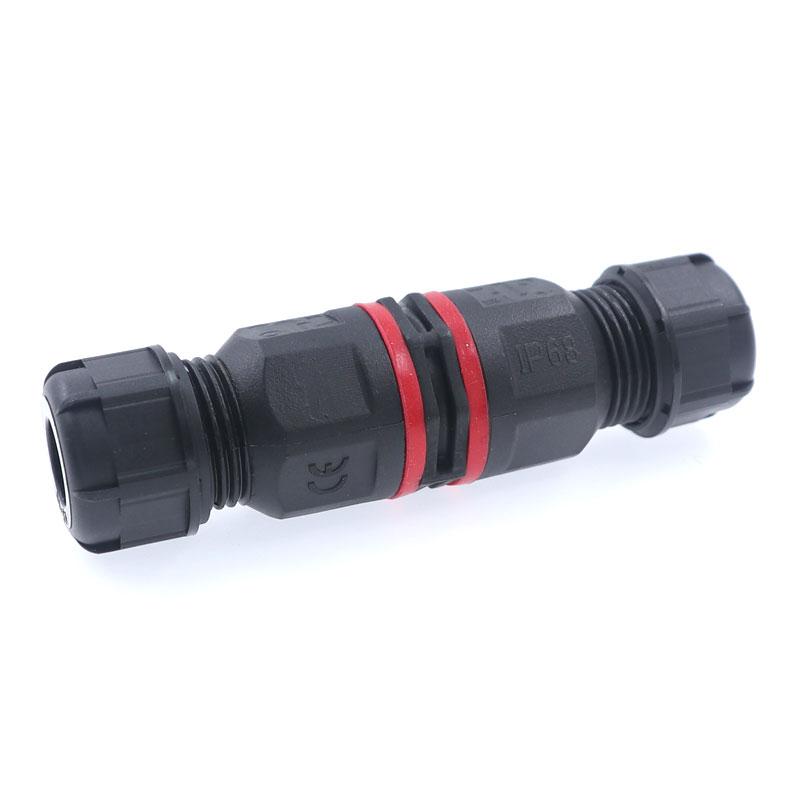

Waterproof Power Connectors 250V20A IP68 2pin 3pin 4pin

The straight waterproof connector uses a 6-10mm diameter cable, can connect to a conductor of ≤14AWG or 2.5mm2, and is crimped with a terminal screw, which can withstand a maximum current of 20A, and has a wide range of applications.

  • Brand:

    OLINK
  • Item no.:

    CN11-2P/3P/4P
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Min order:

    50
  • Product weight:

    98
  • Shipping port:

    Xiamen
  • Lead Time:

    5 day

Waterproof Power Connectors 250V20A IP68 2pin 3pin 4pin

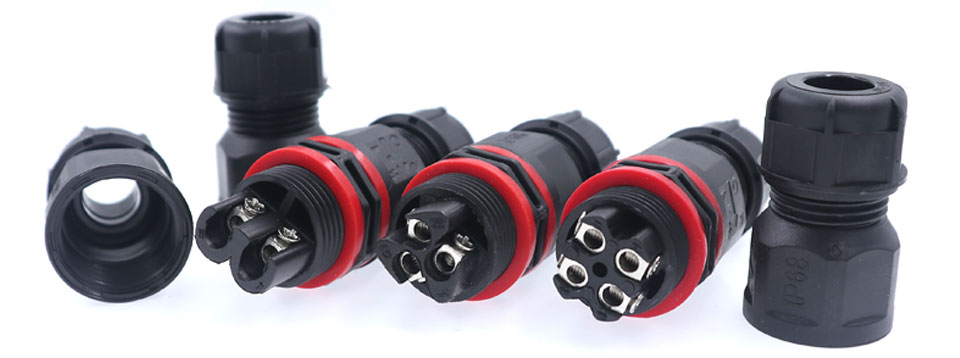

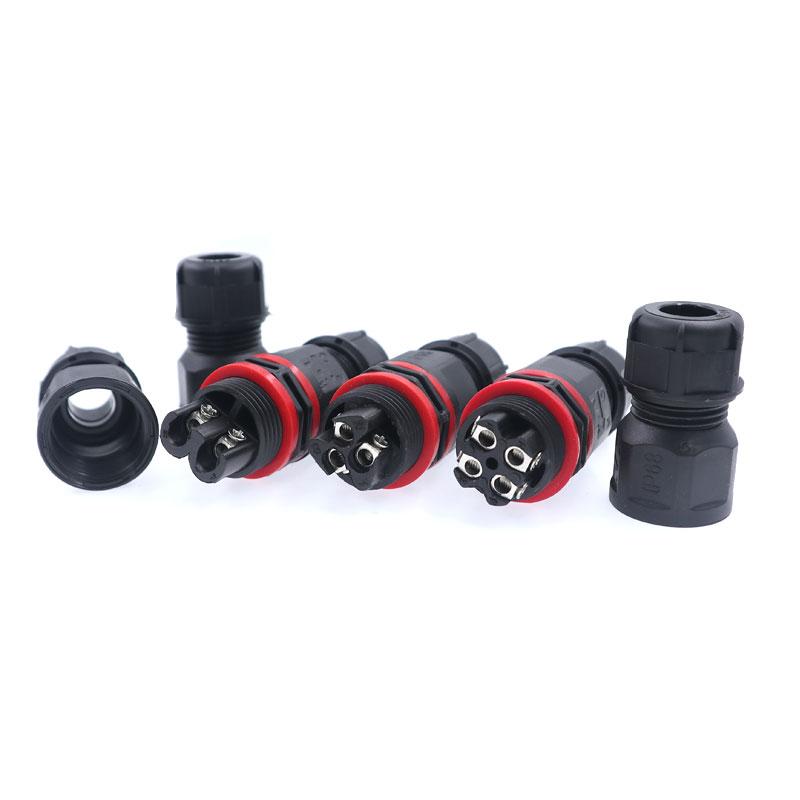

* Straight through waterproof connector  2Pin/3pin/4pin

*6-10mm Cable Diameter, ≤2.5mm2 or 14AWG Wiring, Screw Crimp

*250V AC, ≤20A

*IP68 waterproof

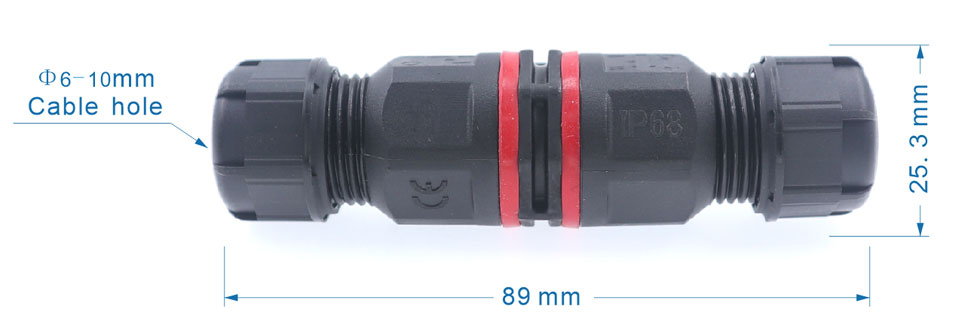

 Size Of 2Pin 3Pin 4Pin Power Connectors Joint


250V20A Power Connectors Product Size Is : 89mm*25.3mm, The diameter of the cable hole at both ends is 6-10mm.


Product Parameter Of  250V20A Cable Connectors
Model  JH16-02-2P/3P/4P Housing Material  Nylon
Contact Material

Nickel plated copper

Rated Voltage  250V AC
Rated Current  20A Waterproof Level  IP68
Wiring Core  2P 3P 4P Wiring Range  <2.5mm2(14AWG)

Adapter Cable Diameter

6-10mm

Wiring Type

Screw Crimp
Use
Power Outdoor or waterproof Connections
Fire-Proof Level
UL94 V-0

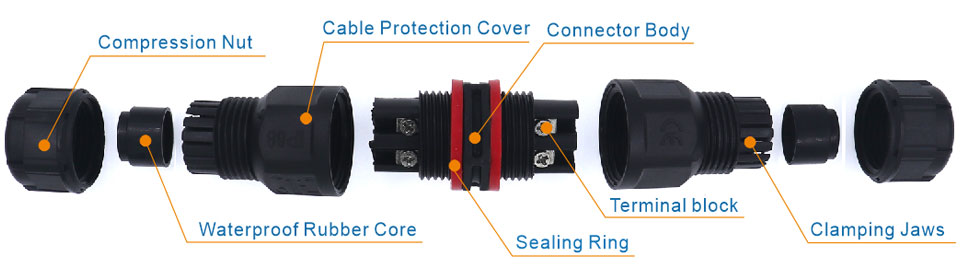

Power Cable Connectors Composition

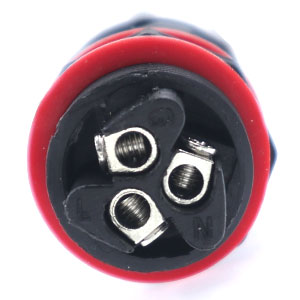

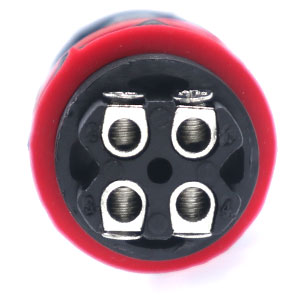

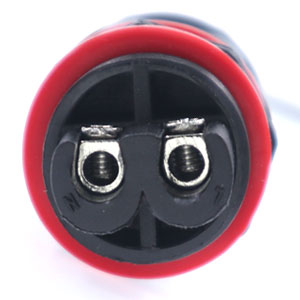

JH16-02-2P "L" "N" JH16-02-3P "L" "N" "G" JH16-02-4P "1" "2"


 Power Cable Joint applicable scenarios



Wiring of outdoor street lights

Landscape, fountain wiring



Construction site power connection

Water Pump Power Wiring

2pin 3pin 4pin Power Cable connectors are mainly used for the connection of various outdoor lamps, landscape fountains, construction sites and water pumps and other circuits.


*If you need more information, you can find us through the contact information on the right side of this page.
