Quick disconnect battery cable connectors

180 amp quick disconnect battery terminal connector

We provide a wide variety of battery connectors, as well as other electrical connector accessories, including battery terminal covers, battery cables/wires, etc.

Brand:
OLINK
Item no.:
SP180
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
RD, BU, BK, GN, GY, YE, OG, WH
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

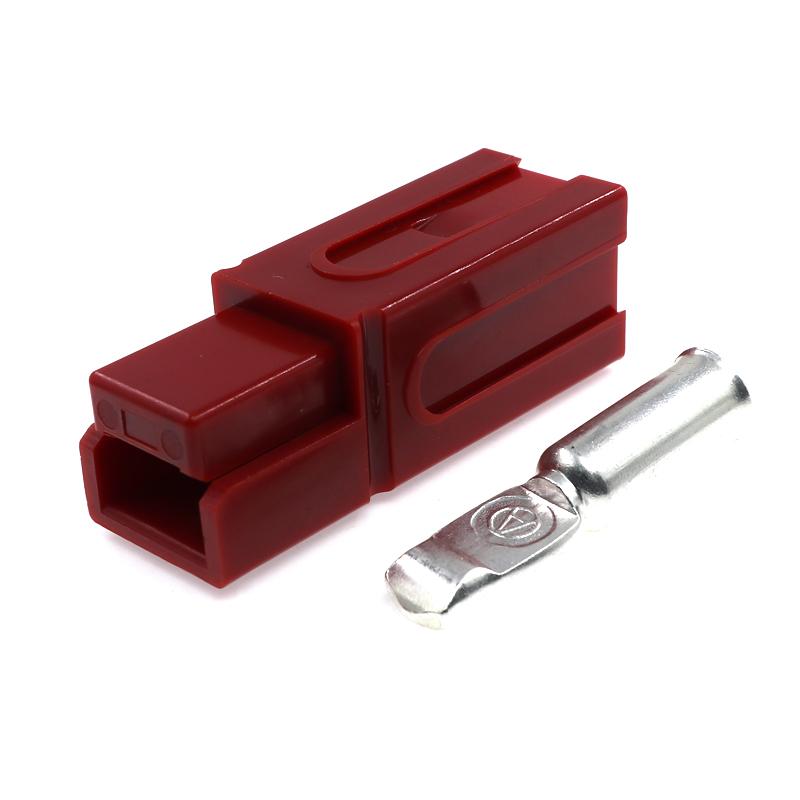

180 amp quick disconnect battery terminal connector

Features of battery socket connectors

Quick connection and disconnection, simple and safe
The plugs are interchangeable between the same models, and there is no male and female design, which is beneficial to reduce inventory
The terminals are silver-plated with red copper, high current working environment, reducing contact sparks

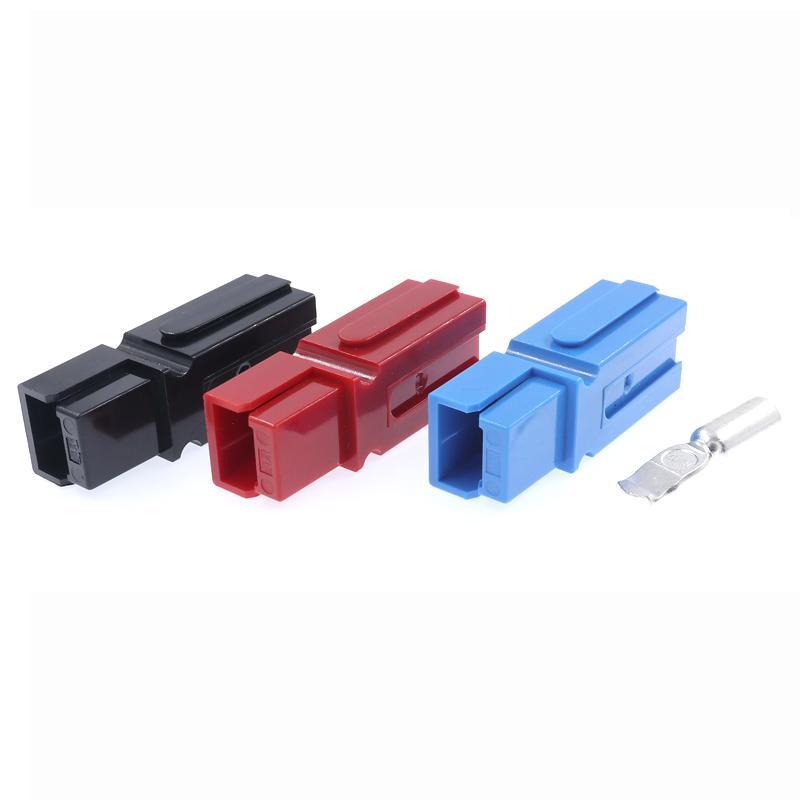

The shell color is multi-color optional, and different colors adopt independent interfaces, which is convenient for users to customize multi-level configuration

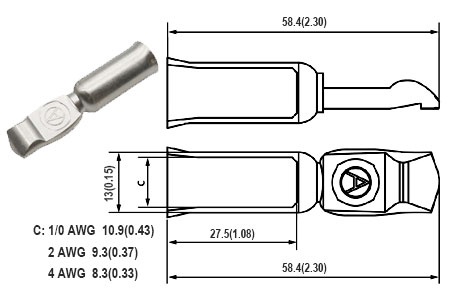

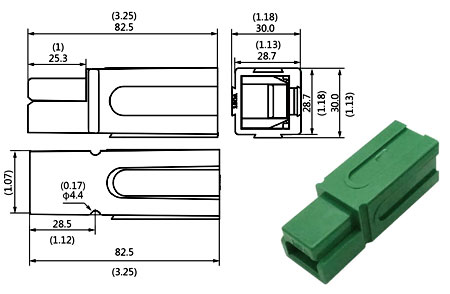

Drawing of SP180 Connectors


Note:A set of SP180 Connector, only contains a shell and a crimp terminal

Parameter of battery connectors

Product name	180 amp quick disconnect battery terminal connector
Rated Current	180A	Rated Voltage	600V
Wire Size	1/0/2/4AWG	Contact Material	Copper
Insulation Material	PC	Flammability	UL94 V-0
Inner shrapnel	65Mn	Temperature range	-20℃ ~105℃
Internal shrapnel	Thickened high-precision manganese steel	Color	Red, Blue, Black, Grey, Green, Yellow, White

Use occasion of SP180 Connectors

The SP180 battery connector is mainly used in AC/DC power inverters, electric bicycle power batteries, and industries and occasions that require single-max current connections.

FAQ

Q: Can provide the connector with cable?

A: Yes, we can also provide wiring service. Give us the wire gauge, length and how to deal with another side of the wire, we will provide you a quotation.

*For more information, please contact us by email or through any contact information on the webpage.
