Spring terminal blocks help to achieve signal distribution and safe energy. It has different poles and pitch, easy install and safety.
Brand:
OLINKItem no.:
141V(R)-2.54Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
GreyGoods stock:
50000Min order:
1000Shipping port:
Xiamen, NingboLead Time:
15

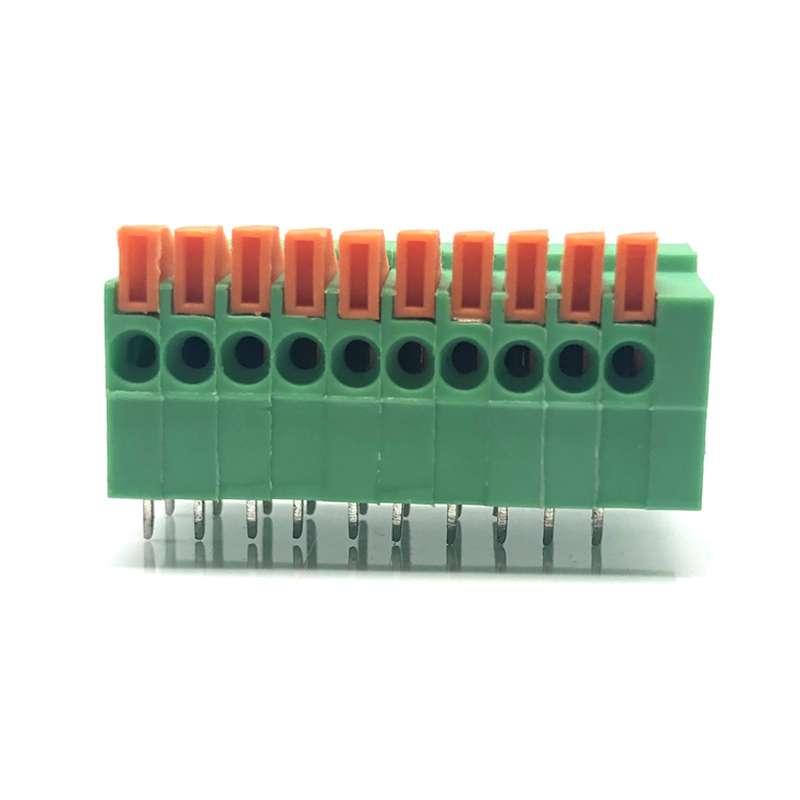

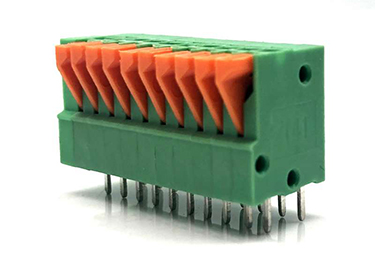

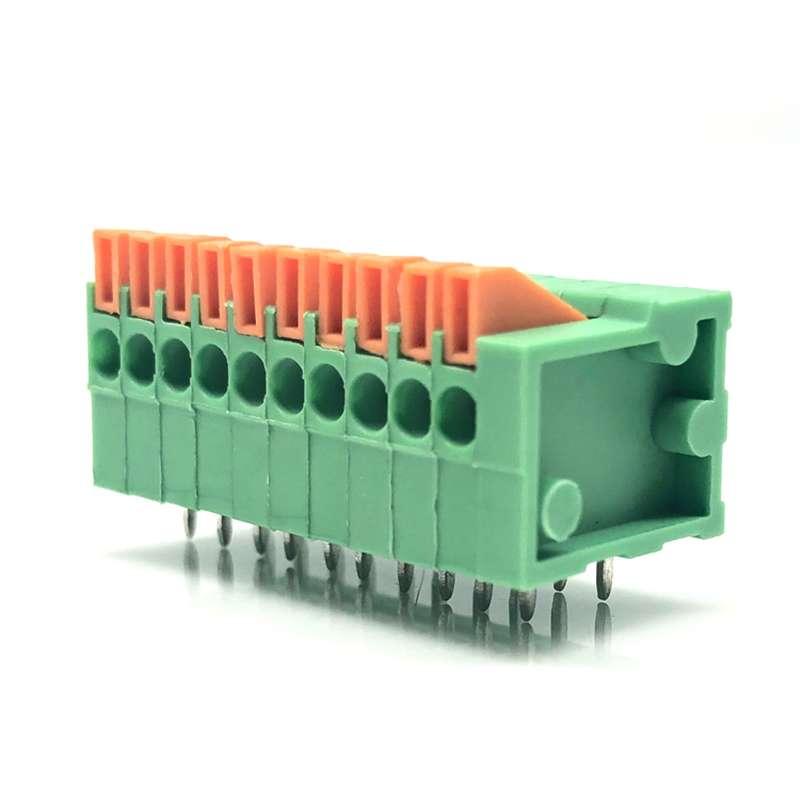

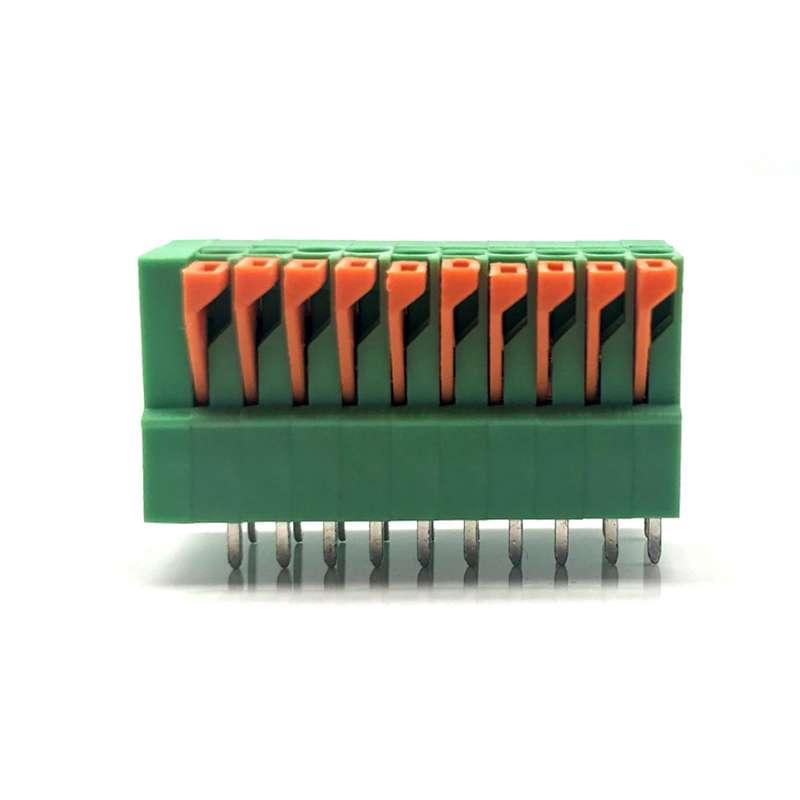

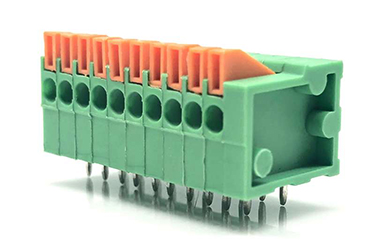

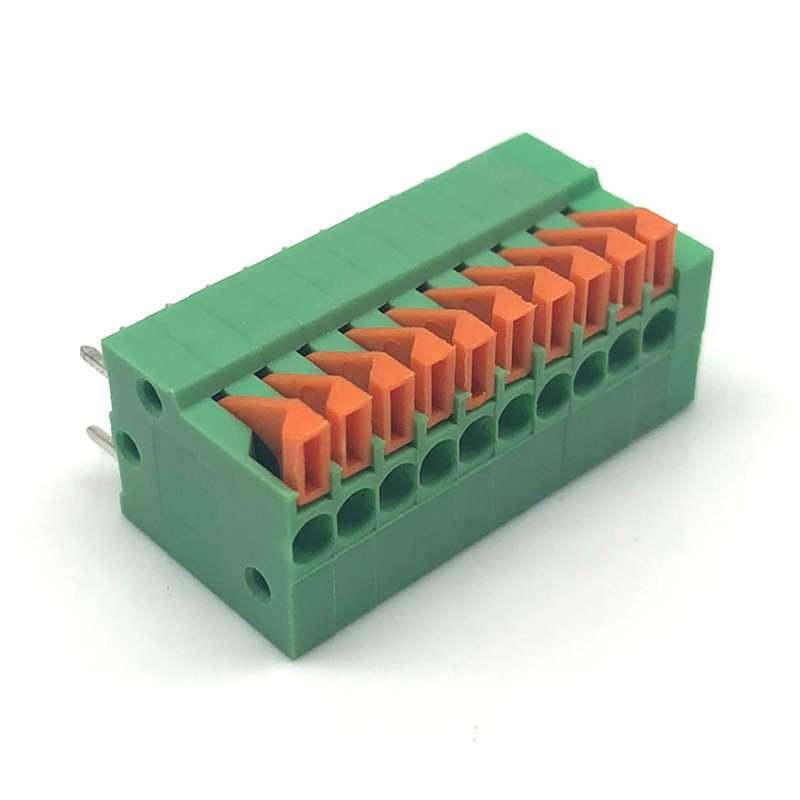

141R-2.54mm pitch pcb spring clamp terminal block
141V-2.54
141R-2.54
Description of Spring terminal block
The Spring terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. Screwless terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

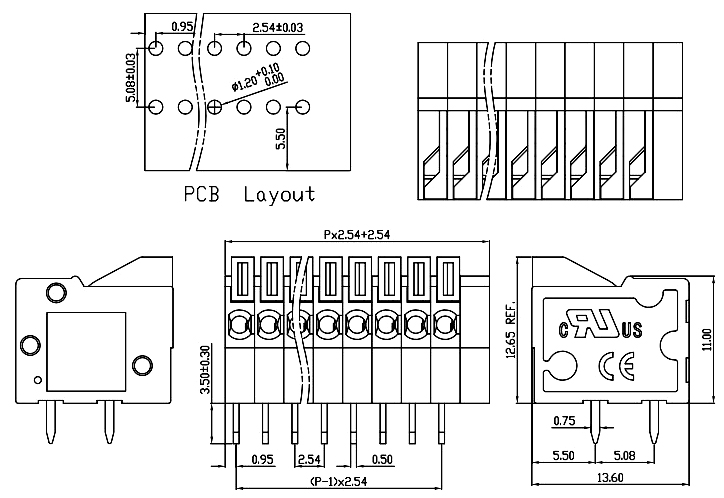

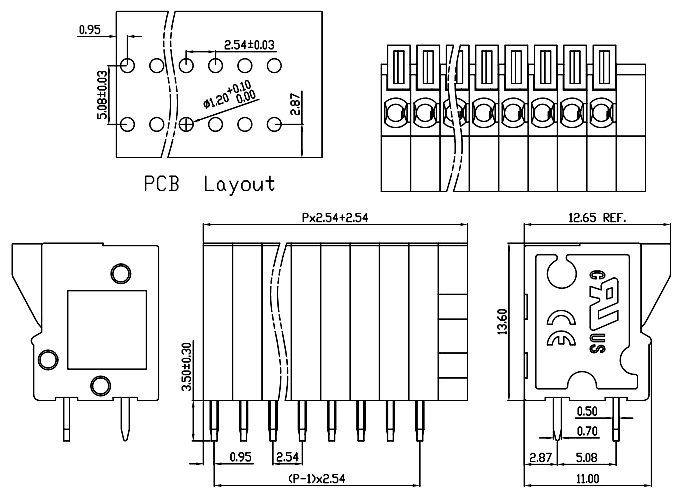

Drawing of 3 position terminal block
 |
| 141V-2.54 |
 |
| 141R-2.54 |
Specification of Screwless terminal block
| Product name: | Spring terminal block | Model: | 141V(R)-2.54 |
| Certification: | UL, CE | Rated voltage: | 150V |
| Rated current: | 2A | Wire range: | 26-20 AWG |
| Withstand voltage: | AC 1300V/1 Min | Temperature range: | -40℃ to +105℃ |
| Pitch: | 2.54 mm | Strip length: | 11 mm |
| Poles: | 2P-XXP | Pin header: | Copper alloy, tin plated |
| Housing: | PA66 UL94V-0 |
Application of Plastic terminal block
Spring loaded terminal blocks usually used in industrial equipment, such as cable support boxes and control boxes. Terminal blocks are often seen in the following types of equipment used in industrial environments:
