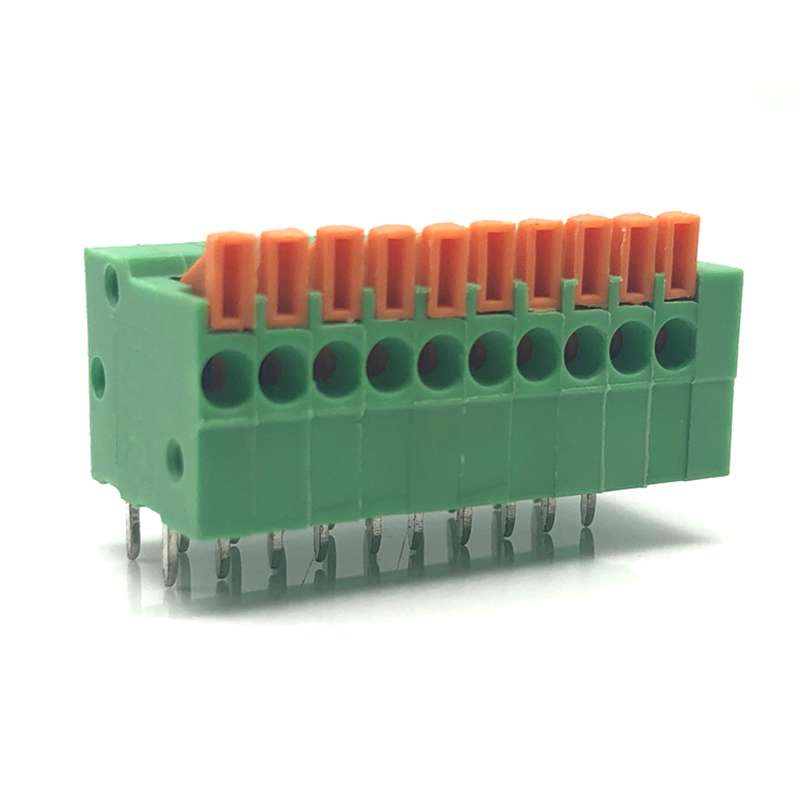

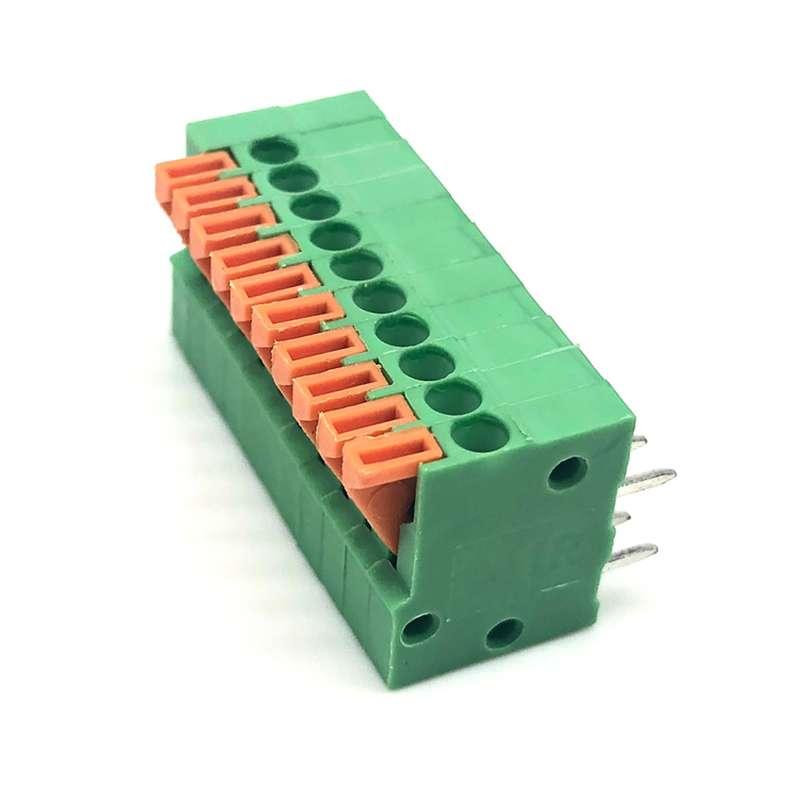

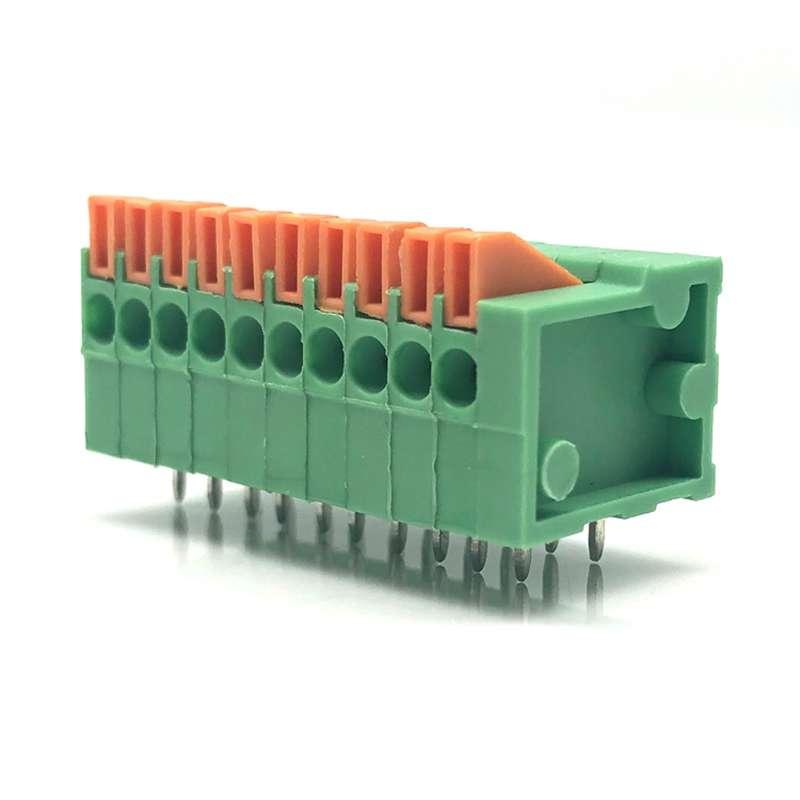

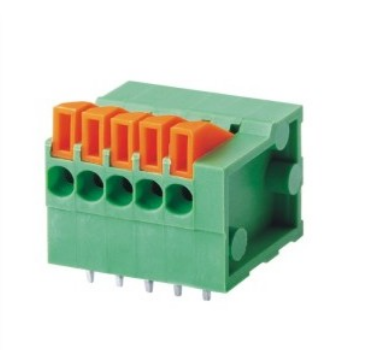

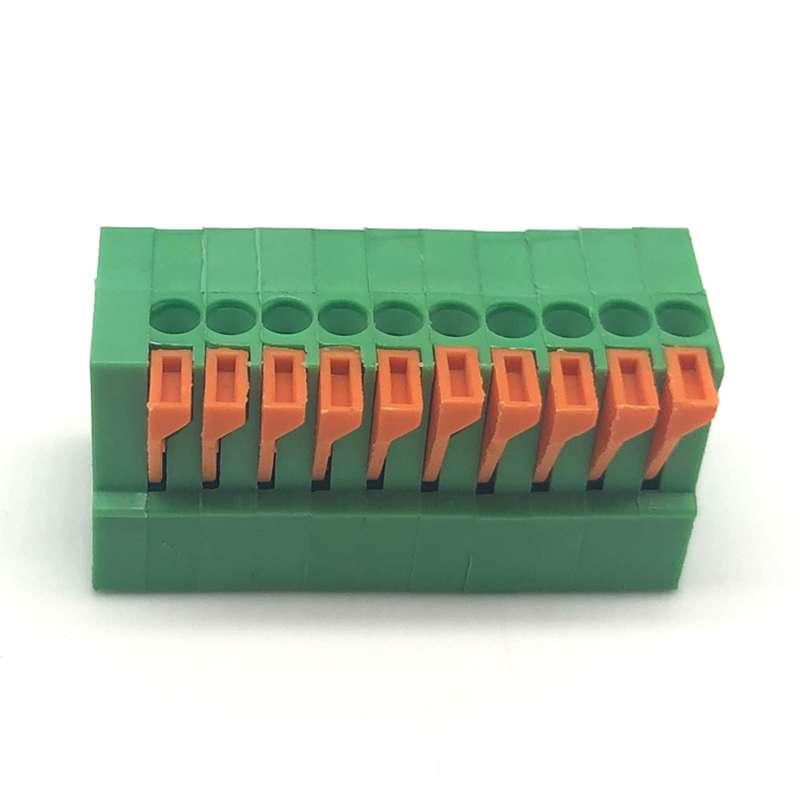

2.54mm pitch PCB Spring Terminal Blocks 2way electrical connector

2.54mm pitch PCB Spring Terminal Blocks 2way electrical connector

Description of Spring terminal block

Benefits of 141R 2.54mm PCB spring terminal blocks
● Superior wire retention in high vibration applications allows for improved performance
● Quick service or changeover results provide sustainable advantage and labor cost savings
● Modular housing design allows for flexibility in the number of positions and color to meet unique design requirements
● Modular blocks supply the main block and endplate offers customization to specific size requirements
● Flexibility allows for standardization of inventory
● Custom marking and printing available permitting fail-safe installation and service
● An automated process capable in temperatures up to 270°C
● Quality assured due to 100% visual inspection

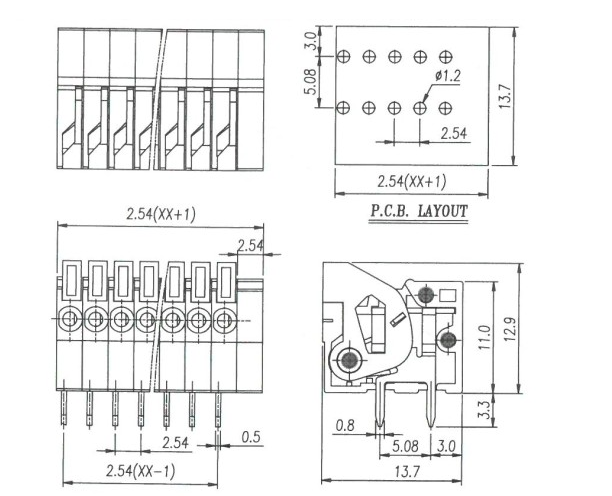

Drawing of 3 position terminal block

• Save cost and time: They are cheaper than other types of connectors.
• Reduce Space
• Increase Safety
• Easy Installation
• Made of Copper Alloy: Helps prevent loosening due to different expansion rates.
• It can also reduce corrosion caused by electrolysis between two different metals.

Application of Plastic terminal block

Spring loaded terminal blocks usually used in industrial equipment, such as cable support boxes and control boxes. Terminal blocks are often seen in the following types of equipment used in industrial environments:

• Blower
• control panel
• Substation
• Energy-saving lighting (LED)
• LED municipal outdoor and street lights
• All motors
• Cooling control
• Variable speed/frequency drive
• Power is scattered everywhere!
