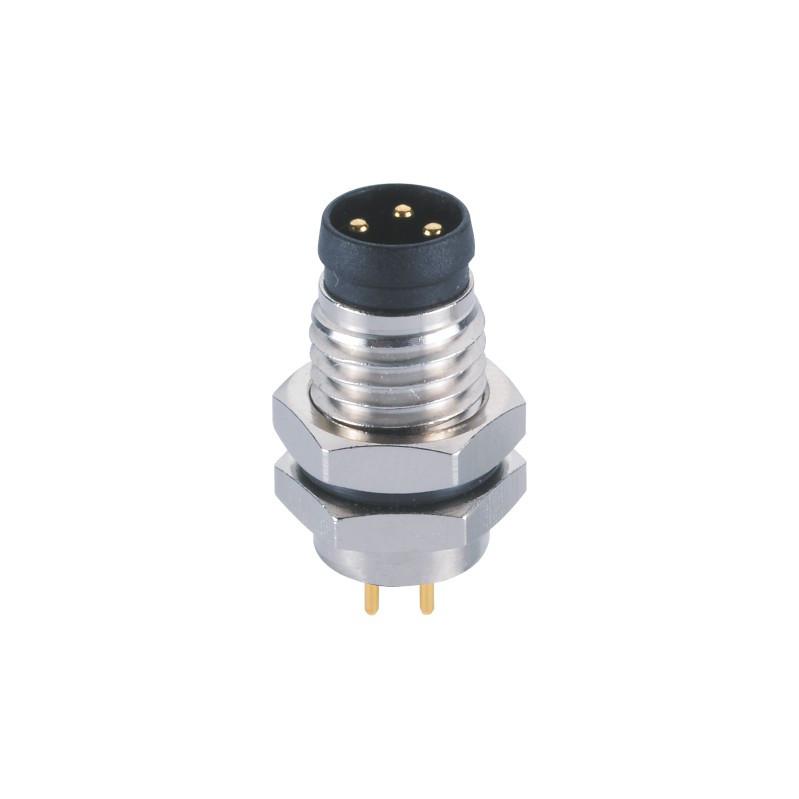

M8 3Pin male panel mount connector, PCB contacts, front side fastening

M8 connector a series male waterproof connector is used for welding and injection molding. The molding can be divided into straight head and elbow. The number of cores is 3-8pin.

  • Brand:

    OLINK
  • Item no.:

    M8
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7

M8 3Pin male panel mount connector, PCB contacts

Description:

Circular M8 connector is waterproof, oil resistant, cold resistant, stable performance, efficient and fast connection. It adopts threaded connection. It is widely used in temperature sensor, automation equipment, photoelectric switch, proximity switch, industrial automation robot sensor and various industrial harness wiring systems.


The Features of M8 Power connector:

  • Metal or Plastic available
  • Male and Female

  • A, B, and D-Coded

  • Many configurations available
  • Waterproof rated to IP-65, IP67-68
  • RoHS Compliant

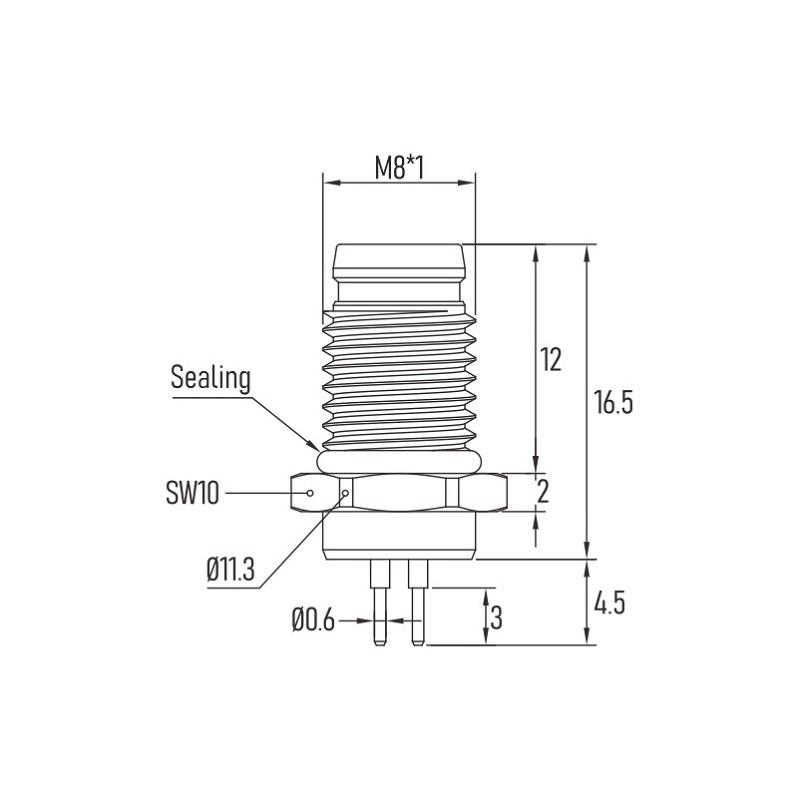

Drawing for m8 male female connector:

M8 circular connectorM8 circular connectorM8 circular connectorM8 circular connector


FAQ

What is an M8 connector?

The M8 connector generally refers to a connector with a panel mounting opening of 8mm. It is mainly used in signal transmission applications. There are 3 pins, 4 pins, and 5 for the number of pins, and there are integrated injection molding and assembly types.
