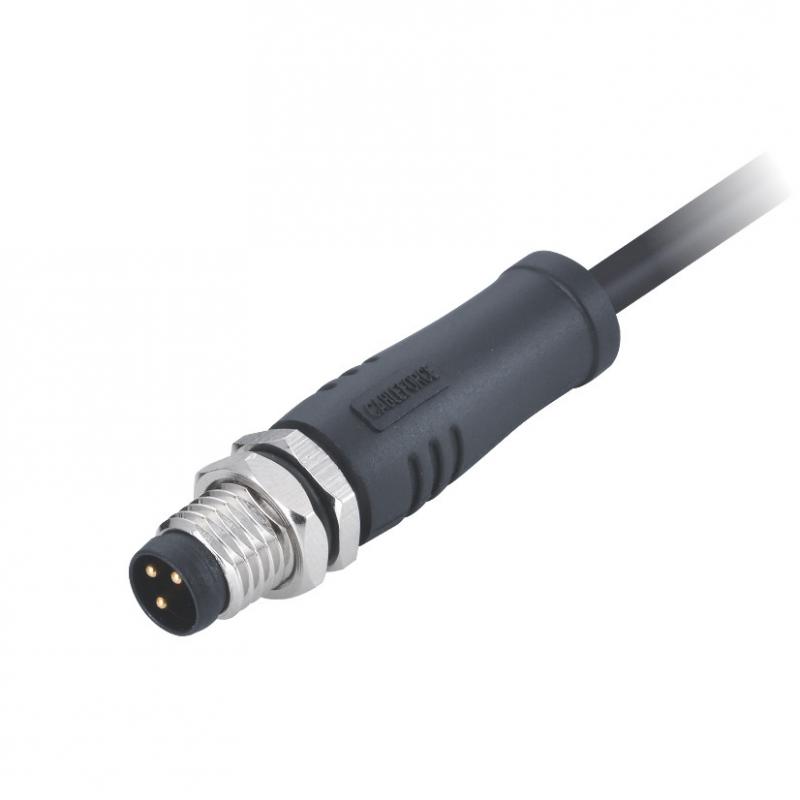

M8 3Pin male panel mount connector, front side fastening, molded cable

M8 connector is an 8mm metric connector with thread locking mechanism. It is one of the most commonly used connectors in factory automation,
  • Brand:

    OLINK
  • Item no.:

    MB03P1LSAB24-24
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    2000
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

                           M8 3Pin male panel mount connector, front side fastening, molded cable

M8 3 Pin male connectors is a connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, generally connecting with automation sensors in factory packaging and delivery system, outdoor LED module, security grating screen, and new energy signal control applications.

● 3 pin, 4 pin, 2P+2P, 5 pin, 6 pin, 8 pins available
● Custom cable specification and lengths, molded with PVC or PUR cable
● The receptacle counter part with PCB contacts or Solder type panel mount connectors
● Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cable available
● Voltage rating: 60V, 30V
● Current rating: 4A, 3A, 1.5A
● IP67 protection degree
● Anti-vibration

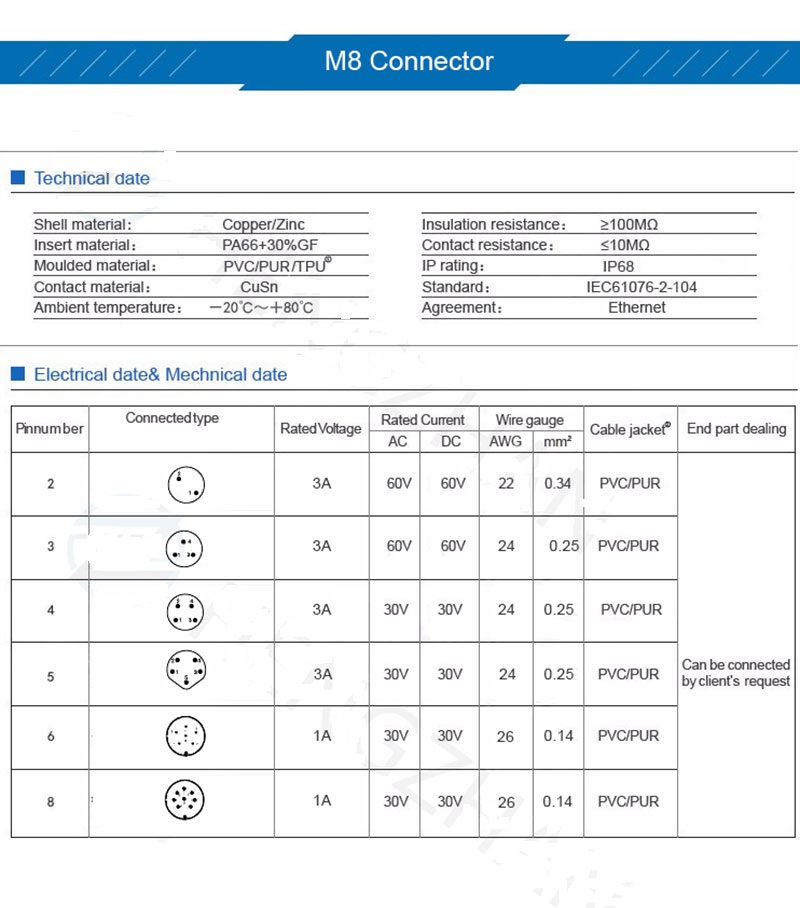

Product data:

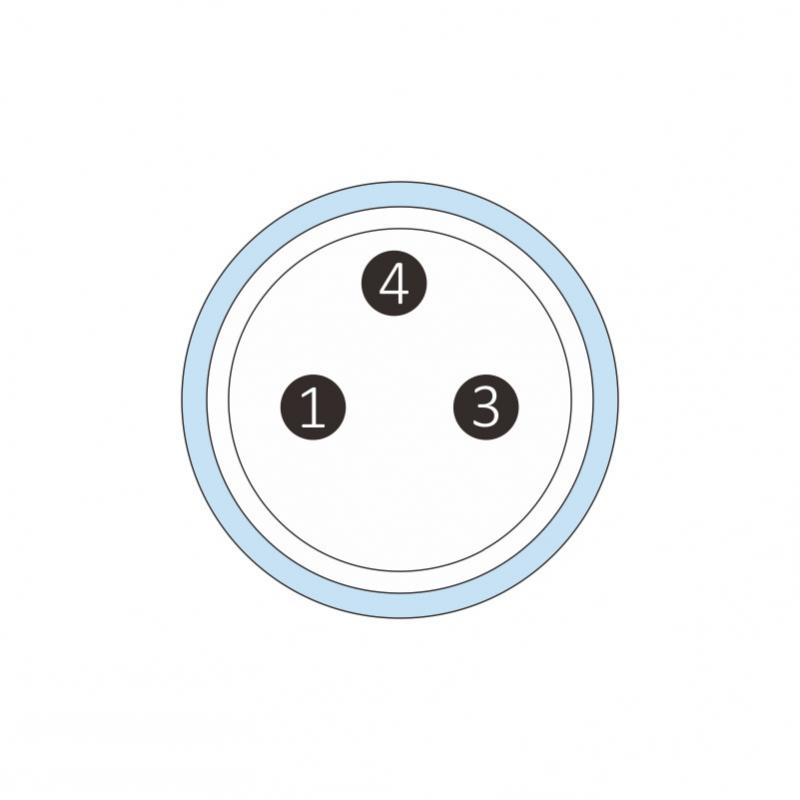

Contact poles 3 pin Cable length 30cm, Customized Lengthes
Connector Gender Male connector Cable Jacket PVC,PUR(TPU),TPE 90℃, Custom cable material
Current Rating 3A Wire Gauge(Size) 24Awg/0.25mm2
Voltage Rating 60V Keyway coding A-Coding
EMC Shielding Un-shielded Straight/90° Angled
180° Straight
Contacts Termination Soldering Temperature Rating -40°C ~ + 80°C
contacts Material Phosphor bronze, Machined solid pin Cable Flamability VW-1
Contacts plating 3μ" Gold plating thickness

Inserts TPU+GF
Sealing Epoxy Resin Housing/Outer shell Brass with Nickel plasting
Locking Screws Brass with Nickel plated Contact resistance ≤5mΩ

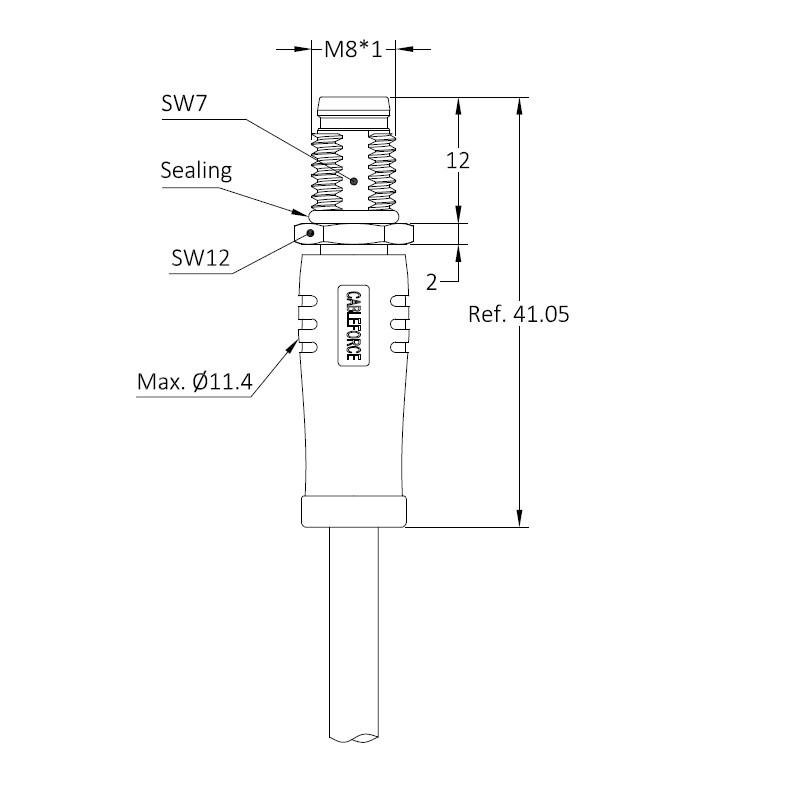

Panel cut size M8x1.0 Insulation Resistance ≥ 100 MΩ

Protection Degree IP67,IP69K Pollution Degree III
Connector Flamability UL 94 HB Waterproof Depth IP67 1m depth 30 minutes, IP69K against high pressure

Compliance Rohs compliant, Reach Compliant Warranty 3 year quality guarantee period
Plug Mating life 500 times Reference standard IEC61076-2-104
Products Certification UL Certified, CE/EMC, IP67
