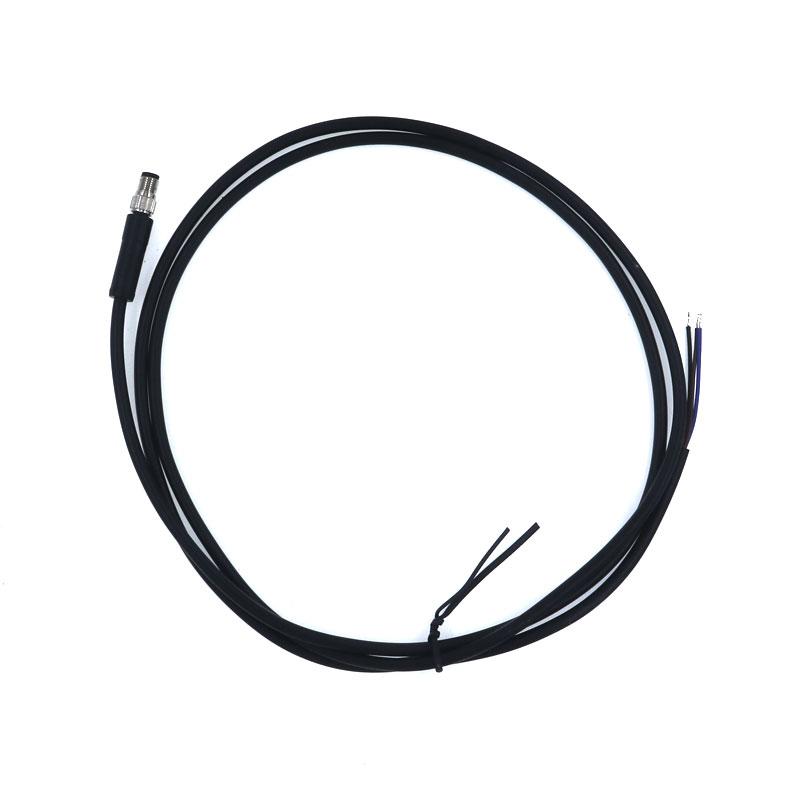

M5 connectors 4pin 3pin Round one-piece connector with wire

M5 M8 M12 connectors The waterproof level can reach IP67, and there are assembled and integrated types with wires. Panel mount sockets are divided into front-loading and rear-loading。
  • Brand:

    OLINK
  • Item no.:

    M5
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7

M5 connectors 4pin 3pin Round one-piece connector with wire


  Description

M5 Circular Connector with Wire was developed for the miniature sensor market and any application requiring multiple sensors.

  • Smaller footprint and smaller size.
  • 3-pin and 4-pin optional
  • Integrated molding with wire
  • Default wire length 1m, 26AWG
  • Rated work: 60V1A

  Product Parameters
Contact pins 3.4  Cable Lenght  Customized lengthes
Connector Gender Male connector  Cable Jakcet  PVC,PUR(TPU),Custom cable material
Current Rating 1A   Wire Gauge(Size) 26 Awg/0.14mm2
Voltage rating  60V  Wire Insulation  PVC
 Keyway coding A-Coding  EMC Shielding  UN-Shielded
Straight/90° Angled 180°  straight Cable Color  Black
Contacts Termination  Soldering  Temprature Rating  -20°C ~ + 80°C
 Contact material Brass, machined solid pin  Cable  Flamability  VW-1
Contacts plating  1μ" Gold plating thickness Cable Features  UV-Resistant, Hydrolyss Resistand
 Inserts TPU  Sealing  O-Ring
Overmolding   TPU Locking Screws  Brass with Nickel plated
Contact Resistance  ≤10mΩ  Panel cut Size  M5X0.5
 Pollution Degree II Pretection Degree   IP67
Suitable Cable Diameter PG7 (3-5MM) Connector Flamability UL94HB
Waterproof Depth IP67 1M Depth 30Minutes Plug mating life 100 times
Compliance Rohs Compliant Reference Standard IED61076-2-105




Default wire length: 1000mm

Default wire size: UL2464 26AWG


M5 with wire plug connectors Size



M5 Male-Plug
M5 female-plug



M5 Right-Angle-Male-Plug
M5 Right-Angle-Female-Plug



M5 Rear-mounted male socket
M5 Rear panel female socket



M5 Front-mounted male socket
M5 Front panel female socket
*If you need more information, you can find customer service through the contact information on the right side of this page.
